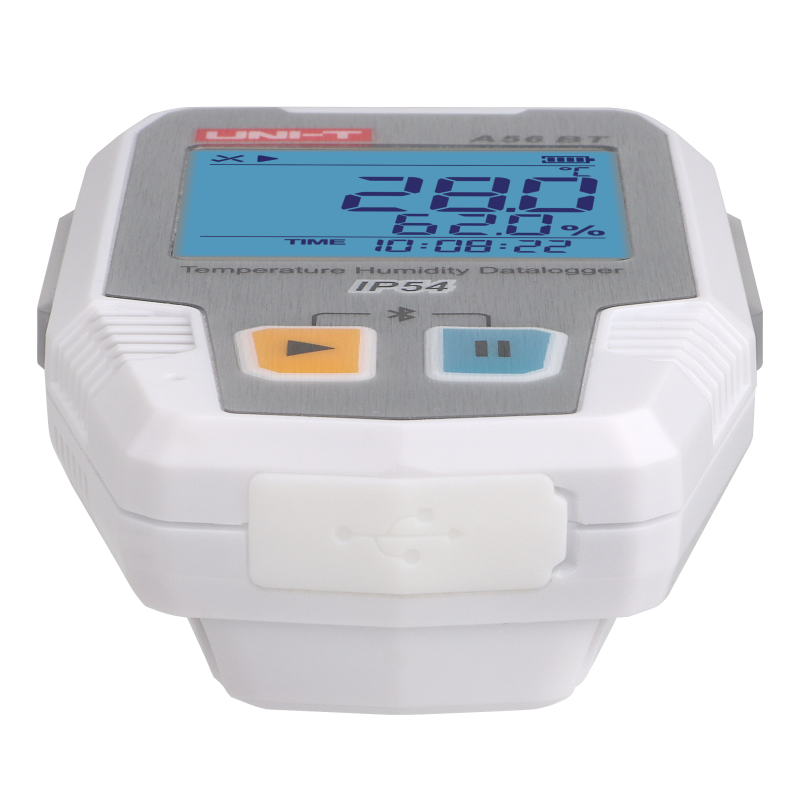

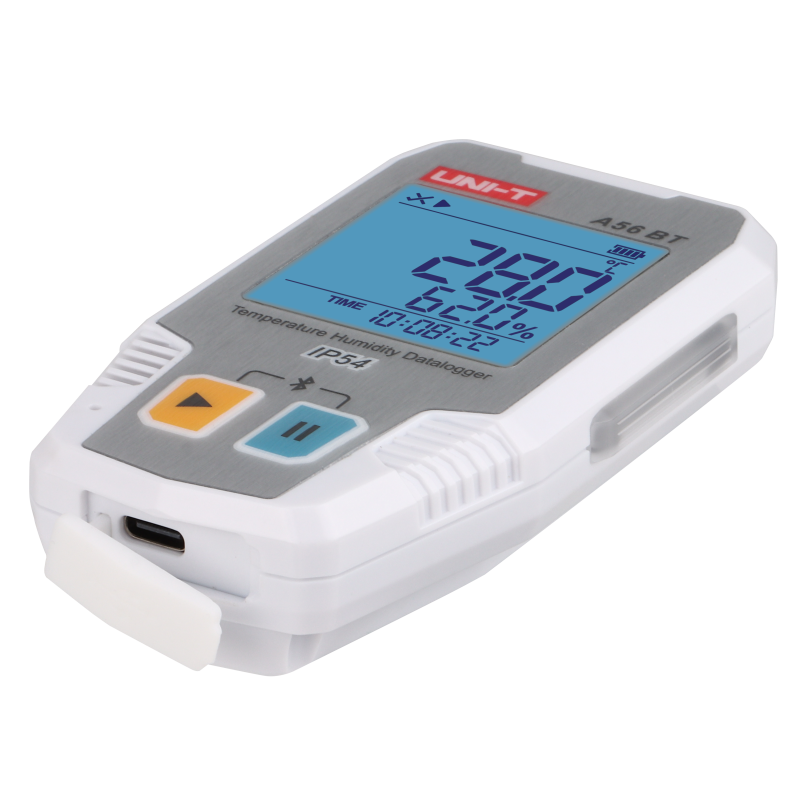

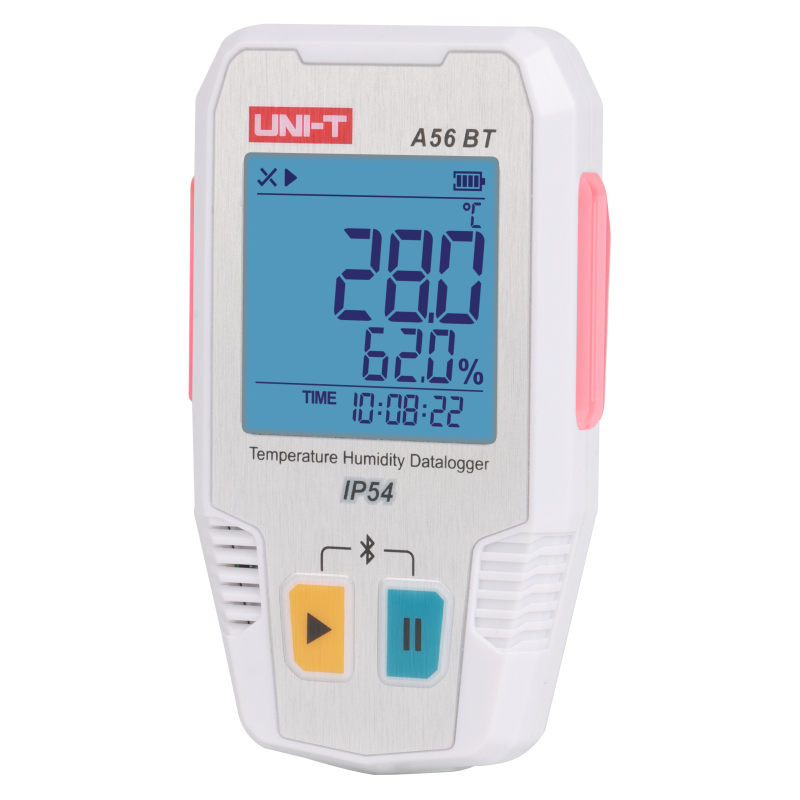

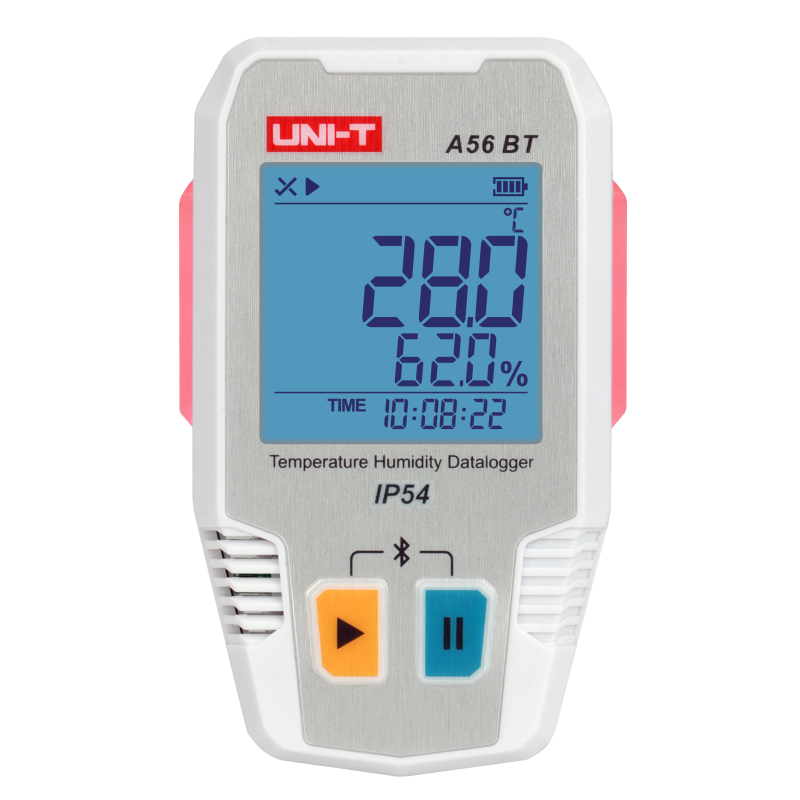

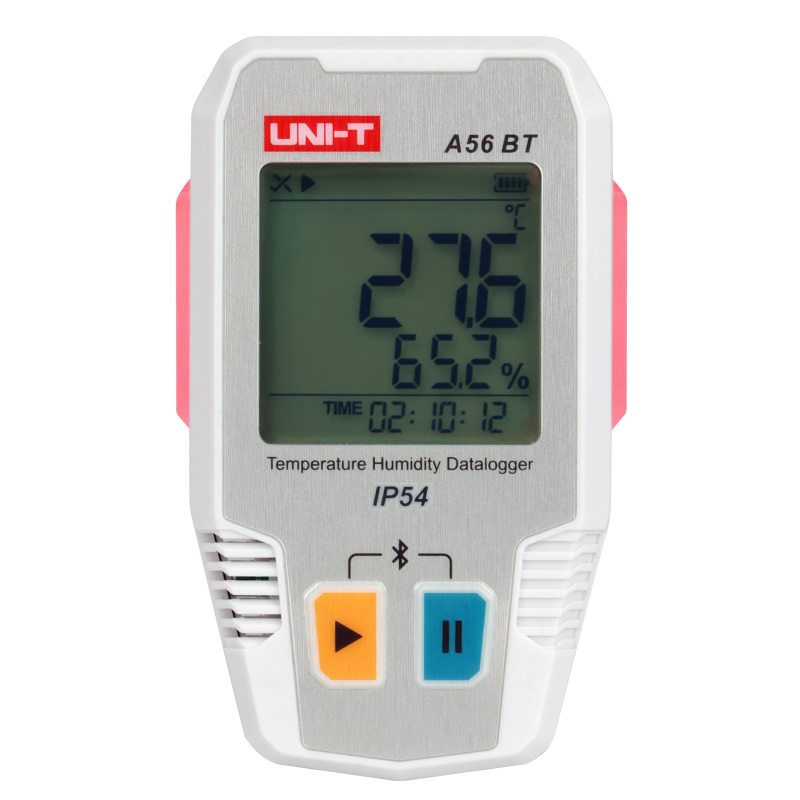

A56 BT Temperature Humidity Datalogger

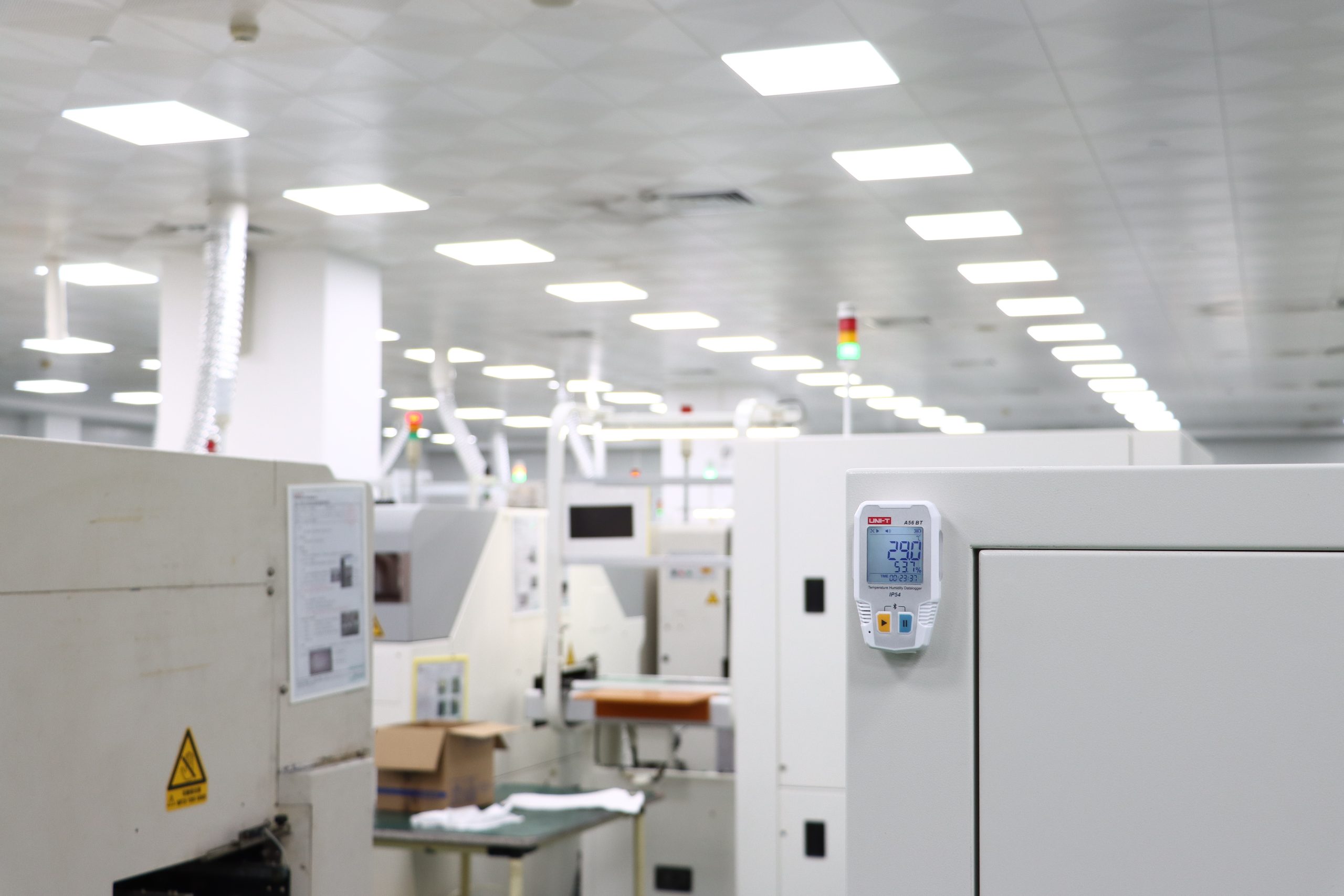

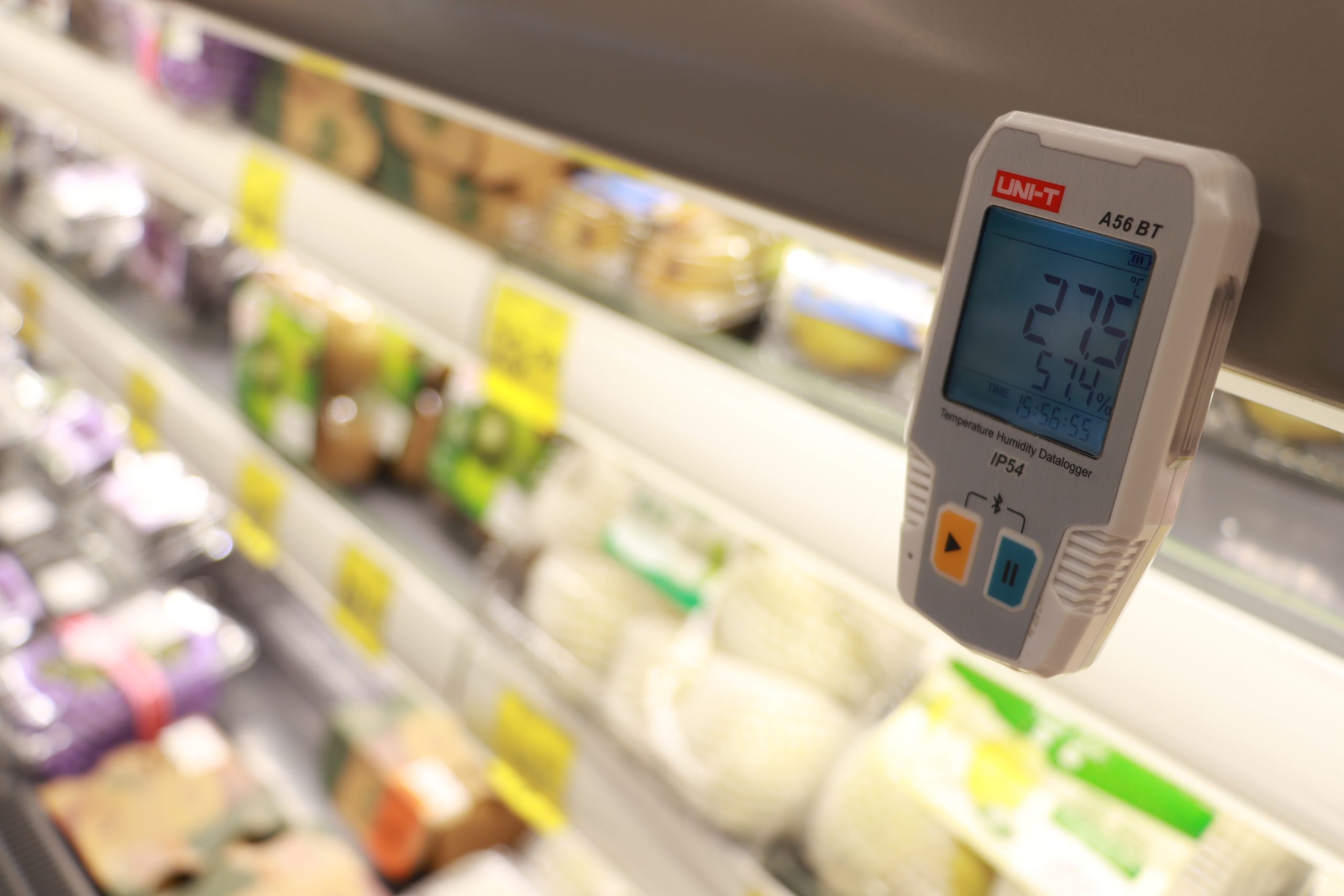

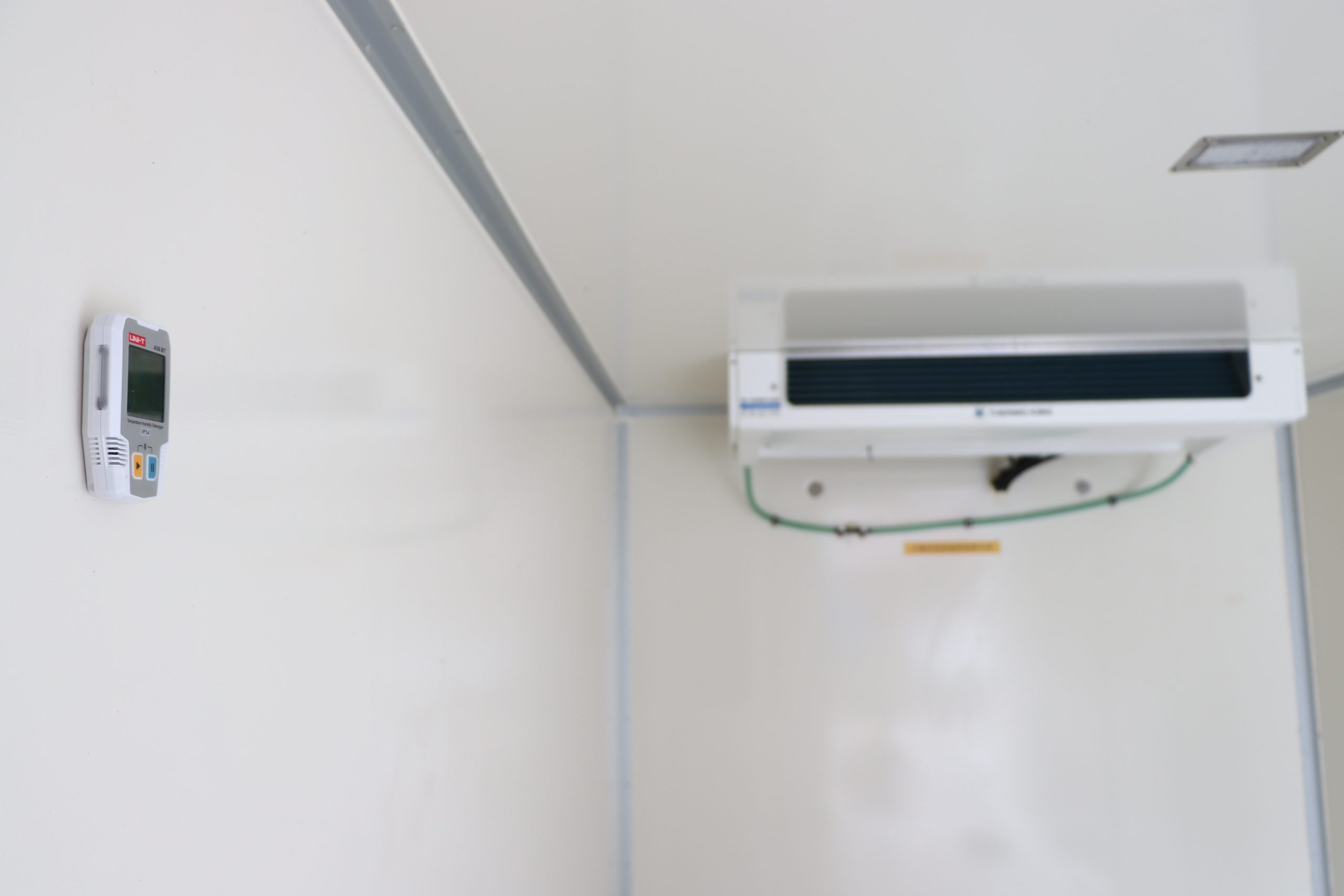

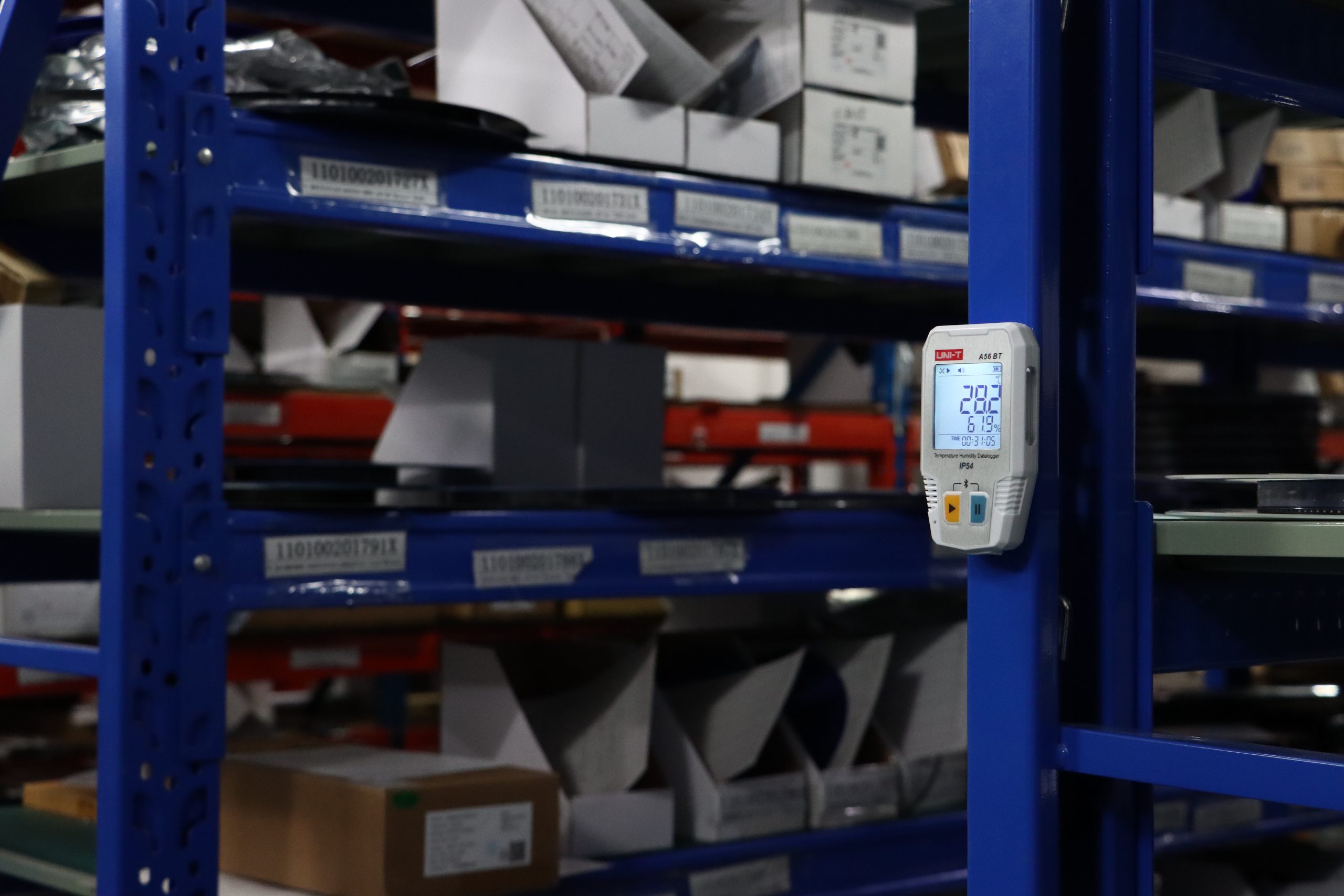

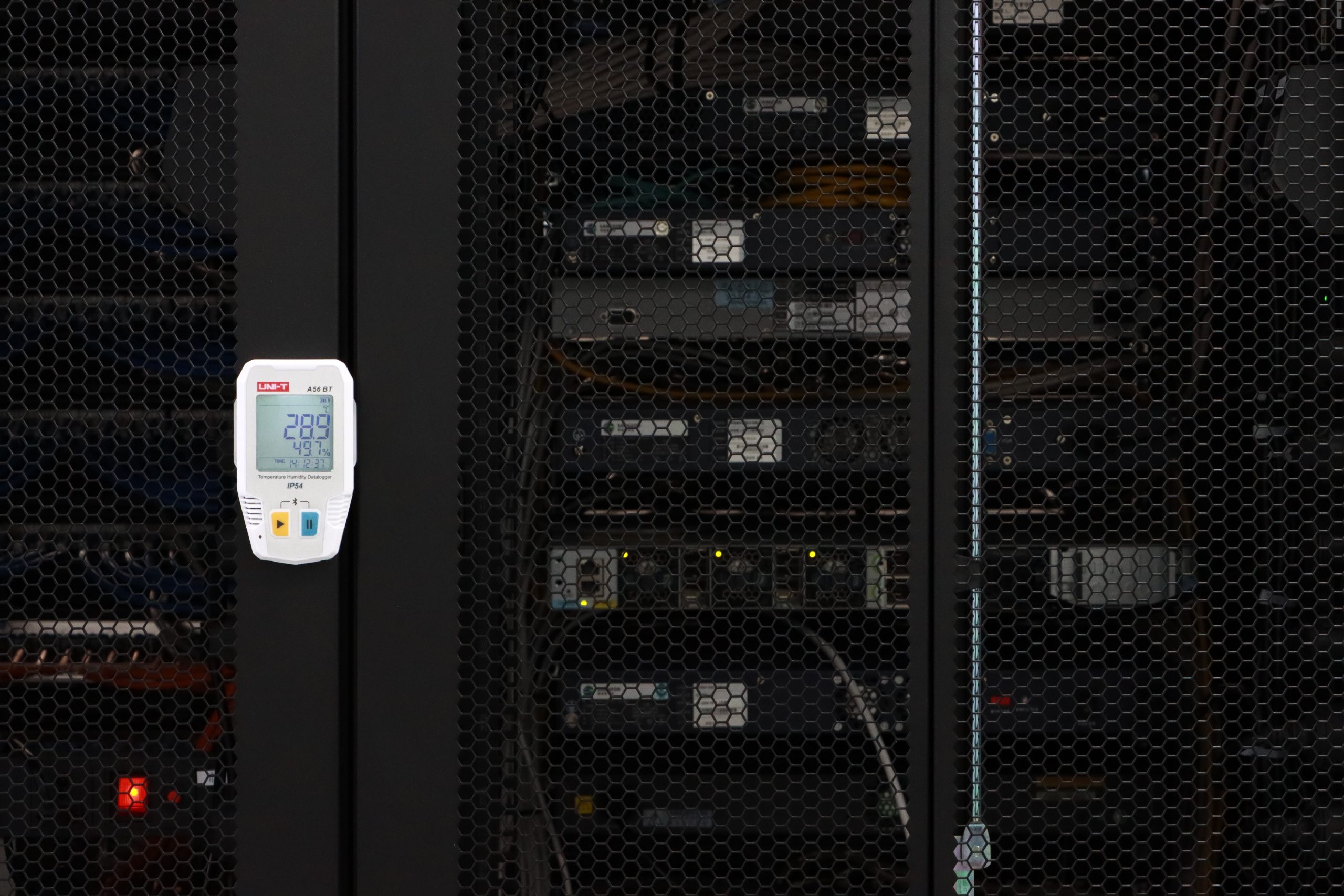

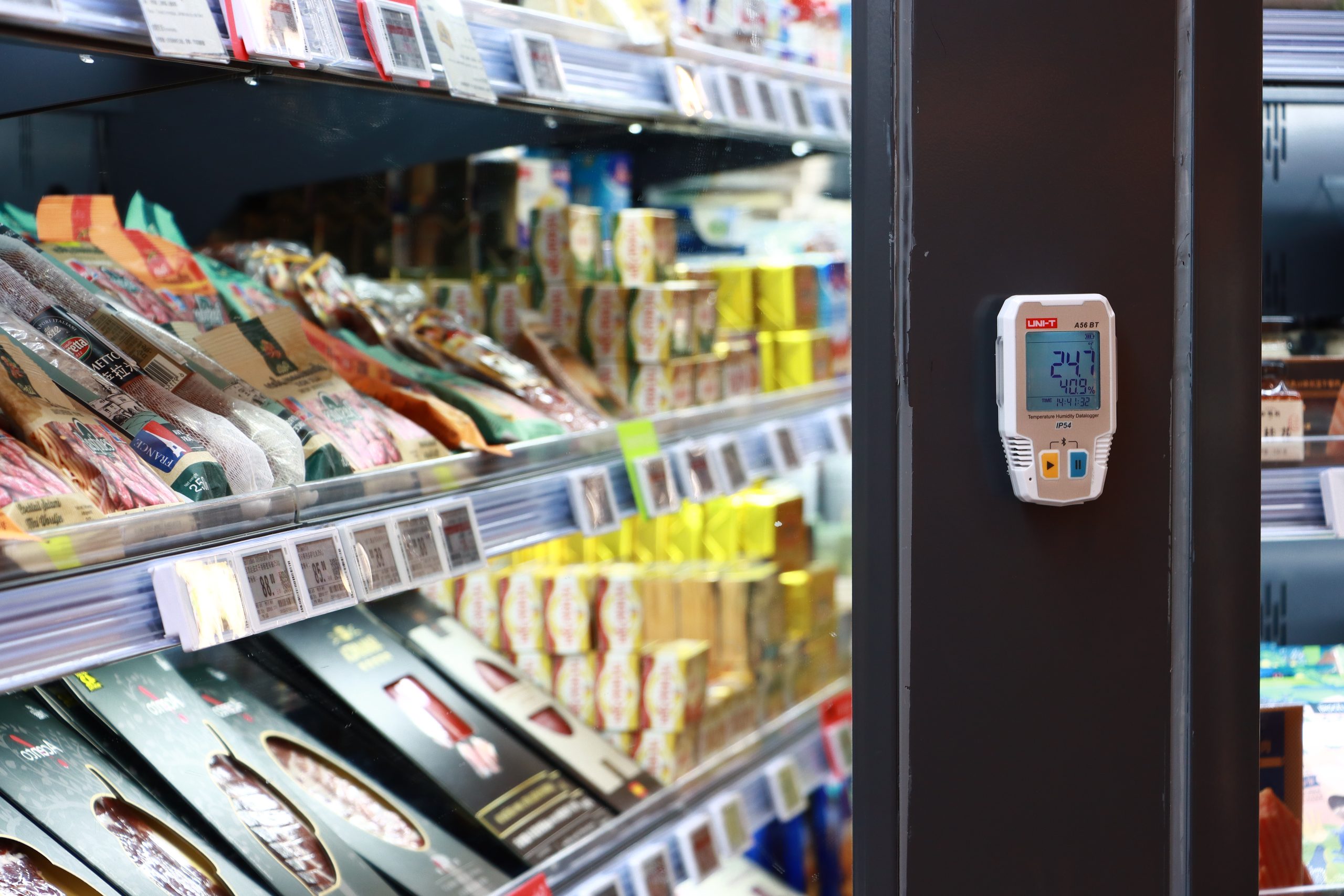

A56BT Bluetooth Temperature Humidity Datalogger is using high-accuracy digital temperature humidity module as the sensor, and with low-power microprocessor. It features high accuracy, large storage capacity, auto record, time display, LED sound-light alarm, ultra-low temperature record and etc. Meanwhile, it supports to modify records, view data and export PDF report via the mobile App or PC software. The datalogger can satisfy high-accuracy measurement and long-time temperature humidity record requirement in different conditions, widely used in the food processing, cold-chain transportation, storage and etc.
Description
Features of A56 BT Temperature Humidity Datalogger
Certifications: CE, RoHS
Language:EN, FR, DE, IT, ES, SV, PL, CZ
Specifications
Specifications | ||
Temperature Range | -40℃~ 85℃ (-40℉~ 185℉) | |
Humidity Range | 0%~100% RH | |
Temperature | Range | Accuracy |
0℃< t ≤60℃ | ±0.3℃ | |
-40℃≤ t ≤0℃ | ±0.5℃ | |
60℃< t ≤85℃ | ||
32℉< t ≤140℉ | ±0.6℉ | |
-40℉≤ t ≤32℉ | ±0.9℉ | |
140℉< t ≤185℉ | ||
Humidity | Range | Accuracy |
0%≤ RH ≤90% | ±2.5%RH(25℃) | |
90%< RH ≤100% | ±3.5%RH(25℃) | |
Temperature/Humidity Resolution | 0.1℃(0.1℉)/0.1%RH | |
Record Capacity | 64000 sets | |
MAX/MIN/AVG | √ | |
LED Indicators | √ | |
Backlight | √ | |
Buzzer Alarm | √ | |
PC Software | √ | |
Mobile App | √(TempLink) | |
Low Battery Indication | √ | |
Record Interval | 10s~ 24h (Set through the PC/App) | |
Start-up Ways | Buttons/Software/Booking | |
Time of Screen OFF | 15s±2s (Set through the PC/App) | |
USB Port | USB Type-C | |
USB Power Supply | √ | |
Working Time | 2yr | |

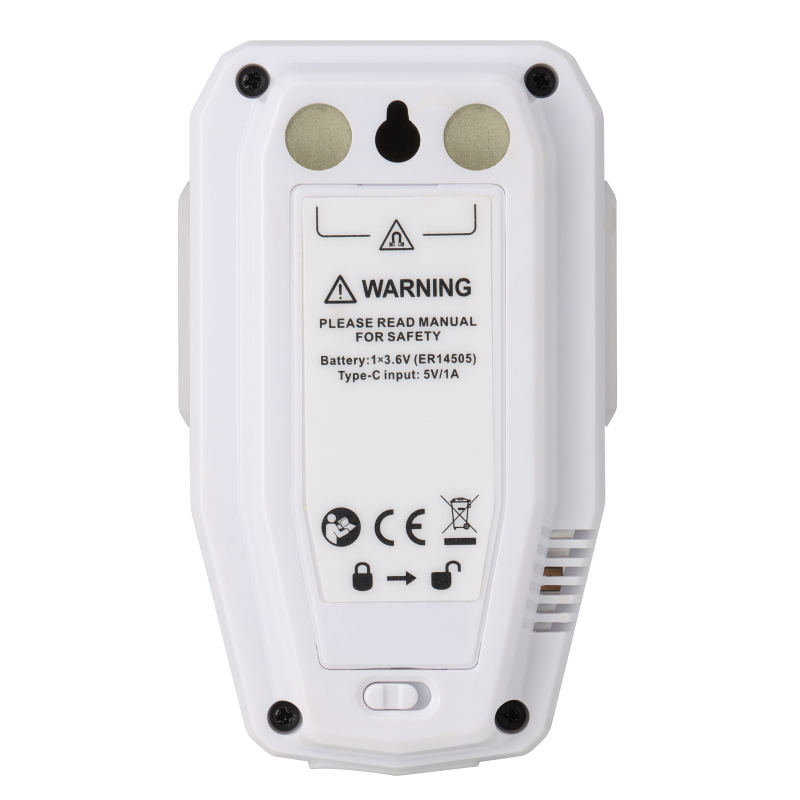

Hangings Way | Rear magnetic or Wall mounting | |
Working Temperature and Humidity | -40℃~+85℃,≤99%RH | |
Storage Temperature | -40℃~+85℃(Not battery included) | |
-40℃~+60℃(ER14505 battery included) | ||
Certificate | EMC: EN 61326-1:2021,ROHS | |
IP Rating | IP54 | |
Characteristics | ||
Battery Type | Single-use Li-SOCl2 Battery 3.6V 2700mAh(ER14505) | |
Size | 104×62×25mm | |
Weight | About 100g(Not battery included) | |
Standrad Accessories | Gift box, quick start guide, safety instruction, download operation guide, battery, wall-mounted Screws*2, expandable rubber plug*2, USB cable | |
Standard Quantity Per Carton | 20pcs |
Documents
A56 BT | Quick Start Guide
A56 BT | Datasheet
A56 BT | User Manual Czechic
A56 BT | User Manual English
A56 BT | User Manual French
A56 BT | User Manual German
A56 BT | User Manual Italian
A56 BT | User Manual Polish
A56 BT | User Manual Spanish
A56 BT | User Manual Swedish
Related Products
-

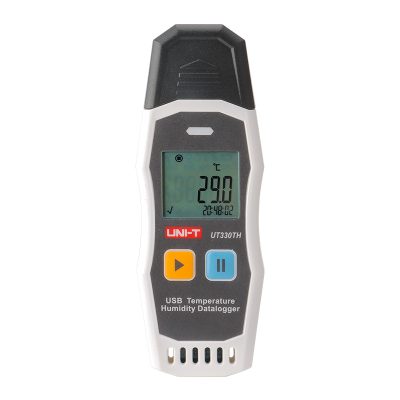

UT330TH/UT330THC USB Dataloggers
Using high-precision temperature, humidity sensors for long period monitoring and recordingLearn moreCompare ModelsCompare: -

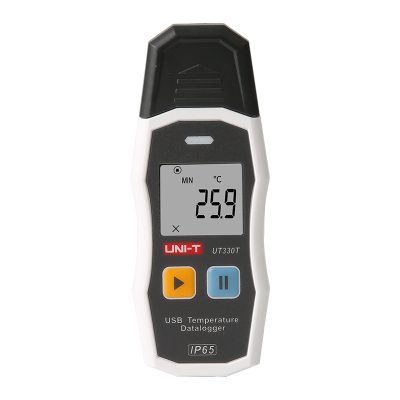

UT330T USB Temperature datalogger
Featuring reusable, large storage capacity, real-time online measurement, and design with a standard USB connectorLearn moreCompare ModelsCompare: -

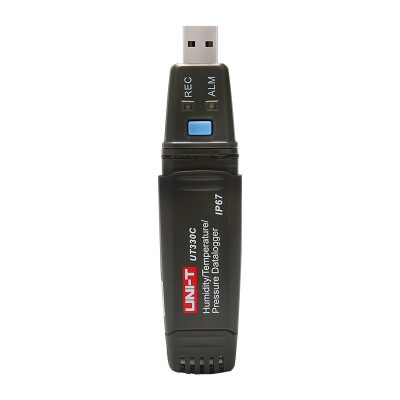

UT330-USB Series Dataloggers
