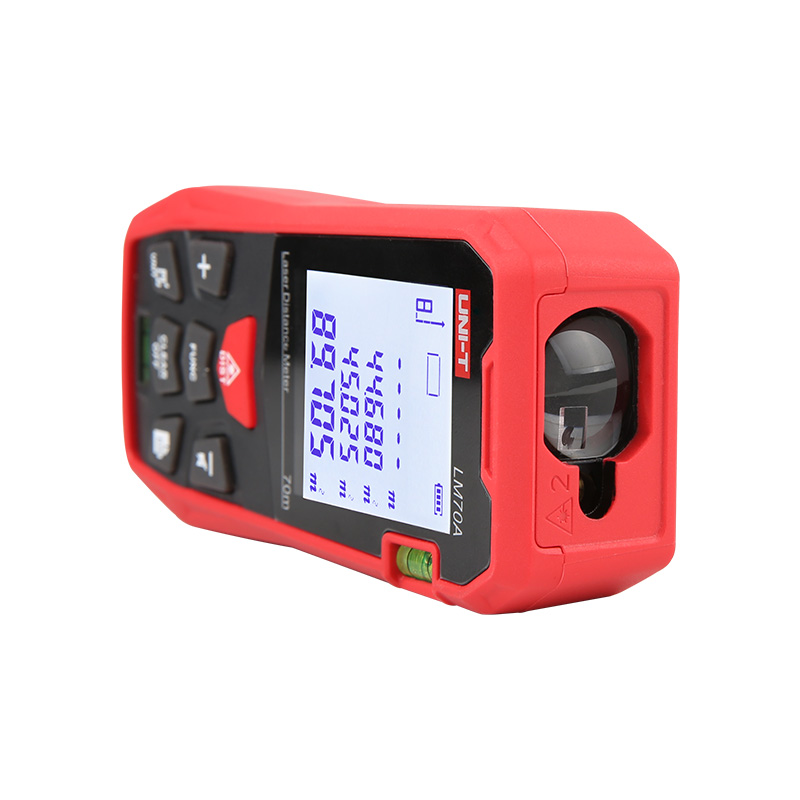

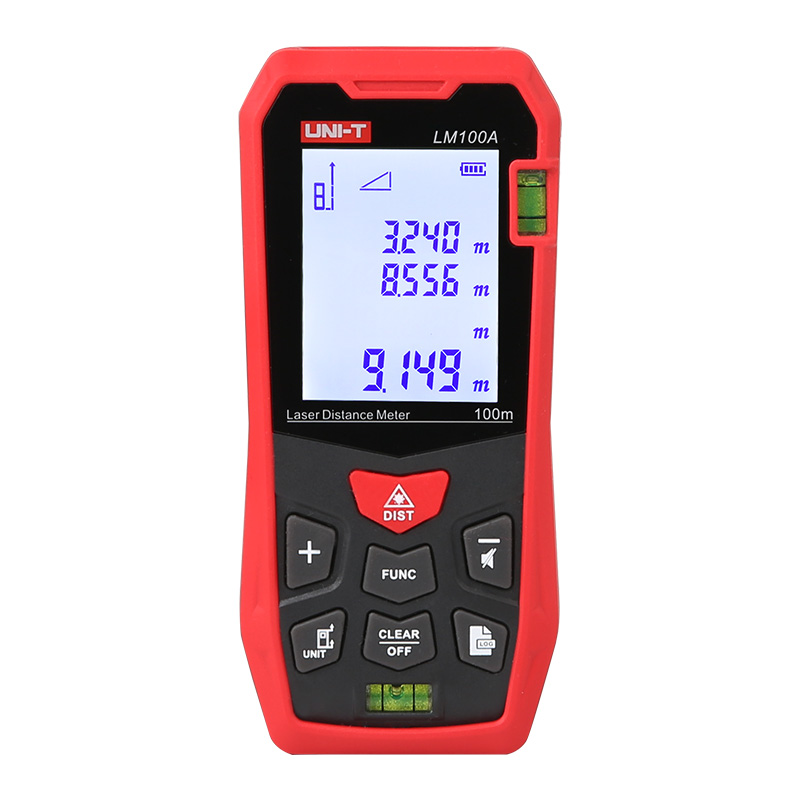

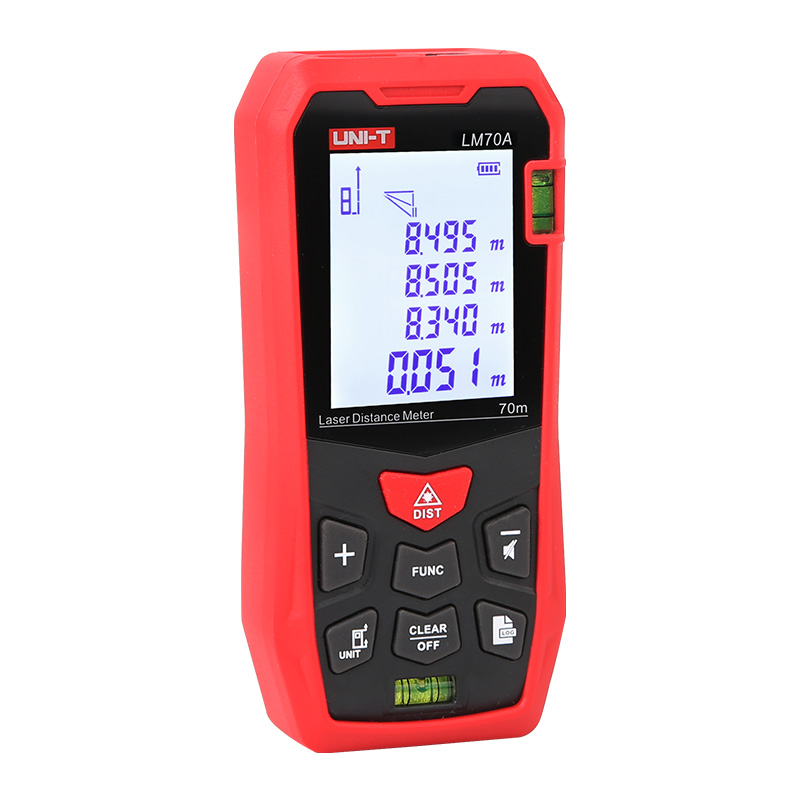

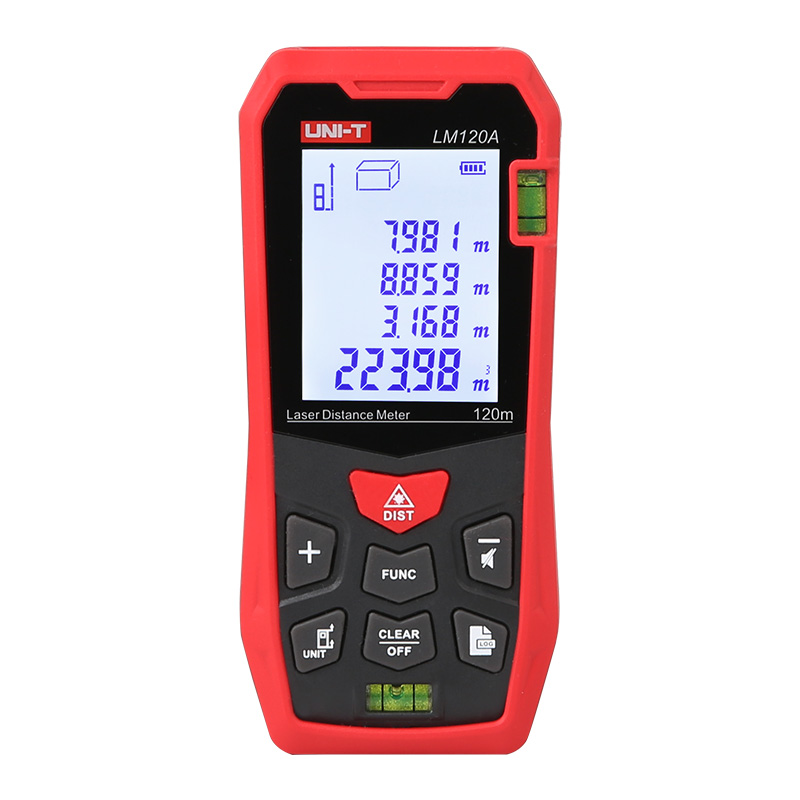

LM A Series Laser Distance Meters
The new LM A series laser distance meters are new design to measure the distance precisely. It can measure AREA, VOLUME, ADDITION, SUBTRACTION, etc easily. It can also store 99 groups data. These meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development and so on.
Models in LM A Series: LM50A, LM70A, LM100A, LM120A
Description
Features of LM A Series Laser Distance Meters
Certificates: CE, UKCA
● Ergonomic exterior, comfortable handling
● Millimeter accuracy
● 99 groups data storage
● Quick, self calculation with real-time readout
● Physical leveler(Horizontal and vertical)
● Multiple functions: Max/Min/continuous measurement, data storage, etc
Specifications of LM A Series Laser Distance Meters
| Specifications | LM50A | LM70A | LM100A | LM120A |
| Certifications | RoHS | |||
| Display size | 2.0-inches | |||
| Range | 50m | 70m | 100m | 120m |
| Display type | LCD | |||
| Min. display unit | 0.001m | |||
| Measurement units | m/ft/in | |||
| Measurement basis | front/rear | |||
| Accuracy | ±(2mm+5 x 10-5D) | |||
| Laser class | 2 | |||
| Laser type | 630~670nm, ﹤1mW | |||
| Features | ||||
| Single measurement | √ | |||
| Continuous measurement | √ | |||
| Max/Min/Area | √ | |||
| Volume | √ | |||
| Pythagoras | √ | |||
| Add/Subtract | √ | |||
| Self calibration | √ | |||
| Horizontal bubble | √ | |||
| Data storage | 99 groups | |||
| Auto power off | 3 minutes without operation | |||
| Auto laser off | 30s without operation | |||
| Storage temperature | -20℃~60℃ | |||
| Operating temperature | 0℃~40℃ | |||
| General Characterisitics | ||||
| Power | 1.5V battery (LR03) x 2 | |||
| Product color | Red and grey | |||
| Product size | 122mm x 52mm x 29.5mm | |||
| Standard accessories | Carrying bag | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 40pcs | |||
| Standard carton measurement | 475×290×180mm | |||
