Description

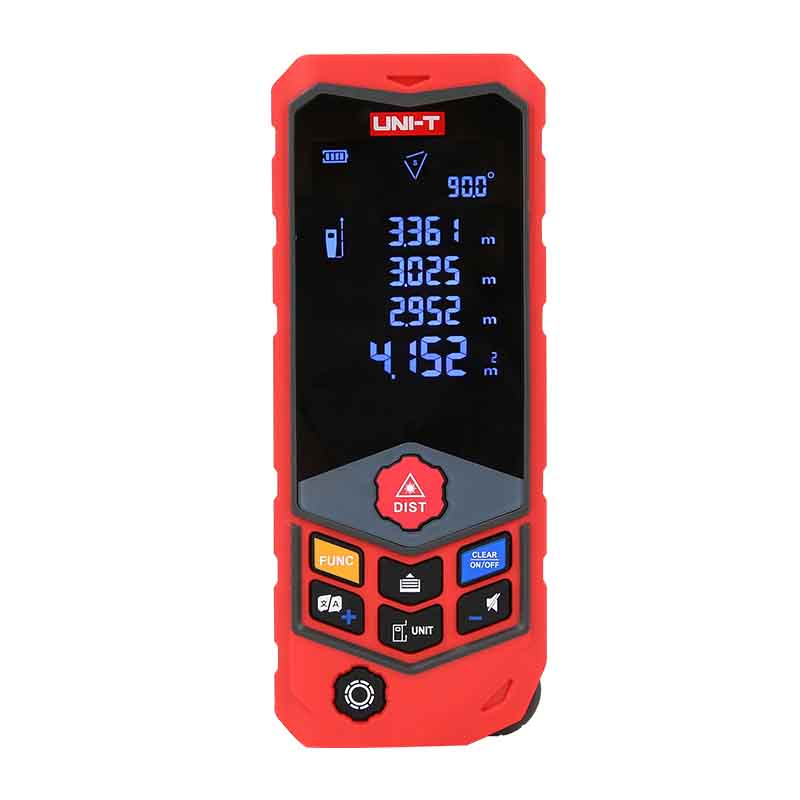

Features of LM50D/LM100D Laser Distance Meters
● Ergonomic exterior, comfortable handling
● Millimeter accuracy
● Large, HD display
● Auto voice and audio indication
● Curvature measurement, test curve length via the roller
● Auto power off after 3 minutes without operation
● Convenient angle measurement via electronic leveling
Specifications of LM50D/LM100D Laser Distance Meters
| Specifications | LM50D | LM100D |
| Display type | EBTN | |
| Display size | 2.4 inches | |
| Range | 50m | 100m |
| Min. display unit | 0.001m | |
| Measurement units | m/ft/in | |
| Measurement basis | Front/middle/rear | |
| Accuracy | ±(2mm+5 x 10-5 D) | |
| Laser class | 2 | |
| Laser type | 630~670nm, ﹤1mW | |
| Features | ||
| Single measurement | √ | |
| Continuous measurement | √ | |
| Max/Min/Area | √ | |
| Volume | √ | |
| Pythagoras | √ | |
| Triangle area | √ | |
| Auto leveling horizontal | √ | |
| Auto leveling vertical | √ | |
| Add/Subtract | √ | |
| Curvature measurement | √ | |
| Displacement | √ | |
| Trapezoid | √ | |
| Data storage | 20 groups | |
| Auto power off | 3 minutes without operation | |
| Auto laser off | 30s without operation | |
| Auto backlight off | 10s without operation | |
| Electronic leveler | √ | |
| Audio/Voice indication | √ | |
| Battery status display | √ | |
| Line laser marking | √ | |
| Storage temperature | -20℃~70℃ | |
| Operating temperature | 0℃~40℃ | |
