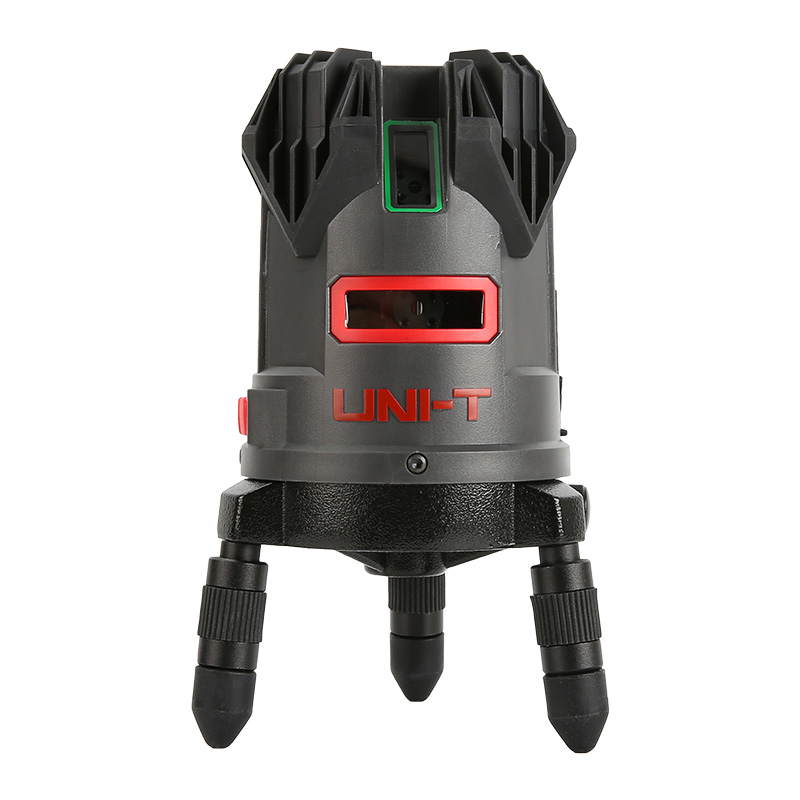

LM555LD Laser Leveler

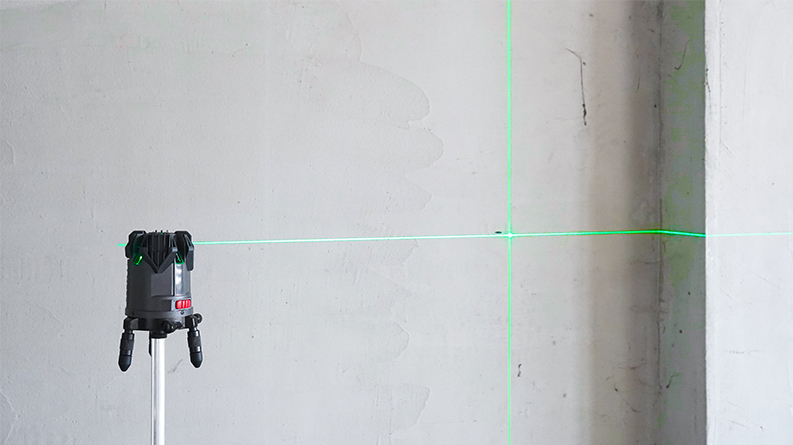

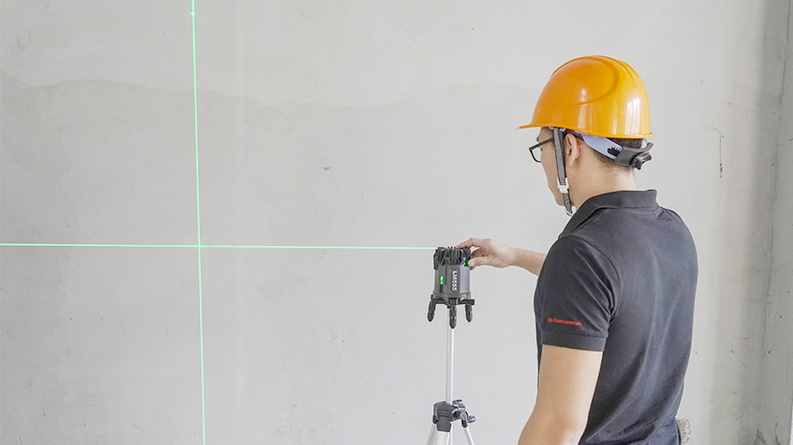

UNI-T’s new LM555LD laser level enables you to locate horizontal line, vertical line, and V-H cross-point accurately. The new and improved laser level is a perfect tool for building construction, home decoration, renovation, furniture installation, flooring, and project layout.
Description
Features of LM555LD Laser Leveler
● IP54 water proof
● Self leveling
● Built-in Li-ion battery
● Working radius: 20m
Specifications of LM555LD Laser Leveler
| Specifications | LM555LD |
| Display type | Green LD |
| Line type | 4V1H 1D |
| Laser wavelength | 510~515nm |
| Light source | ≤1mW |
| Laser class | 2 |
| Expanded Angle | H130°/V110° |
| H/V accuracy | ±2mm/10m |
| Self-leveling range | ±3.5° |
| Self-leveling method | Gravity pendulun magnetic damping |
| Self-leveling time | <3s |
| Working distance | Line 20m, point 25m@200lux |
| Operating time | >5h (all lasers on) |
| Operating temperature range | -5°C to 40°C |
| Storage temperature range | -20°C to 60°C |
| IP rating | IP54 |
| General Characteristics | |
| Power | 3.7V Li-ion battery 4000mAh |
| Product net weight | Around 1kg |
| Product size | 126mm x 120mm x 204.5mm |
| Standard accessories | Safety goggles, adapter, USB cable, mark ruler, English manual |
| Standard individual packing | Gift box, tool box |
| Standard quantity per carton | 4pcs |
| Standard carton measurement | 505mm x 415mm x 285mm |
| Standard carton gross weight | 9.1kg |
Documents
Tittle
Download
Related Products
-

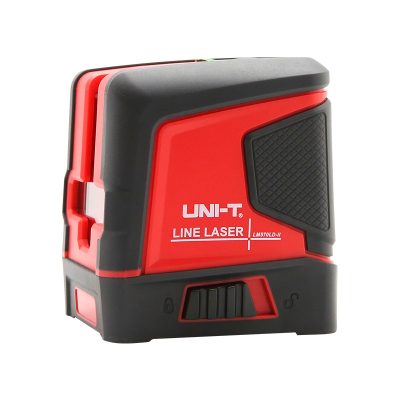

LM570/585 Series Laser Levelers
