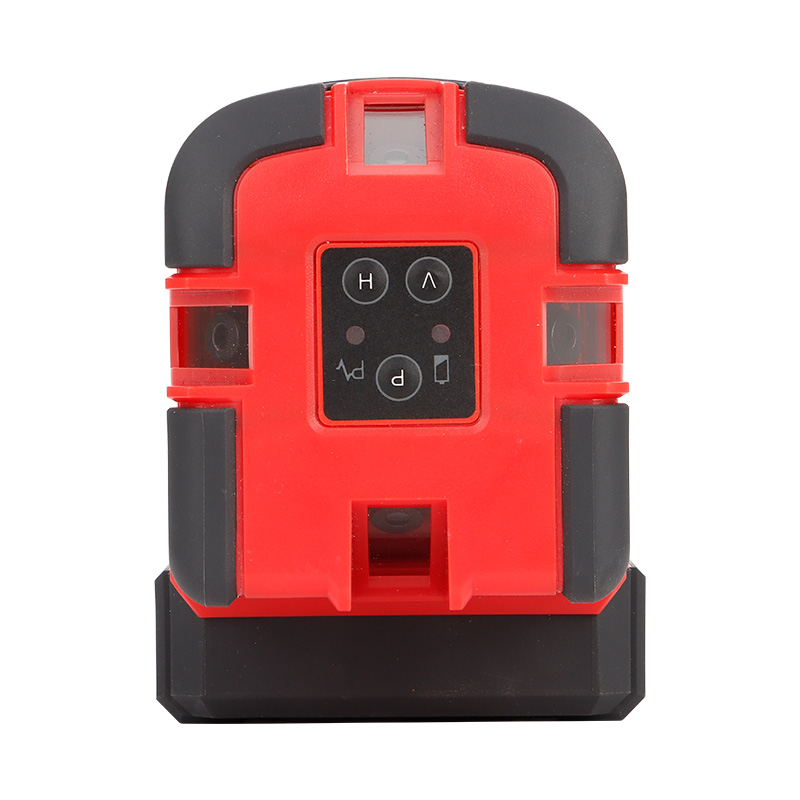

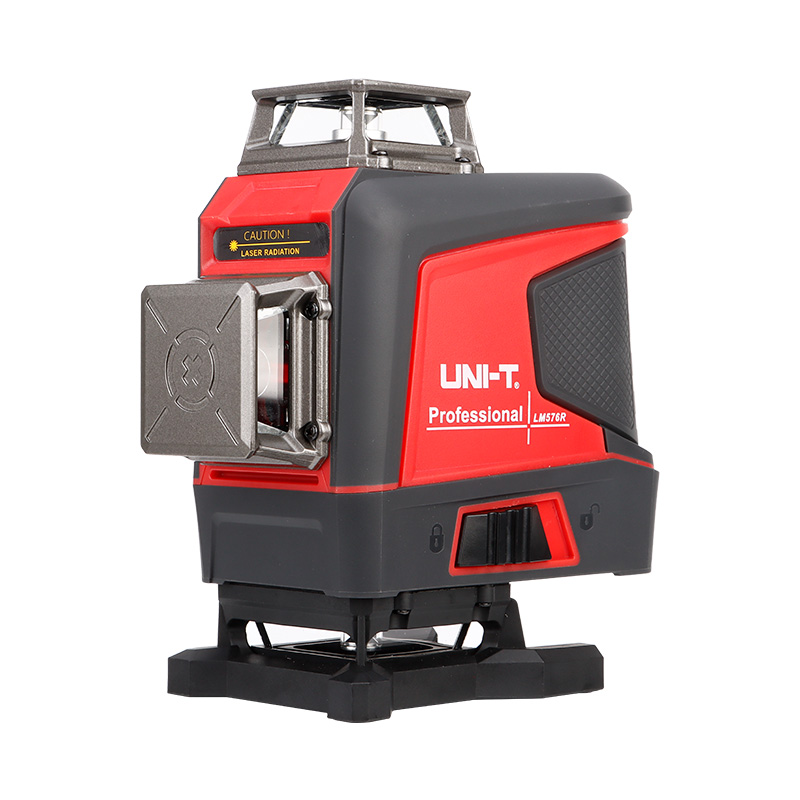

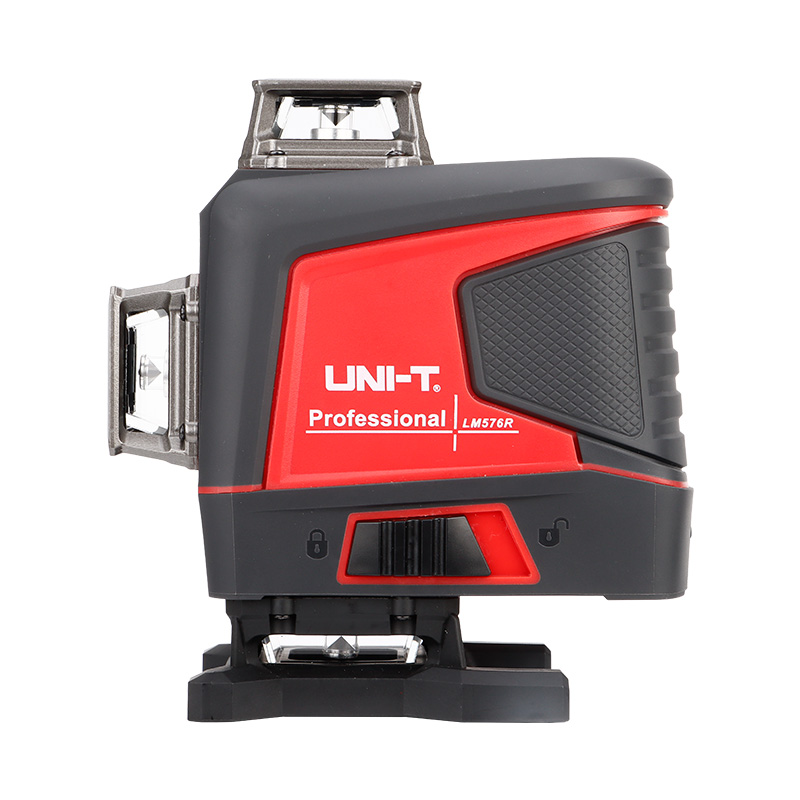

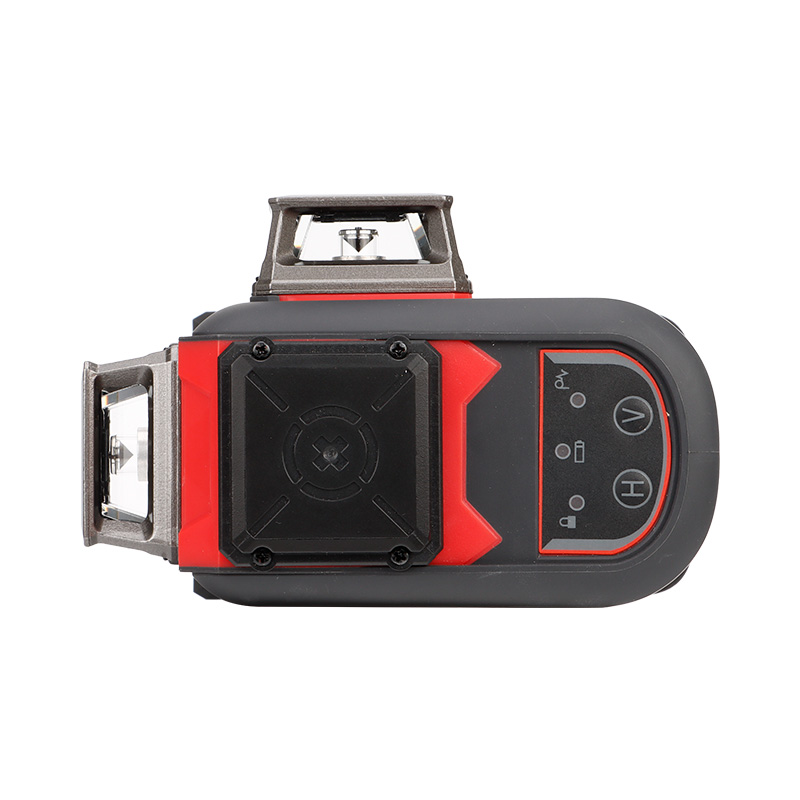

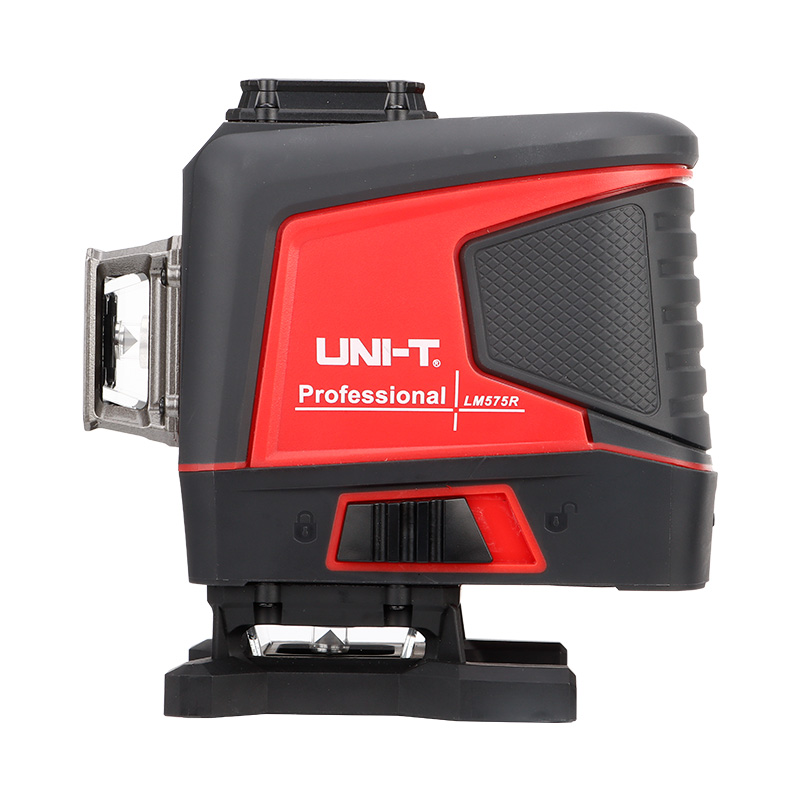

LM570R/585R Laser Levels
These laser levelers are equipped with red laser,which allows for fast, accurate layout of reference points and lines.They are ideal tools for stair laying,furniture installation, electrical and residential construction.
Description
Features of LM570R/585R Series Laser Levels
Certifications : ROW
● Laser high-brightness display
● 360°emission angle
● Self-leveling
● Pendulum lock

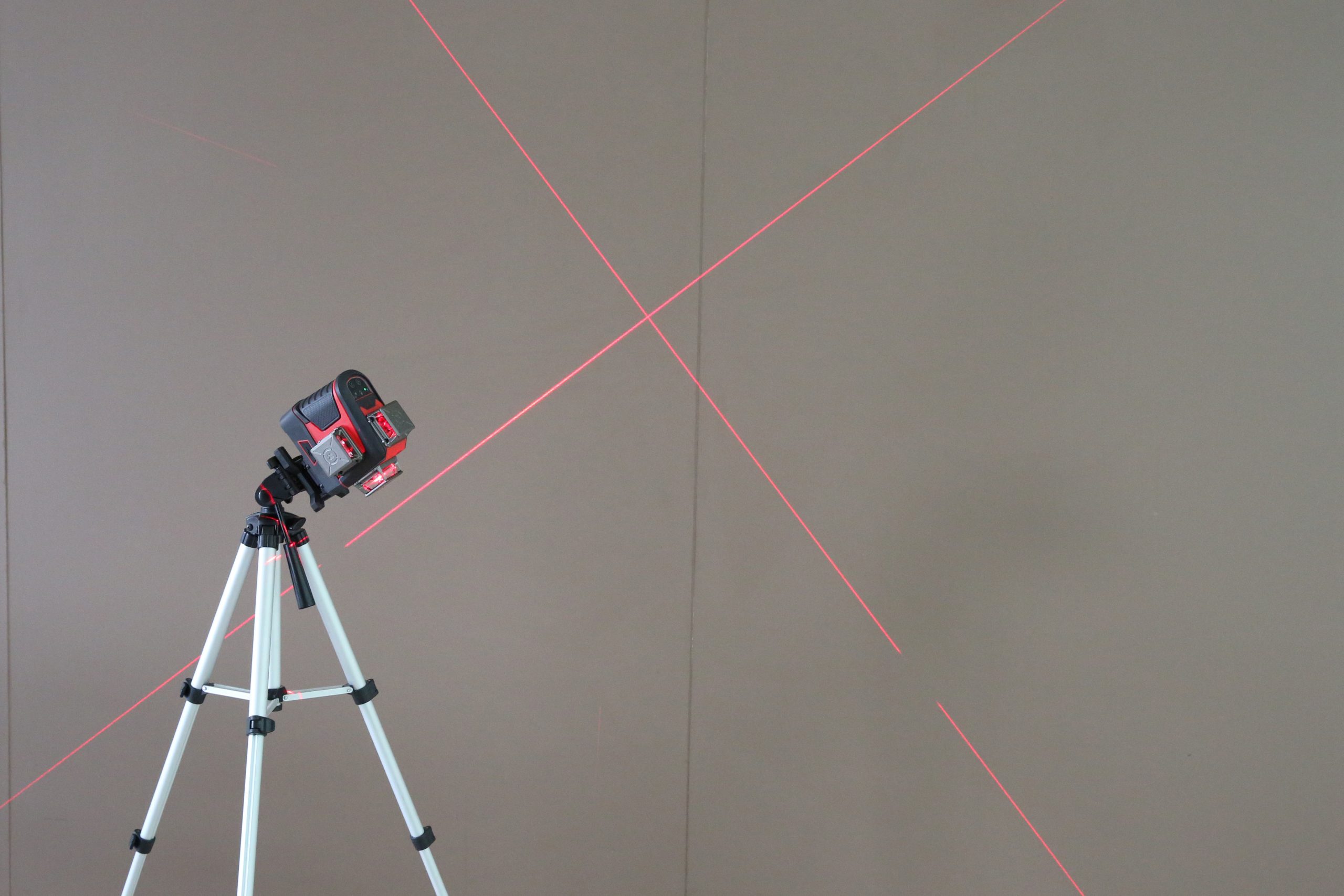

● Laser diagonals

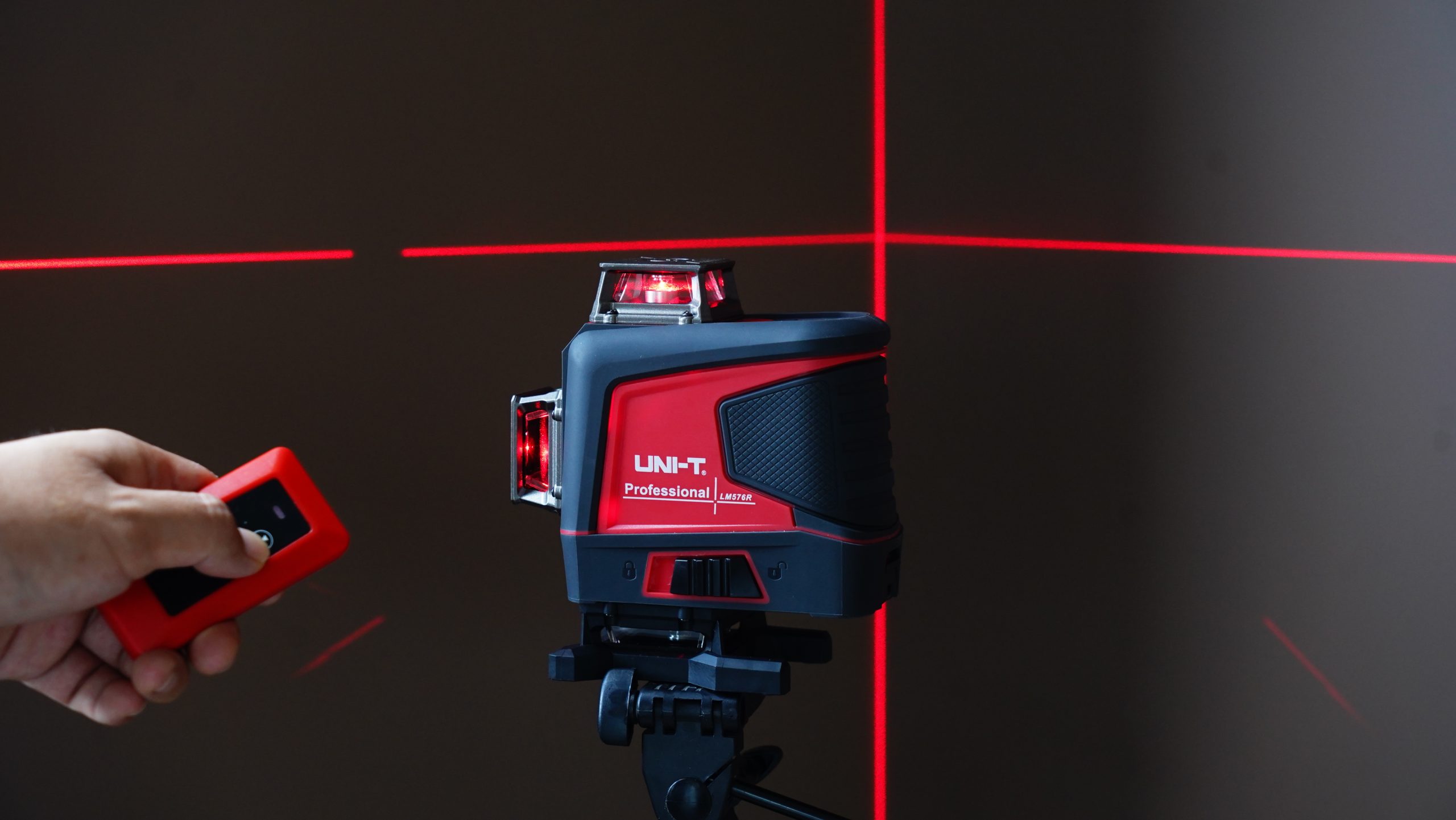

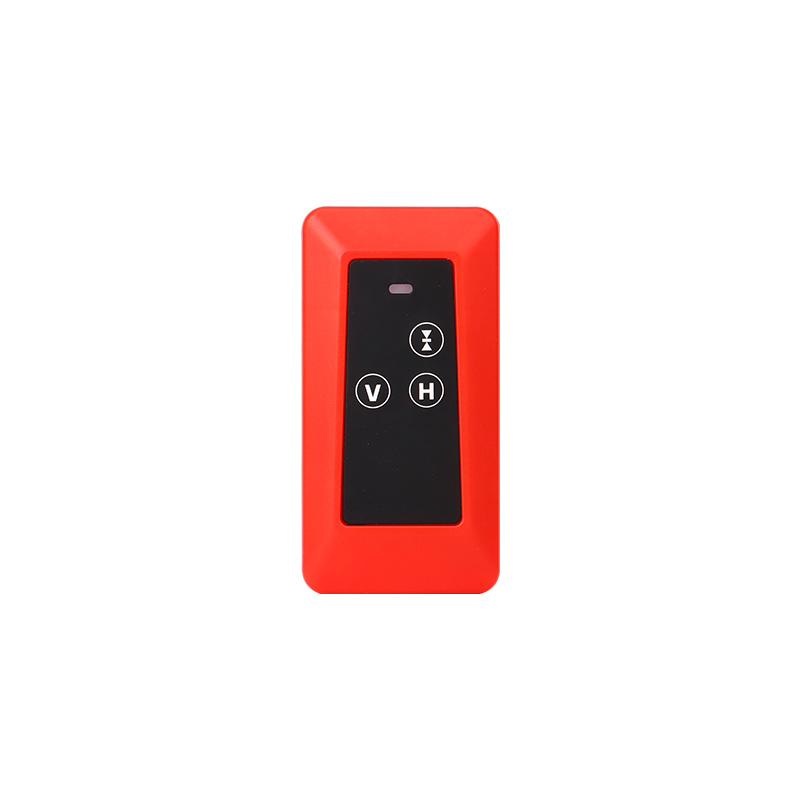

● Wireless remote control
Features of LM570R/LM585R Series Laser Levels
| Specifications | LM573R | LM575R | LM576R | LM585R |
| Laser tube | SHARP LD | |||
| Laser type | Red, high brightness | |||
| Laser lines | 12 lines | 12 lines | 16 lines | 8 lines |
| Laser wavelength | 635nm±10nm | |||
| Laser class | CLASS II | |||
| Horizontal accuracy | ≤±3mm/10m | |||
| Vertical accuracy | ≤±3mm/10m | |||
| Brightness adjustment | 3 scales adjustable | |||
| Laser linewidth | ≤5mm±1/10m (indoor lighting: 80~100lux) | |||
| Emission angle | 360° | 360° | 360° | Horizontal: 360°, vertical: 120° |
| Leveling range | ±(3±1)° | |||
| Minimum distance to wall/ground | 10mm | Wall: 10mm, ground: 15mm | Wall: 10mm, ground: 15mm | 20mm |
| Battery life | ＞30h | |||
| Operating range | In the highest brightness, radius＞30m | |||
| Leveling modes | Magnetic damping, heavy hammer | |||
| Alarm modes | Buzzer + laser line flashes | |||
| Diagonal mode | √ | |||
| Operating temperature | -10~50℃ | |||
| Power supply | 3.7V 6000mAh | |||
| Characteristic | ||||
| Standard accessories | Laser level, 6000mAh battery pack, Type-C cable, user manual, wall-mounted bracket + iron plate(not LM585R), remote control(not LM585R)，lifting table(only LM585R), tripod base(only LM585R), toolbox | |||
| Product size | 130×87×120mm | 135×87×130mm | 135×87×150mm | 85×75×115mm |
