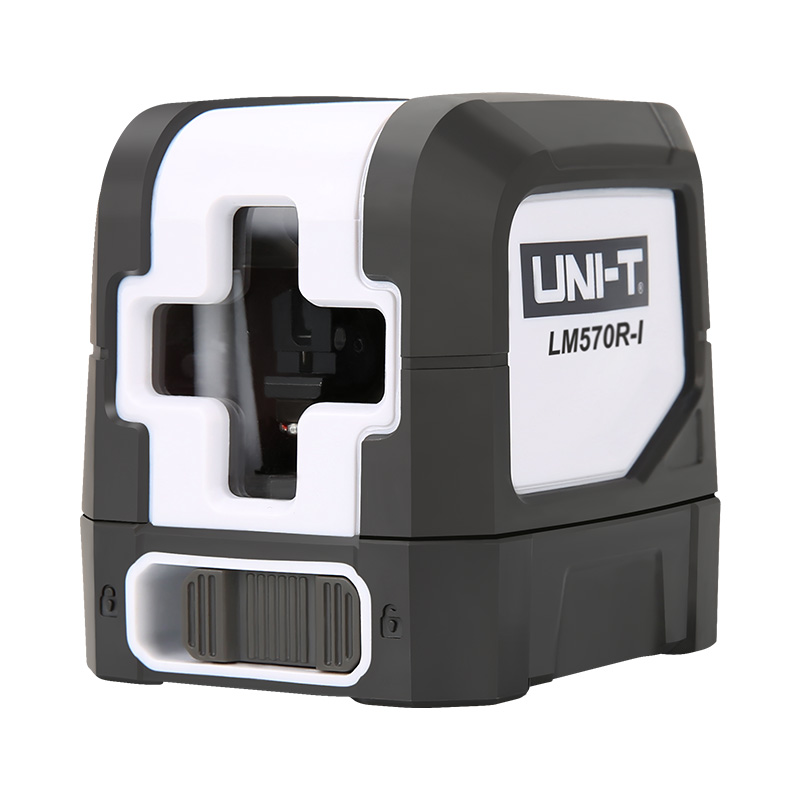

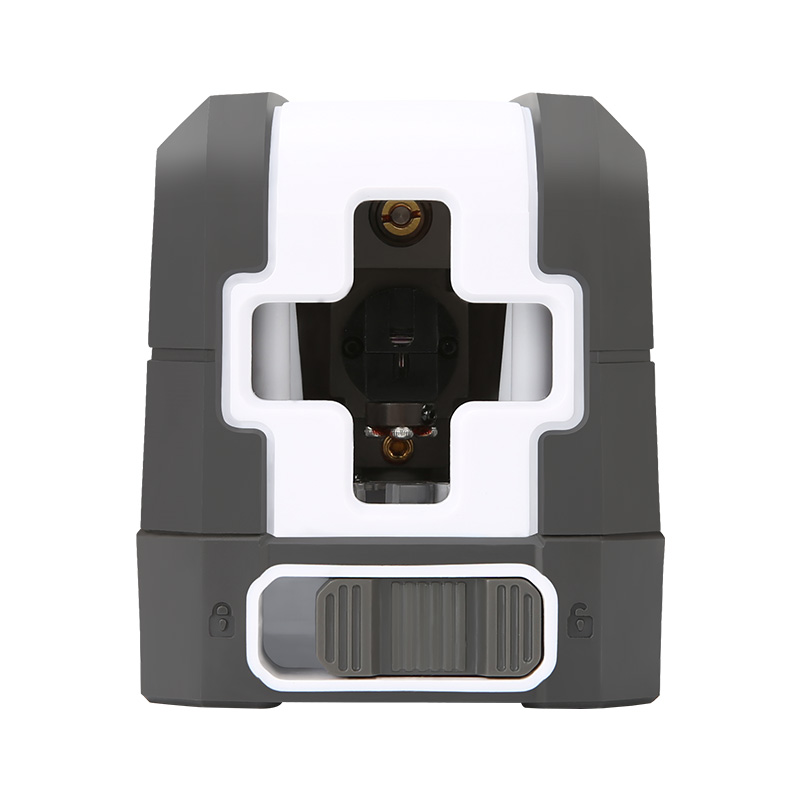

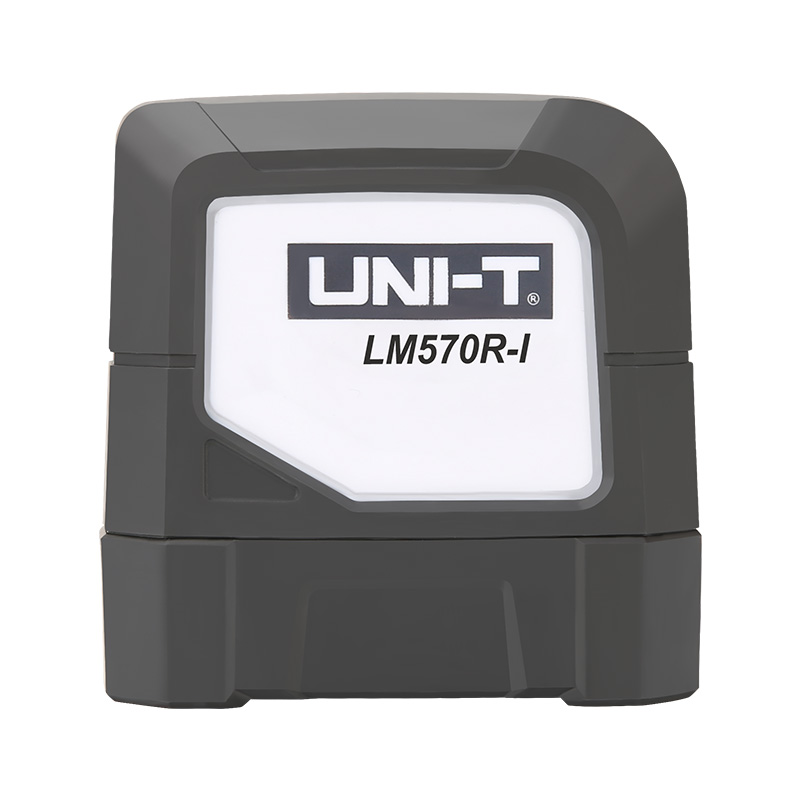

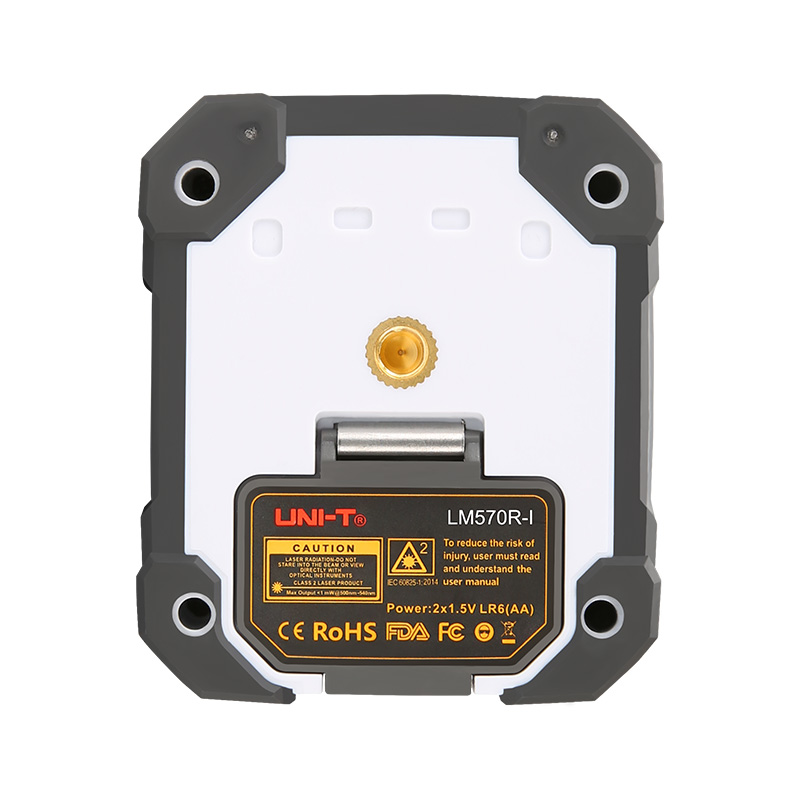

LM570R-I Laser Level
LM570R-I laser level is a handy tool used in construction. It is an ideal tool for horizontal and vertical leveling needs. It is useful for project that requires accurate leveling in 2-dimensional area.
Description
Features of LM570R-I Laser Level
Certificates: CE, RoHS
● Working distance (Line): 15m-30m
● Operating time: ＞12h (All lasers on)
● Tripod mounting hole
● Laser class: Class 2
● Light source: 10mW
● Laser wavelength: 635nm
Specifications of LM570R-I Laser Level
| Specifications | LM570R-I |
| Display type | Red |
| Laser type | 1V1H |
| Expanded Angle | H110°/V110° |
| Laser class | Class 2 |
| Light source | 10mW |
| Laser wavelength | 635nm |
| H/V accuracy | ±3mm/10m |
| Self-leveling range | 3°±1° |
| Self-leveling time | 3s |
| Working distance (Line) | 15m-30m |
| Operating time | ＞12h (All lasers on) |
| Tripod mounting hole | √ |
| General Characterisitics | |
| Power | 2 x AA (LR6) |
| Product color | White and grey |
| Product net weight | 170g |
| Product size | 59mm x 28mm x 137mm |
| Standard accessories | Carrying bag, USB interface cab |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 390mm x 255mm x 345mm |
| Standard carton gross weight | 8.3kg |
Applications of LM570R-I Laser Level
Home decoration, renovation, construction, grading, electrical installation, furniture installation, and more.
