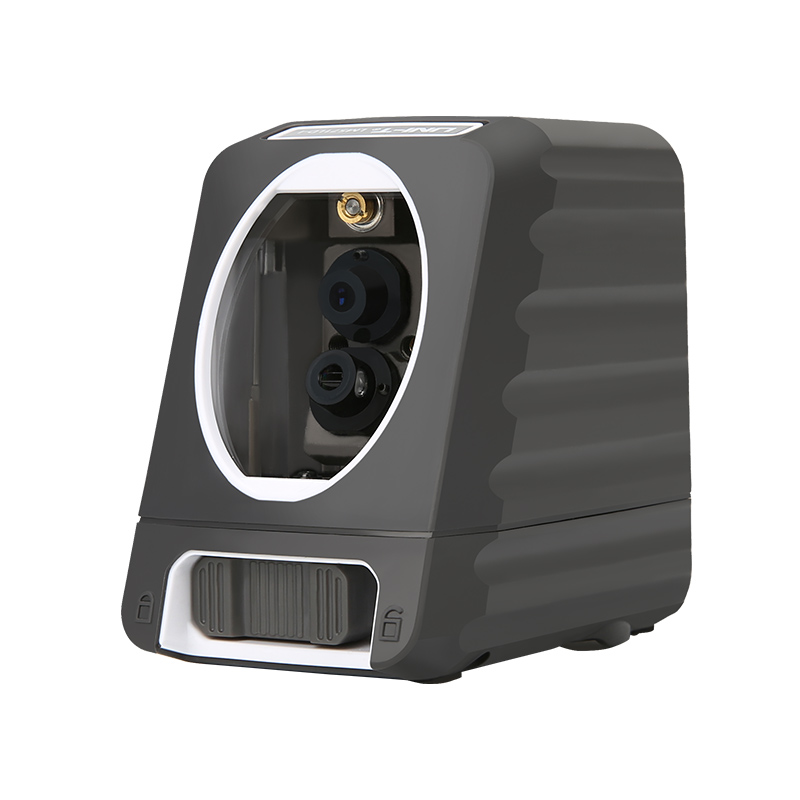

LM571R-I/LM571LD-I Laser Levels
LM571 series line laser level are handy tools used in construction. These are ideal tools for horizontal and vertical leveling needs. It is useful for project that requires accurate leveling in 2 dimensional area.
Models: LM571R-I, LM571LD-I
Description
Features of LM571R-I/LM571LD-I Laser Levels
● Display type: green
Specifications of LM571R-I/LM571LD-I Laser Levels
| Specifications | LM571R-I | LM571LD-I |
| Display type | Red | Green |
| Laser type | 1V1H | |
| Expanded Angle | H130°/V150° | |
| Laser class | Class 2 | |
| Light source | 10mW | |
| Laser wavelength | 635nm | 510nm |
| H/V accuracy | ±2mm/10m | |
| Self-leveling range | 3°±1° | |
| Self-leveling time | 3s | |
| Working distance (Line) | 20m; ＞30m with detector | |
| Operating time | ＞12h (All lasers on) | |
| Tripod mounting hole | √ | |
