LM600A Series Laser Rangefinders
The LM600A series have 2.0 inch external screen. Measurement data will be displayed on dual screens at the same time while measuring objects in a certain range. They can be used in golf, power equipment installation, highway, municipal engineering, forestry survey and design, construction, network planning and communication maintenance.
Models in LM600A Series: LM600A, LM800A, LM1000A, LM1200A, LM1500A
Description
Features of LM600A Series Laser Rangefinders
Certificates: CE, UKCA, RoHS
● Compact and portable
● External screen
● Multi-function LCD
● High precision
● Harmless laser
● 6 x optical
● Vibration hint
● Flagpole lock mode
● Golf mode
● Built-in 750mAh rechargeable lithium battery
Specifications of LM600A Series Laser Rangefinders
| Specification | LM600A | LM800A | LM1000A | LM1200A | LM1500A |
| Distance range | 3-600m | 3-800m | 3-1000m | 3-1200m | 3-1500m |
| Accuracy | ±1m ± range x 0.2% | ||||
| Magnification | 6X | ||||
| Diopter adjustment range | ±6° | ||||
| Height | 250m | 300m | 450m | 500m | 600m |
| Speed range | 18~300Km/h | ||||
| Angle | ±45° | ||||
| Objective aperture | 21.5mm | ||||
| Eyepiece aperture | 15mm | ||||
| Exit pupil diameter | 3.7mm | ||||
| Angle error | ±1° | ||||
| Flagpole lock mode | √ | ||||
| Golf trajectory compensation mode | √ | ||||
| Slope measurement | √ | ||||
| Height measurement | √ | ||||
| Volume measurement | √ | ||||
| Area measurement | √ | ||||
| Angle measurement | √ | ||||
| Auto power off | √ | ||||
| Laser class | Class 1 | ||||
| Laser wavelength | 905nm | ||||
| Operating temperature | -10°C~50°C | ||||
| General Characteristics | |||||
| Battery | 3.7V 750mAh lithium battery | ||||
| Product color | Black + silver | ||||
| Product net weight | 170.7g | ||||
| Product size | 108×72.5×42.2mm | ||||
| Standard accessories | USB cable | ||||

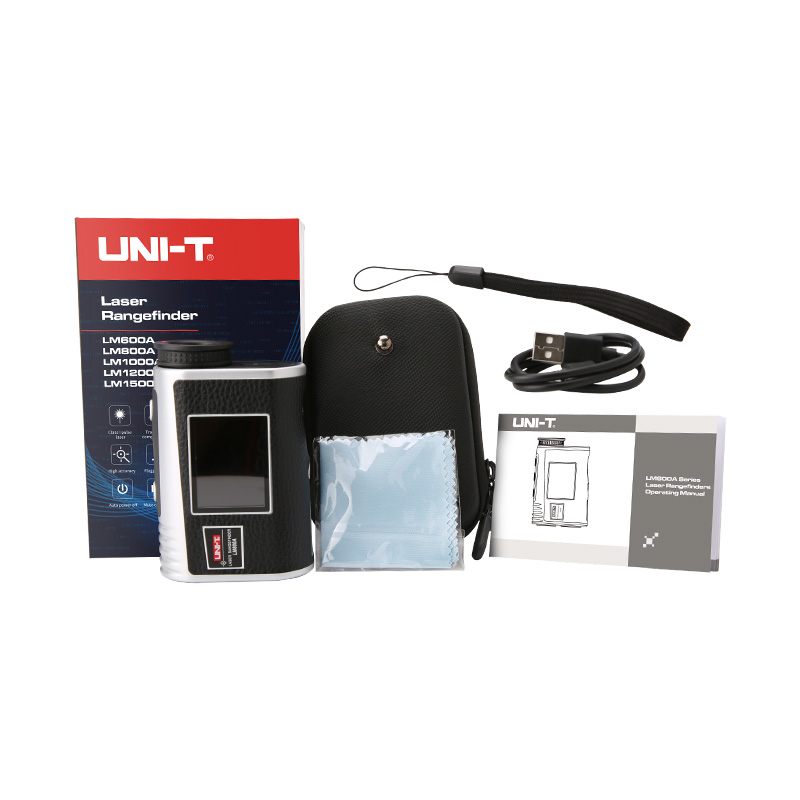

| Standard individual packing | Gift box,English manual,Carrying bag,Hand strap | ||||
| Standard quantity per carton | 5 pcs | ||||
| Gross weight(one carton) | 479g | ||||
Applications of LM600A Series Laser Rangefinders
The LM600A Series can be used in golf, power equipment installation, highway, municipal engineering, forestry survey and design, construction, network planning and communication maintenance.
