Description

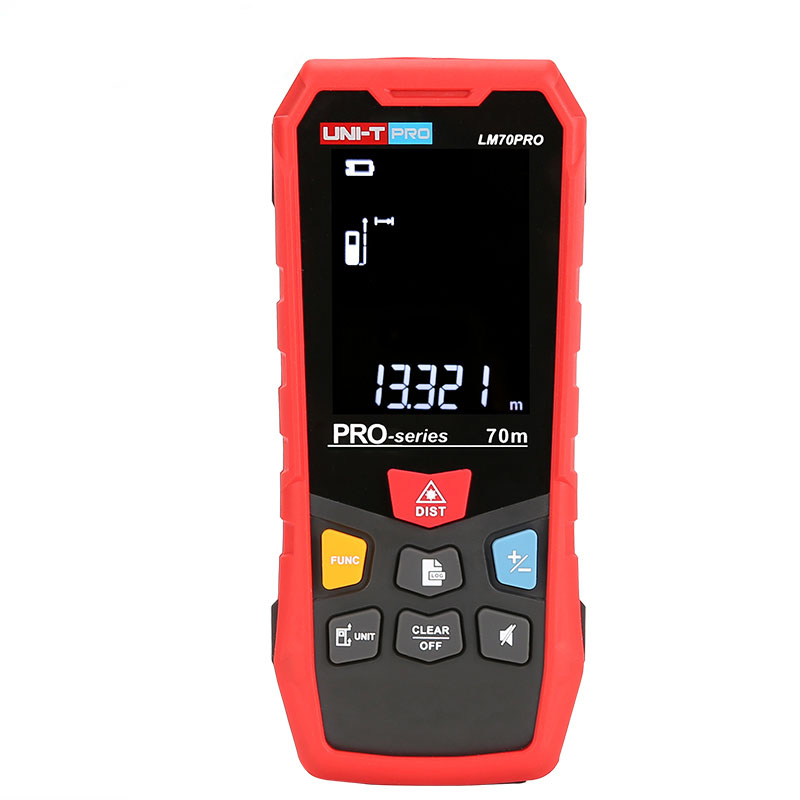

Features of LM70PRO/LM100PRO/LM120PRO Laser Distance Meters
● 2.4-inch color screen
● 6 measurement modes
● 3 selectable measurement references
● Electronic leveling
● 20 groups of data storage
● IP65 dust and water proof
● 2m drop test
● USB 3.0 supply power
Specifications of LM70PRO/LM100PRO/LM120PRO Laser Distance Meters
| Specifications | LM70PRO | LM100PRO | LM120PRO |
| Display type | EBTN | ||
| Display size | 2.4-inches | ||
| Range | 70m | 100m | 120m |
| Min. display unit | 0.001m | ||
| Measurement units | m/ft/in/ft+in | ||
| Measurement basis | Front/middle/rear | ||
| Accuracy | ±2mm | ||
| Laser class | 2 | ||
| Laser type | 630~670nm, ﹤1mW | ||
| Features | |||
| Single measurement | √ | ||
| Continuous measurement | √ | ||
| Max/Min/Area | √ | ||
| Volume/Pythagoras | √ | ||
| Add/Subtract/Triangle area | √ | ||
| Auto leveling horizontal/vertical | √ | ||
| Electronic leveler | √ | ||
| Data storage | 20 groups | ||
| Auto laser off | 30s without operation | ||
| Auto power off | √ | ||
| Auto backlight off | √ | ||
| Battery status display | √ | ||
| USB charging | √ | ||
| Tripod mounting hole | √ | ||
| General Characterisitics | |||
| Power | 1.2V AAA recharge battery x 3 | ||
| Product color | Red and grey | ||
| Product net weight | 170g | ||
| Product size | 59mm x 28mm x 137mm | ||
| Standard accessories | Carrying bag, USB interface cab | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 390mm x 255mm x 345mm | ||
| Standard carton gross weight | 8.3kg | ||
