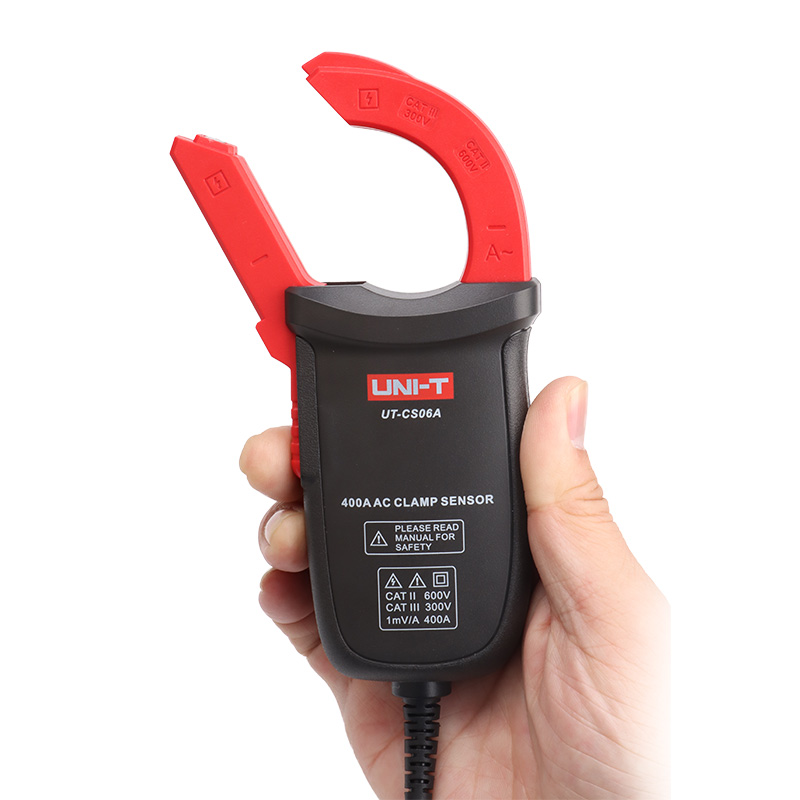

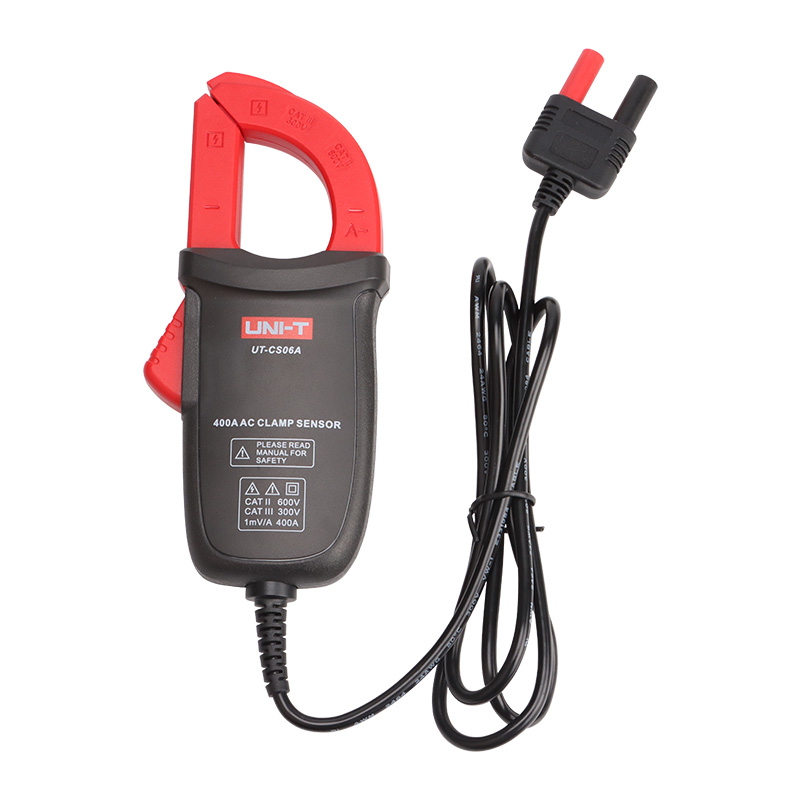

UT-CS06A 400A AC Current Clamp Sensor
UT-CS06A 400A AC Current Clamp is a current entry-level sensor for AC Current measurement of multimeter/data logger.

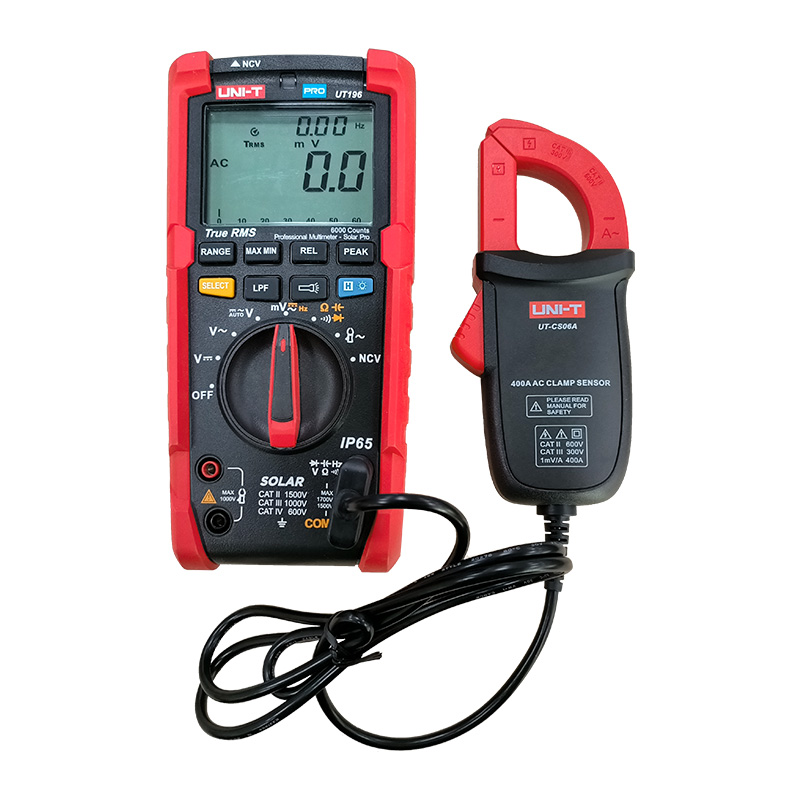

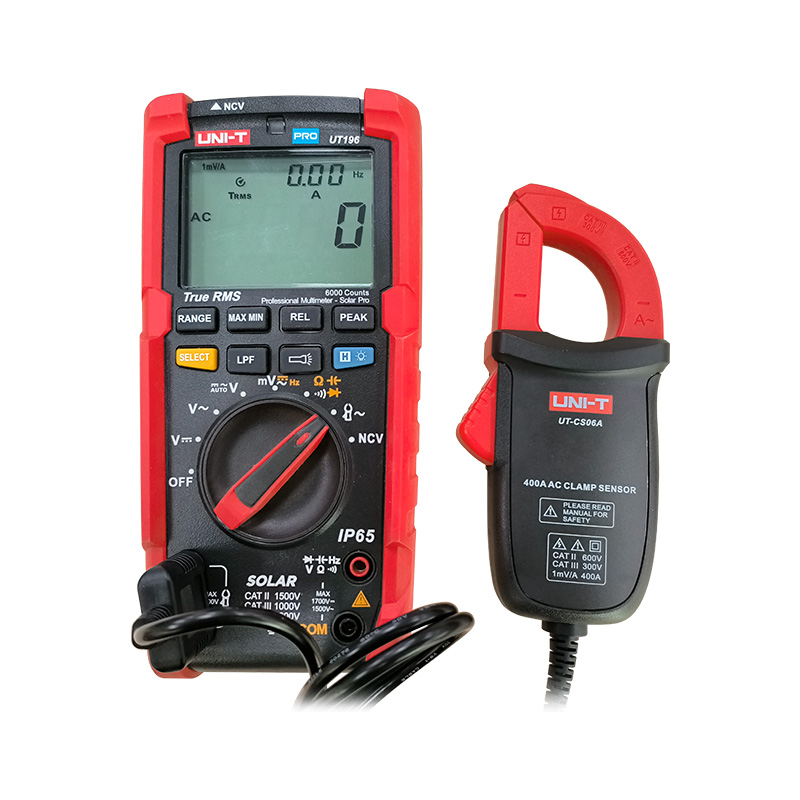

It suits most UNI-T multimeters and features a small-sized and convenient-to-use design, which is an ideal tool to extend the current ranges for the Multimeters.
Description
Features of UT-CS06A 400A AC Current Clamp Sensor
Certificates: CE, UKCA
● Compact design, easy to operation
● 400A AC current measurement
● AC A Frequency: 50 Hz to 400 Hz
● Output ratio: 1mV/A
● Clamp Jaw size: 28mm
● Suitable for most UNI-T multimeters
● Drop protection: 1m
● Overvoltage category: CAT Ⅲ 300V/CATII 600V
Specifications of UT-CS06A 400A AC Current Clamp Sensor
Technical Specifications | UT-CS06A |
Dimension | 158*65*33mm |
ACA Current | 1-400A |
Accuracy | ±2.5%±0.5A@50-60Hz ±2.8%±0.5A@60-400Hz |
Jaw opening | 28mm |
Output ratio | 1mV/A |
Wire length | 1.1m |
True RMS | Depends on the Multimeter |
Response time | Depends on the Multimeter |
Frequency | 50 Hz~400 Hz |
Waveform display | Adaptable oscilloscope |
Accuracy | Depends on the Multimeter |
Power supply | No need battery |
Drop test | 1m |
Overvoltage category | CAT III 300V, CAT II 600V |
Certificates | CE, UKCA |
Documents
Tittle
Download
UT-CS06A | Datasheet
1 file(s) 11.22 MB
UT-CS06A | User Manual_Multilingual
1 file(s) 22.77 MB
