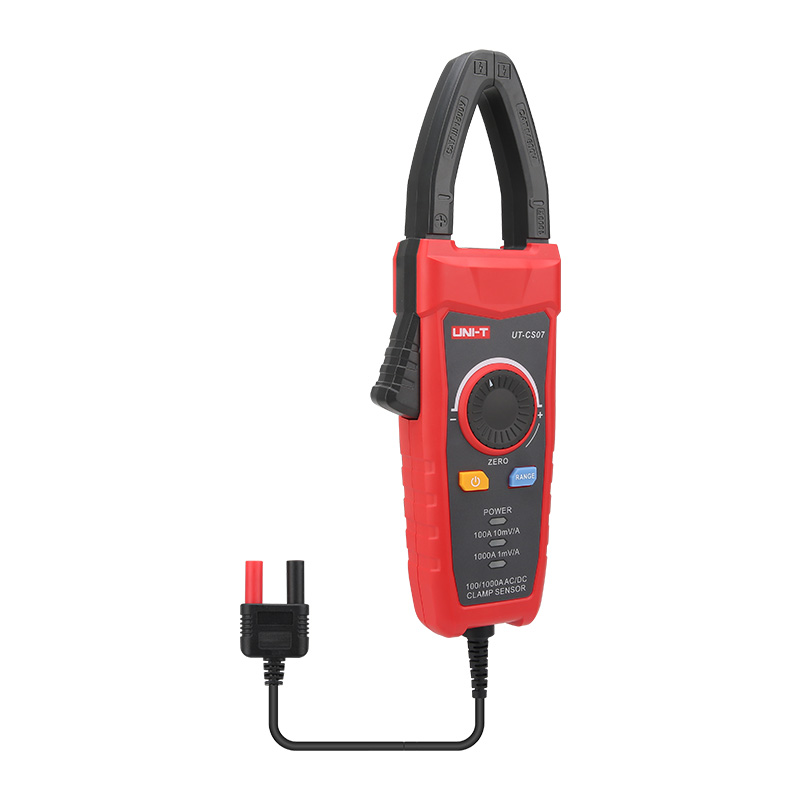

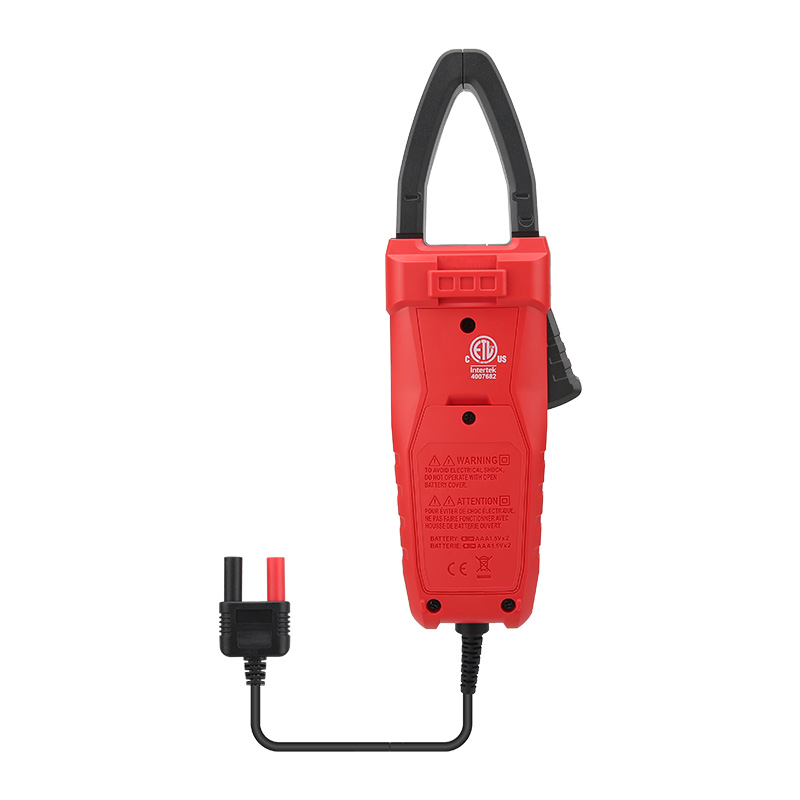

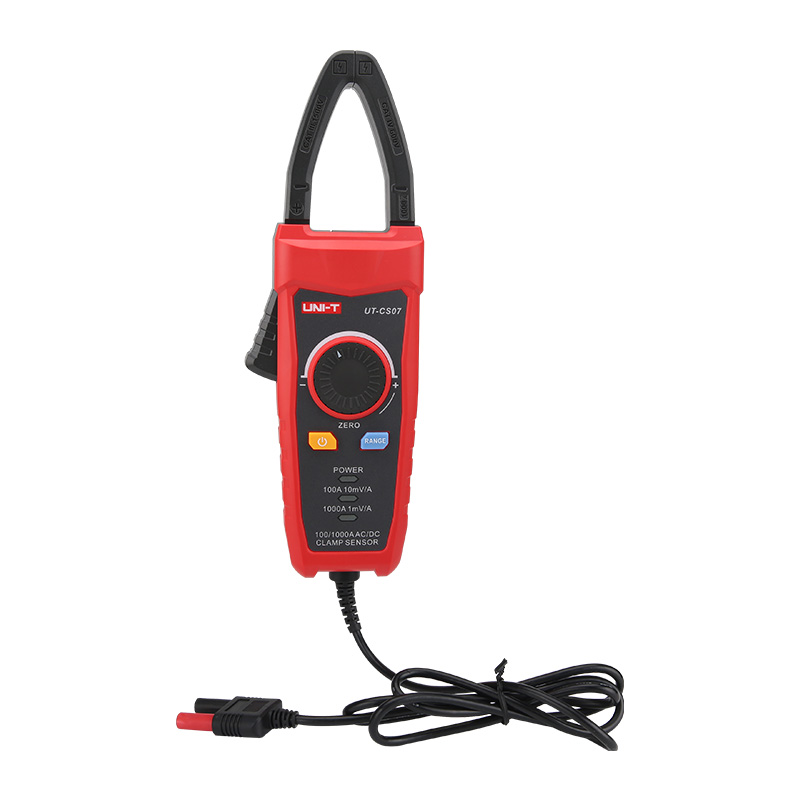

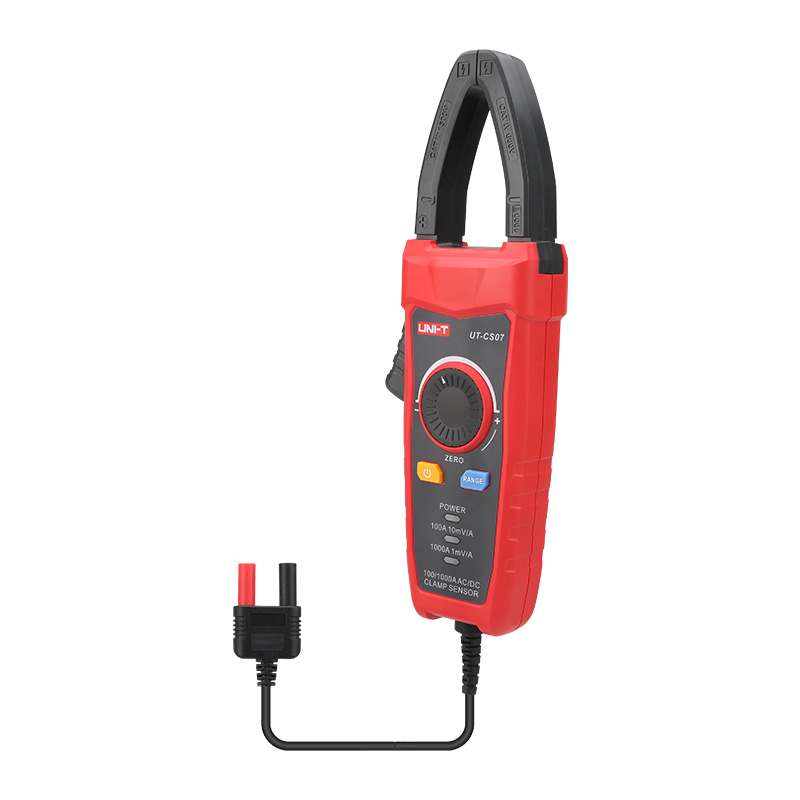

UT-CS07 AC/DC 1000A Clamp sensor

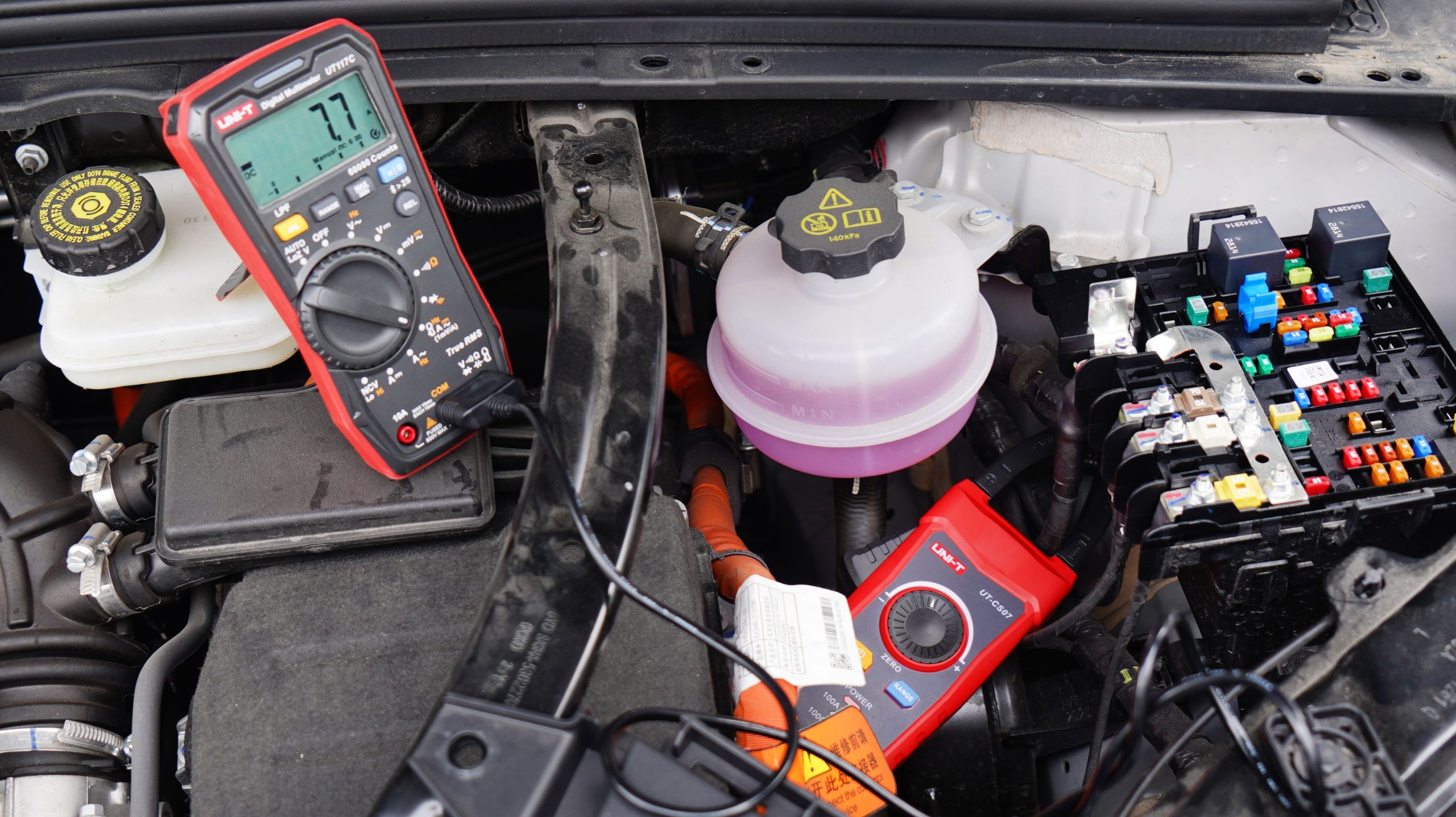

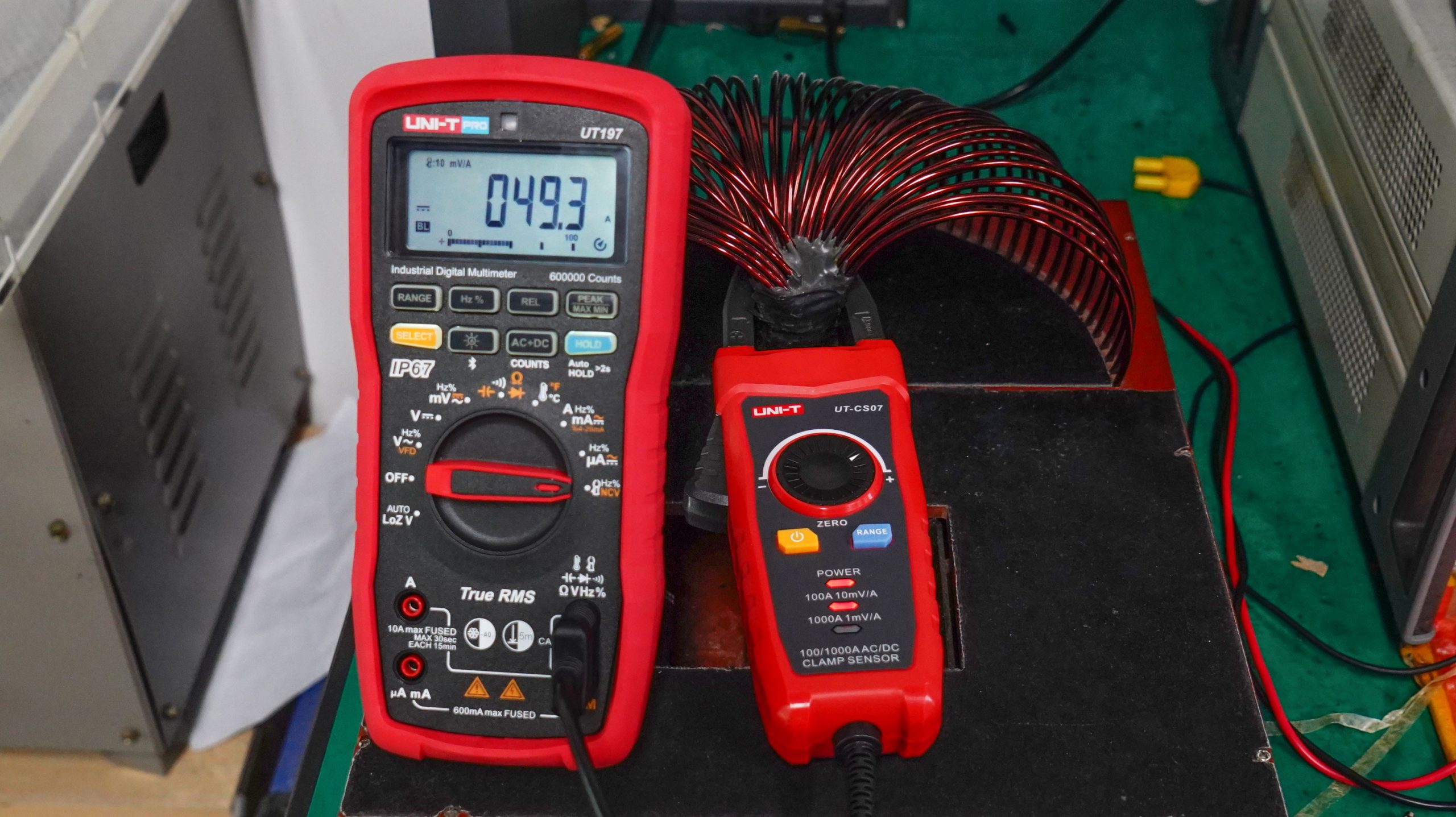

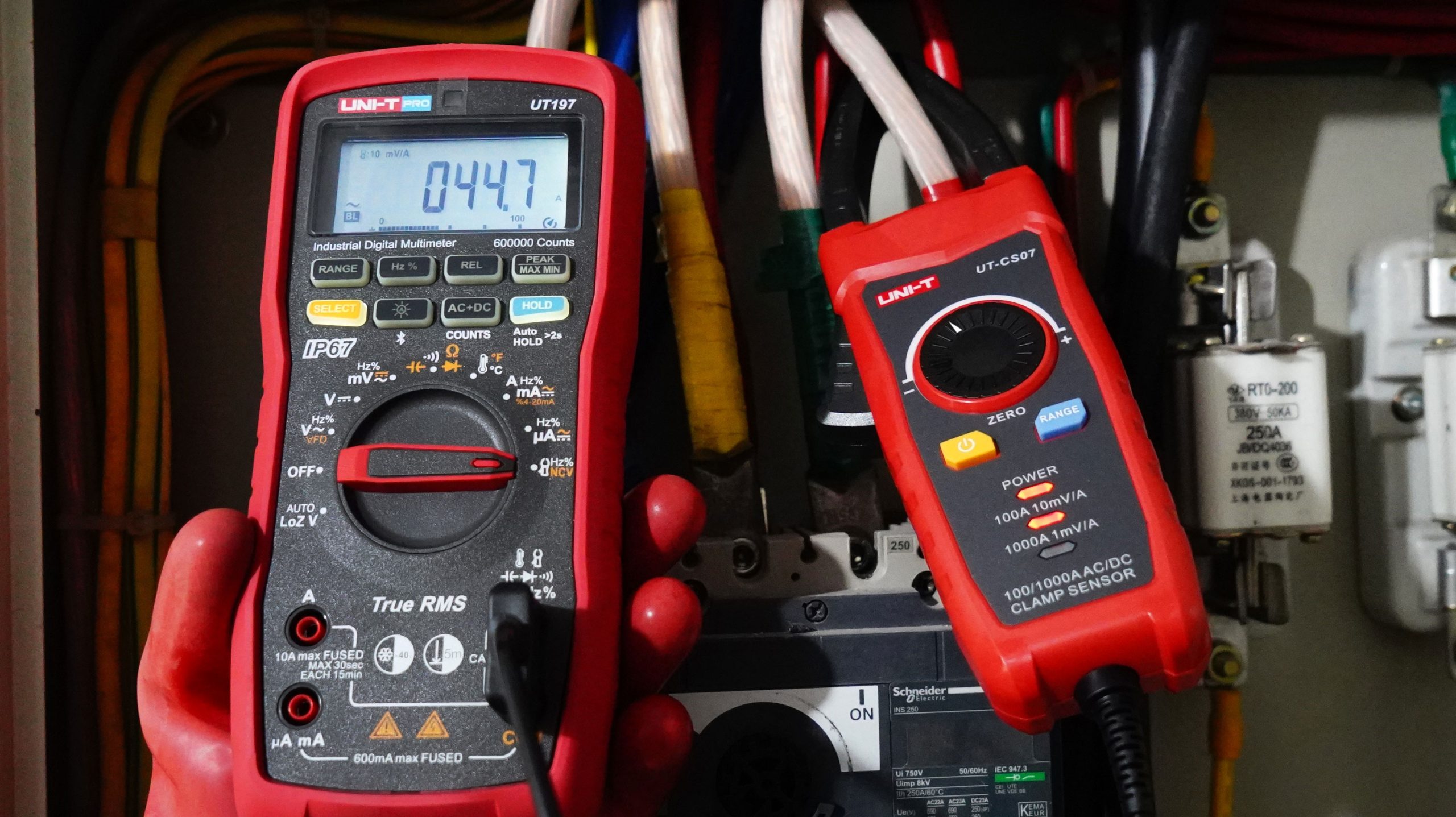

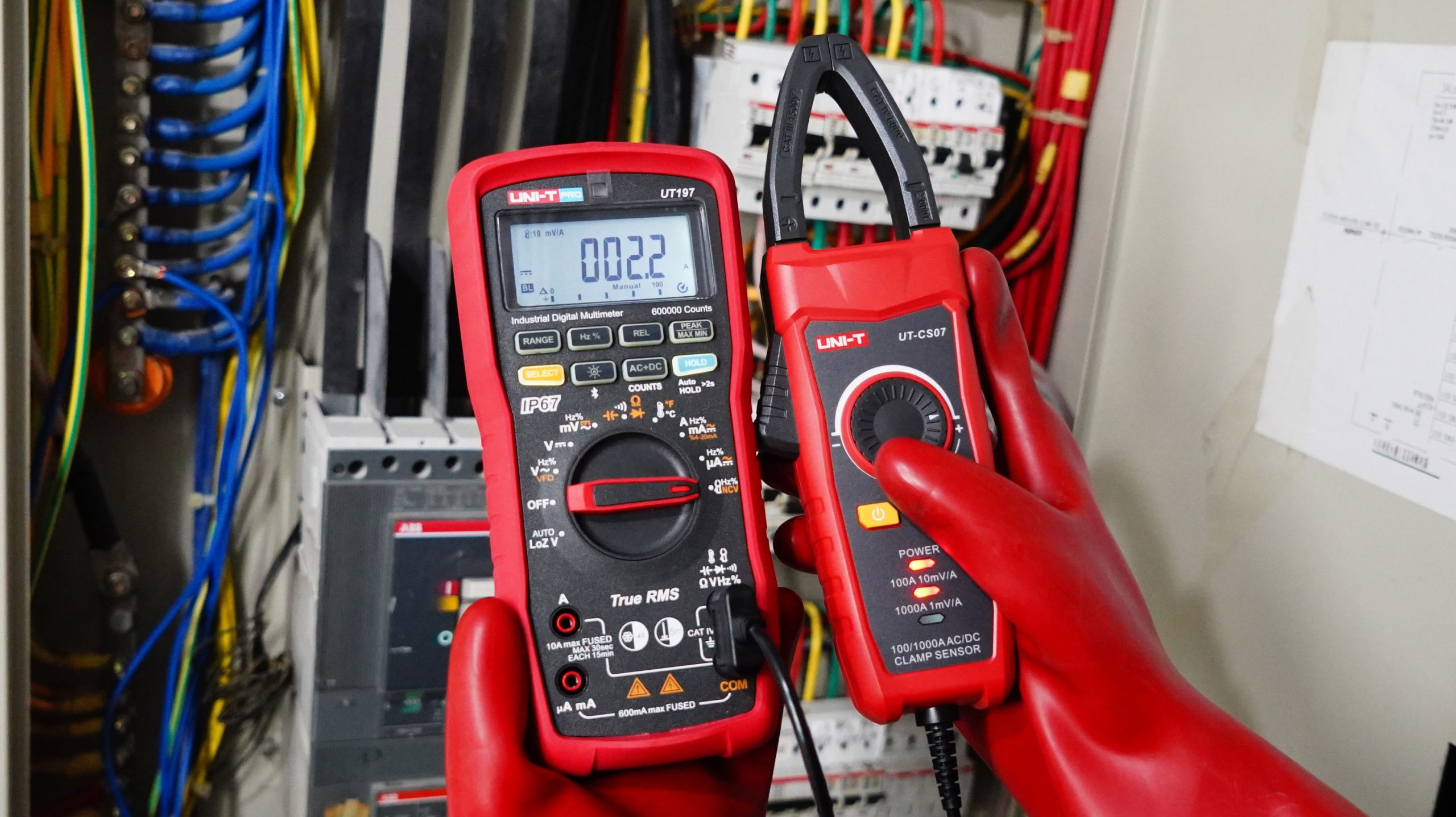

The UT-CS07 is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement. It measures current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value. It can measure up to 1,000 A of AC/DC current. With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.
Description
Features of UT-CS07 AC/DC 1000A Clamp sensor
Certifications: CE, cETLus, RoHS
1. 35mm slender clamp, suits for dense wiring
2. Such as: in inverters, combiner boxes, copper busbars, etc.
3. Compatible DMMs: UT117C, UT196, UT139C, UT197, UT197PV and etc.
4. AC/DC Current: 1000A; Frequency response: 45Hz~400Hz
5. Output ratio：1000A @ 10mV/1A；100A @ 1mV/1A
6. Zero function
7. AC/DC 1000A input protection
8. Category rating：CATIII 1500V /CAT IV 600V
Specifications
| Specifications | |||
| ACA Current | 100.0A | 10mV/A | 士(1.5%+0.5A) |
| 1000A | l mV/A | 士(2.0%+0.5A) | |
| DCA Current | 100.0A | 10mV/A | 士(1.5 %+0.5 A)，45 Hz~200 Hz |
| 士(2.0 %+0.5 A)，200 Hz~ 400 Hz | |||
| 1000A | l mV/A | 士(2.0%+0.5 A)，45 Hz~200 Hz | |
| 士(2.5 %+0.5 A)，200 Hz~400 HZ | |||
| Features | |||
| Jaw size | 35mm conductor or 65 * 8 mm busbar | ||
| Output ratio | 10mV/A & 1mV/A | ||
| Wire length | 1.1m | ||
| True RMS | depends on the Multi-meter | ||
| Response time | depends on the Multi-meter | ||
| Frequency(ACA) | 50 Hz~400 Hz | ||
| Waveform display | Adaptable oscilloscope | ||
| Accuracy | depends on the Multi-meter | ||
| Power supply | AA * 2 = 3V; working current: <50mA | ||
| Low battery indication | yes | ||
| Drop test | 1m | ||
| Polution degree | 2 | ||
| working environment | 0’C~30°C(<75%RH),30°C~40°C(<50%RH) | ||
| Storage environment | -10℃~50°C(<80%RH)； | ||
| Overvoltage category | CATⅢ1500V/CATⅣ600V | ||
| Certificates | CE | ||
| Characteristic | |||
| Dimension | 276mm * 86mm * 50mm | ||
| Tail cable length | Around 1.1m | ||
