UT-L Series Test Leads

Models:

UT-L01, UT-L02, UT-L06, UT-L07, UT-L09, UT-L10, UT-L13, UT-L16, UT-L17, UT-L20, UT-L21, UT-L25, UT-L26, UT-L27, UT-L28, UT-L29, UT-L30, UT-L31, UT-L32, UT-L33, UT-L34, UT-L35, UT-L36, UT-L37, UT-L38, UT-L39, UT-L40, UT-L41, UT-C06, UT-L46, UT-C08, UT-C09

Contact

Category: Accessories

Description

Description

Features

Features of UT-L Series Test Leads

UT-L01 Tweezers test leads

● Length: 450mm, Probe length: 5mm

● Safety level: CAT III 1000V

● Application:

SMT components measurement, universal test leads

● Amount: 1pc

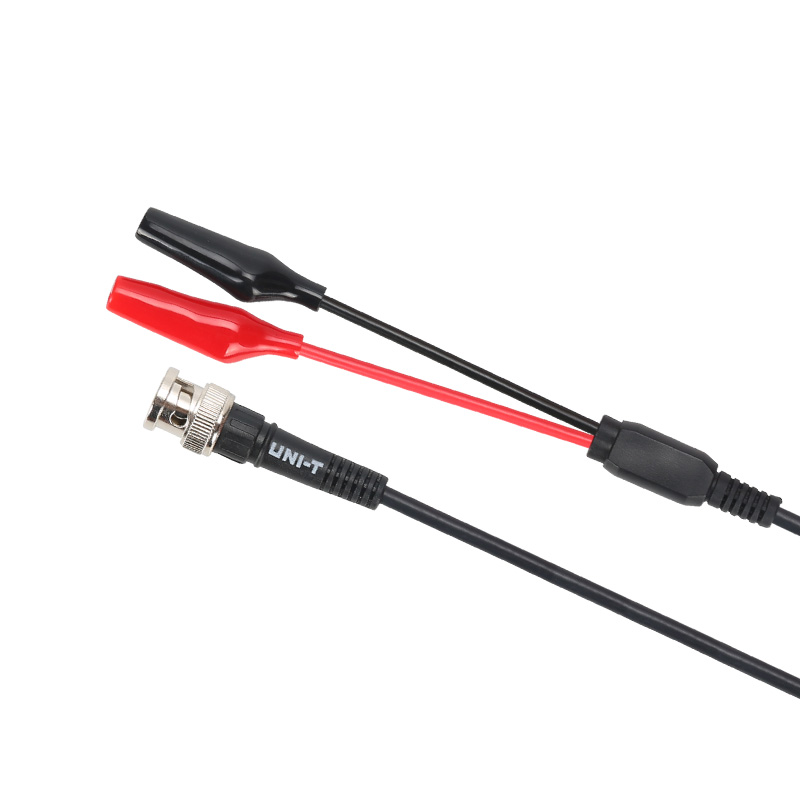

UT-L02 BNC alligator clip test leads

● Length: 1000mm, Clip opening: 3mm

● Safety level: CAT II 600V 2A

● Application:

BNC connector for instrument inputs

● Amount: 1pc

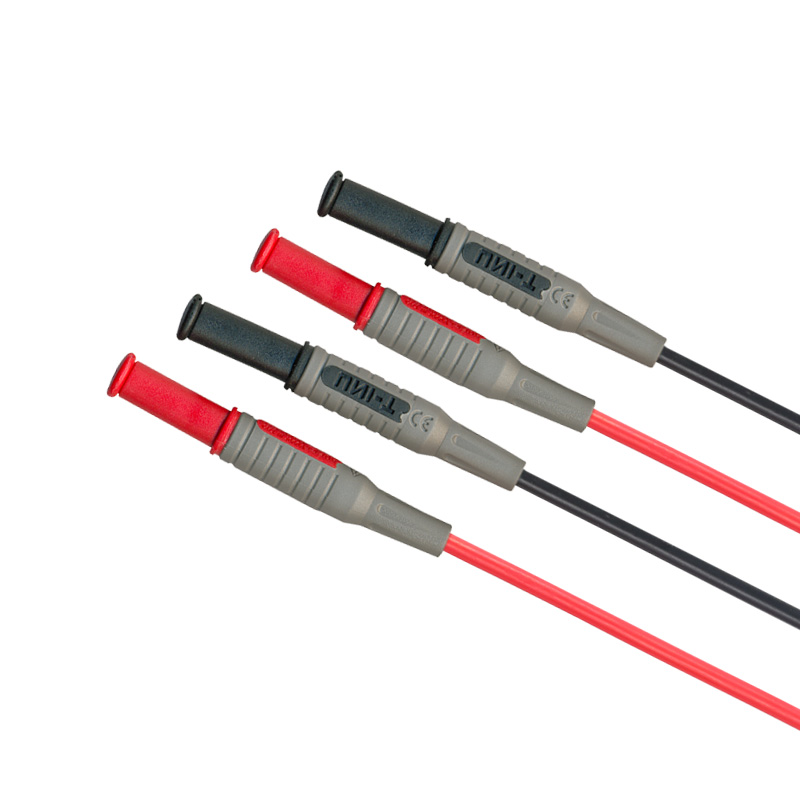

UT-L06 Dual head connectors

● Length: test leads 1200mm

● Safety level:

CAT III 1000V 10A

● Application:

Multifunctional connectors,

all multimeters and clamps

● Amount: 1 pair

UT-L07 Probes

● Length: 1000mm, Probe length: 5mm+12mm

● Temperature condition: -15°C~40°C

● Safety level: CAT III 1000V 10A

● Features and application: Double insulated, lantern probes, removable probe protector, general type probles, all multimeters and clamps measuring within spec

● Amount: 1 pair

UT-L09 Dual head connectors

● Length: 1000mm, one head is 180º, the other is 90º

● Temperature condition: -15°C~40°C

● Safety level: CAT III 1000V 10A

● Features and application: Double insulated, lantern plug with security mask and standard diameter, suitable for multiple devices, all multimeters and clamps

● Amount: 1 pair

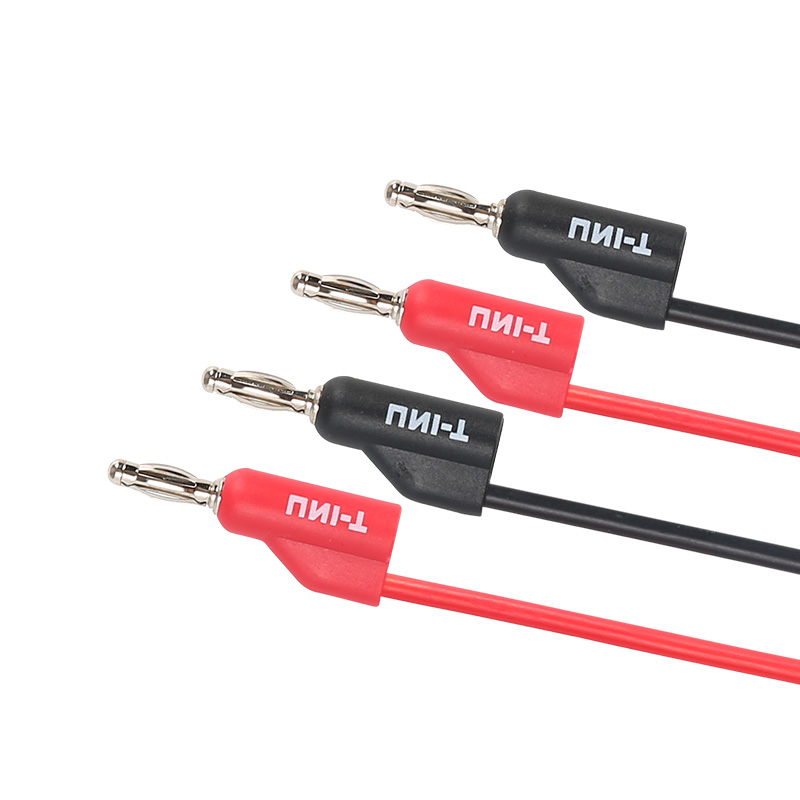

UT-L10 Dual head multifunctional connectors

● Length: 1000mm, ø4mm

● Temperature condition: -15°C~40°C

● Safety level: CAT III 1000V 10A

● Features and application:

Banana plug,

used for testing adapter cables

● Amount: 1 pair

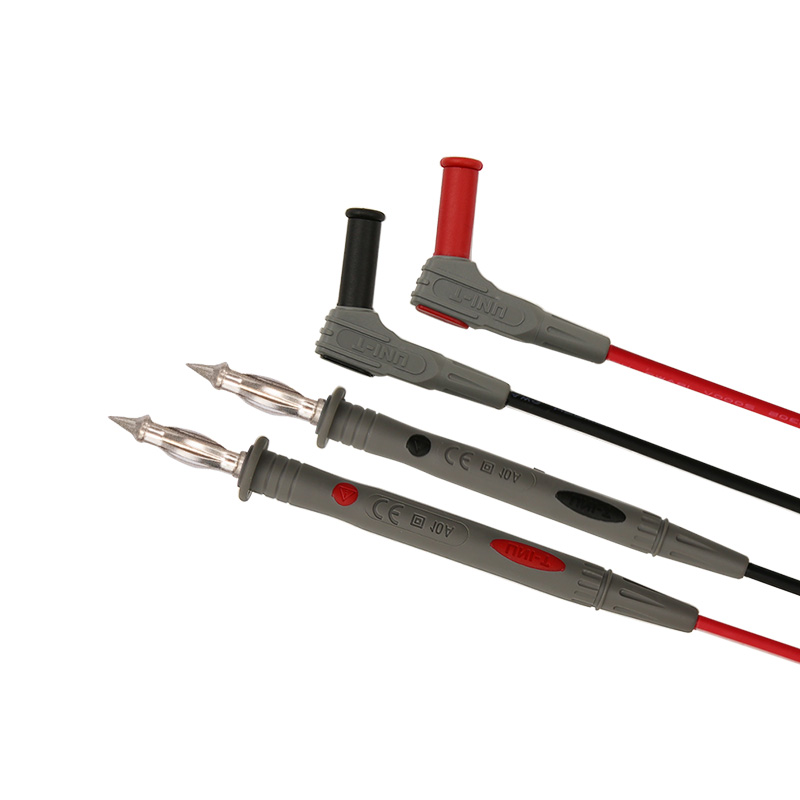

UT-L13 Probes

● Leads length: 1200mm, Rod length: 128mm

● Tip length: 18mm, with ø4mm standard lantern tip

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Temperature condition: -15°C~40°C

● Features and application: Double insulated UL, authenticated material, ø4mm standard lantern-tip probe, which can be connected to standard alligator clips and test leads removable tip shield sleeve, general type probes

● Amount: 1 pair

UT-L16 Probes

● Length: 1200mm, Rod length: 133mm

● Tip length: 18mm

● Safety level: CAT III 1000V 16A

● Features and application:

Double insulated silicone wire material,

through hole type input terminal,

general type probes,

all multimeters and clamps measuring within spec

● Amount: 1 pair

UT-L17 Probe with LED light

● leads length: 1000mm

● Tip length: 16mm

● Safety level: CAT II 1000V 10A

● Features and application: Controllable LED light source, all multimeters and clamps measuring within spec

● Amount: 1PC

UT-L20 Probes

● Leads length: 900mm, Rod length: 101mm

● Tip length: 16.5mm

● Safety level: CAT I 1000V/CAT II 600V 10A

● Features and application: Cross plug with shield sleeve, general type probes, all multimeters and clamps measuring within spec

● Amount: 1 pair

UT-L21 Probes

● Leads length: 900mm, Rod length: 133mm

● Tip length: 15.8mm

● Safety level: CAT III 1000V/CAT IV 600V 20A

● Features and application:

Cross plug with shield sleeve,

general type probes,

all multimeters and clamps

● Amount: 1 pair

UT-L25 Probes

● Leads length: 900mm, Rod length: 115mm

● Tip length: 18mm

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Safety cetificate: EN 61010-031 A1: 2015

● Features and application: Double insulated wire, removable tip shield sleeve, general type probes, all multimeters and clamps measuring within spec

● Amount: 1 pair

UT-L26 Probes

● Leads length: 900mm, Rod length: 136mm

● Tip length: 15.7mm

● Safety level: CAT III 1000V/CAT IV 600V 20A

● Safety certificate: EN 61010-031 A1: 2015

● Features and application:

UL 16AWG double insulated wire, removable tip shield sleeve, cross type input terminal with full protection, general type probes, all multimeters and clamps

● Amount: 1 pair

UT-L27 Probes

● Leads length: 900mm, Rod length: 130mm

● Tip length: 16.3mm, threaded

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Safety certificate: EN 61010-031 2015

● Features and application: Double insulated UL authenticated material, removable tip shield sleeve, lantern plug input terminal, general type probes, all multimeters and clamps measuring withing spec

● Amount: 1 pair

UT-L28 Probes

● Leads length: 900mm, Rod length: 128mm

● Tip length: 16.8mm

● Safety level:

CAT III 1000V/CAT IV 600V 10A

● Features and application:

Double insulated wire, removable tip shield sleeve, lantern plug input terminal, general type probes, all multimeters and clamps measuring within spec

● Amount: 1 pair

UT-L29 Probes

● Leads length: 900mm, Rod length: 136mm

● Tip length: 15.7mm

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Safety certificate: EN 61010-031 2015

● Features and application: Double insulated UL authenticated material, through hole crosshead with full protection input, removable tip shield sleeve, general type probes, all multimeters and clamps measuring within spec

● Amount: 1 pair

UT-L30 Probes

● Leads length: 900mm, Rod length: 136mm

● Tip length: 15.7mm

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Safety certificate: EN 61010-031 2015

● Features and application: Double insulated UL authenticated material, removable tip shield sleeve, cross input terminal, general type probes, all multimeters and clamps measuring spec

● Amount: 1 pair

UT-L31 Probes

● Line length: 1300mm

● Tip length: 18.5mm

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Features and application:

rod with switch,

removable tip shield sleeve,

used for UT505B

● Amount: 1PC

UT-L32 Group test leads

● Combinations: combined with 2PCS test leads, (reb+black) and (yellow+blue)

● Material: Double insulated leads

● Line length: 1090mm

● Safety level: CAT III 600V/CAT IV 300V

● Application: UT243

● Amount: 1 Group

UT-L33 Group test leads

● Combinations: combined with 1PCS (red+black) alligator clip test leads and 1PCS double-plug alligator clip test leads

● Material: Double insulated UL authenticated material

● Total length: 1200±20mm

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Application: UT511

● Amount: 1 Group

UT-L34 Group test leads

● Combinations:

combined with 1PCS green, 1PCS black and 1PCS red alligator clip test leads

● Total length: 1500±20mm

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Application: UT513, UT513A

● Amount: 1 Group

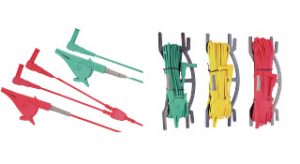

UT-L35 Group test leads

● Combination:

(1) 1.6m test lead (green+red) 1pair (2) 5m green test lead 1PCS (3) 10m yellow test lead 1PCS (4) 20m red test lead 1PCS

● Material: UL authenticated material

● Safety level: CAT III 1000V/CAT IV 600V 10A

● Application: UT521, UT522, UT572

● Amount: 1 Group

UT-L36 Dual through hole test leads

● Material: 18AWG UL authenticated material

● Length: 1100mm

● Safety level: CAT III 1000V/CAT IV 600V

● Application: UT505B

● Amount: 1 pair

UT-L37 Dual through hole test leads

● Material: Double insulated wire, 102 cores

● Length: 1090mm

● Safety level: CAT III 1000V/CAT IV 600V

● Application: UT500 series

● Amount: 1 pair

UT-L38 Group test leads

● Material: Double insulated wire, 102 cores Length: 1090mm

● Safety level: CAT III 600V/CAT IV 300V

● Features and application: with buckle, used for UT261A/B

● Amount: 3PCS

UT-L39 Alligator clip test leads with shield sleeve

● Material: Double insulated wire

● Length: 1000±50mm

● Features and application: Adapter plug with BNC

● Amount: 1PC

UT-L40 SMD patch clamp

● Leads length: 450mm, probe length: 5mm

● Temperature condition: -10°C~40°C

● Safety level: CAT II 1000V 2A

● Features and application: used to SMT components, for UT612

● Amount: 1PC

UT-L41 Alligator clip short test leads

● Core: 19/20

● Length: 110-130mm

● Features and application: full protection cross input terminal, used for UT71 series, UT601, UT603

● Amount: 1 pair

UT-L46 Four-wire test probes

● Leads material:

182-core double shielded wire

● Lead length:

1000mm

● Amount: 1 pair

UT-C06 Test probes

● Specifications: Rod length 106mm, probe length 19mm

● Safety level: CAT II 1000V 2A

● Features:

Fully-insulated, with tip and protector, banana plug probes

● Amount: 1 pair

UT-C08 Test probes

● Specifications: Rod length 99mm, probe length 18mm

● Safety level: CAT II 1000V/CAT IV 600V 10A

● Features:

Fully-insulated, with tip and protector, straight type probes

● Amount: 1 pair

UT-C09 Test probes

● Specifications: Rod length 99mm, probe length 18mm

● Safety level: CAT II 1000V/CAT IV 600V 10A

● Features:

Fully-insulated, with tip and protector, lantern type probes

● Amount: 1 pair
