This product has been discontinued.

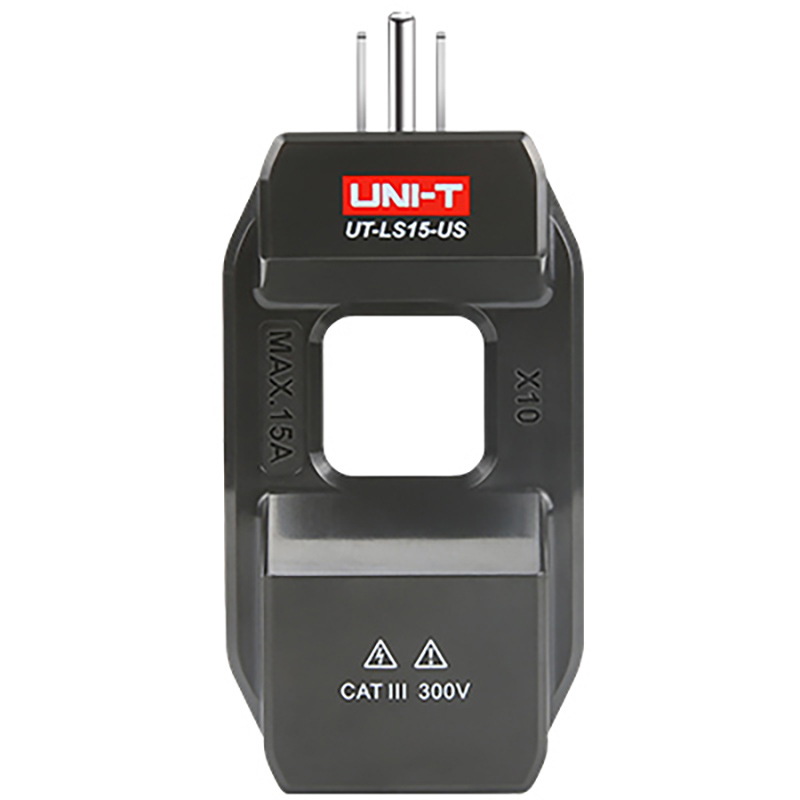

UT-LS15-US AC Line Splitter (Discontinued)
The line splitter provides a safe and simple solution for measuring AC current of appliances and other electrical devices.
Description
Features of UT-LS15-US AC Line Splitter
Certificates: RoHS, cETLus
● Max 15A load current
● Split current is magnified 10X for more precise measurement
● Can be used with most clamp meters on the market
● Uses American standard 3-pin plug (Type B)
Specifications of UT-LS15-US AC Line Splitter
| Specifications | UT-LS15-US |
| Voltage rating | 125V AC |
| AC current (Max) | 15A |
| Frequency response | 45Hz~400Hz |
| Current amplification | ×10 |
| Working temperature | 0℃~50℃ (32℉~122℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Humidity (RH) | Max 80% up to 31℃ (87℉) 50% at 40℃ (104℉) |
| Altitude | 2000 meters (7000 feet) max |
| Safety rating | CAT III 300V |
| Drop test | 1m |
| General Characteristics | |
| Product color | Grey |
| Product net weight | 119.5g |
| Product size (W x H x D) | 123.7mm x 58mm x 40mm |
| Standard individual packing | N/A |
| Standard accessories | Gift box, English manual |
| Standard quantity per carton | 60pcs |
| Standard carton measurement | 395mm x 220mm x 260mm |
| Standard carton gross weight | 11kg |
