UT-T Series Thermocouples
Models:
UT-T01, UT-T03, UT-T04, UT-T05, UT-T06, UT-T07, UT-T09K, UT-T10K, UT-T11, UT-T12, UT-T15
Description
Features of UT-T Series Thermocouples

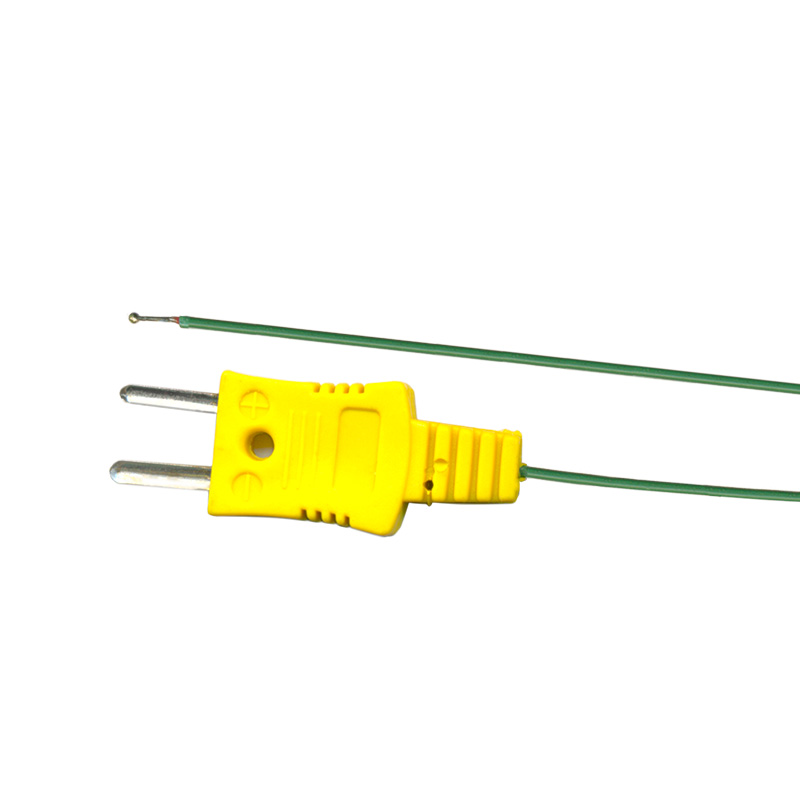

UT-T01 Thermocouple
● Accuracy: ±0.75%
● Test range: -40°C~260°C（40°F~500°F）
● Features and application: Teflon covered insulation, through hole input, used for general temperature measurement, not for liquid measurement
● Amount: 1PC

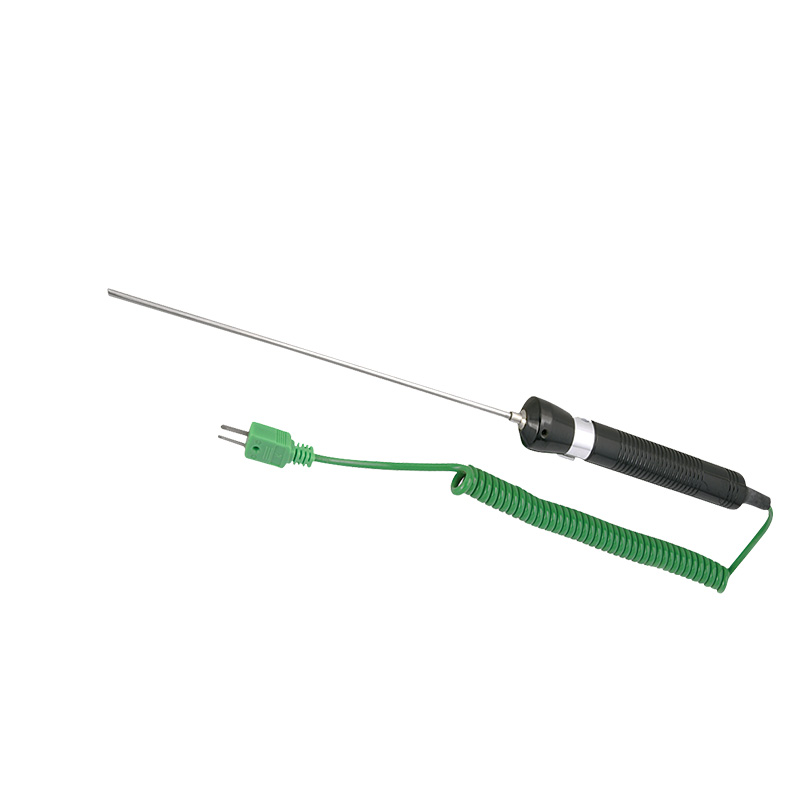

UT-T03 Submersed thermocouple
● Probe length: 180mm
● Lead wire length: 1000mm
● Test range: -50°C~600°C（58°F~1112°F）
● Features and application: metal covers from head to handle, used for liquid and gel temperature measurement
● Amount: 1PC
UT-T04 Through hole thermocouple
● Probe length: 180mm
● Lead wire length: 1000mm
● Test range: -50°C~600°C（58°F~1112°F）
● Features and application:
metal covers from head to handle, used for food and other liquid or gel temperature measureme
● Amount: 1PC
UT-T05 Gas thermocouple
● Probe length: 56mm
● Lead wire length: 1000mm
● Test range: -50°C~900°C（58°F~1652°F）
● Features and application: protected by stainless steel gas adjusting hole, used for air or gas temperature measurement, not for liquid temperature measurement
● Amount: 1PC

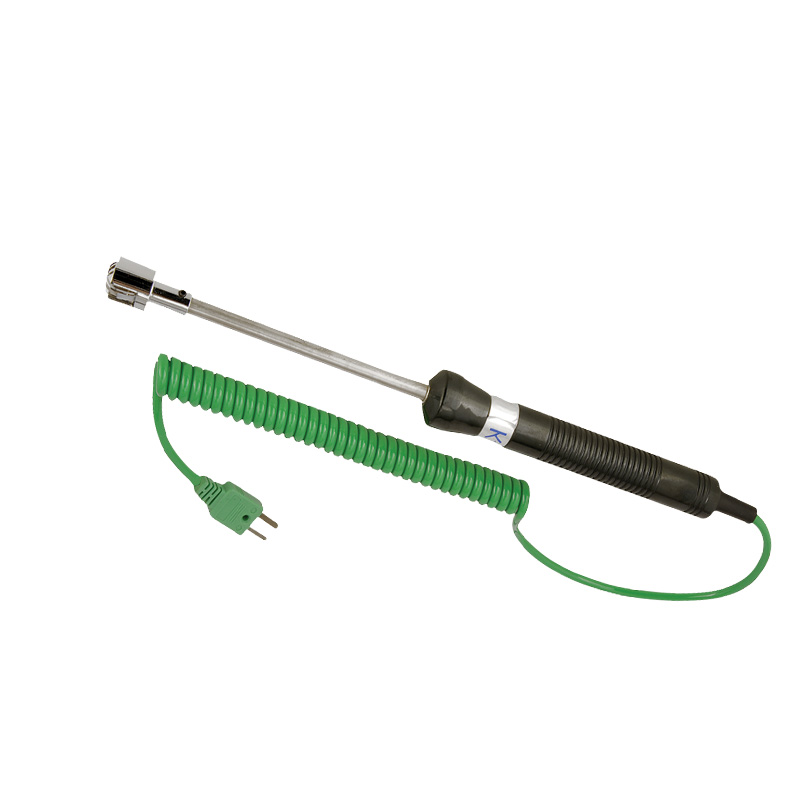

UT-T06 Surface temperature thermocouple
● Probe length: 125mm
● Lead wire length: 1000mm
● Test range: -50°C~500°C（58°F~932°F）
● Features and application:
aimed at flat or slightly convex surface, used for hot roller and vessel surface temperature measurement
● Amount: 1PC
UT-T07 Surface temperature measuring thermocouple
● Probe length: 200mm
● Lead wire length: 1000mm
● Test range: -50°C~500°C（58°F~932°F）
● Features and application: probe bends for 90°, aimed at flat or slightly convex surface, used for hot roller and vessel surface temperature measurement
● Amount: 1PC

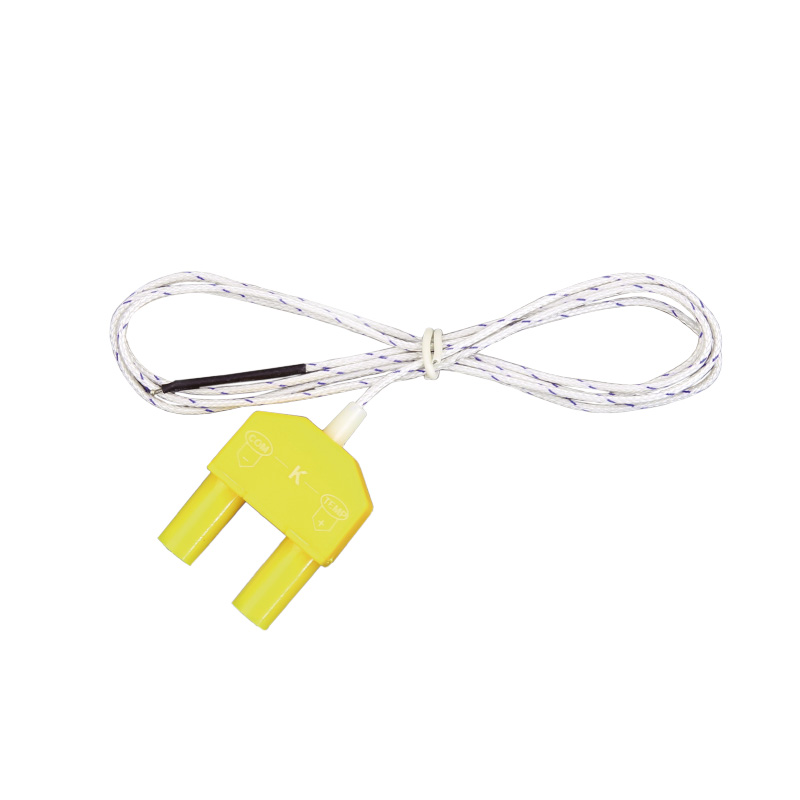

UT-T09K Temperature probe
● Test range: -40°C~260°C（40°F~500°F）
● Accuracy: ±0.75%
● Features and application: crosshead socket type input, used for UT139C/E/S, UT216C/D, UT210D, UT213B/C, UT171B/C, UT219M, UT219DS, UT222
● Amount: 1PC

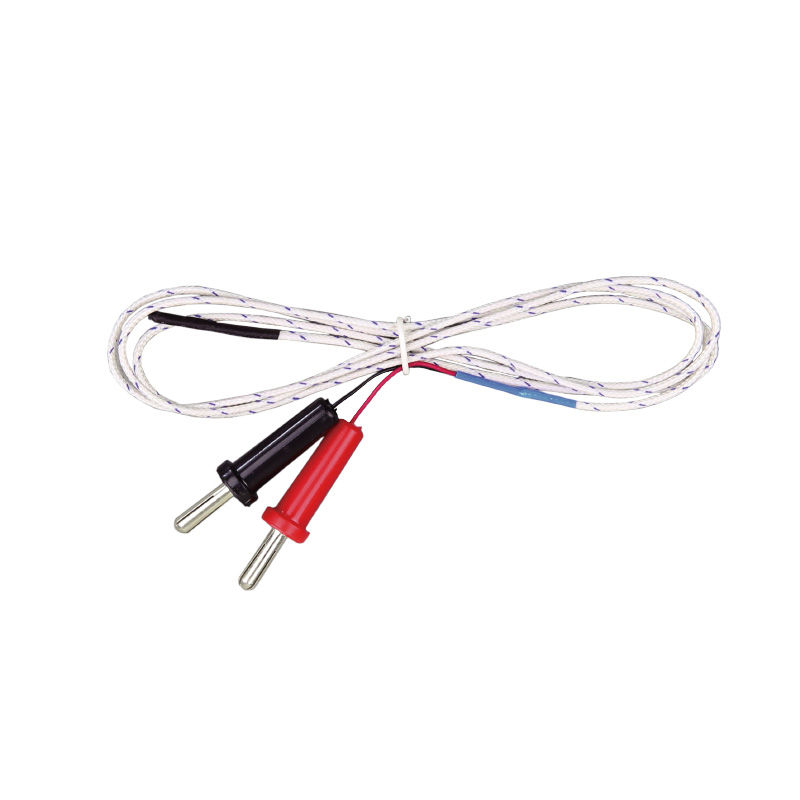

UT-T10K Temperature probe
● Test range: -40°C~260°C（40°F~500°F）
● Accuracy: ±0.75%
● Features and application: used for UT213 series, UT39C, UT204A, UT206, UT208, UT208A, UT107, UT109, UT136C+, UT133A, UT89X, UT39C+
● Amount: 1PC
UT-T11 Temperature probe
● Test range: -40°C~260°C（40°F~500°F）
● Accuracy: ±0.75%
● Features and application: Through hole input, used for UT58 series, UT195M
● Amount: 1PC
UT-T12 Temperature probe
● Test range: 0°C-800°C (Error ±0.4%t)
● Features and application: Through hole input, used for UT321, UT322, UT325, UT181A
● Amount: 1PC

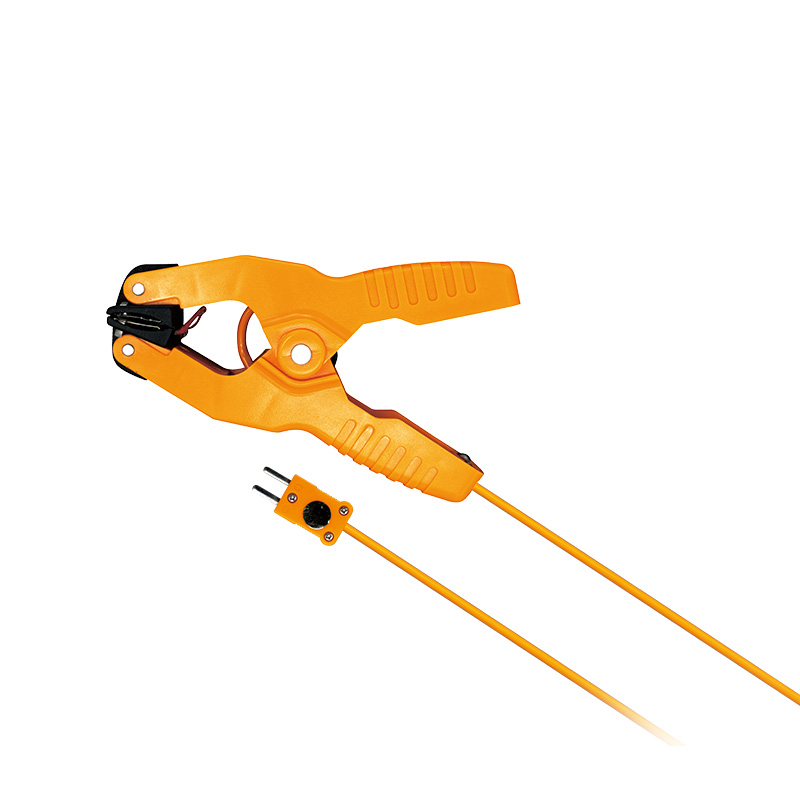

UT-T15 K-type temp clamp
● Test range: -40°C~200°C
● Jaw opening: 35mm
● Features and application: Flat plug for any K-type temperature recording meter
● Amount: 1PC
