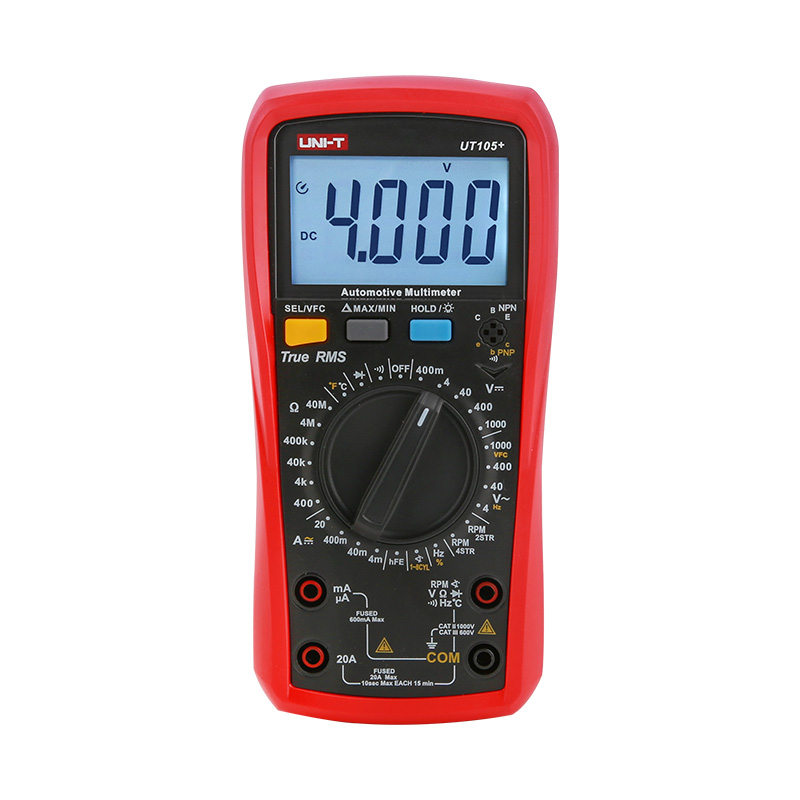

UT105+/UT107+ Automotive Multimeters

UT105+ and UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.



1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.



UT105+ and UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT105+ is designed for basic vehicle troubleshooting with 4000 counts display. UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

Features of UT105+/UT107+ Automotive Multimeters

● True RMS
● 1000V AC/DC voltage measurement
● 20A AC/DC current measurement (20A for 10s max)
● VFC 1000V voltage measurement
● Dwell angle 1-8CYL
● RPM 2STR/4STR

● Capacitance/Pulse width/12V battery test (UT107+)
● Temperature/Resistance/Frequency
● Data hold/Relative mode/Duty cycle
● Diode/Transistor
● Backlight
● CAT II 1000V / CAT III 600V

Specifications of UT105+/UT107+ Automotive Multimeters

Specifications Range UT105+ UT107+
DC voltage (V) 400mV/4V/40V/400V/1000V ±(0.5%+3)
600mV/6V/60V/600V/1000V ±(0.5%+3)
AC voltage (V) 4V/40V/400V/1000V ±(0.8%+3)
6V/60V/600V/1000V ±(0.8%+3)
AC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(1.0%+8)
6mA/60mA/600mA/10A (20A for 10s max) ±(1.0%+8)
DC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(0.8%+8)
6mA/60mA/600mA/10A (20A for 10s max) ±(0.8%+8)
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(0.8%+3)
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+3)
Capacitance (F) 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF ±(3%+10)
Frequency (Hz) 10Hz~10MHz ±(0.1%+5) ±(0.1%+5)
Temperature (℃) -40℃~1000℃ ±(1.0%+3) ±(1.0%+3)
Temperature (℉) -40℉~1832℉ ±(1.5%+5) ±(1.5%+5)
VFC 1000V ±(2.0%+10) ±(2.0%+10)
RPM 2STR ±(3.0%+5) ±(3.0%+5)
4STR ±(3.0%+3) ±(3.0%+3)
Dwell angle 1CYL(0~356.4°)/2CYL(0~178.2°)/3CYL(0~118.8°)/4CYL(0~89.1°)/5CYL(0~71.3°)/6CYL(0~59.4°)/8CYL(0~44.5°) ±(3.0%+5) ±(3.0%+5)
Pulse width 999.9mS ±(1.5%+10)
Features
Display count 4000 6000
Manual range
Continuity/diode/transistor
Duty cycle
High voltage alarm
High voltage overload alarm
Large current alarm
Low battery indication < Approximately 2.4V
Backlight
Auto power off  Approximately 15 minutes
Data hold
Max/Min/Relative mode
VFC
12V battery test
Safety rating CAT II 1000V/CAT III 600V
General Characteristics
Power AAA 1.5V x2
Product color Red+Gray
Product net weight 348g (Including batteries)
Product size 183 x 88 x 56mm
Standard accessories English manual,test leads,batteries,temperature probe
Standard individual packing Gift box,carrying bag
Standard quantity per carton 20 pcs
Standard carton measurement 420×320×300mm

Applications of UT105+/UT107+ Automotive Multimeters

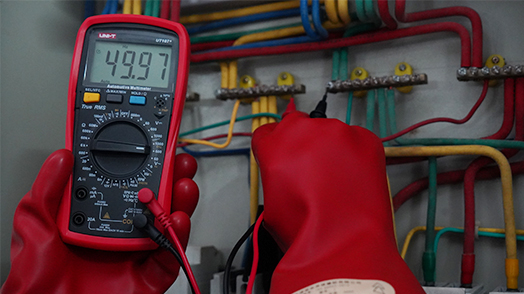

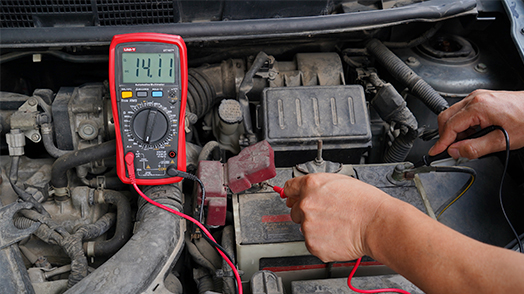

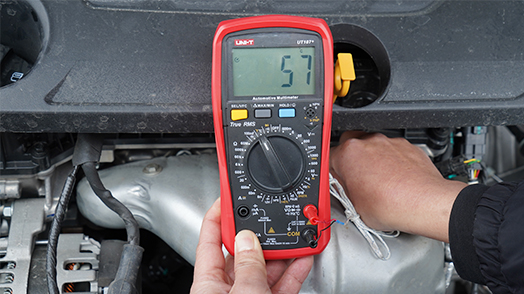

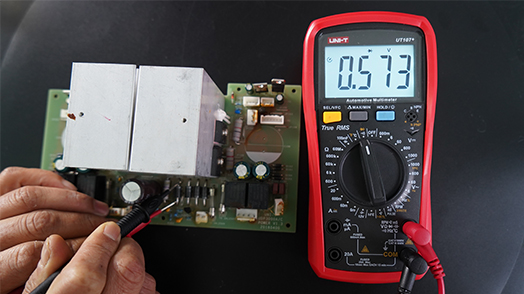

UT107+ application
UT107+ application
UT107+ application
UT107+ application
