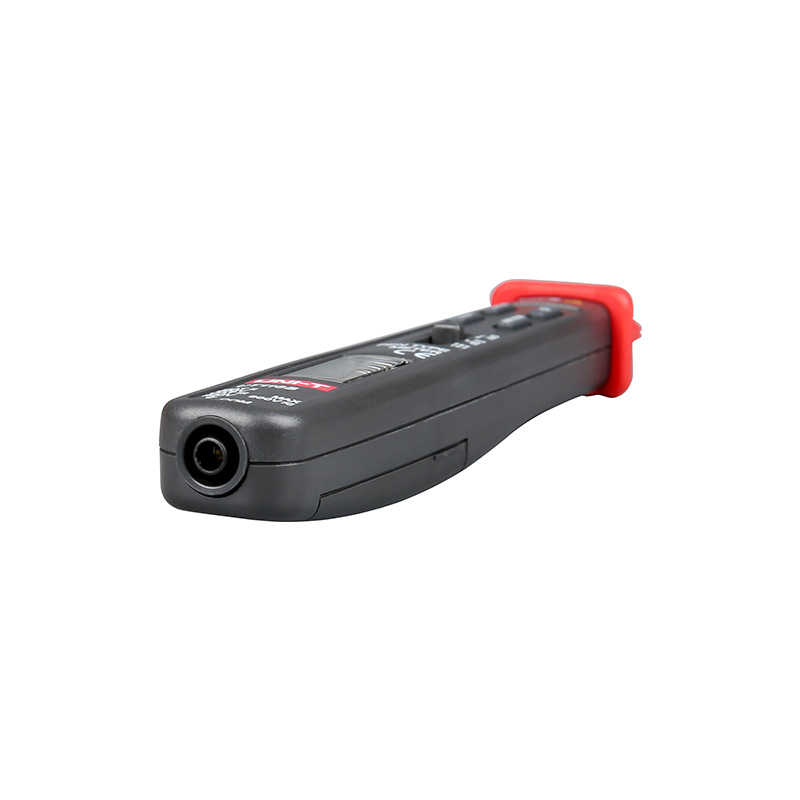

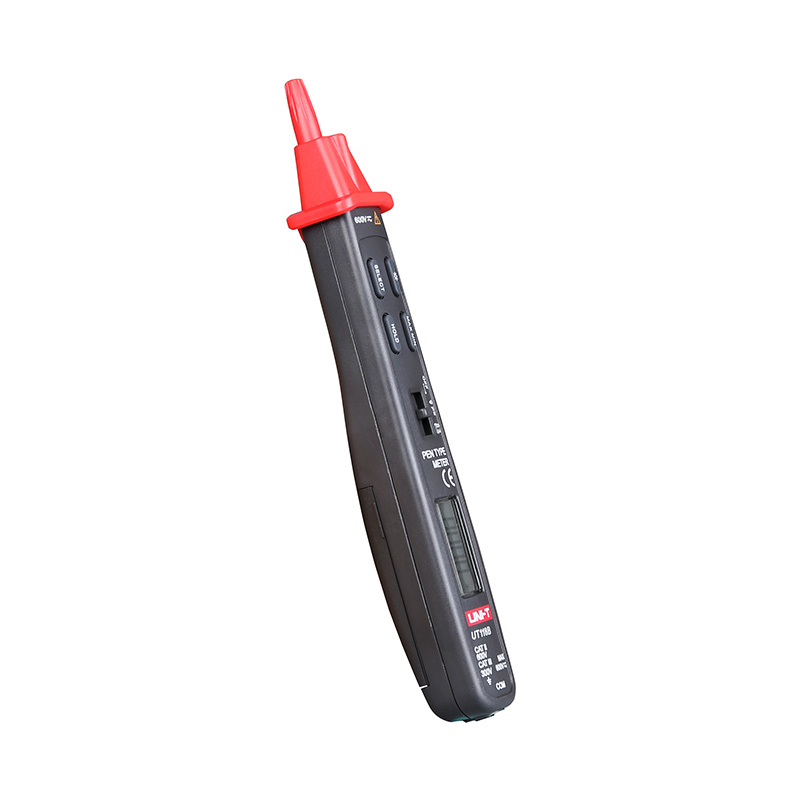

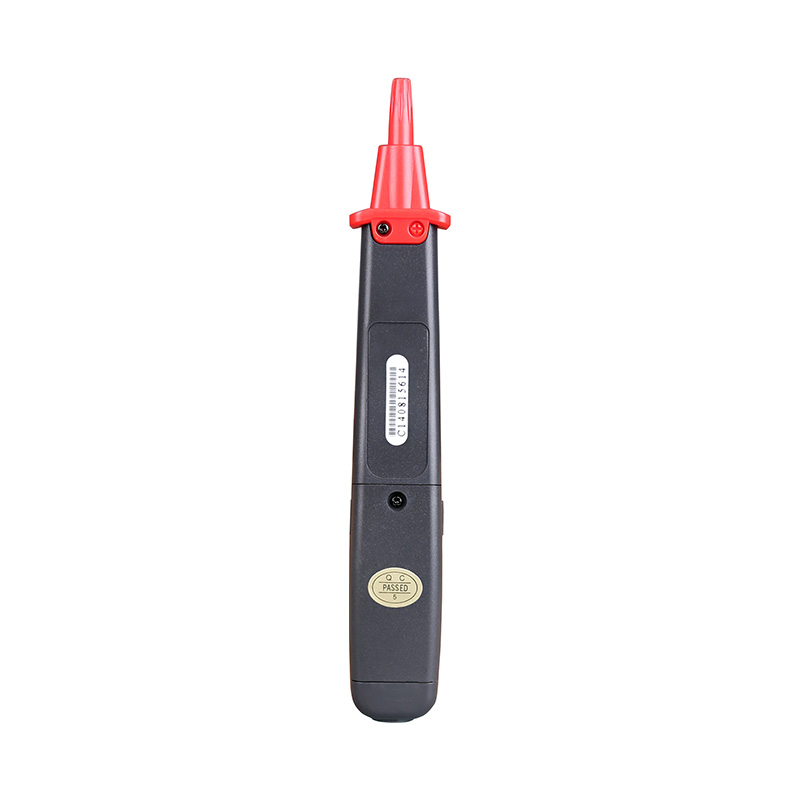

UT118B Pen Type Digital Multimeter
UT118B pen type multimeter is light and durable. This meter has a fast sampling rate of 4 times/s, which can quickly capture measurement readings. It is a cost-effective product customized for home appliance repair and DIYers.
Description
Features of UT118B Pen Type Digital Multimeter
Certifications: CE, UKCA
● Display count: 3000
● Auto SCAN and range identify mode
● Data hold, auto power off, low battery indication
● MAX/MIN modes
● LCD backlight
● Non-contact voltage detection
Specifications of UT118B Pen Type Digital Multimeter
Specifications | Range (SCAN Mode) |
Range (AUTO Mode) |
UT118B |

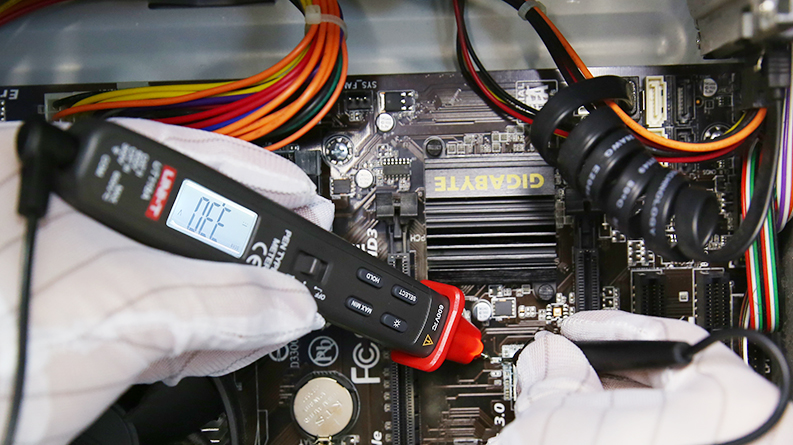

DC voltage (V) | 300V | 300V | ±(1%+3) |

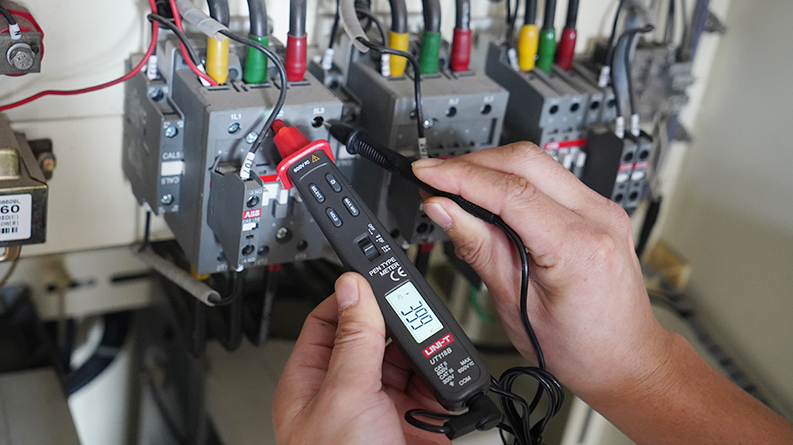

AC Voltage (V) | 300V | 300V | ±(1%+4) |
Resistance (Ω) | 3MΩ | 30MΩ | ±(1%+3) |
Capacitance (F) | 300μF | 3mF | ±(3%+5) |
Features | |||
Display count | 3000 | ||
Auto range | √ | ||
EF function | √ | ||
Diode | √ | ||
Auto power off | Around 10 minutes | √ | |
Continuity buzzer | √ | ||
Low battery indication | √ | ||
Data hold | √ | ||
MAX/MIN | √ | ||
LCD backlight | √ | ||
Input impedance for DCV | ≥10MΩ | √ | |
General Characteristics | |||

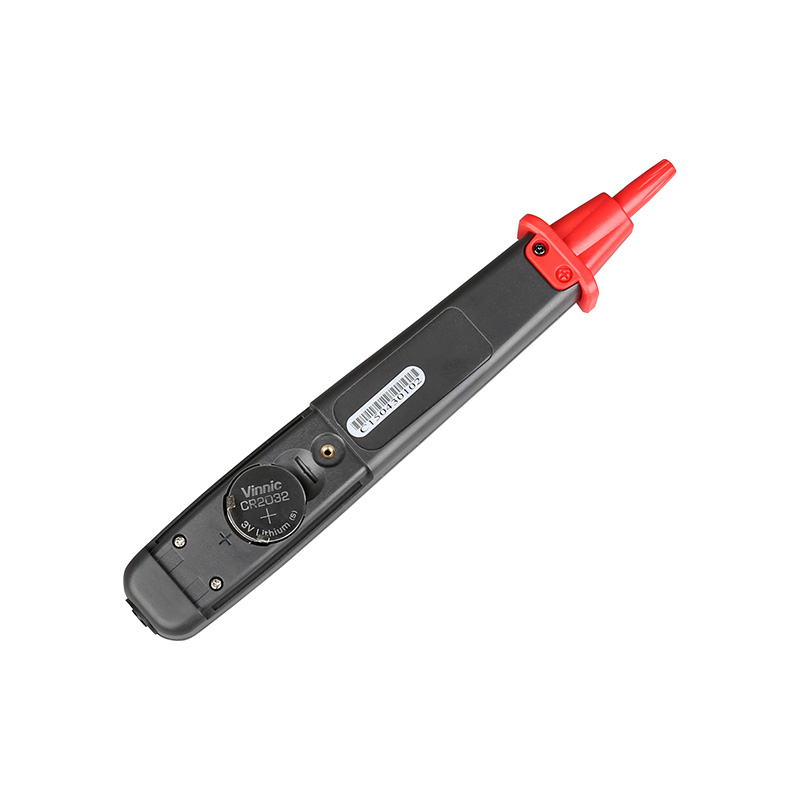

Power | 3V battery (CR2032) | ||
Display | 28mm x 14mm | ||
Product color | Red and grey | ||
Product net weight | 90g | ||
Product size | 20mm x 27mm x 182mm | ||
Standard accessories | Battery, test lead | ||
Standard individual packing | Blister, English manual | ||
Standard quantity per carton | 40pcs | ||
Standard carton measurement | 535mm x 205mm x 287mm | ||
Standard carton gross weight | 7.1kg |
Documents
Tittle
Download
UT118B | Datasheet
1 file(s) 785.75 KB
UT118A/UT118B | User Manual
1 file(s) 6.82 MB
