This product has been discontinued. Replaced by UT139S .

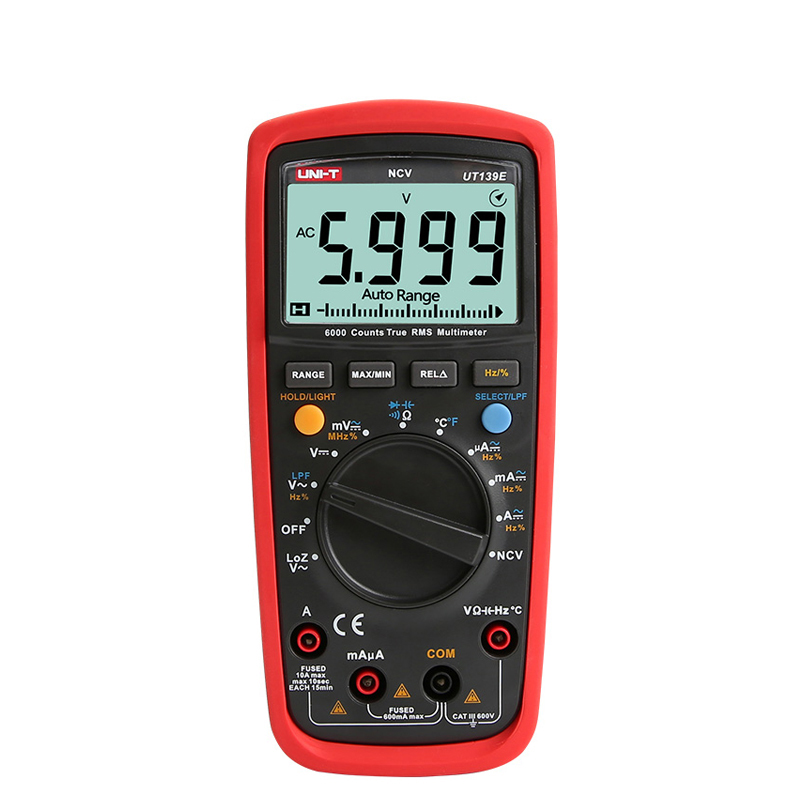

UT139E True RMS Digital Multimeter (Discontinued)
UT139E is CAT III 600V digital multimeter designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The UT139E include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results.
Description
Features of UT139E True RMS Digital Multimeter
Certificates: CE, RoHS, cETLus
● True RMS
● NCV
● Auto/manual ranges selectable
● 31-segment analog bar graph
● Diode, duty ratio and continuity buzzer
● Black EBTN screen
Specifications of UT139E True RMS Digital Multimeter
| Specifications | Range | UT139E |
| DC voltage (V) | 600V | ±(0.5%+2) |
| AC voltage (V) | 600V | ±(0.8%+3) |
| DC current (A) | 10A | ±(0.7%+2) |
| AC current (A) | 10A | ±(1%+3) |
| Resistance (Ω) | 20MΩ | |
| 40MΩ | ||
| 60MΩ | ±(0.8%+2) | |
| Capacitance (F) | 99.99mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature (°C) | -40°C~1000°C | ±(1%+4) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
| Features | ||
| Display count | 6000 | |
| Auto range/Manual range /True RMS |
√ | |
| Bandwidth (Hz) | 45Hz~400Hz | |
| NCV/Continuity buzzer | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | Around 3V | |
| LPF/LoZ (ACV) | √ | |
| Analog bar | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 58mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 345g | |
| Product size | 170mm x 80mm x 48mm | |
| Standard accessories | Batteries, test leads, temperature probe | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 330mm x 340mm | |
| Standard carton gross weight | 12.2kg | |
