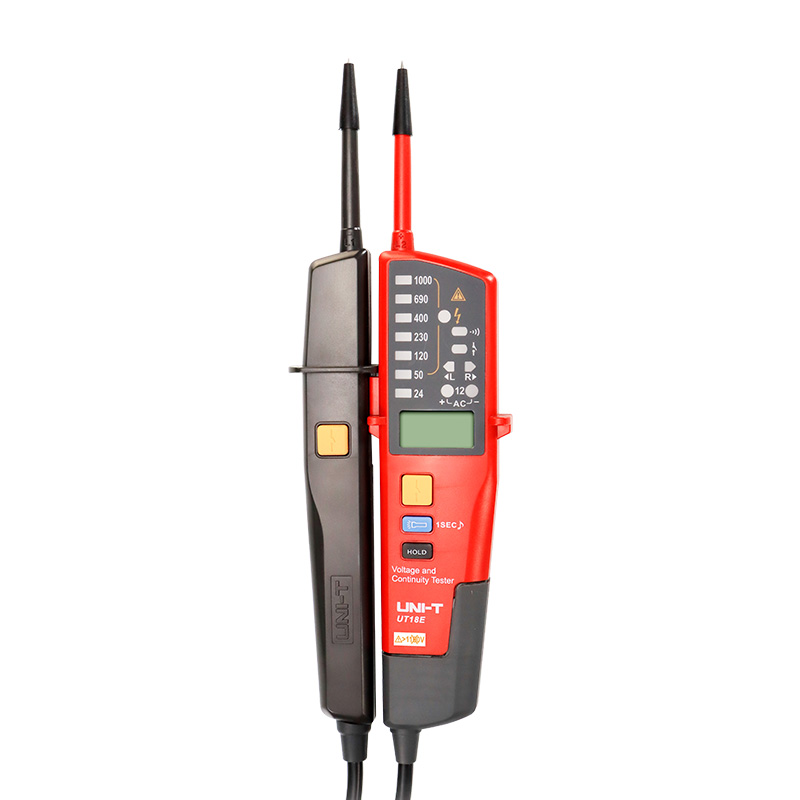

UT18E Voltage and Continuity Tester
The UT18E is designed for testing AC/DC voltage (up to 1000V), three-phase voltage/phase sequence, continuity, and more. It continues the lightweight design style of UT18C, LED and LCD can clearly display the measurement results. It complies with CAT IV 600V, and the buzzer alarm function can remind users to maintain safe operation at all times, UT18E is a handy electrician tool.
Description
Features of UT18E Voltage and Continuity Tester
Certifications: CE, UKCA
● 8 voltage levels: 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V (AC/DC)

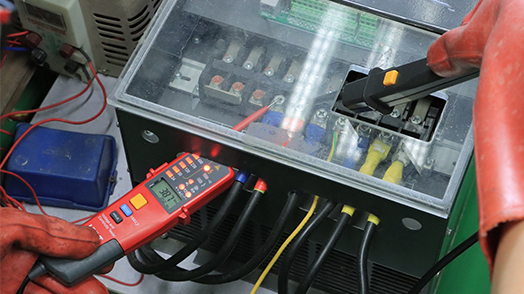

● Phase sequence test
● Automatic polarity test
● Continuity test
● RCD function
● Auto power off
● Frequency measurement
● Low impedance measurement
● LED+LCD display at the same time
● Buzzer alarm

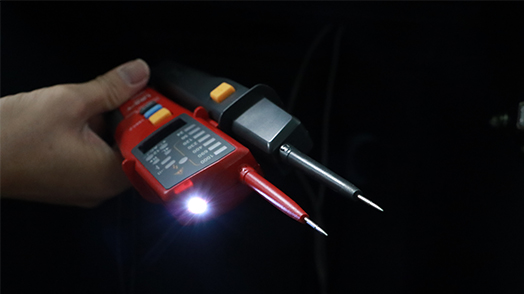

● Flashlight
● Safety rating: CAT III 1000V / CAT IV 600V
Specifications of UT18E Voltage and Continuity Tester
| Specifications | Range | UT18E |
| Voltage(AC/DC) | 6V | ±（1.5%＋1） |
| 12V | ±（1.5%＋2） | |
| 24V | ±（1.5%＋2） | |
| 50V | ±（1.5%＋3） | |
| 120V | ±（1.5%＋4） | |
| 230V | ±（1.5%＋5） | |
| 400V | ±（1.5%＋5） | |
| 690V | ±（1.5%＋5） | |
| 1000V | ±（1.5%＋5） | |
| Phase rotation test | 100Vac～400Vac (3 phase) | √ |
| Frequency: 50Hz~60Hz | ||
| Continuity test | Resistance: 0Ω~60kΩ | √ |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
| Polarity detection | Positive & Negative | √ |
| Self-inspection | All LED or LCD | √ |
| No power test | Operating voltage: 100~1000V | √ |
| Features | ||
| Voltage indication | LED and LCD | |
| Auto range | Full range | √ |
| Over voltage protection | 1100V | √ |
| Auto standby | Standby current＜10μA | √ |
| Slient mode | Full range | √ |
| Backlight | Full range | √ |
| Low battery indication | Around 2.4V | √ |
| LCD display (voltage) | 6V~1000V | √ |
| LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
| IP rating | IP65 | √ |
| Safety rating | CAT III 1000V; CAT IV 600V | |
| Certificate | CE , UKCA, RoHS | |
| General Characteristics | ||
| Product Color | Red, black | |
| Product weight (include batteries) | 277g | |
| Product Dimension | 272 x 85 x 31 mm | |
| Standard package | Clamshell+insert card+user manual | |
| Standard quantity per carton | 20 pcs | |
| Standard carton Dimension | 415 x 380 x 365 mm | |
