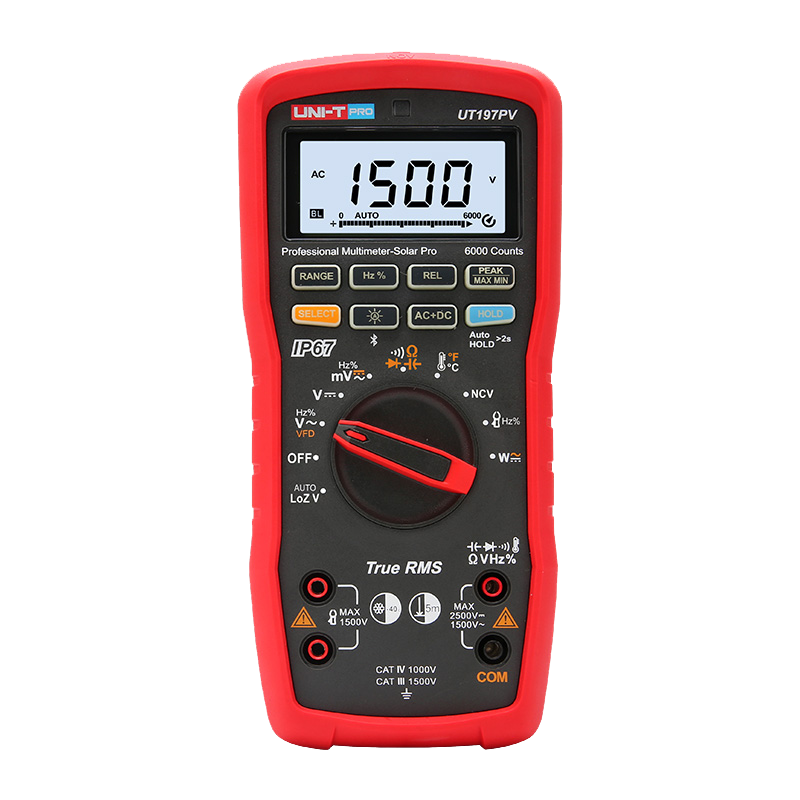

  • UT197PV-1

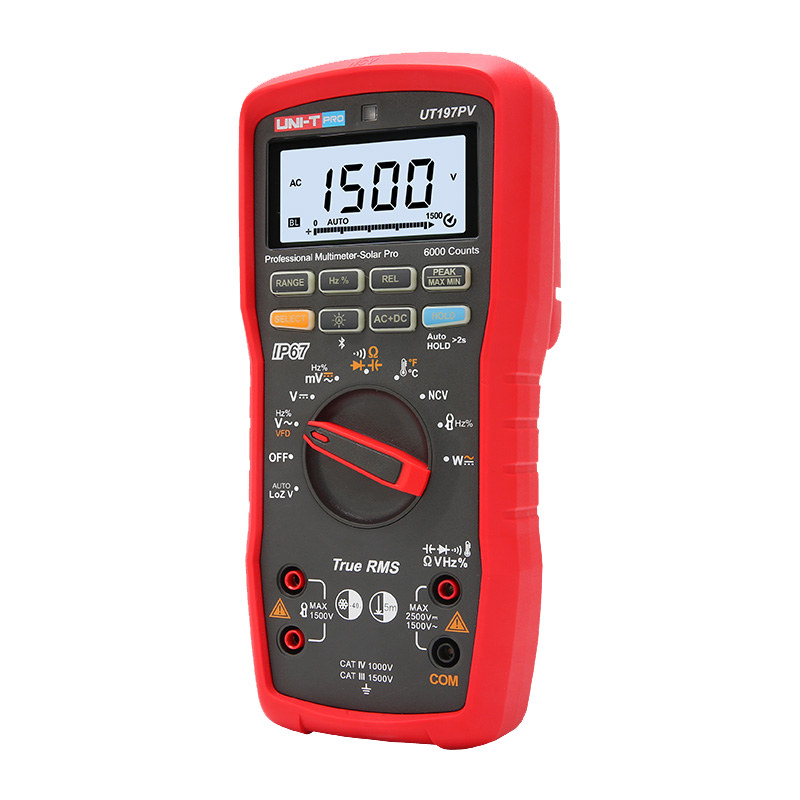

  • UT197PV-2

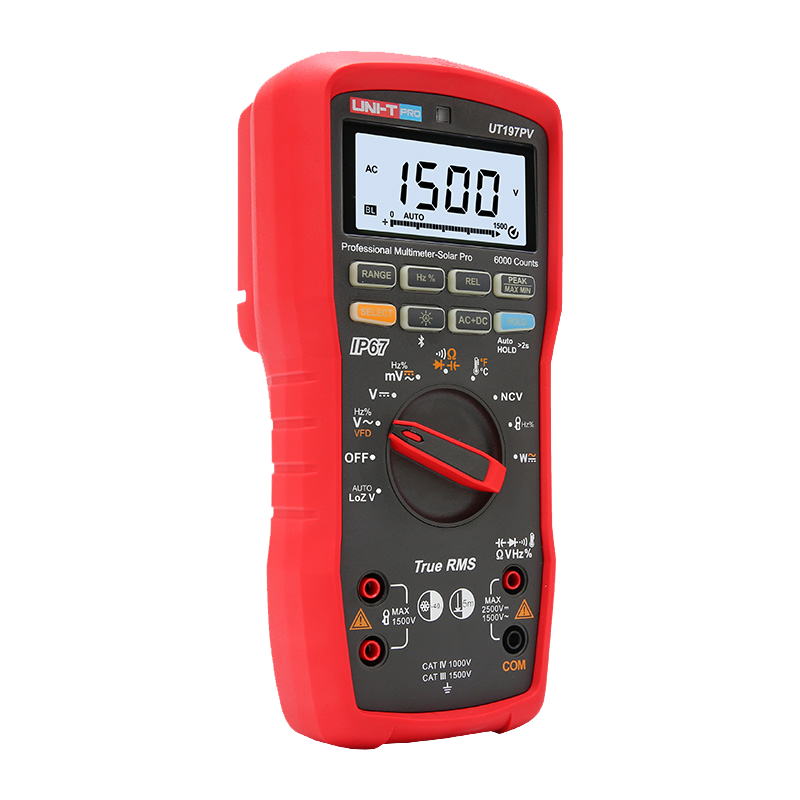

  • UT197PV-3

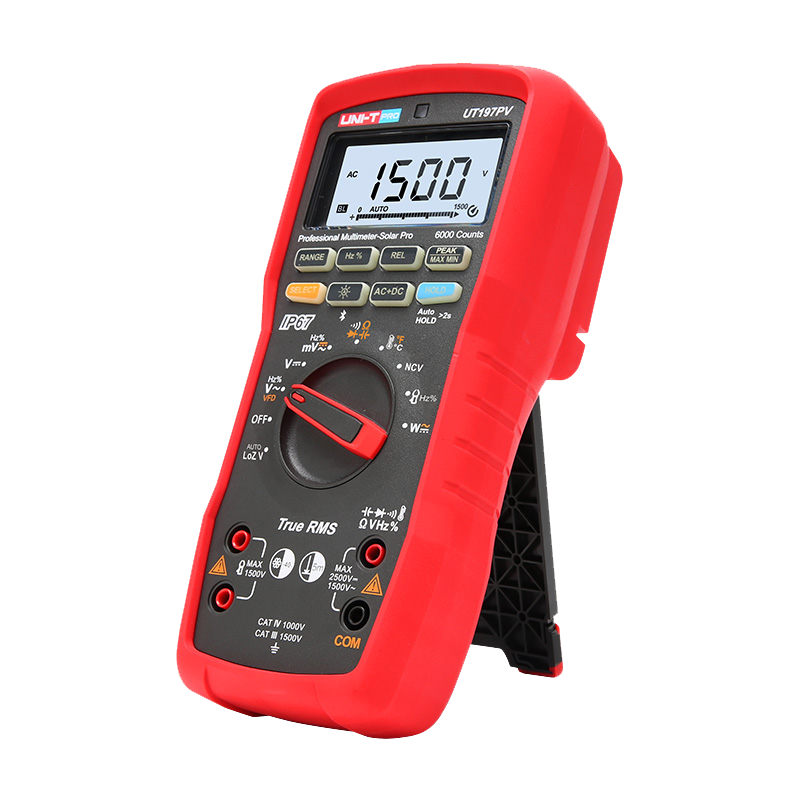

  • UT197PV-4
  • UT197PV-5
  • UT197PV-6
  • UT197PV-7
  • UT197PV-8

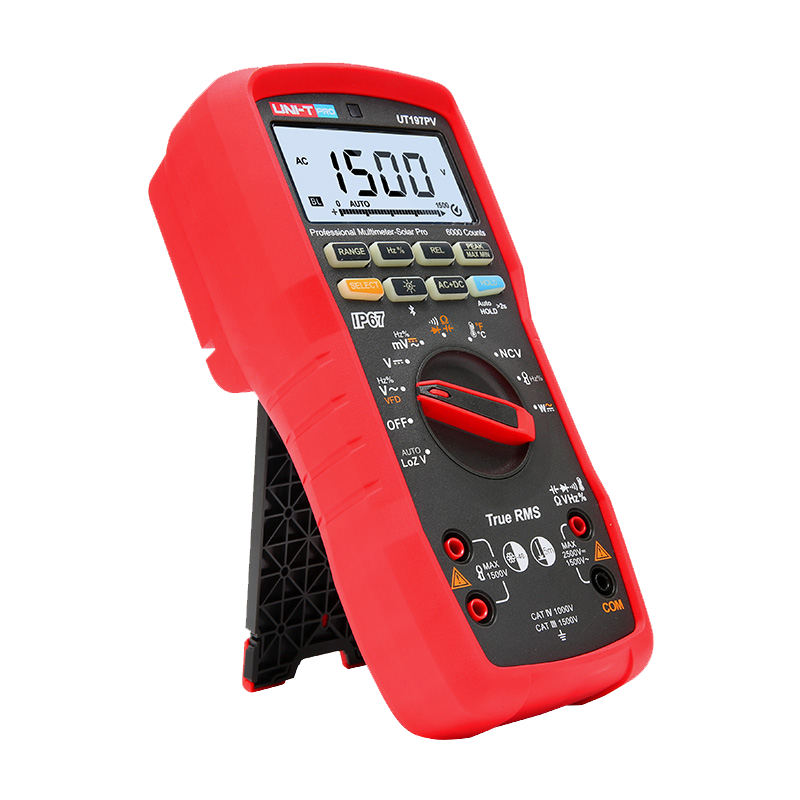

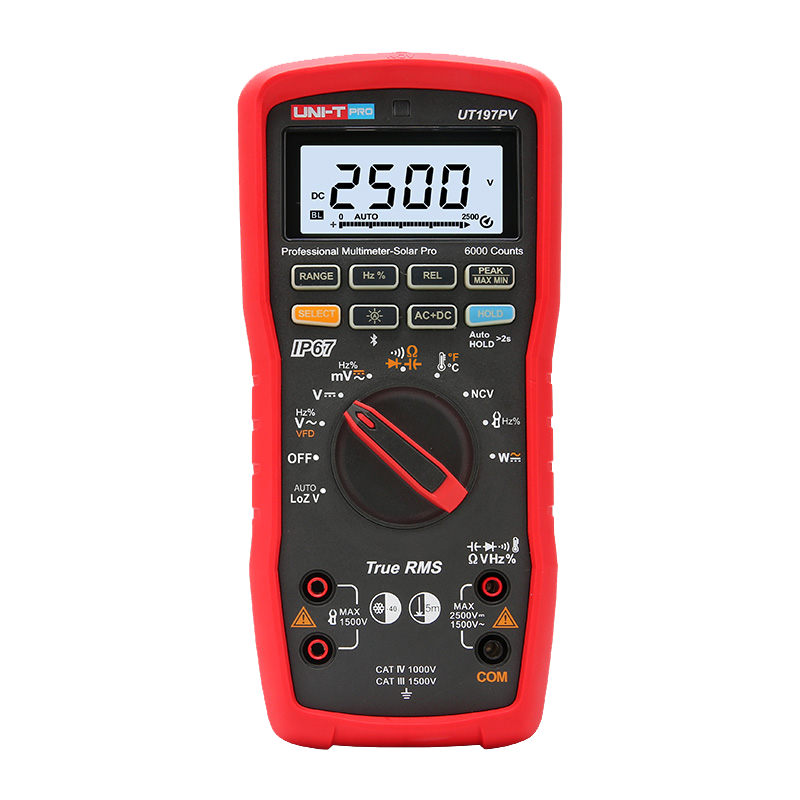

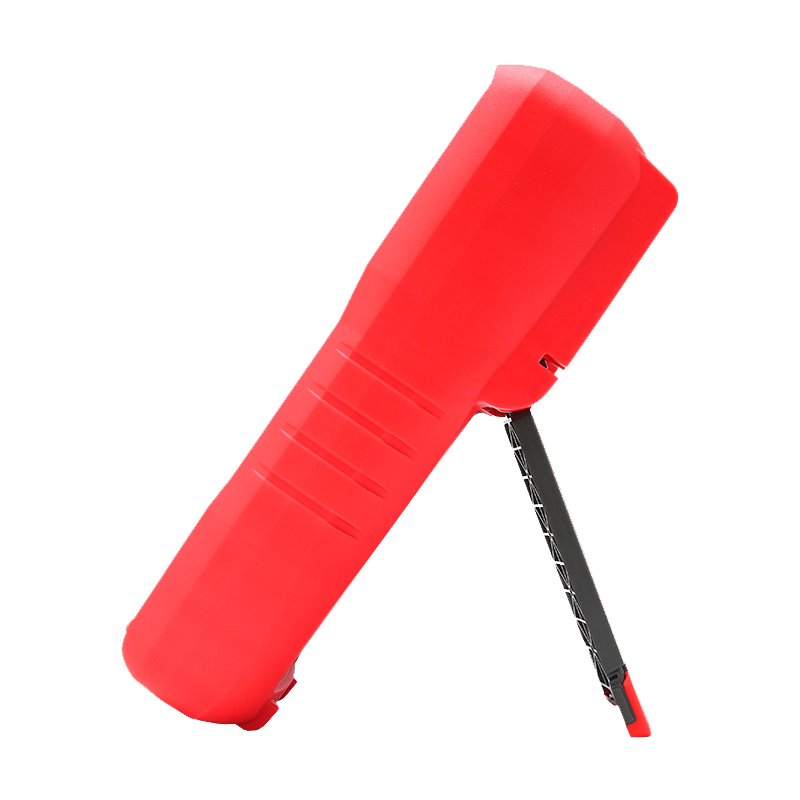

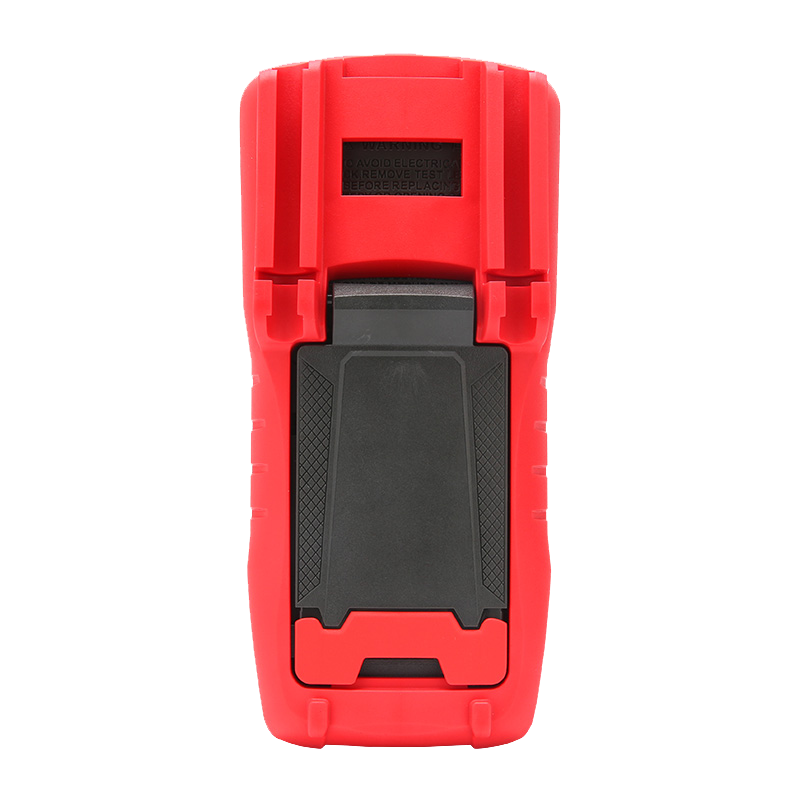

UT197PV professional multimeter-solar pro

New Coming Soon

The UT197PV is a rugged, high-precision true RMS handheld multimeter designed for industrial use. Key features include an IP67 rating for dust and water resistance, and the ability to withstand drops from up to 5 meters. This multimeter is ideal for harsh outdoor environments, such as damp or sandy conditions and extreme cold. It is widely used in power engineering, HVAC, new energy and environmental protection etc.

This product is currently out of stock and unavailable.

Contact
SKU: N/A Category: Tags: ,

Description

Features

Features of UT197PV professional multimeter-solar pro

Certifications: CE, cETLus, RoHS

1. True RMS measurement with 6,000 count
2. AC/DC voltage: 1000V
3. Power measurement: 1500KVA(AC) & 2500KVA (DC)
4. VFD output measurement
5. External clamp: AC/DC 1000A (Optional: UT-CS07)
6. Display count: IP67 & 5m Drop Protection
7. Overvoltage category: CAT IV 1000V & CAT III 1500V
8. Working environment: -40 °C ~ 55 °C
9. Bluetooth APP supported

Specifications

Specifications

Specification
Voltage(DCV) 600.0mV ±(0.3%+5)
6.000V/60.00V/600.0V ±(0.2%+5)
2500V ±(1.0%+5)
Voltage(ACV) 45～1kHz 600.00mV/6.000V/60.00V/600.0V/1500V ≥45Hz, <500Hz: ±(0.8%+3);
≥500Hz, <1KHz: ±(1.8%+3);
VFD (ACV) 45～200Hz 600.0V/1500V ±(2.0%+5)
Auto Loz 45～400Hz 600.0V ±(1.5%+5)
1500V ±(1.8%+5)
ACV+DCV 600.00mV/6.000V/60.00V/600.0V/1500V ≥45Hz, <500Hz: ±(1.5%+5);
≥500Hz, <1KHz: ±(2.5%+5);
Resistance 600.0Ω ±(0.8%+5)
6.000kΩ/60.00kΩ/600.0kΩ/
6.000MΩ		 ±(0.5%+5)
60.00MΩ ±(2.5%+5)
Capacitance 60.00nF ±3.0%
600.0nF/6.000μF/60.00μF/
600.0μF		 ±(3.0%+5)
6.000mF/60.00mF ±(10.0%+5)
Continuity 600.0Ω ±(1.0%+5)
Diode 3.2V ±(1.0%+5)
Fequency 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz ±(0.02%+5)
Duty cycle 10Hz~10KHz (10%~90%) ±(2.0%+30)
Temperature -40℃~1000℃ ±(1.0%+30)
-40℉~1832℉ ±(1.0%+60)
External clamp (DCA) UT-CS07(optional) 100A(10mV/A) & 1000A(1mV/A) ±(0.8%+5)
External clamp (ACA) UT-CS07(optional) 45～400Hz: 100A(10mV/A) & 1000A(1mV/A) ±(1.0%+5)
AC Power 100A(10mV/A) Active power 60.00kW/150.0kW ±(3.0%+5)
Apparent power 60.00kVA/150.0kVA ±(2.0%+5)
Reactive power 60.00kVAr/150.0kVAr ±(5.0%+5)
Factor -1~1 *
AC Power 1000A(1mV/A) Active power 600.0kW/1500kW ±(3.0%+5)
Apparent power 600.0kVA/1500kVA ±(2.0%+5)
Reactive power 600.0kVAr/1500kVAr ±(5.0%+5)
Factor -1~1 *
DC Power 100A (10mV/A) 60.00kVA/250.0kVA ±(3.0%+5)
DC Power 1000A (10mV/A) 60.00kVA/2500kVA ±(3.0%+5)
Display count 6000
Analog bar 33 segment
True RMS √
NCV √
Auto range √
REL. √
PEAK √
MAX/MIN √
Data hold √
High voltage alarm √
High voltage OL alarm √
Low battery indication √
Auto power off √
Multifunctional protection √
Bluetooth app √
Backlight Auto backlight
Drop protection 5m
IP rating IP67
Working temperature -40~55℃
Overvoltage category CATⅣ1000V & CATⅢ1500V
General Characteristics
Product dimension 220*104*67mm
Power supply AA 1.5V *3

Applications

Applications

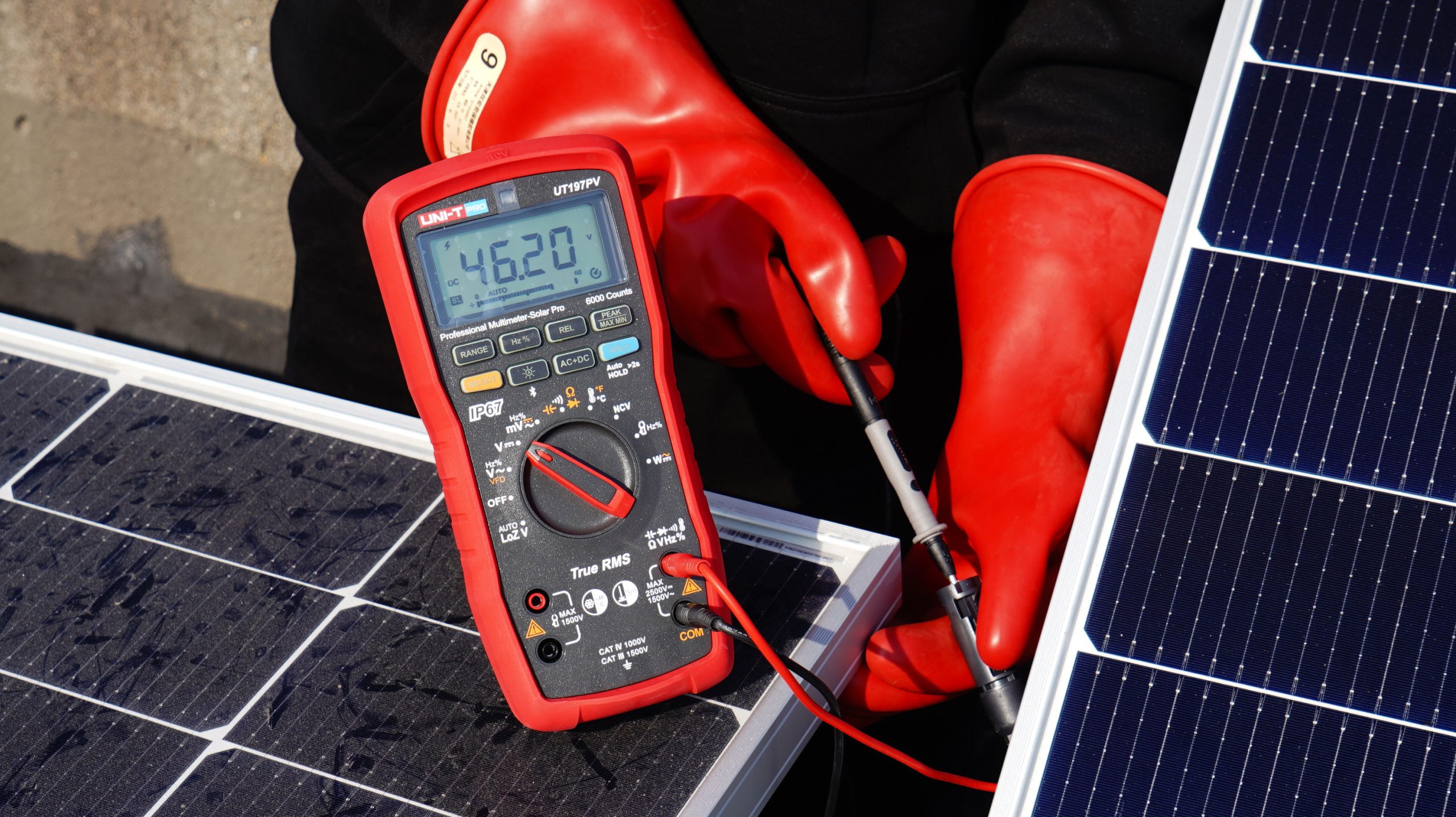

UT197PV-application-1

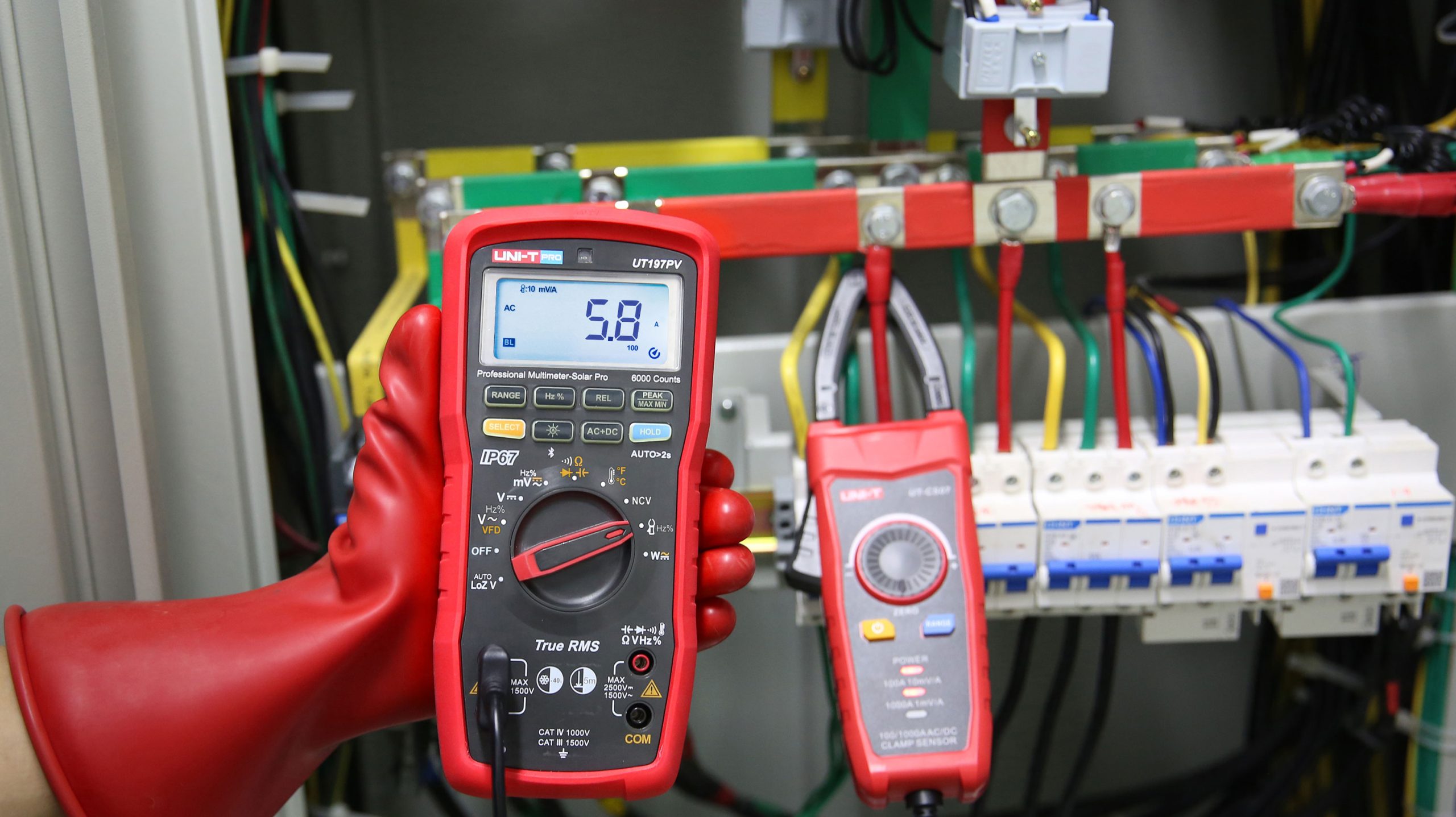

UT197PV-application-2

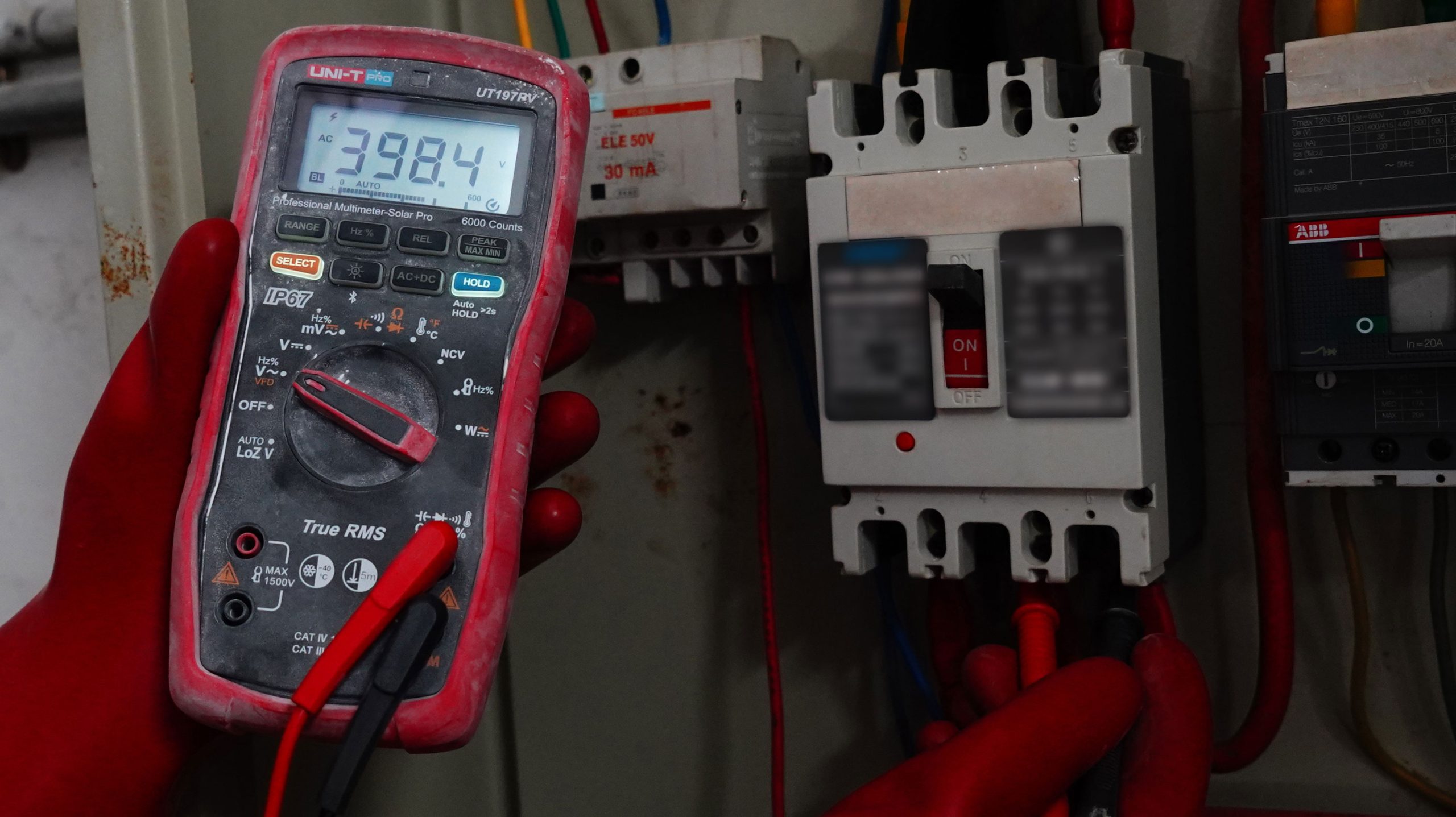

UT197PV-application-3

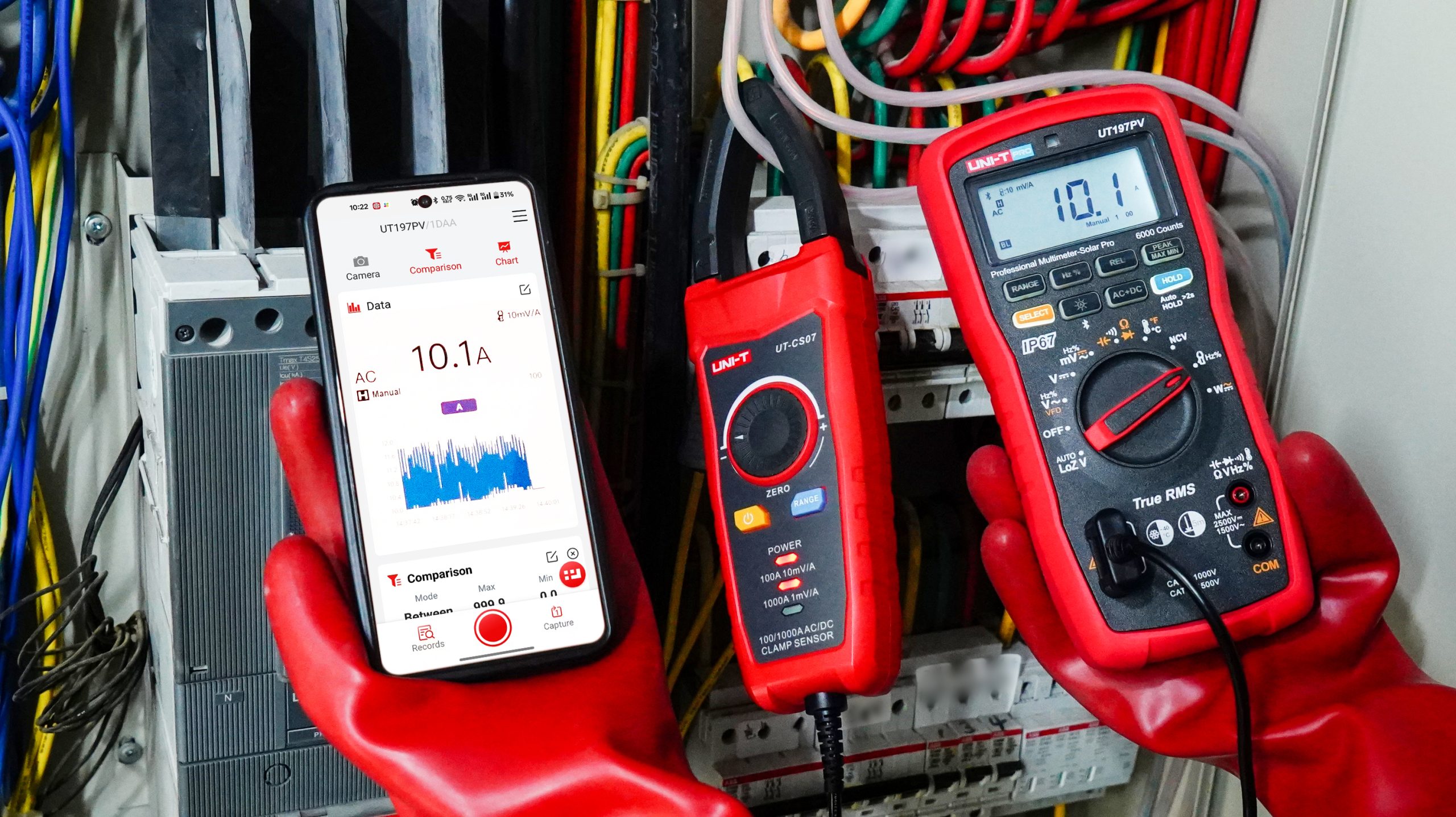

UT197PV-application-4
