This product has been discontinued.

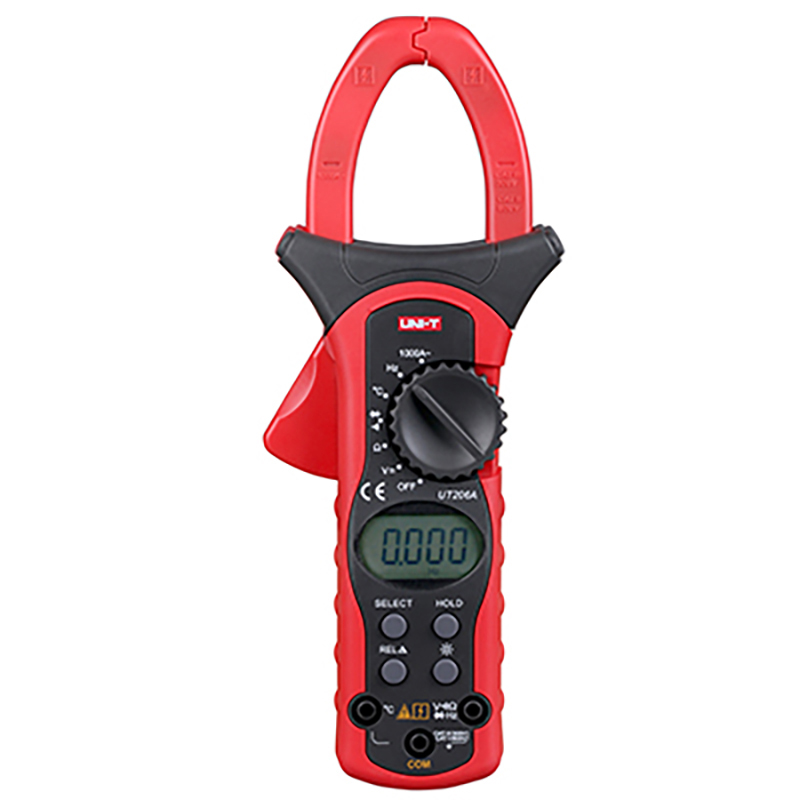

UT205A/UT206A 1000A Digital Clamp Meters (Discontinued)
UT205A/206A are professional 1000A digital clamp meters with 40mm jaw. This series is ergonomically designed, allowing better handling for users wearing electrical gloves. UT205A/206A are great choices for electricians and other professionals in need of measuring up to 1000A AC current.
Models: UT205A, UT206A
Description
Features of UT205A/UT206A 1000A Digital Clamp Meters
Certificates: CE, RoHS
● Display count: 4000
● Auto range
● Jaw opening: 40mm
● CAT II 600V/CAT III 300V
Specifications of UT205A/UT206A 1000A Digital Clamp Meters
| Specifications | Range | UT205A | UT206A |
| AC current (A) | 1000A | ±(1.5%+5) | ±(1.5%+5) |
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.1%+3) |
| Temperature (°C) | -40 °C~1000°C | ±(2%+8) | |
| Features | |||
| Display count | 4000 | 4000 | |
| Auto range | √ | √ | |
| Jaw opening | 40mm | 40mm | |
| Duty cycle | 0.1%~99.9% | √ | |
| Diode test | √ | √ | |
| Auto power off | √ | √ | |
| Continuity buzzer | √ | √ | |
| Low battery indication | √ | √ | |
| Data hold | √ | √ | |
| Relative mode | √ | ||
| LCD backlight | √ | √ | |
| Full icon display | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ |
| General Characteristics | |||
| Power | 9V battery (6F22) | ||
| Display | 37mm x 18mm | ||
| Product color | Red and grey | ||
| Product net weight | 350g | ||
| Product size | 236mm x 97mm x 40mm | ||
| Standard accessories | Battery, test leads, carrying bag, point contact temperature probe (UT206A) | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 525mm x 360mm x 380mm | ||
| Standard carton gross weight | 14.4kg | ||
