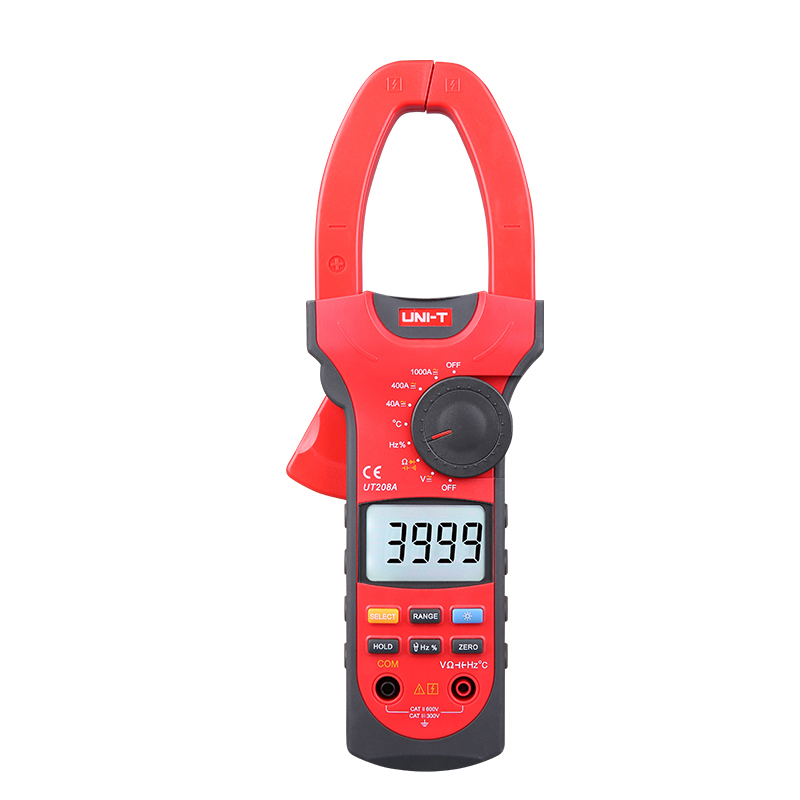

UT207/A to UT209/A Series 1000A Digital Clamp Meters (Discontinued)
These 1000A AC/DC digial clamp meters are stable, safe and reliable with low power consumption. Its full range overload protection and unique appearance design make these clamp meters the ideal tool for maintenance and repair of electrical and power lines up to 1000A AC.
Models in UT207/A to UT209/A Series: UT207, UT208, UT209, UT207A, UT208A, UT209A
Description
Features of UT207/A to UT209/A Series 1000A Digital Clamp Meters
Certificates: CE, RoHS
● 1000A AC/DC current measurement, 3 times/s sampling rate
● Auto/manual ranges selectable (UT207A/UT208A/UT209A)
● True RMS (UT207/UT208/UT209/UT209A)
● Analog bar graph (UT209)
● Inrush current (UT207/UT208)
● Zeroing function
● Full icon display (UT207/UT208/UT209)
● MAX/MIN (UT207/UT208/UT209)
● LCD backlight (UT207A/UT208A/UT209A)
● Data hold; Duty cycle (except UT209 )
● Auto power off and low battery indication
● Point contact temperature probe (UT208/UT208A)
● Diode; Continuity buzzer; Input Impedance for DCV
Specifications of UT207/A to UT209/A Series 1000A Digital Clamp Meters
| Specifications | Range | UT207 | UT208 | UT209 | UT207A | UT208A | UT209A |
| AC current (A) | 1000A | ±(2%+8) | ±(2%+8) | ±(2%+8) | ±(2%+2) | ±(2%+2) | ±(2%+2) |
| DC current (A) | 1000A | ±(1.5%+8) | ±(1.5%+8) | ±(1.5%+8) | ±(1.5%+5) | ±(1.5%+5) | ±(1.5%+5) |
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | |||
| 750V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ||||
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | |||
| 1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ||||
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| 66MΩ | ±(1%+2) | ±(1%+2) | |||||
| Capacitance (F) | 100μF | ±(4%+3) | |||||
| Frequency (Hz) | 10MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) | |||
| 40MHz | ±(0.1%+3) | ||||||
| 66MHz | ±(0.1%+3) | ±(0.1%+3) | |||||
| Temperature | -40°C~1000°C | ±(1%+3) | ±(2.5%+3) | ||||
| -40°F~1832°F | ±(1%+6) | ||||||
| General Characteristics | |||||||
| Power | 9V battery (6F22) | ||||||
| Display | 47mm x 30mm | ||||||
| Product color | Red and grey | ||||||
| Product net weight | 533g | ||||||
| Product size | 286mm x 105mm x 45mm | ||||||
| Standard accessories | Battery, test leads, tool box, point contact temperature probe (UT208/UT208A) | ||||||
| Standard individual packing | Gift box, English manual | ||||||
| Standard quantity per carton | UT207/UT208/UT209: 5pcs; UT207A/UT208A/UT209A: 20pcs | ||||||
| Standard carton measurement | UT207/UT208/UT209: 480mm x 372mm x 315mm; UT207A/UT208A/UT209A: 600mm x 370mm x 474mm | ||||||
| Standard carton gross weight | UT207/UT208/UT209: 11kg; UT207A/UT208A/UT209A: 28.3kg | ||||||
