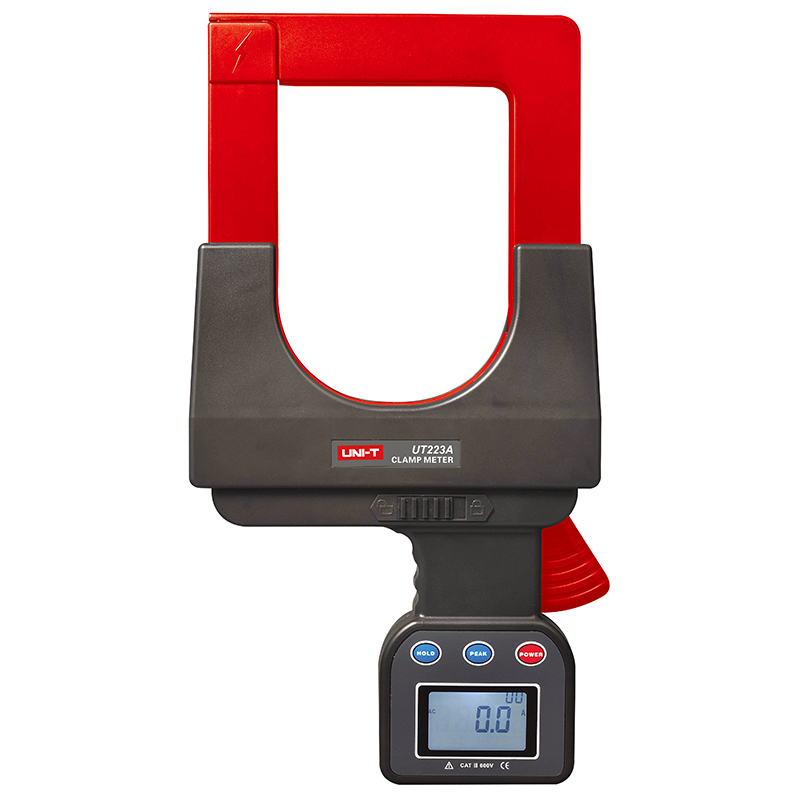

UT223A Large Jaws Clamp Meter
UT223A is designed for testing large AC current up to 4000A with a resolution of 0.1A. This device is designed with anti-interference mechanisms which improves measurement results around areas with electromagnetic interference.
Description
Features of UT223A Large Jaws Clamp Meter
● Large 108×148mm jaw, equipped with a locking bolt
● 4 Digits LCD display
● Auto range, 2/s sampling rate
● Peak test
● Manual range/99 sets storage data
● RS232 interface
● Data hold
● Auto power off
● Overload protection, low battery indication
● 4 Digits LCD display
● Auto range, 2/s sampling rate
● Peak test
● Manual range/99 sets storage data
● RS232 interface
● Data hold
● Auto power off
● Overload protection, low battery indication
Specifications of UT223A Large Jaws Clamp Meter
| Specifications | Range | UT223A |
| Current (A) | 0.0mA～499A | ±(2%+5) |
| 500A～999A | ±(3%+5) | |
| 1000A～2999A | ±(4%+5) | |
| 3000A～4000A | ±(5%+5) | |
| Resolution | 0.1A | |
| Test Range | AC 0.A～4000A | √ |
| Features | ||
| Display Mode | 4 Digits LCD Display | √ |
| Clamp Size | 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm*4mm flat cable and steel earth wires) | √ |
| Auto Range | √ | |
| RS-232 | √ | |
| Data Storage | 99 | |
| LCD Backlight | √ | |
| Date Hold | √ | |
| Overload Protection | OL | √ |
| Auto Power Off | 5 Minutes | √ |
| Low Battery Indication | ≤5.2V | √ |
| Test Model | Clamp CT, integral mode | √ |
| General Characteristics | ||
| Power | 6V DC (LR6×4 Alkaline Batteries) | |
| LCD Size | 47mm×28.5mm | |
| Product Color | Red and grey | |
| Product Net Weight | 1.5kg (Included Batteries) | |
| Product Size | 350mm×180mm×55mm | |
| Standard Accessories | Batteries, RS232 Interface Cable, Software CD, Toolbox | |
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
| Standard Quantity Per Carton | 6pcs | |
| Standard Carton Measurement | 610X375X320mm | |
| Standard Carton Gross Weight | 35kg | |
