This product has been discontinued. Replaced by UT243 .

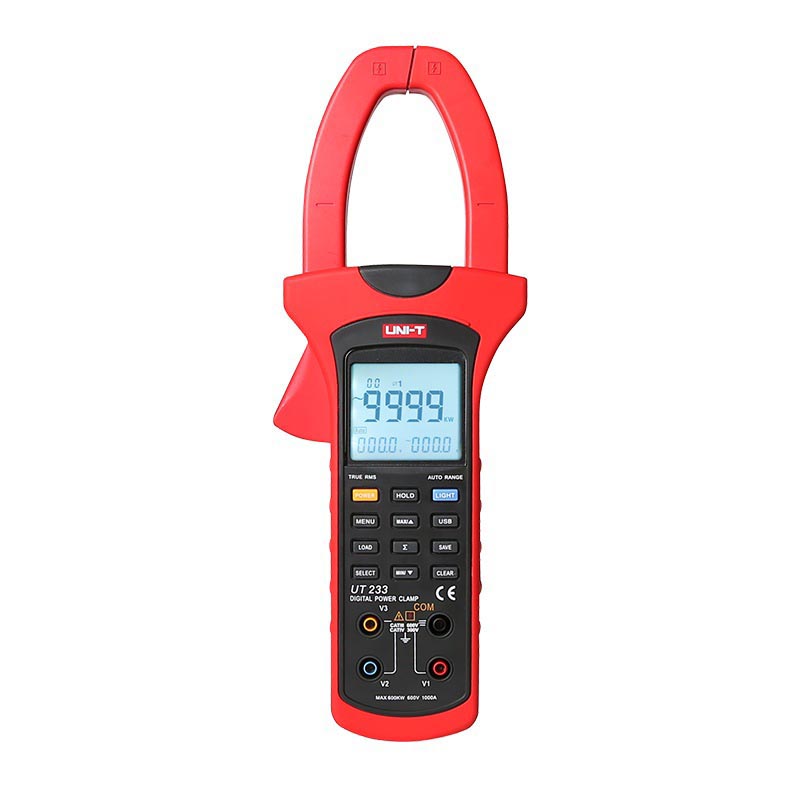

UT233 Digital Power Clamp Meter (Discontinued)
UT233 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more.
Description
Features of UT233 Digital Power Clamp Meter
Certificates: CE, RoHS
● 999-group data storage; single/continuous recording and data recall available
● True RMS voltage/current measurement
● 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
● 10000 count LCD dual display
● Adjustable sampling rate
● Max/Min modes
● Auto range, auto power off, backlight, low battery indication
● Equipped with USB interface and PC software CD
Specifications of UT233 Digital Power Clamp Meter
| Specifications | Range | UT233 |
| AC current (A) | 1000A | ±(2%+5) |
| AC voltage (V) | 600V | ±(1.2%+5) |
| Active power (W) | 0.01kW~600kW | ±(3%+5) |
| Apparent power (VA) | 0.01kVA~600kVA | ±(3%+5) |
| Reactive power (VAr) | 0.01kVAr~600kVAr | ±(4%+5) |
| Power factor | 0.3~1 | ±0.022 |
| Phase angle (°) | 0°~360° | ±1° |
| Active energy (Wh) | 1kWh~9999kWh | ±(3%+2) |
| Features | ||
| Display count | 10000 | |
| Auto range | √ | |
| Jaw opening | 50mm | |
| True RMS | AC voltage/AC current | √ |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| MAX/MIN | √ | |
| Data storage | 99 | |
| USB interface | √ | |
| LCD backlight | √ | |
| Full icon display | √ | |
| Single-phase 2-wire | √ | |
| 3-phase 3-wire | √ | |
| 3-phase 4-wire | √ | |
| Phase sequence test | Positive phase, reverse phase, phase deficiency | √ |
| Auto calibration | √ | |
| Input impedance for DCV | ≥10MΩ | |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 4 | |
| Display | 46mm x 42mm | |
| Product color | Red and grey | |
| Product net weight | 601g | |
| Product size | 303mm x 112mm x 39mm | |
| Standard accessories | Batteries, test leads, alligator clips, USB interface cable, PC software CD | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 5pcs | |
| Standard carton measurement | 510mm x 375mm x 320mm | |
| Standard carton gross weight | 12.9kg | |
