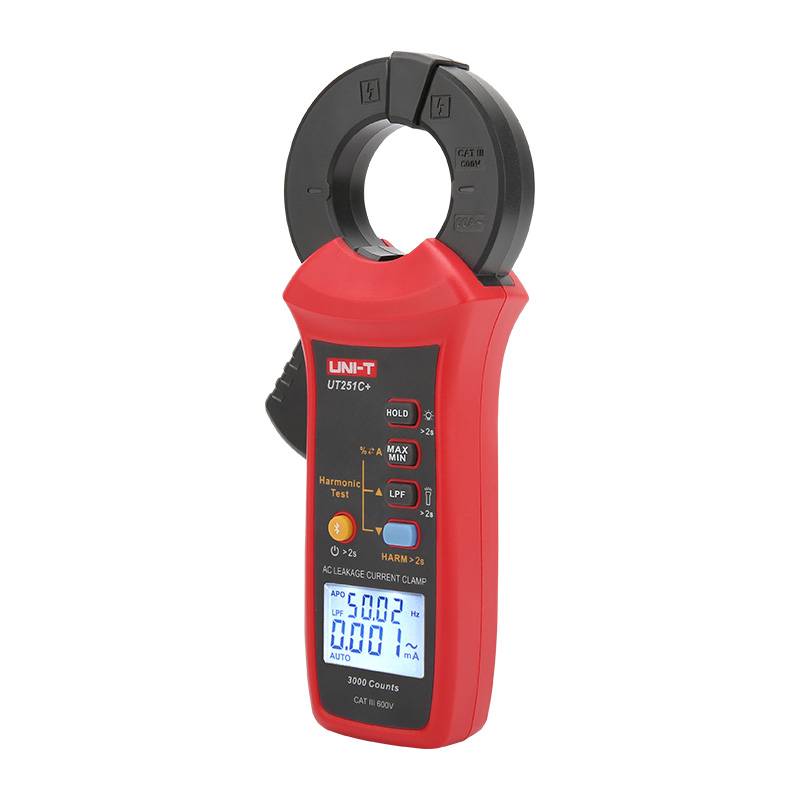

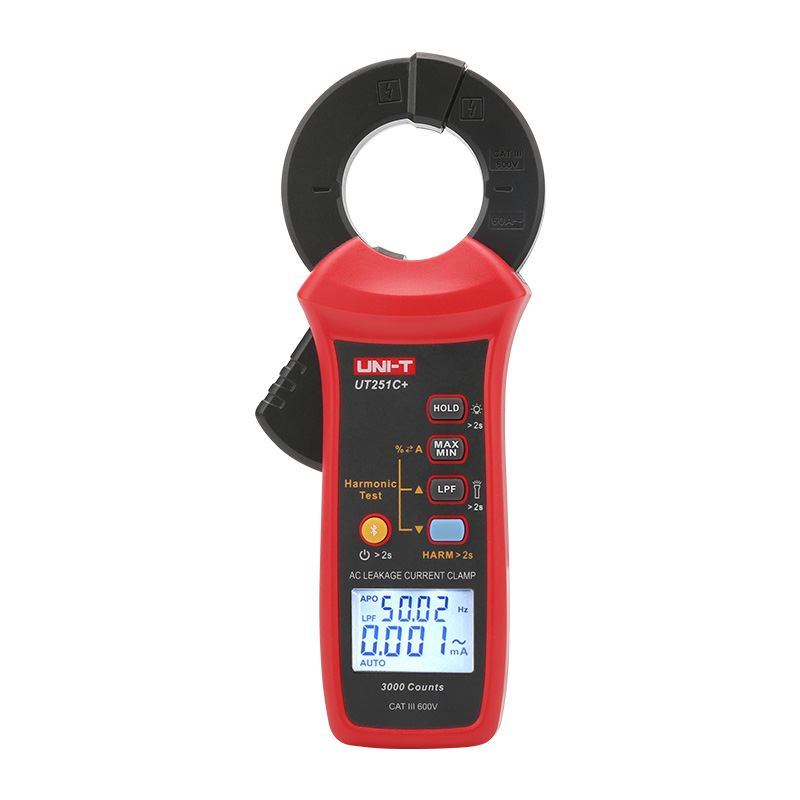

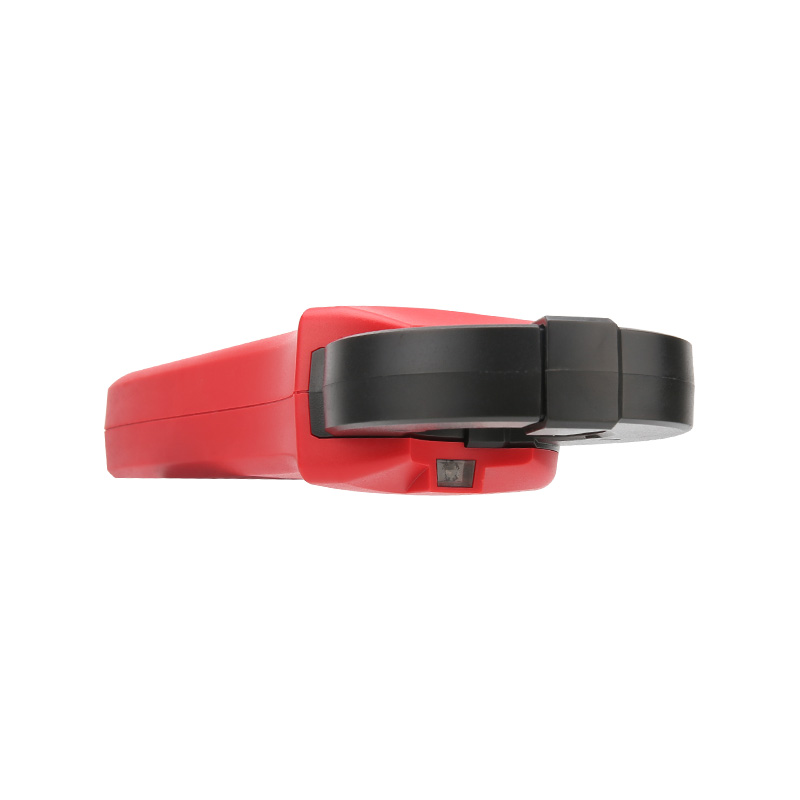

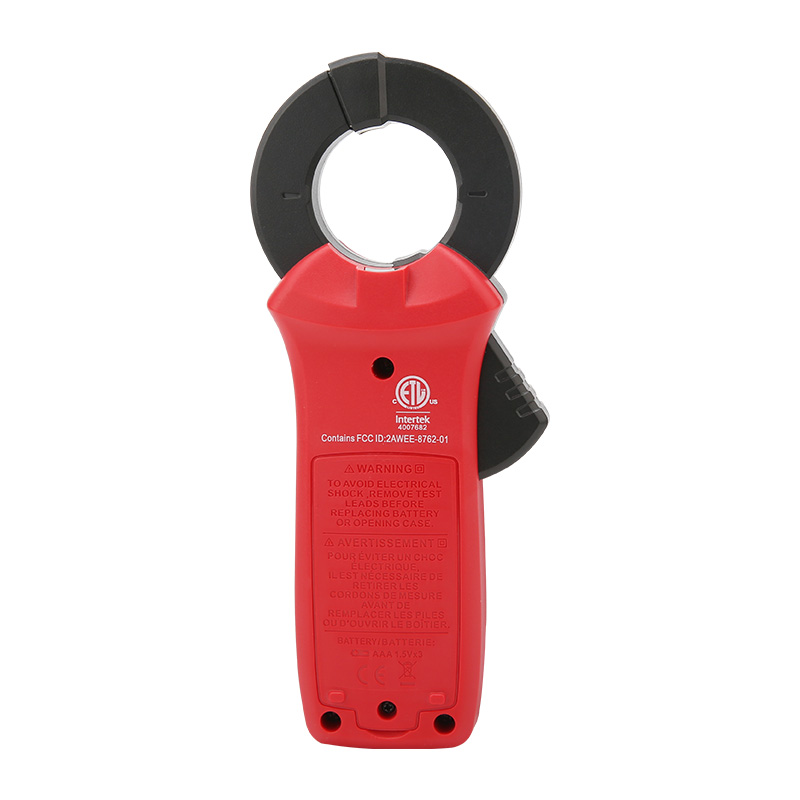

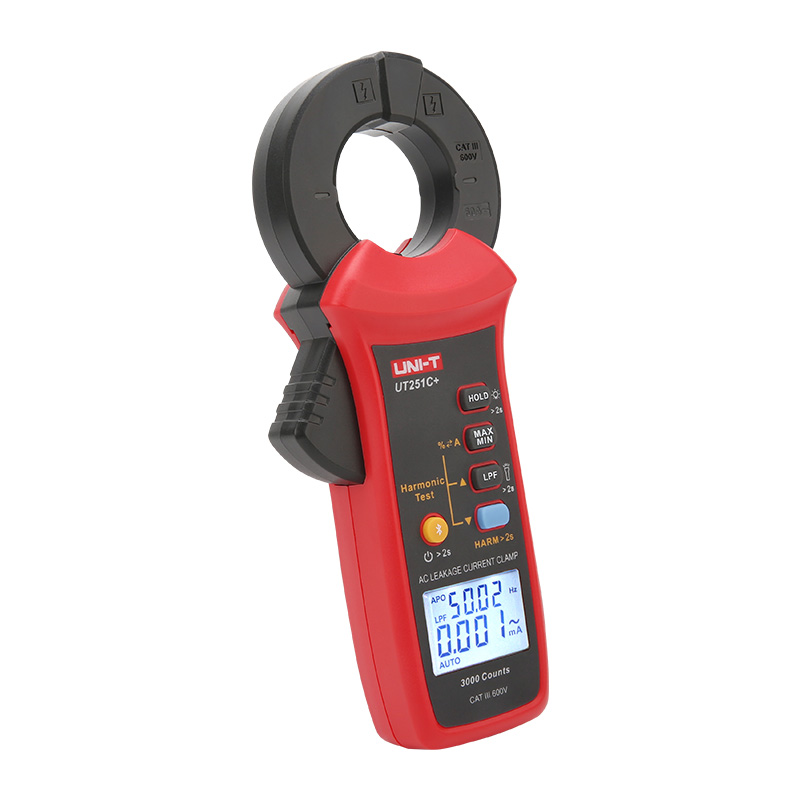

UT251C+ AC Leakage current clamp (Coming soon)
UT251C+ high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. The high resolution meter is great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 60A.
Description
Features of UT251C+ AC Leakage current clamp
Certifications: CE, ETL, RED, FCC
1. Jaw size: 40mm
2. Current: 3.000mA~60.0A; 1uA
3. Harmonic measurement: 21
4. Frequency: 5Hz~5KHz
5. Frequency response: 50Hz~60Hz
6. Strong anti- interference
7. Stable reading
8. Bluetooth app
9. CAT III 600V
Specifications
| Specifications | Range | |
| Current | 3.000mA | 1uA |
| 30.00mA | 0.01mA | |
| 300.0mA | 0.1mA | |
| 3.000A | 0.001A | |
| 30.00A | 0.01A | |
| 60.0A | 0.1A | |
| Frequency | 99.99Hz | 0.01Hz |
| 999.9Hz | 0.1Hz | |
| 5.000KHz | 0.001KHz | |
| Frequency response | 50Hz~60Hz | |
| HARM measurement | 1 | 0.1% |
| 2～6 | 0.1% | |
| 7～8 | 0.1% | |
| 9～10 | 0.1% | |
| 11～15 | 0.1% | |
| 16～20 | 0.1% | |
| Features | ||
| Display count | 3000 | |
| True RMS | √ | |
| Jaw size | Measureable dia.:40mm | |
| Display | HTN LCD; Dual display | |
| LPF function | √ | |
| Sample rate | 2 times/s | |
| Auto range | √ | |
| MAX/MIN | √ | |
| PEAK Hold | √ | |
| Data hold | √ | |
| Data transmission | Bluetooth | |
| Backlight | √ | |
| Flashlight | √ | |
| Low battery indication | √ | |
| Harmonic test | √ | |
| CAT rating | CAT III 600V | |
| Certificates | CE, ETL, RED, FCC | |
| General Characteristics | ||
| Power supply | AAA 1.5V*3 | |
| Product Color | Gray + Red | |
| Product Dimension | 200*84*40(mm) | |
| Main features (flyer) | ||
| Large Jaw size (up to 40mm) |
Safety regulation (CAT III 600V) |
|
| High resolution (1uA) | Bluetooth supported | |
| Strong an-ti interference | Stable reading | |
