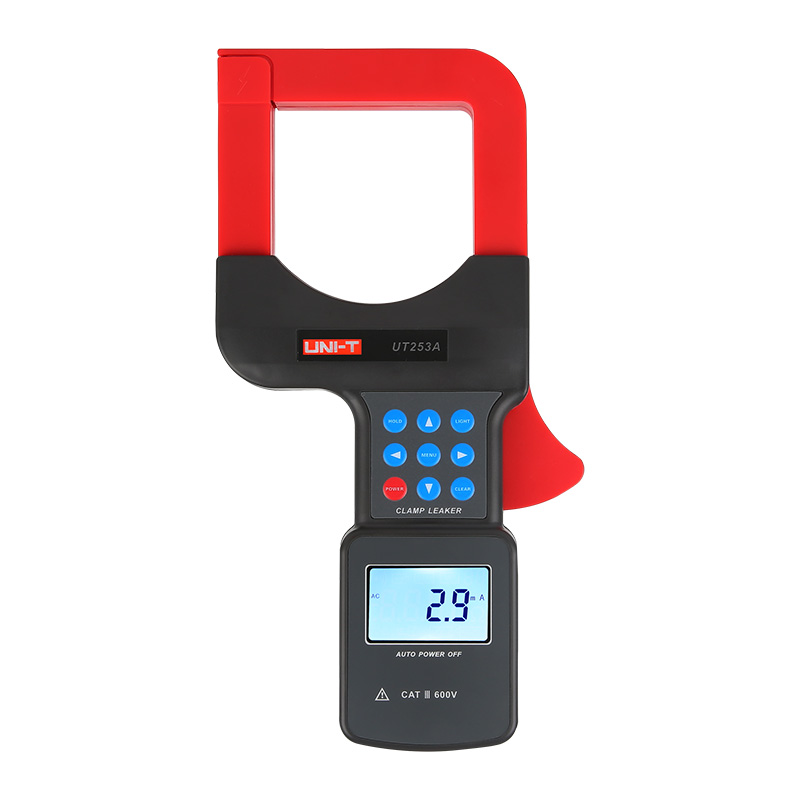

UT253A Large Jaw Leakage Current Clamp Meter

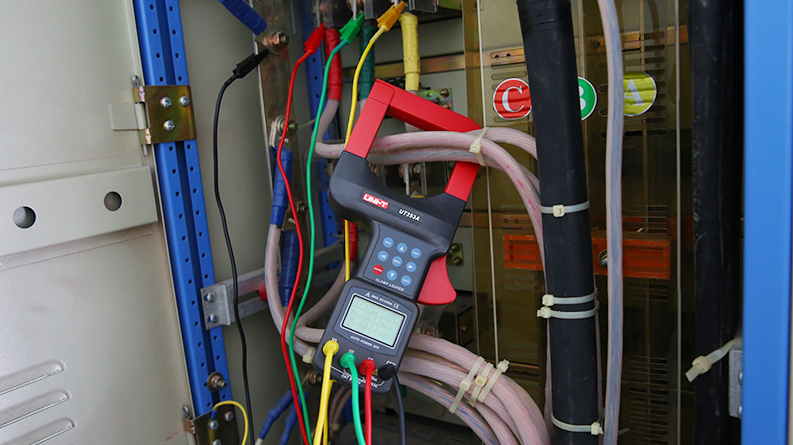

UT253 series are large current high precision leakage clamp meters that can measure up to 1200A. Its large 80mm×80mm jaw is able to clamp up to 96mm cables or flat-steel ground wires. UT253’ s intelligent design can measure leakage current, three-phase voltages and display them on the screen simultaneously.
Description
Features of UT253A Large Jaw Leakage Current Clamp Meter
● Auto range; RS-232
● LCD backlight; Data hold
● Over-range display
● Auto power off
● Low battery indication
Specifications of UT253A Large Jaw Leakage Current Clamp Meter
| Specifications | Range | UT253A |
| Leakage current (A) | 0mA～300A | ±(1.5%+3) |
| 300A～1200A | ±(2%+3) | |
| 0-600V (50-60Hz) | ±(1.5%+3) | |
| Resolution | 0.01mA | |
| Features | ||
| Display mode | 128 dots×64 dots LCD | |
| Clamp size | 80mm×80mm | |
| Data logging | 200 | |
| Test mode | Clamp CT, integration | √ |
| General Characterisitics | ||
| Power | 1.5V Battery (LR6) x 4 | |
| Display | 47mm x 28.5mm | |
| Product color | Red and grey | |
| Product net weight | 830g | |
| Product size | 275mm x 145mm x 40mm | |
| Standard accessories | Batteries, test leads (3 red, 1 black), USB cable, PC software CD | |
| Standard individual packing | Gift box, English manual, tool box | |
| Standard quantity per carton | 6pcs | |
| Standard carton measurement | 610mm x 375mm x 320mm | |
| Standard carton gross weight | 16.4kg | |
