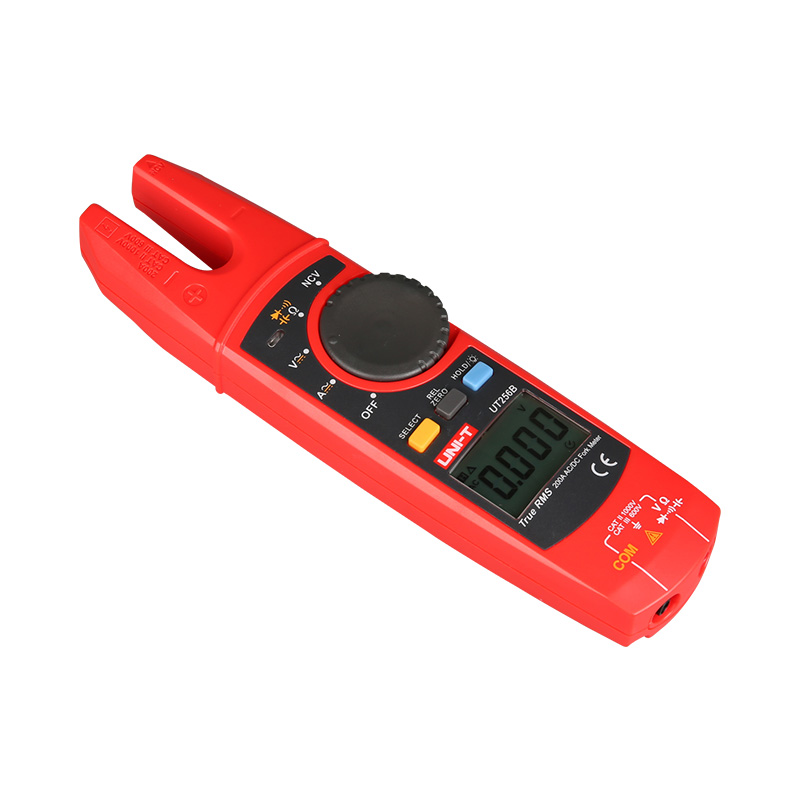

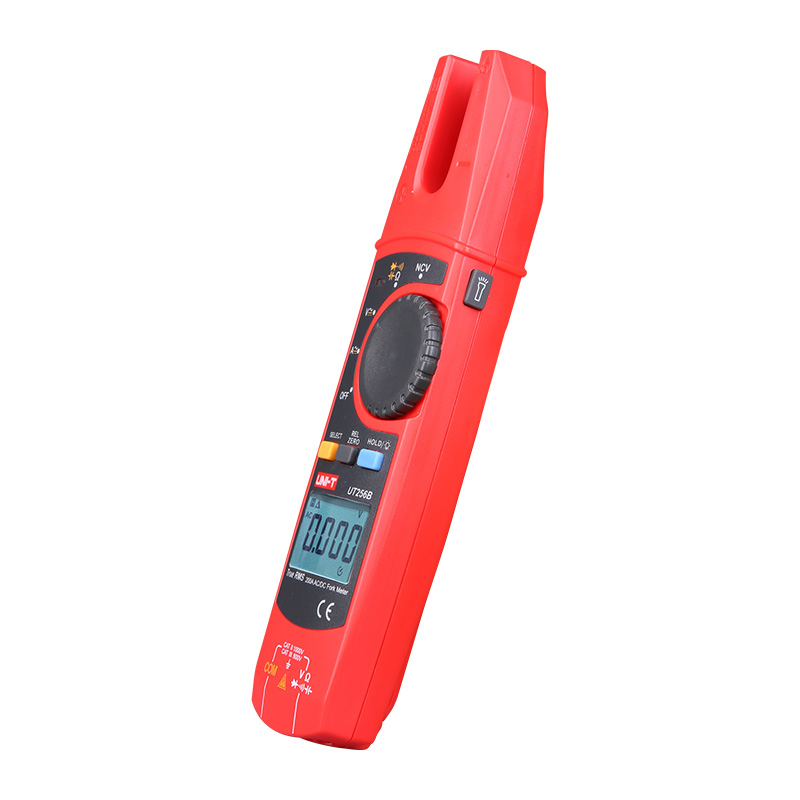

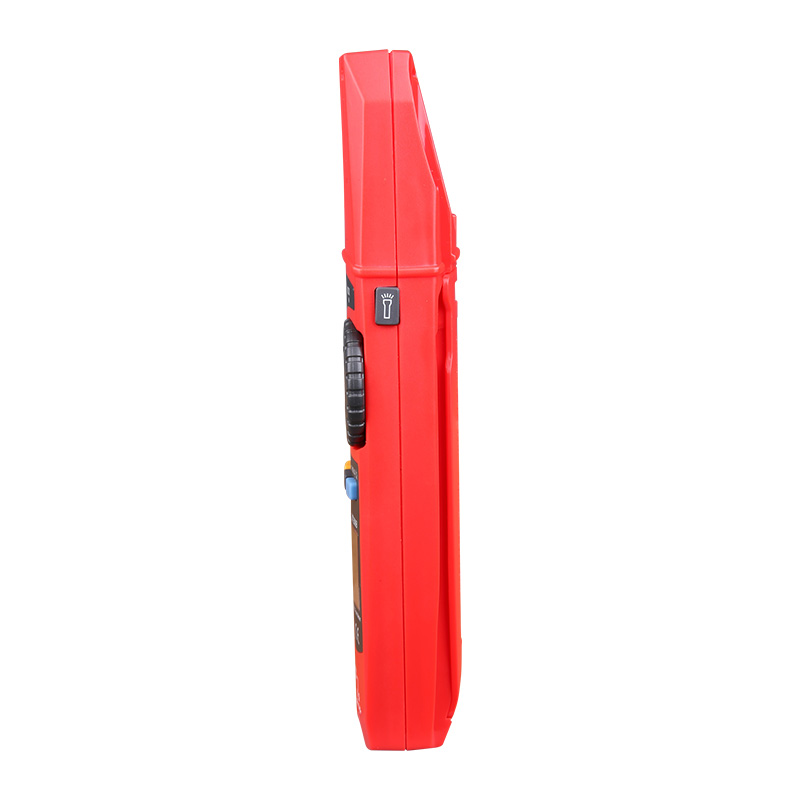

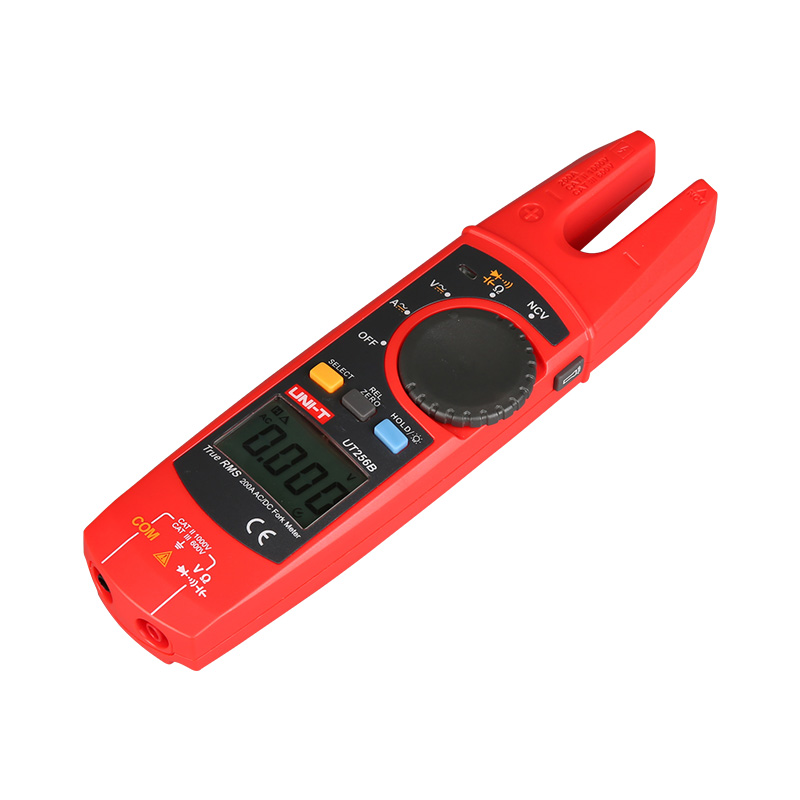

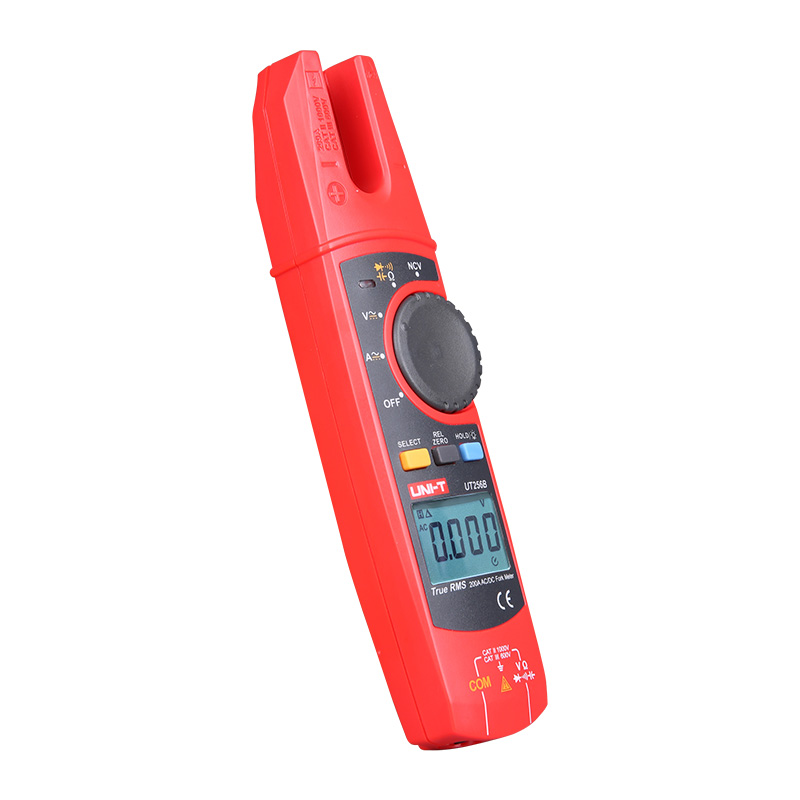

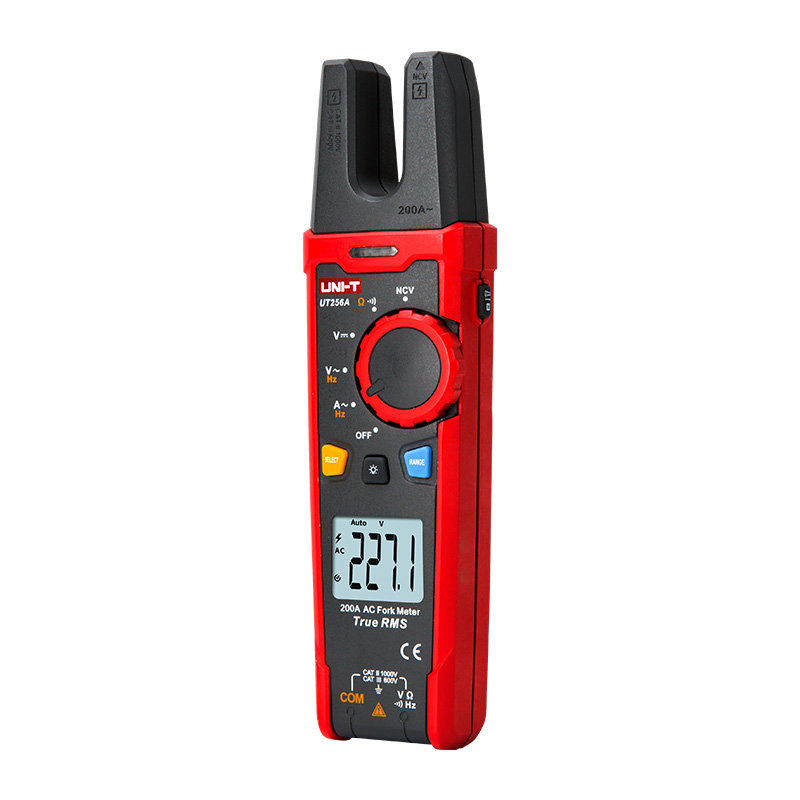

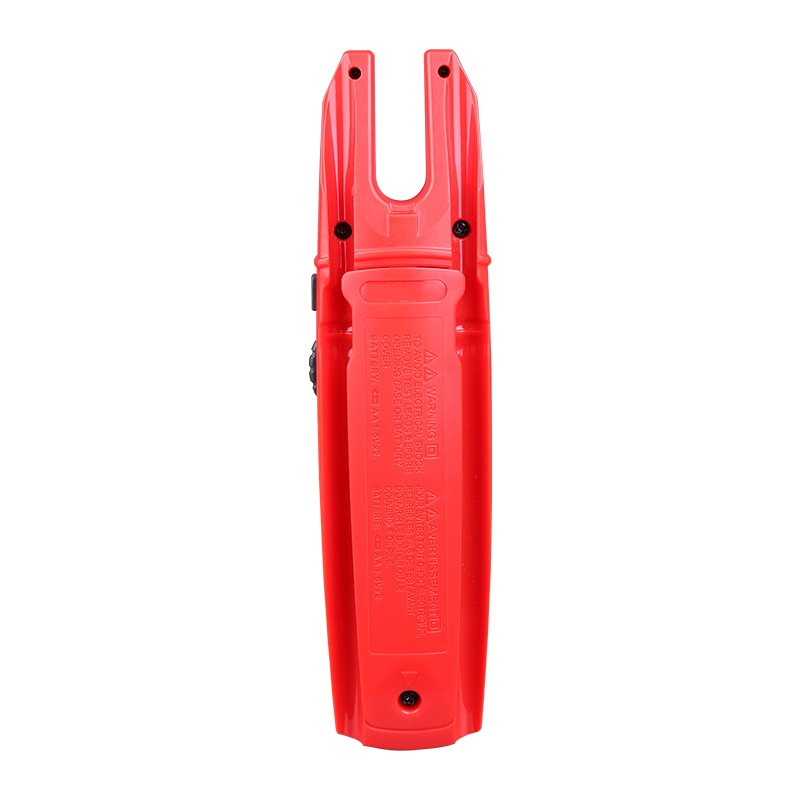

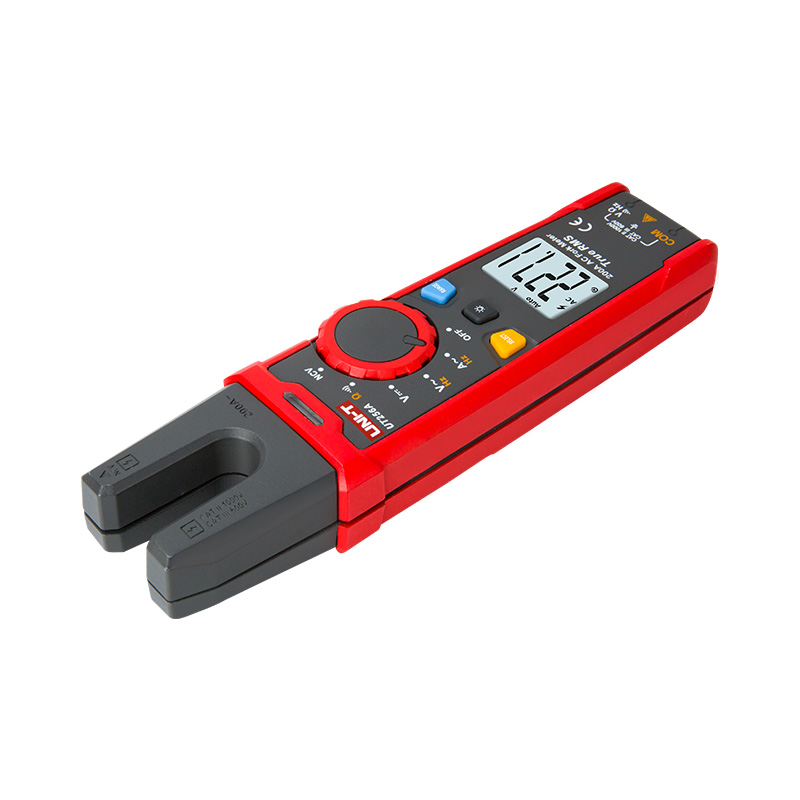

UT256 Series 200A True RMS Fork Meters

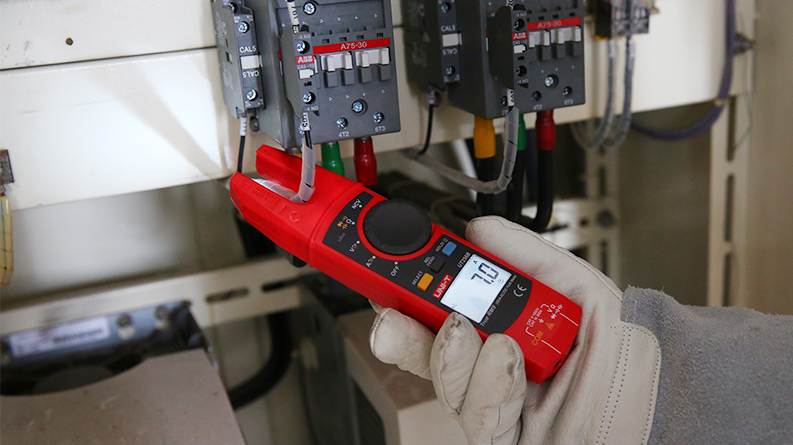

UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ to the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.

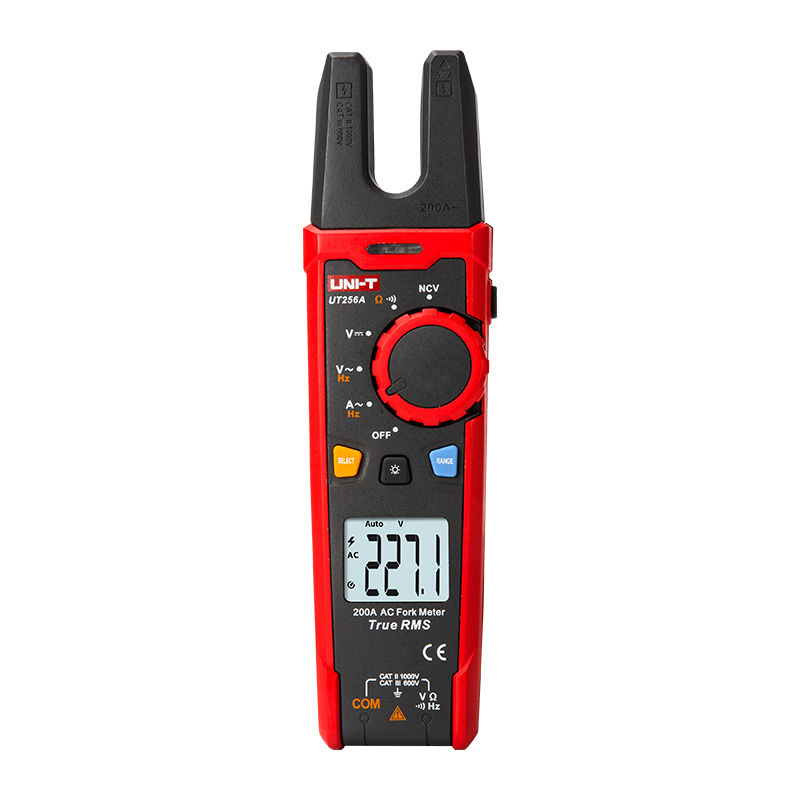

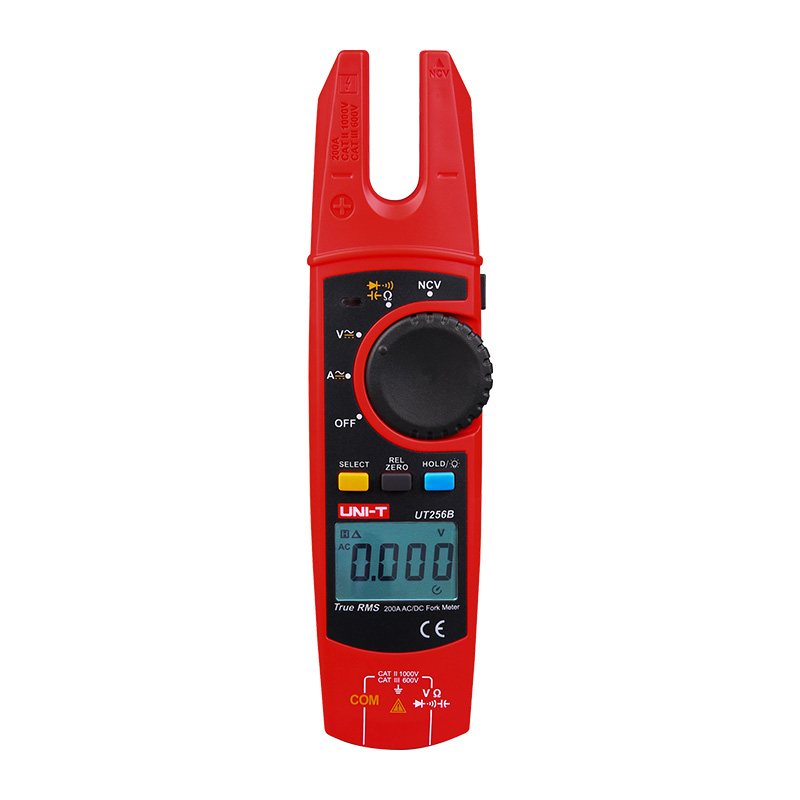

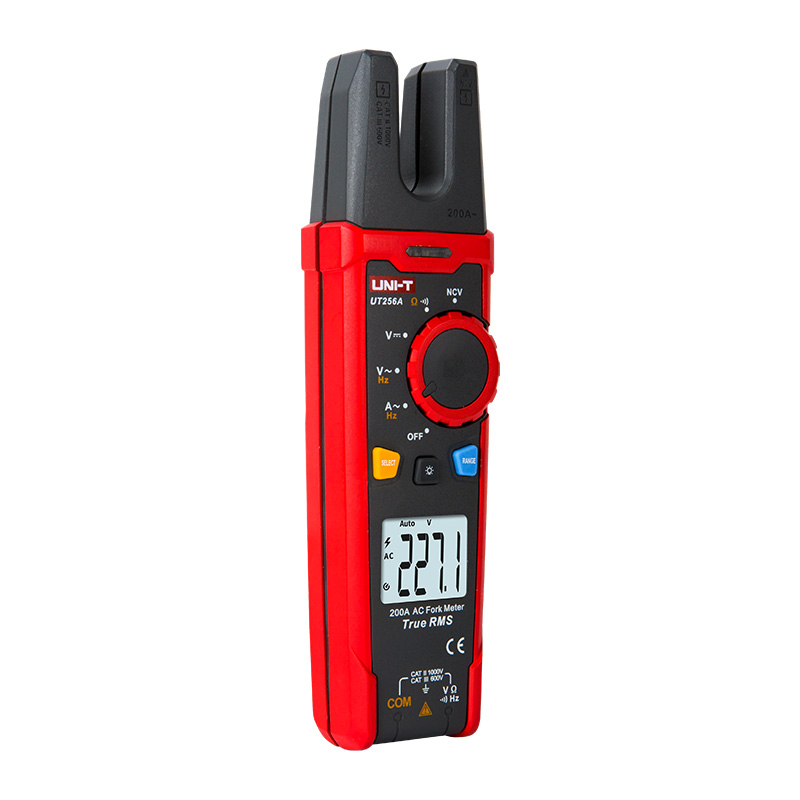

Models in UT256 series: UT256A, UT256B
Description
Features of UT256 Series 200A True RMS Fork Meters
Certificates: CE, UKCA, cETLus
● Auto range
● True RMS
● Data hold
● Auto power off
● Continuity buzzer
● Low battery indication: ≤2.4V
● Input protection
● LCD backlight
Specifications of UT256 Series 200A True RMS Fork Meters
| Specifications | Range | UT256A | UT256B |
| Certifications | CE/RoHS/cETLus | ||
| Safety ratings | CAT II 1000V, CAT III 600V | ||
| AC current (A) | 200A | ±(1.8%+5) | ±(2.5%+5) |
| DC current (A) | 200A | ±(2.5%+5) | |
| AC voltage (V) | 750V | ±(1.2%+3) | |
| 1000V | ±(1.2%+3) | ||
| DC voltage (V) | 1000V | ±(0.8%+3) | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+20) | |
| Frequency (Hz) | 10~10kHz | ±(0.1%+5) | |
| Display count | 6000 | 6000 | |
| Diode test | About 3V | √ | |

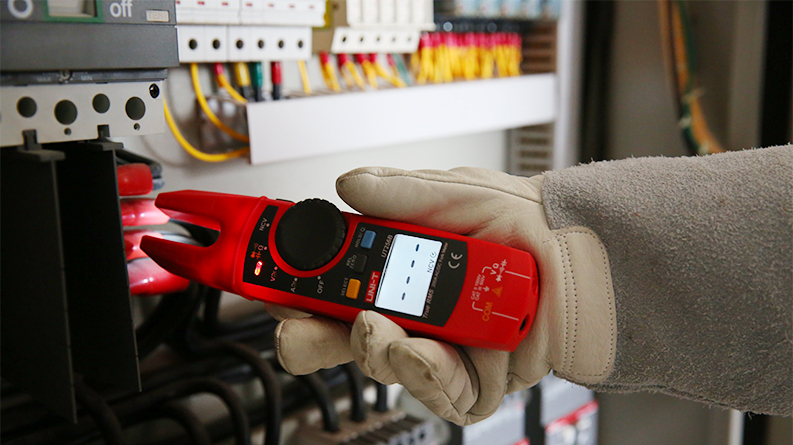

| NCV | √ | √ | |
| Zero mode | √ | ||
| Relative mode | √ | ||
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 2 | ||
| Display | UT256A: 35mm x 26mm; UT256B: 36.5mm x 24mm | ||
| Product net weight | 248g | ||
| Product size | UT256A: 217mm x 58.8mm x 38.5mm; UT256B: 210mm x 53mm x 35mm | ||
| Standard accessories | Batteries, test leads, English manual | ||
| Standard individual packing | Gift box, carrying bag | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 485mm x 310mm x 205mm | ||
| Standard carton gross weight | 9.5kg | ||
Documents
Tittle
Download
Related Products
-
UT200+ Series 400A/600A Digital Clamp Meters
Able to measure high-voltage frequency, temperature, AC/DC current, etcLearn moreCompare ModelsCompare: -

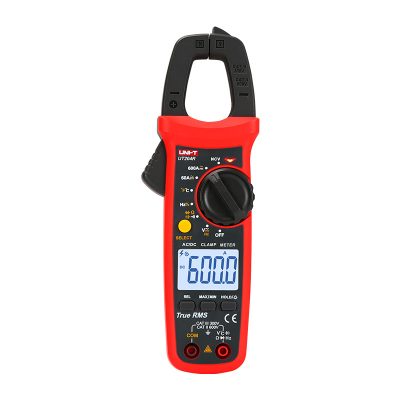

UT200R Series 400A/600A Digital Clamp Meters
Able to measure high-voltage frequency, temperature, AC/DC current, etcLearn moreCompare ModelsCompare: -

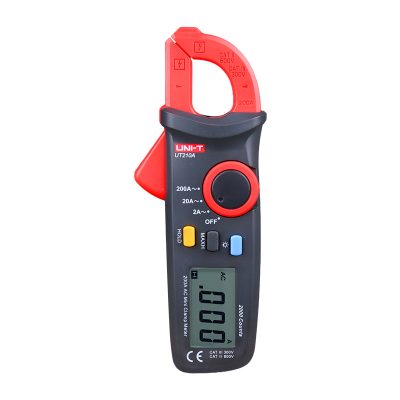

UT210 Series Mini Clamp Meters
