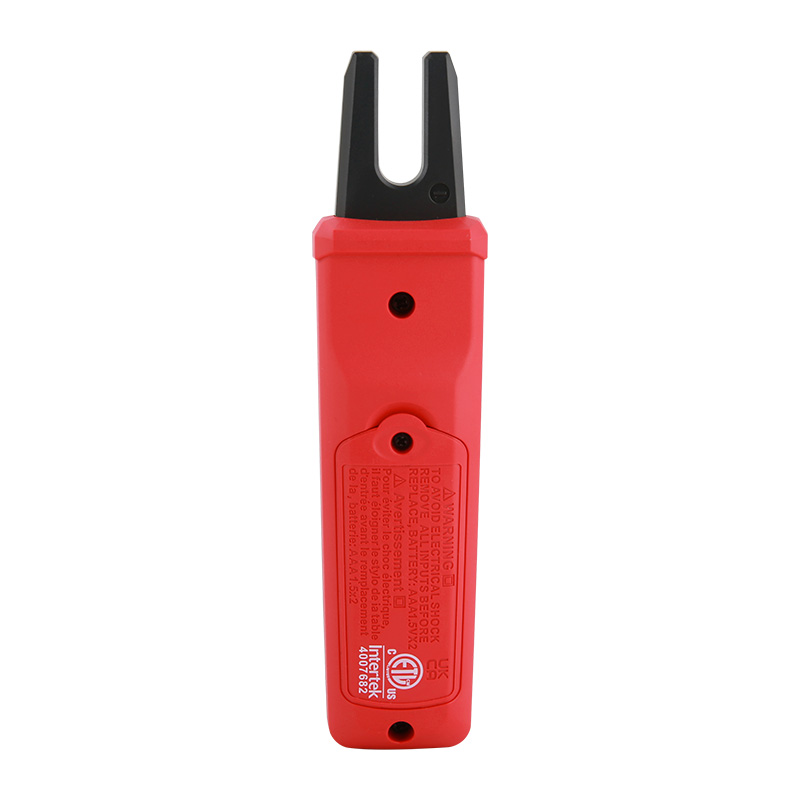

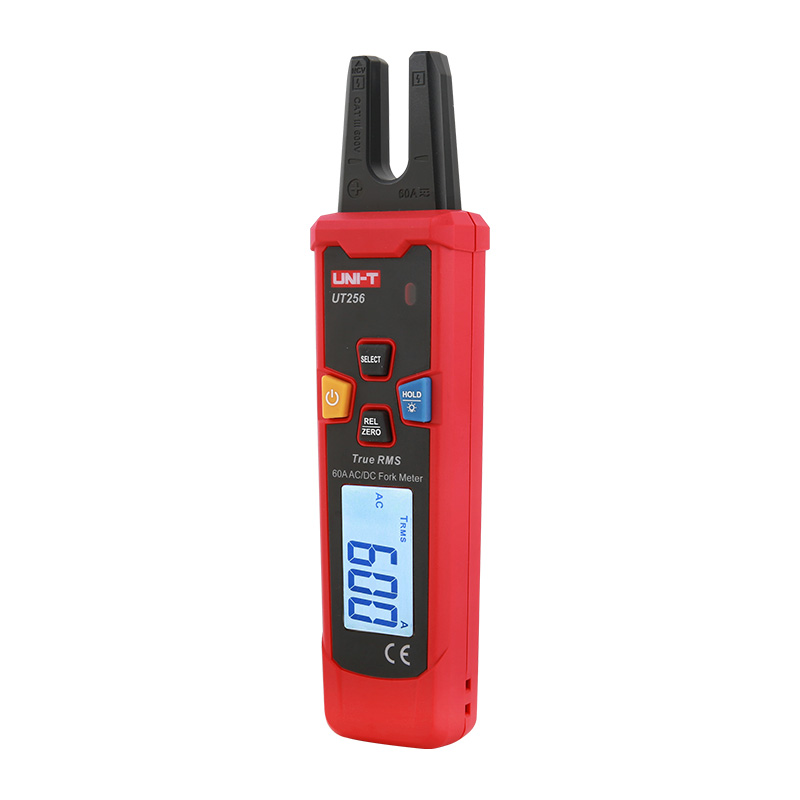

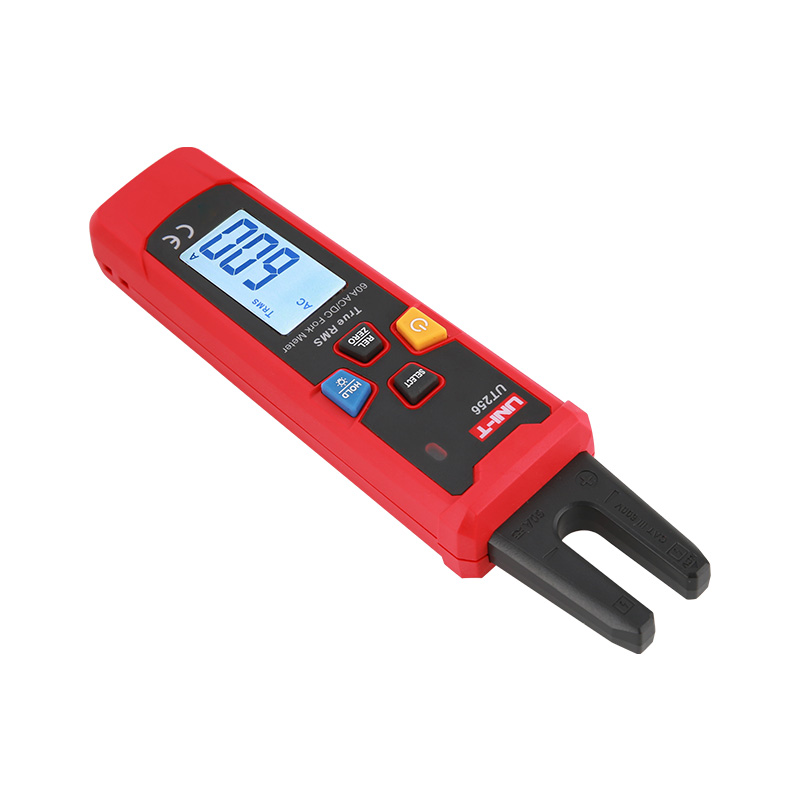

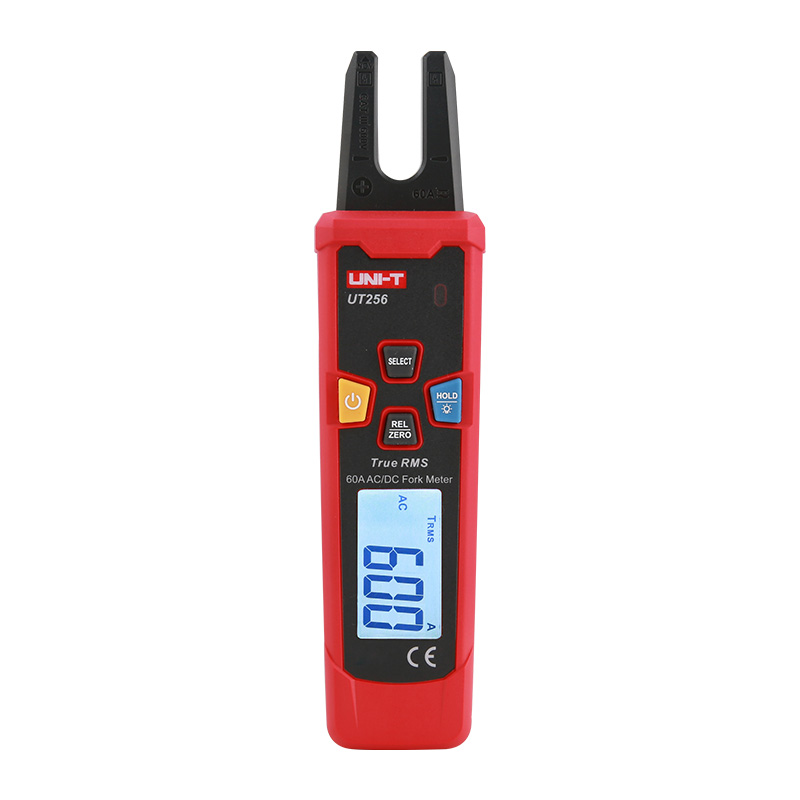

UT256 60A AC/DC Fork Meter

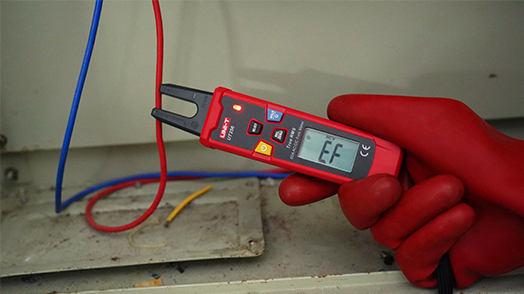

UT256 is a CAT III 600V auto-ranging True RMS fork meter that measures 60A AC/DC current. It can detect the presence of voltage via the integrated non-contact voltage (NCV) sensor on the tip of the fork. The easy-to-use interface with bright backlight can help users finish the work efficiently and conveniently. The specially designed slim meter shell and thin fork are quite useful for cable measuring in narrow spaces. The meter comes with two 1.5V AAA batteries that can easily be changed, and the easy-access door is built for fast battery changes.
Description
Features of UT256 60A AC/DC Fork Meter
Certificates: CE, UKCA, cETLus
● 60A AC/DC current measurement
● True-RMS
● Jaw opening: 10mm
● Zero function
● Data hold
● Relative mode
● NCV
● CAT III 600V
Specifications of UT256 60A AC/DC Fork Meter
| Specifications | Range | UT256 |
| DC current (A) | 60A | ±(2%＋5) |
| AC current (A) | 60A | ±(2%＋5) |
| Features | ||
| NCV | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Backlight | √ | |
| Audible and visual alarm | √ | |
| Auto power off | Approximately 30 minutes | √ |
| Drop test | 1m | |
| Safety rating | CAT III 600V | |
| General Characteristics | ||
| Power | AAA 1.5V x2 | |
| Product color | Red+Gray | |
| Product net weight | 120g (Including batteries) | |
| Product size | 171x 42x 28mm | |
| Standard accessories | English manual, test leads, batteries, strap string | |
| Standard individual packing | Gift box,carrying bag | |
| Standard quantity per carton | 40 pcs | |
| Standard carton measurement | 380×225×290mm | |
