This product has been discontinued.

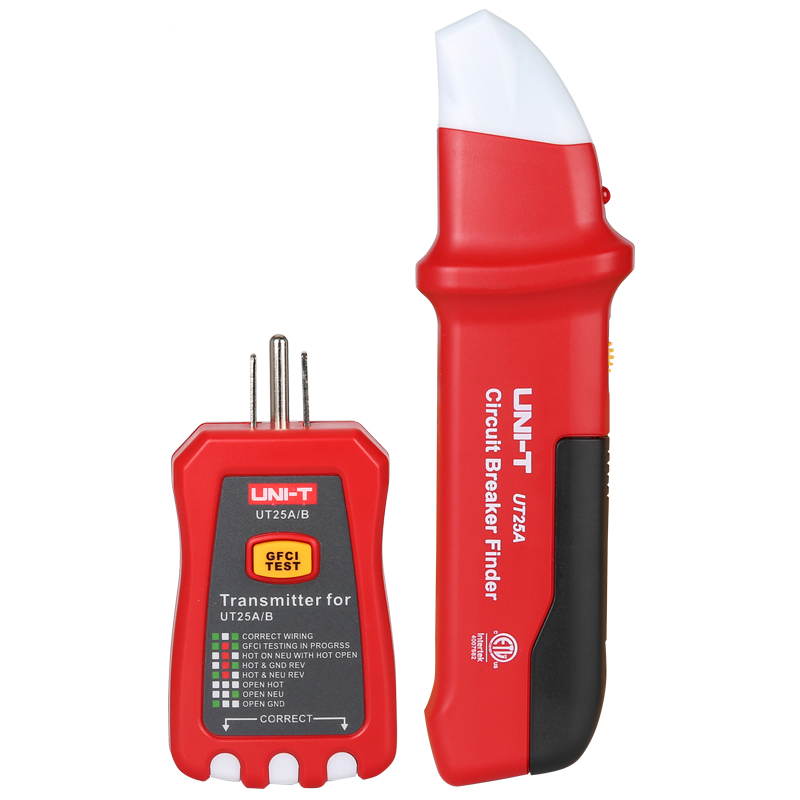

UT25B AC Circuit Breaker Finder (Discontinued)
UT25B circuit breaker finder can perform NCV/GFCI test with LED indicators for wire connection check. It can be applied to detect circuits of AC power frequency system and find the corresponding breaker issues in factory, school etc.
Description
Features of UT25B AC Circuit Breaker Finder
Certificates: CE, cETLus, UL 61010-1
● Quick and ac curate detection of circuit breaker location
● GFCI socket test
● Sensitivity control suitable for different signal strength
● Audio and visual indication
● NCV test
● Receiver and transmitter 2-in-1 package
● GFCI socket test
● Sensitivity control suitable for different signal strength
● Audio and visual indication
● NCV test
● Receiver and transmitter 2-in-1 package
Specifications of UT25B AC Circuit Breaker Finder
| Specifications | Range | UT25B |
| Operating Voltage | 90~120VAC | √ |
| Working Frequency | 47~63Hz | √ |
| GFCI Test | About 6mA | √ |
| Contact Indicator | Open Ground | √ |
| Open Neutral | √ | |
| Open Hot | √ | |
| Hot/NEU Reverse | √ | |
| Hot/GND Reverse | √ | |
| GFCI Testing In Progrss | √ | |
| Hot On NEU With Hot Open | √ | |
| Correct | √ | |
| Features | ||
| Adjustable Sensitivity | √ | |
| Beeper Indicattion | √ | |
| Flashing LED light Indication | √ | |
| NCV Test | √ | |
| Low Battery Indication | √ | |
| General Characteristics | ||
| Power | 9V Battery(6F22) | |
| Product Color | Red and Grey | |
| Product Net Weight | Transmitter-110g Receiver-110g |
|
| Product Size | Transmitter-103mm×56mm×30mm Receiver-192mm×54mm×28mm |
|
| Standard Accessories | Batteries | |
| Standard Individual Packing | Blister, English Manual | |
| Standard Quantity Per Carton | 40PCs | |
| Standard Carton Measurement | 575mm X 405mm X380mm (0.088CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 15.8kg | |
