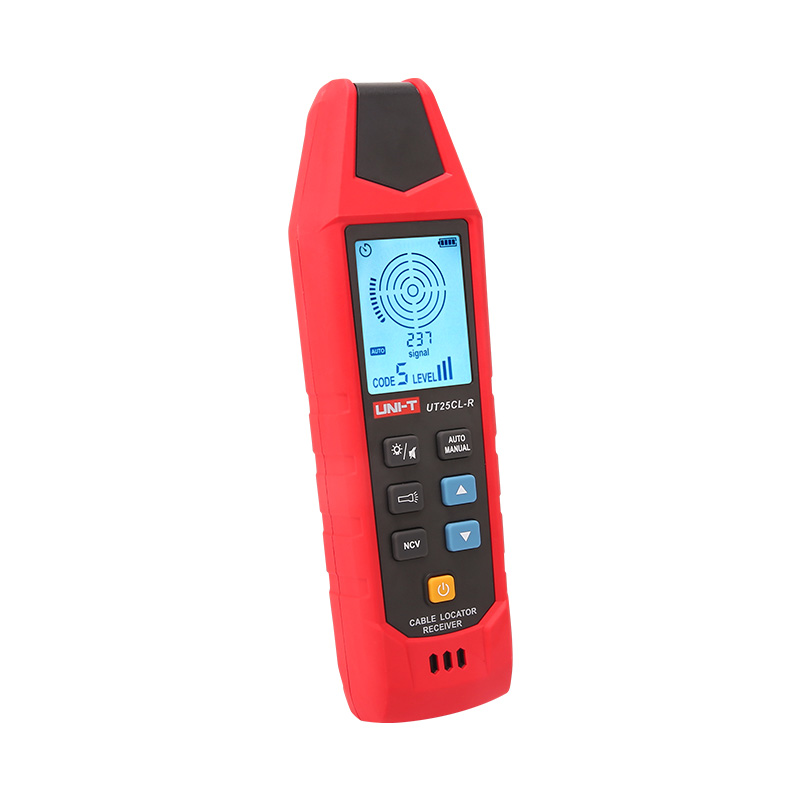

UT25CL Cable locator (Coming soon)

The UT25CL Cable Locator is a powerful device consisting of a transmitter and receiver. With state-of-the-art sensors, it effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs.

This tool detects conductors, identifies interruptions or short circuits, traces underground cables, and locates fuses and associated devices. It also detects short circuits and open circuits in underfloor heating, traces metal water pipes and heating pipelines, and supports up to 8 transmitters.

It is perfect for residential or commercial projects.

Category:

Description

Features of UT25CL Cable locator

Certifications: CE, RoHS

● Find conductors inside the wall, and detect conductor interruptions or short circuits
● Trace the underground cable paths
● Locate fuses and devices associated with the fuses
● Identify short circuits and open circuits in the underfloor heating(metal)
● Trace metal water pipes and metal heating pipelines
● Adjust the sensitivity of the receiver automatically or manually (3 adjustable levels)

● Flashlight and backlight functions
● Automatic shutdown function
● One receiver can support up to 8 transmitters
● Energized wire detection: up to 480V(AC/DC)
● LED and buzzer indications
● CE, RoHS

Specifications

Technical Specifications
Features 1, Find conductors inside the wall, detect conductor interruptions or short circuits.
2, Trace the underground cable paths.
3, Locate fuses and devices associated with the fuses.
4, Identify short circuits and open circuits in the underfloor metal heating.
5, Trace metal water pipes and metal heating pipelines.
6, Adjustable sensitivity (Receiver: 3 levels; Transmitter: 9 levels)

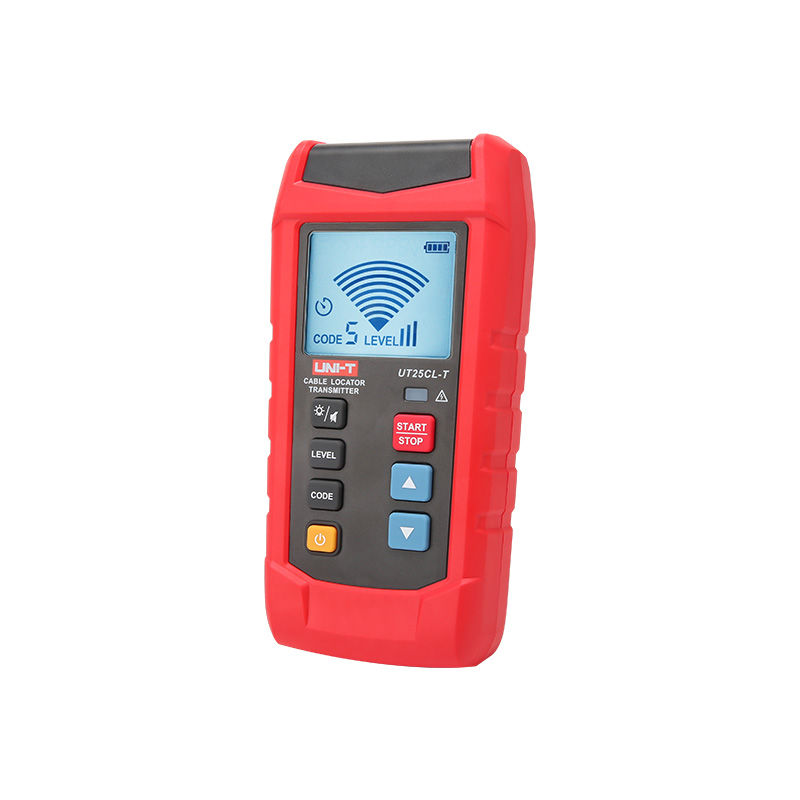

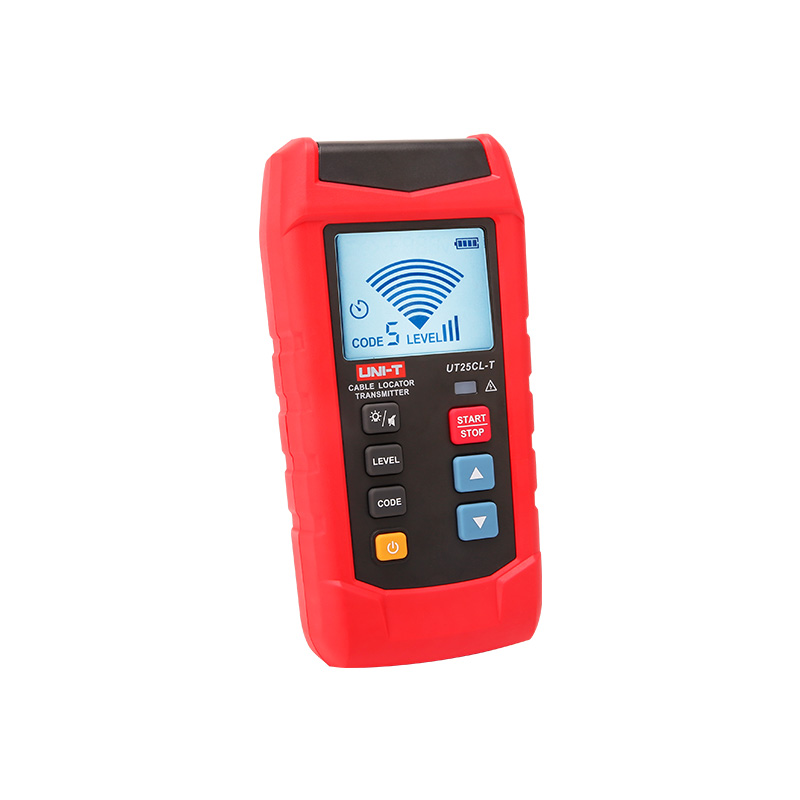

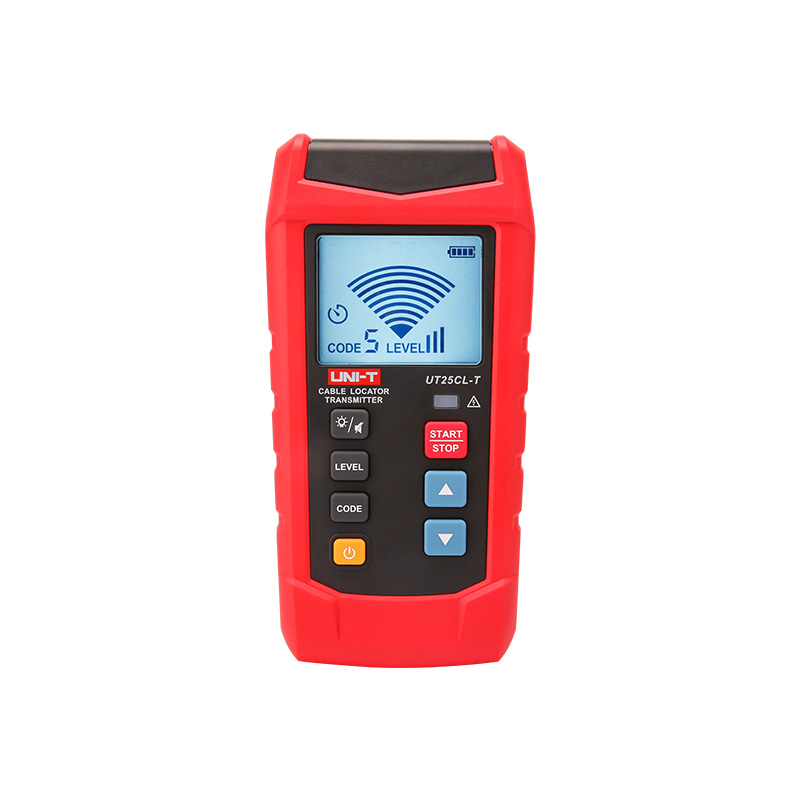

Transmitter
Output signal 33KHZ
Energized wire voltage ragne AC/DC 8~480V;  AC: 50/60Hz/ 2.5% ±3deg
Screen Segment code LCD (TN; Translucent )
Backlight
Code value 0,1,2,3,4,5,6,7
Signal strength three level: 1, 2, 3
Unipolar test √(energized wire test, max voltage 480V)
Bipolar test √(energized wire test, max voltage 480V)
ELV LED indicator 1. If the input voltage exceeds 25V, the ELV LED turns on.
2. As the voltage rises, the brightness of the ELV LED increases.
3. In any other case, the ELV LED will be dim or not illuminated.
Receiver
Receiving frequency 33KHz
Tracing depth Around 0~2.5m (unipolar mode; single-circuit: 2.5m)
Around 0~0.5m (bipolar mode)
NCV voltage range 80V ~ 1000V, 50Hz/60Hz
Voltage detection depth Around 0~0.4 meters
Code value 0,1,2,3,4,5,6,7
Signal strength three level: 1, 2, 3
Multi-Transmitors compatible Up to 8pcs
Screen Segment code LCD (TN; Translucent )
Others
Flash light
Backlight
Manual sensitivity adjustment
Over voltage category CAT III 480V
Pollution rating 2
IP rating IP54
Certificates CE , RoHS

Applications

application of UT25CL-1
application of UT25CL-3
application of UT25CL-3
application of UT25CL-4
