This product has been discontinued. Replaced by UT300A+/UT300S .

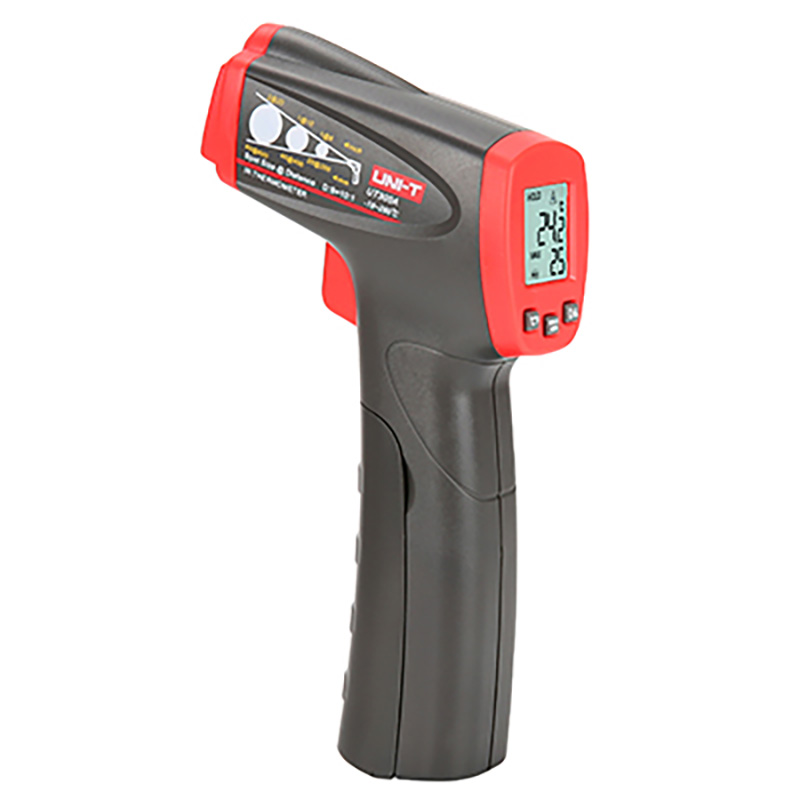

UT300A/UT300C Infrared Thermometers (Discontinued)
UT300A/C infrared thermometers are lightweight and small. Objects can be quickly and accurately measured from a distance with 0.1°C resolution. These devices consume very little power, suitable for indoor and outdoor use.
Models: UT300A, UT300C
Description
Features of UT300A/UT300C Infrared Thermometers
● Dual display (real-time/MAX, real-time/MIN)
● ℃/℉ options
● LCD backlight
● Auto power off
● Low battery indication
● Auto data hold
● Optional (on/off) laser pointer
Specifications of UT300A/UT300C Infrared Thermometers
| Specifications | UT300A | UT300C |
| Temperature Range | -18°C～280°C | -20°C～400°C |
| 0°F～536°F | -4°F～752°F | |
| Accuracy | ±2°C or ±2% | ±2°C or ±2% |
| Repeatability | ±0.5°C or ±0.5% | ±0.5°C or ±0.5% |
| Resolution | 0.1°C/0.1°F | 0.1°C/0.1°F |
| Distance to Spot Size | 10:01 | 12:01 |
| Response Time | 500ms | 500ms |
| Emissivity | 0.95 | 0.10~1.0 Adjustable |
| Laser Type | Class 2 | Class 2 |
| Laser Power | ＜1mW | ＜1mW |
| Laser Wavelength | 630nm ～670nm | 630nm ～670nm |
| Spectral Response | 8μm～14μm | 8μm～14μm |
| Features | ||
| °C/°F Selection | √ | √ |
| Laser switch | √ | √ |
| Display Hold (s) | 8 seconds | 8 seconds |
| Data Hold | √ | √ |
| Auto Power Off | √ | √ |
| Low Battery Indication | √ | √ |
| MAX Mode | √ | √ |
| MIN Mode | √ | √ |
| High Alarm | √ | |
| Low Alarm | √ | |
| LCD Backlight | √ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 22mm X 22mm | |
| Product Color | Red and grey | |
| Product Net Weight | 185g | |
| Product Size | 153mm X 108mm X40mm | |
| Standard Accessories | Battery | |
| Standard Individual Packing | Blister, English Manual | |
| Standard Quantity Per Carton | 48pcs | |
| Standard Carton Measurement | 590×530×360mm (0.11 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 14.8kg | |
