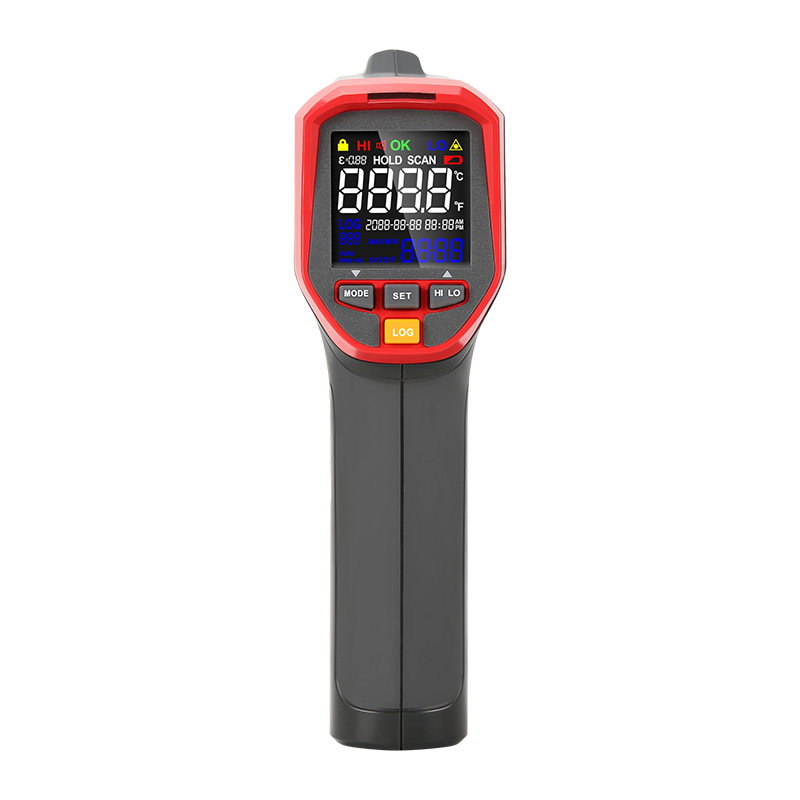

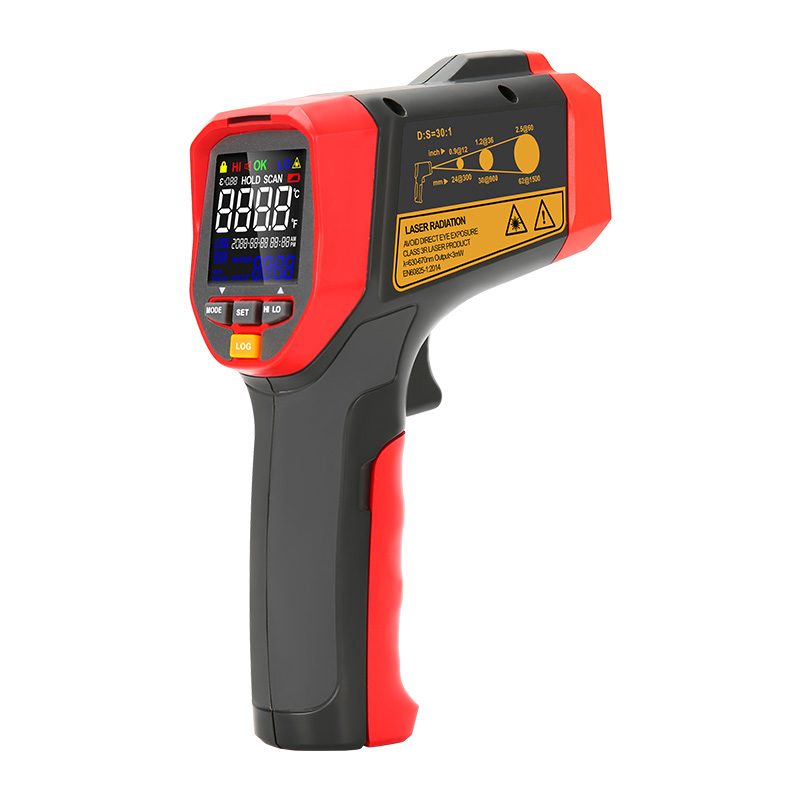

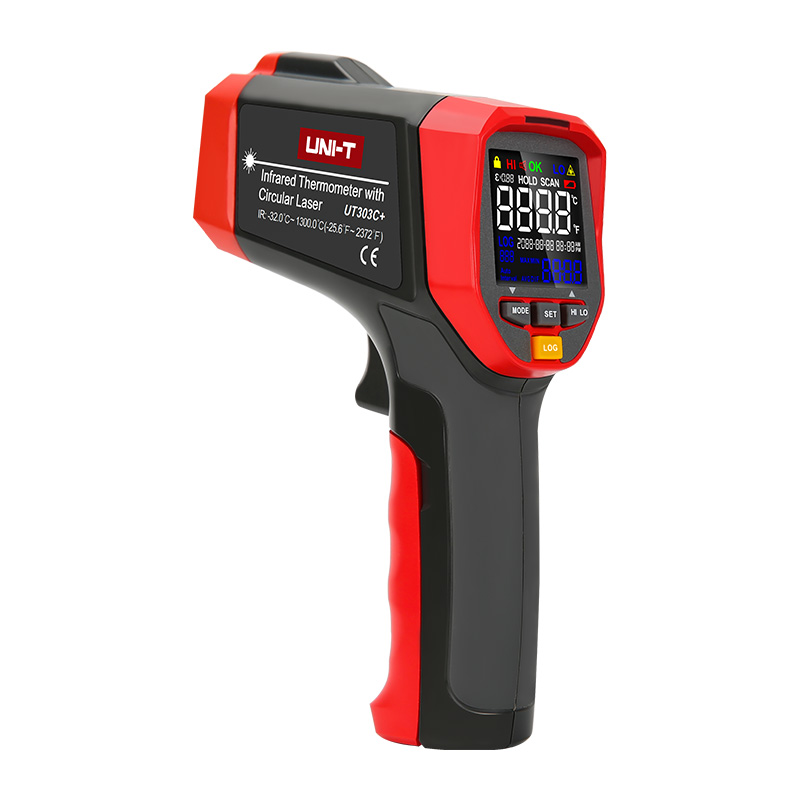

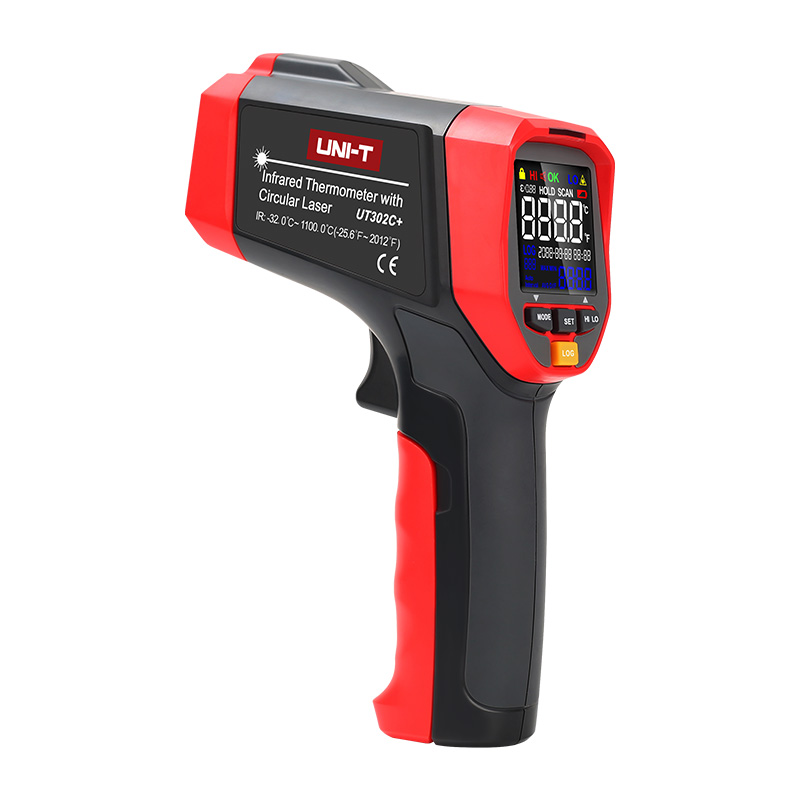

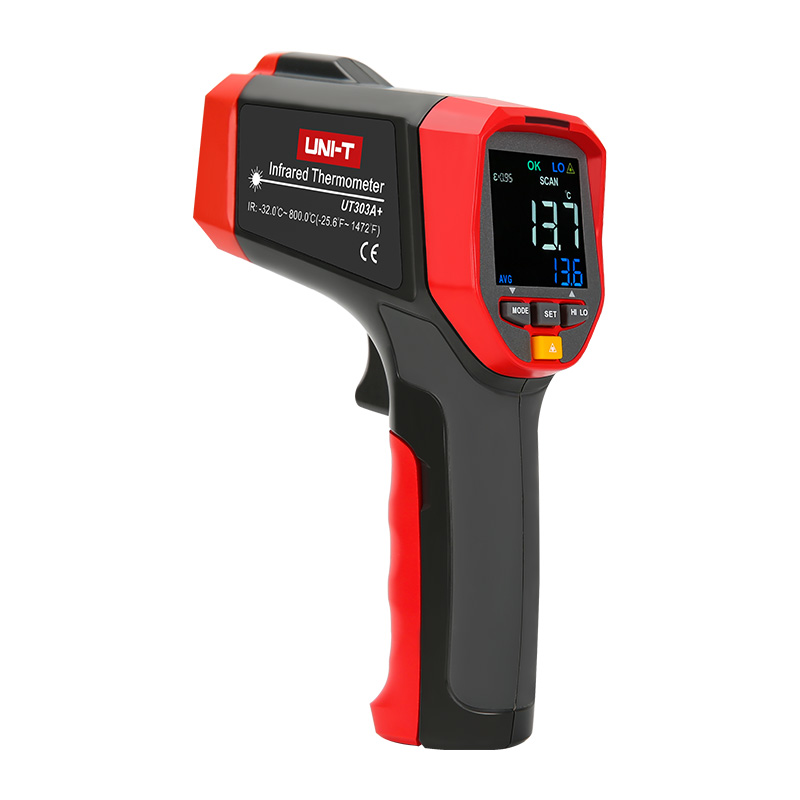

UT302+/UT303+ Series Infrared Thermometers
UT302+/UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT302C+ and UT303C+ have ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.
Models in UT302+/UT303+ Series: UT302A+, UT302C+, UT302D+, UT303A+, UT303C+, UT303D+
Description
Features of UT302+/UT303+ Series Infrared Thermometers
Certificates: CE, UKCA
● ±1.5℃ temperature measurement accuracy
● User defined visual and audio alarm
● High contrast EBTN color display
● MAX/MIN/AVG/DIFF/Hold modes
● Dual lasers (UT302D+/UT303D+)
● Temperature recording up to 99 groups (UT302C+/UT303C+/UT302D+/UT303D+)
● Date/time display (UT302C+/UT302D+/UT303C+/UT303D+)
● Time scheduled measurement (UT302C+/UT303C+/UT302D+/UT303D+)
Specifications of UT302+/UT303+ Series Infrared Thermometers
| Specifications | UT302A+ | UT302C+ | UT302D+ | UT303A+ | UT303C+ | UT303D+ |
| Temperature range | -32℃~700℃ | -32℃~1100℃ | -32℃~1100℃ | -32℃~800℃ | -32℃~1300℃ | -32℃~1300℃ |
| -25.6℉~1292℉ | -25.6℉~2012℉ | -25.6℉~2012℉ | -25.6℉~1472℉ | -25.6℉~2372℉ | -25.6℉~2372℉ | |
| Accuracy | ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃) | |||||
| ≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉) | ||||||
| Repeatability | 0.7℃ or 0.7% (1.5℉ or 0.7%) | |||||
| D:S ratio | 20:1 | 30:1 | ||||
| Response time | 250ms | |||||
| Emissivity | 0.1~1.0 (adjustable, stores 5 sets of preset values) | |||||
| Spectral response | 8um~14um | |||||
| Laser power | < 1mW | |||||
| Features | ||||||
| Auto power off | √ | |||||
| Low battery indication | √ | |||||
| LCD display | Color EBTN | |||||
| High/low LED alarm | √ | |||||
| High/low audible alarm | √ | |||||
| Data hold/Lock measurement | √ | |||||
| ℃/℉ selection | √ | |||||
| MAX/MIN/AVG/DIFF mode | √ | |||||
| Data storage with date and time | 99 | 99 | 99 | 99 | ||
| Scheduled measurement | √ | √ | √ | √ | ||
| Backlight | √ | |||||
| Operating temperature | 0℃~50℃ (32℉~122℉) | |||||
| Storage temperature | -20℃~60℃ (-4℉~140℉) | |||||
| Operating humidity | <90%RH (non-condensing) | |||||
| Drop test | 1m | |||||
| Tripod mounting hole | √ | |||||
| General Characterisitics | ||||||
| Power | 9V battery | |||||
| Display | 35mm x 35mm | |||||
| Product color | Red and grey | |||||
| Product net weight | 310g | |||||
| Product size | 172mm x 113.5mm x 53mm | |||||
| Standard accessories | Battery, carrying bag | |||||
| Standard individual packing | Gift box, blister, English manual | |||||
| Standard quantity per carton | 10pcs | |||||
| Standard carton measurement | 425mm x 335mm x 365mm | |||||
| Standard carton gross weight | 6.65kg | |||||
