This product has been discontinued. Replaced by UT302A+/UT302C+/UT302D+ .

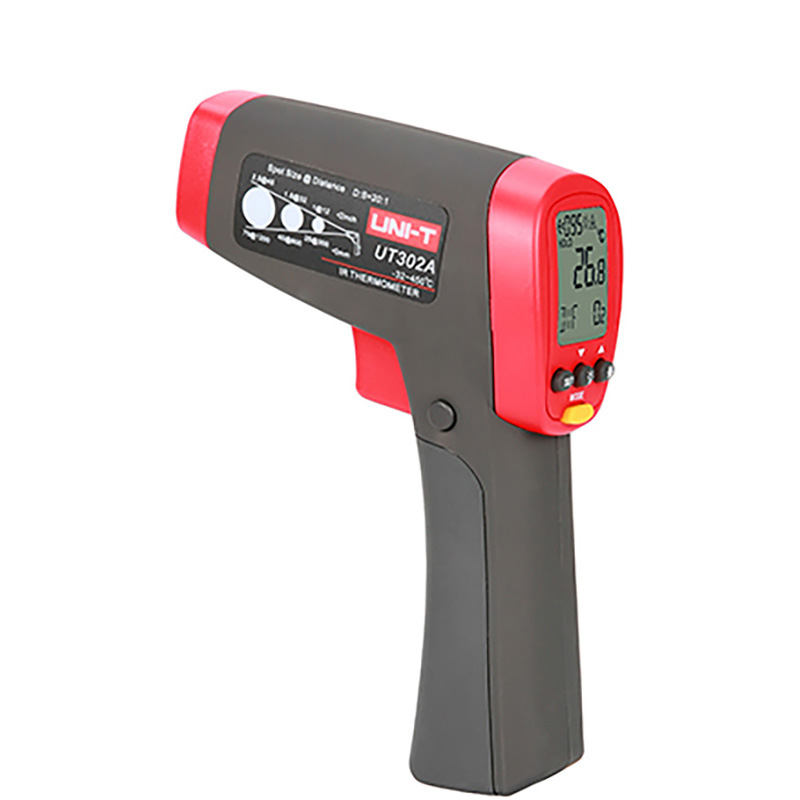

UT302A/UT302C/UT302D Infrared Thermometers (Discontinued)
UT302 series measures object temperature from a distance through its emitted radiation. They feature 20:1 D:S ratio, adjustable emissivity and can be powered by USB or battery.
Models: UT302A, UT302C, UT302D
Description
Features of UT302A/UT302C/UT302D Infrared Thermometers
● MAX/MIN/AVG/DIF display
● Tripod hole and lock measurement function for continuous measurement (SCAN mode)
● ℃/℉ options
● Optional (on/off) laser pointer
● LCD backlight
● Auto power off, data hold
● Adjustable emissivity
● USB interface
Specifications of UT302A/UT302C/UT302D Infrared Thermometers
| Specifications | UT302A | UT302C | UT302D |
| Temperature Range | -32°C ～450°C | -32°C～650°C | -32°C～1050°C |
| -26°F～842°F | -26°F～1202°F | -26°F～1922°F | |
| Accuracy | ±1.8°C or ±1.8% | ||
| Repeatability | ±0.5°C or ±0.5% | ||
| Resolution | 0.1°C/0.1°F | ||
| Distance to Spot Size | 20:01 | ||
| Response Time | 250ms (95% of reading) | ||
| Emissivity | 0.10～1.0 Adjustable | ||
| Laser Type | Class 2 (Ⅱ) | ||
| Laser Power | ＜1mW | ||
| Laser Wavelength | 630nm ～670nm | ||
| Spectral Response | 8μm～14μm | ||
| Features | |||
| °C/°F Selections | √ | ||
| Laser switch | √ | ||
| Display Hold (s) | 8 seconds | ||
| Auto Power Off | √ | ||
| Low Battery Indication | √ | ||
| MAX Mode | √ | ||
| MIN Mode | √ | ||
| DIFF Mode | √ | ||
| AVG Mode | √ | ||
| LCD Backlight | √ | ||
| Electricity Cut-off Memory | √ | ||
| Tripod Mount | √ | ||
| General Characteristics | |||
| Power | 9V battery (6F22) | ||
| LCD Size | 32mm X 29mm | ||
| Product Color | Red and grey | ||
| Product Net Weight | 322g | ||
| Product Size | 169mm X 138mm X 53mm | ||
| Standard Accessories | Battery | ||
| Standard Individual Packing | Blister, English Manual, Carrying Bag | ||
| Standard Quantity Per Carton | 20pcs | ||
| Standard Carton Measurement | 605×360×468mm (0.101 CBM Per Standard Carton) | ||
| Standard Carton Gross Weight | 12.4kg | ||
