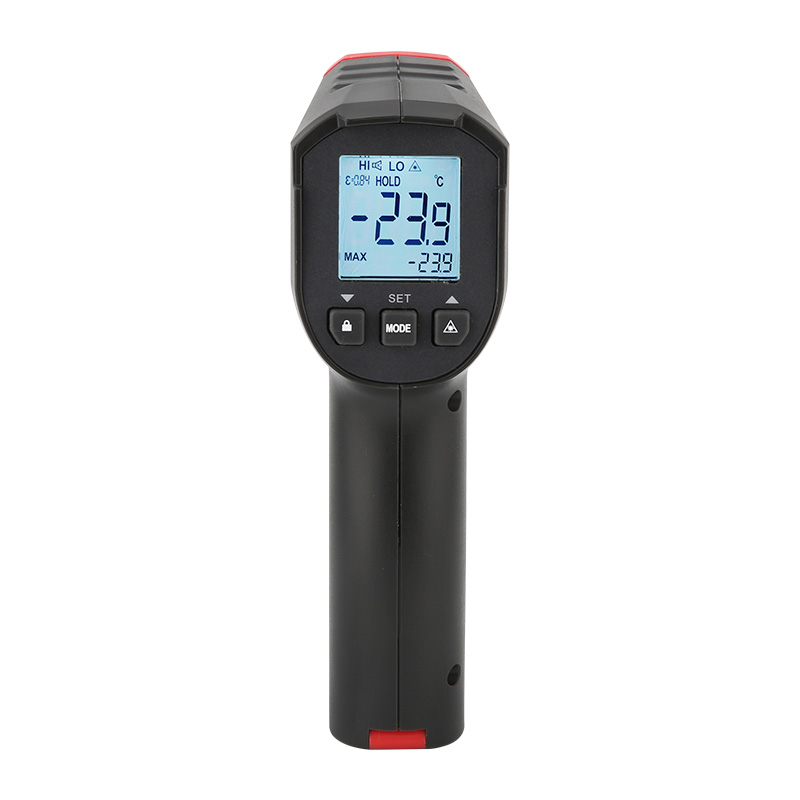

UT306 Series Infrared Thermometers

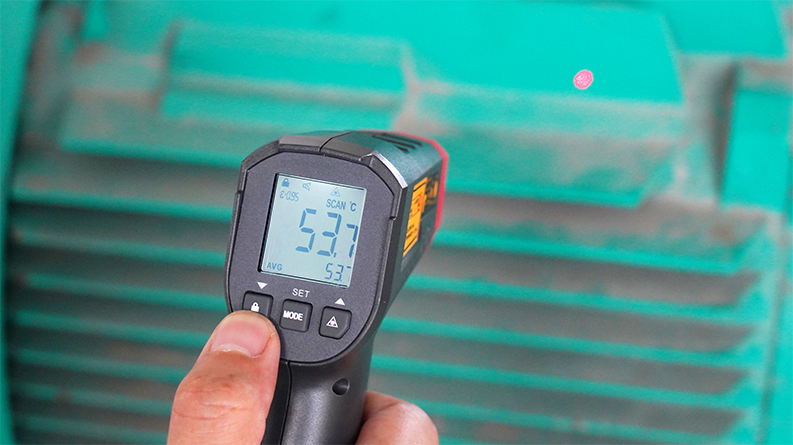

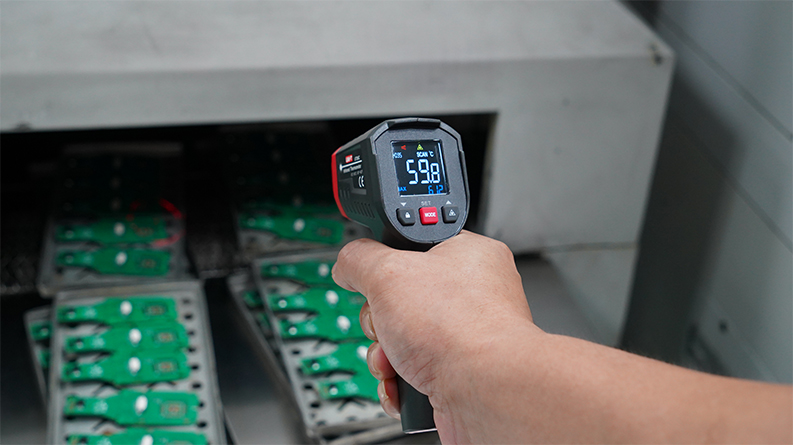

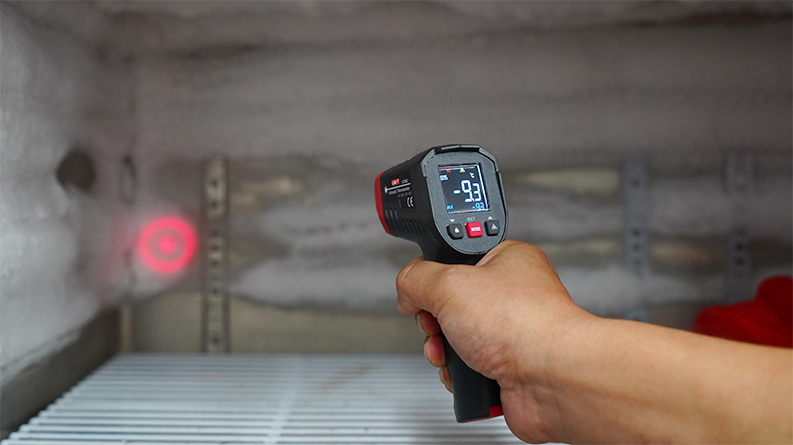

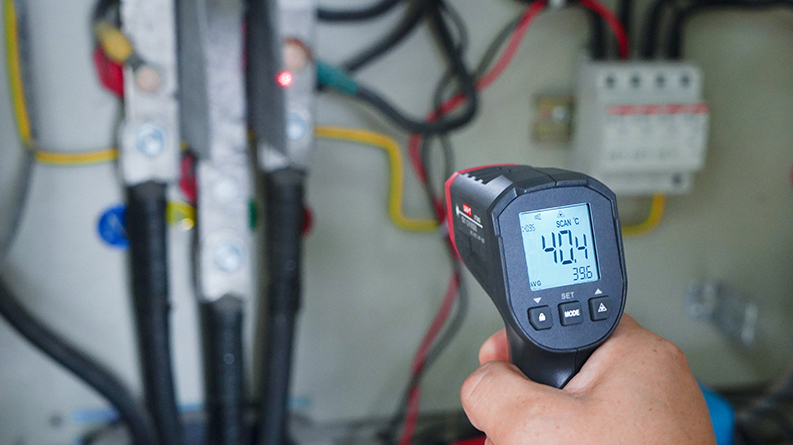

The UT306 series is robust and easy to use. Users can measure the surface temperature without contacting the object. This product series can be used in various fields such as food industry, machine maintenance, metal working, cold storage, and other industrial fields.

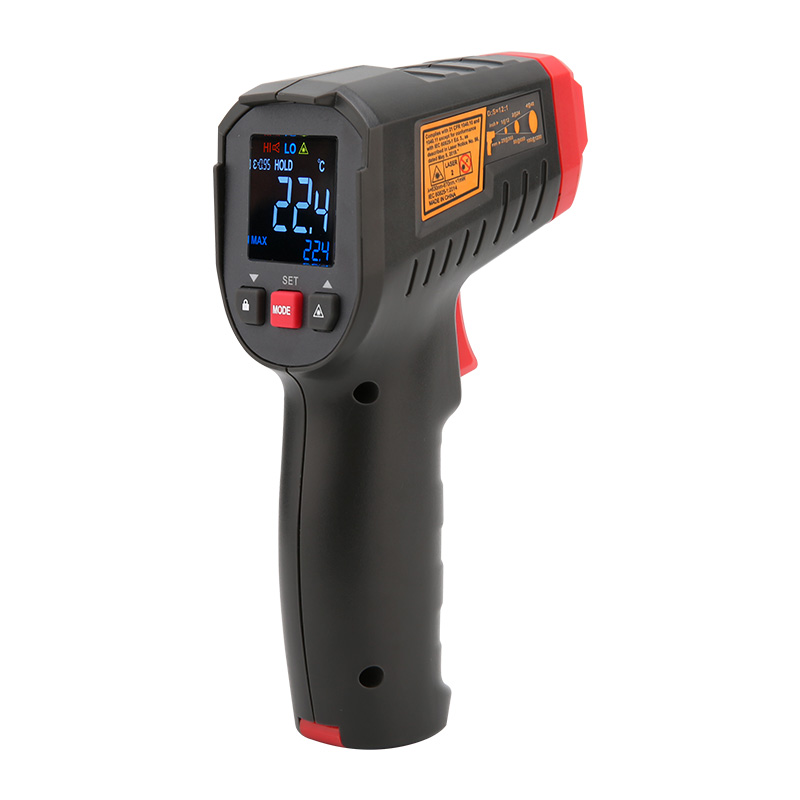

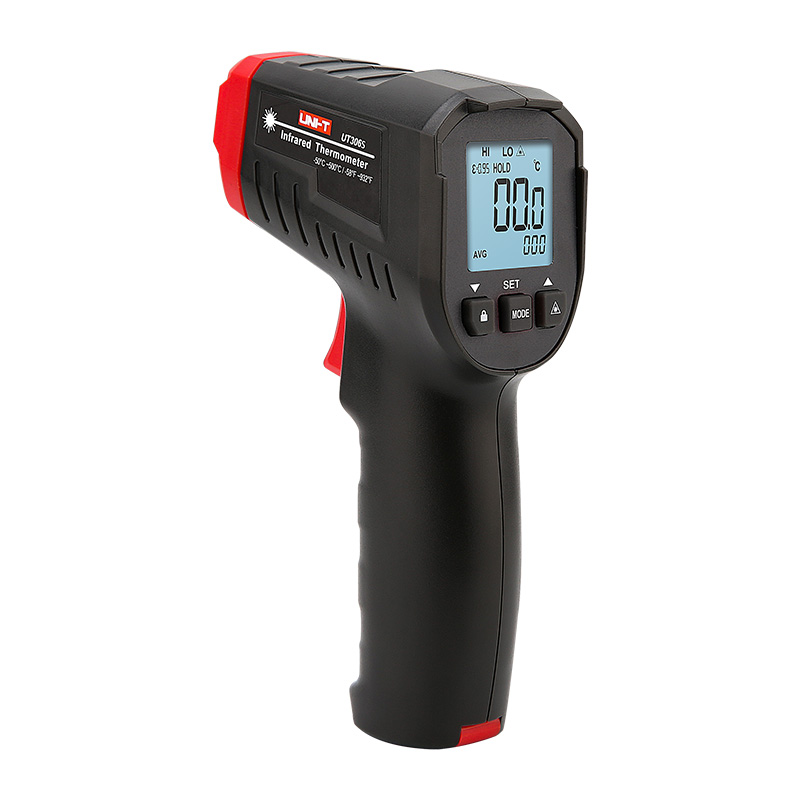

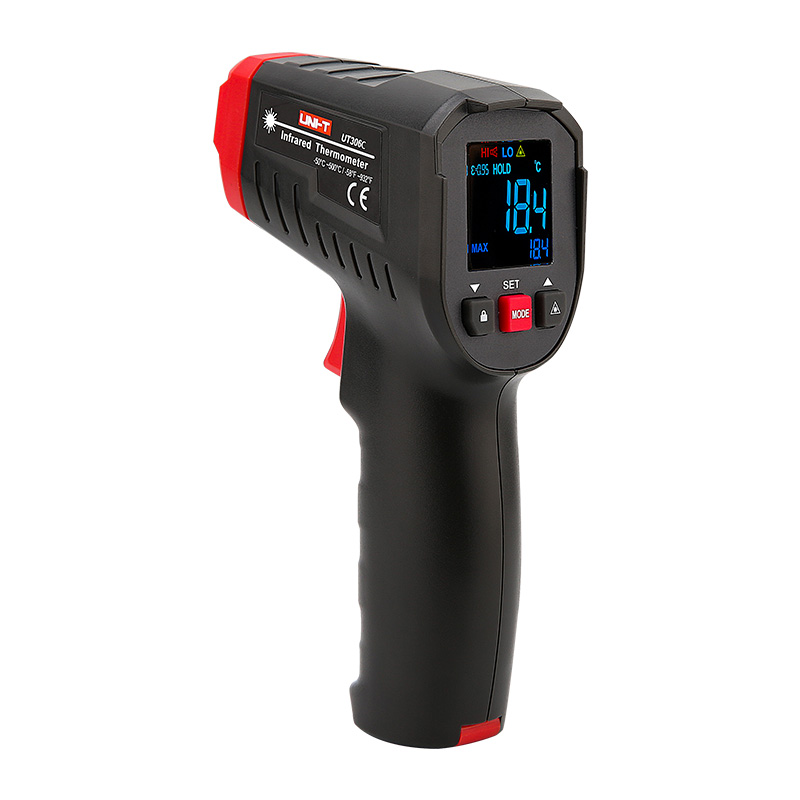

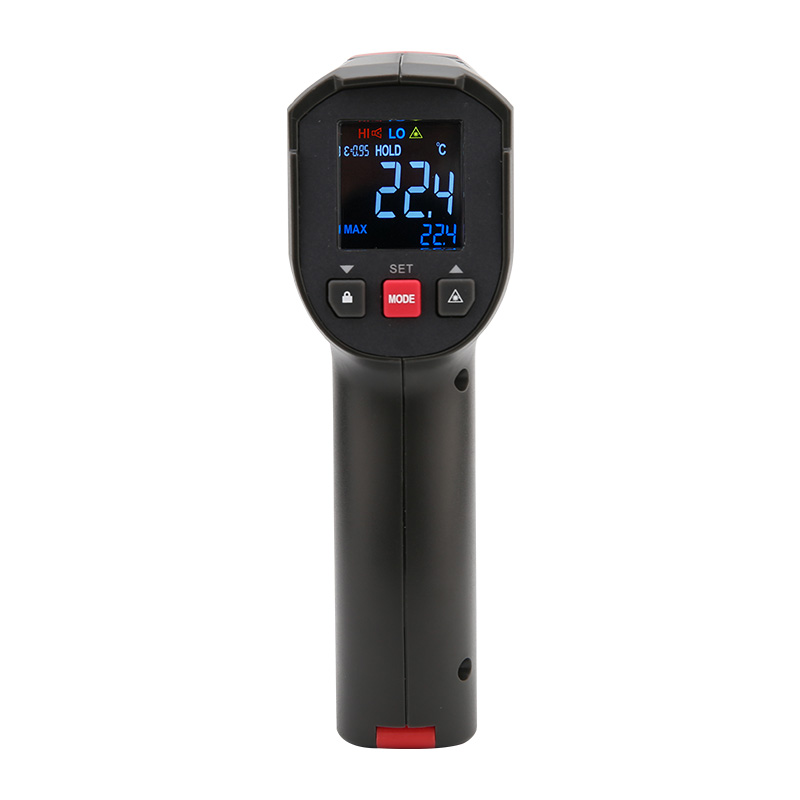

Models in UT306 Series: UT306C, UT306S
Description
Features of UT306 Series Infrared Thermometers
Certificates (UT306C only): CE, UKCA
● Wide temperature range
● ℃/℉ options
● EBTN display
● Auto power off
● Low battery indication
● MAX/MIN/AVG/DIF mode
Video for UT306C:
Video for UT306S:
Specifications of UT306 Series Infrared Thermometers
| Specifications | UT306S | UT306C |
| Certifications | CE/UKCA | |
| Temperature Range | -50℃ ~ 500℃ | -50℃ ~ 500℃ |
| Laser type | Single | Circle |
| Accuracy | ±2°C or ±2% | ±2°C or ±2% |
| Resolution | 0.1°C | 0.1°C |
| Distance to spot ratio | 12:1 | 12:1 |
| Response time | ≤250ms | |
| Emissivity | 0.10~1.00 Adjustable | |
| Laser class | Class 2 | |
| Laser power | ＜1mW | |
| Laser wavelength | 630nm ～670nm | |
| Spectral response | 8μm～14μm | |
| Features | ||
| display type | TN-LCD | EBTN-LCD |
| Unit selection | °C/°F | |
| Laser on/off | √ | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Low Battery Indication | √ | |
| MAX/MIN/AVG/DIF mode | √ | |
| High/low temperature alarm （audible） | √ | |
| Drop test | 1m | |
| General Characterisitics | ||
| Power | 1.5V AAA x 2 | |
| Product color | Red and grey | |
| Product net weight | 161.5g | |
| Product size | 146*78*45mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Card,Blister, Manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 515×375×175mm | |
Documents
Tittle
Download
Related Products
-

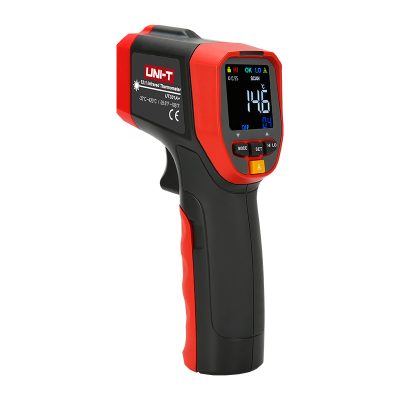

UT301+ Series Infrared Thermometers
