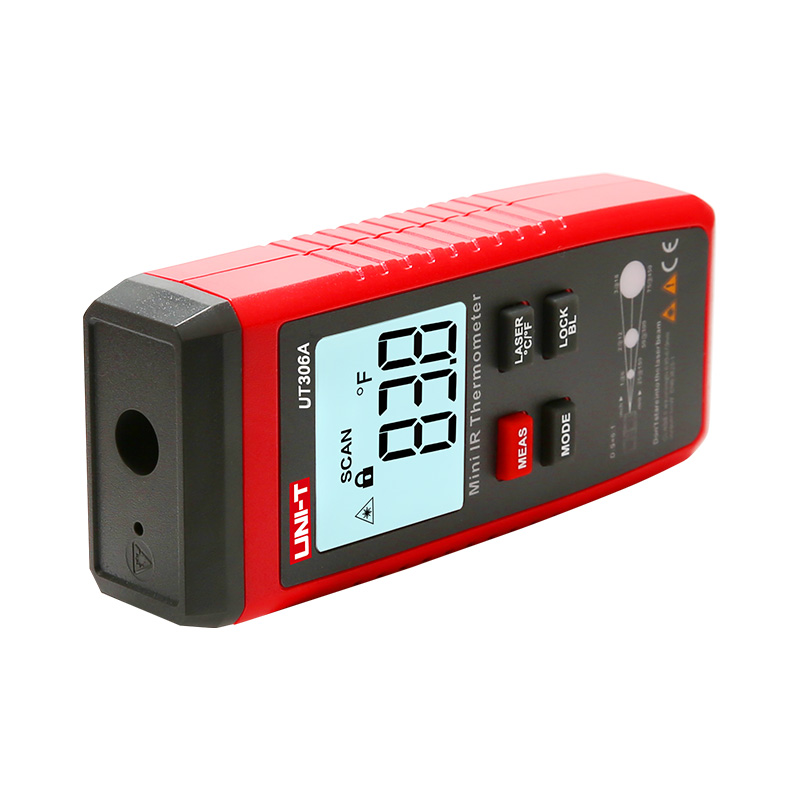

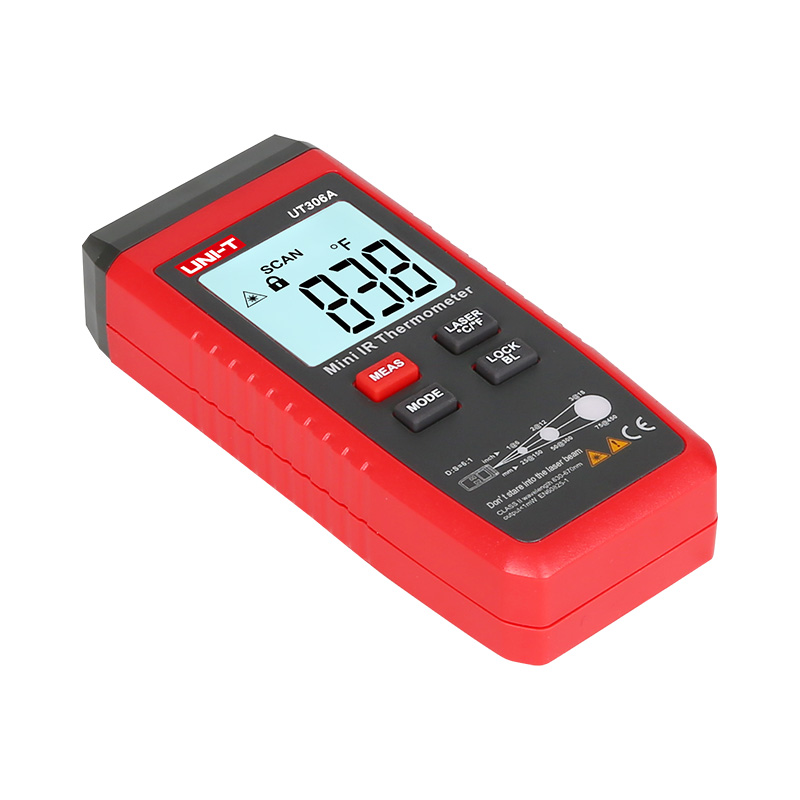

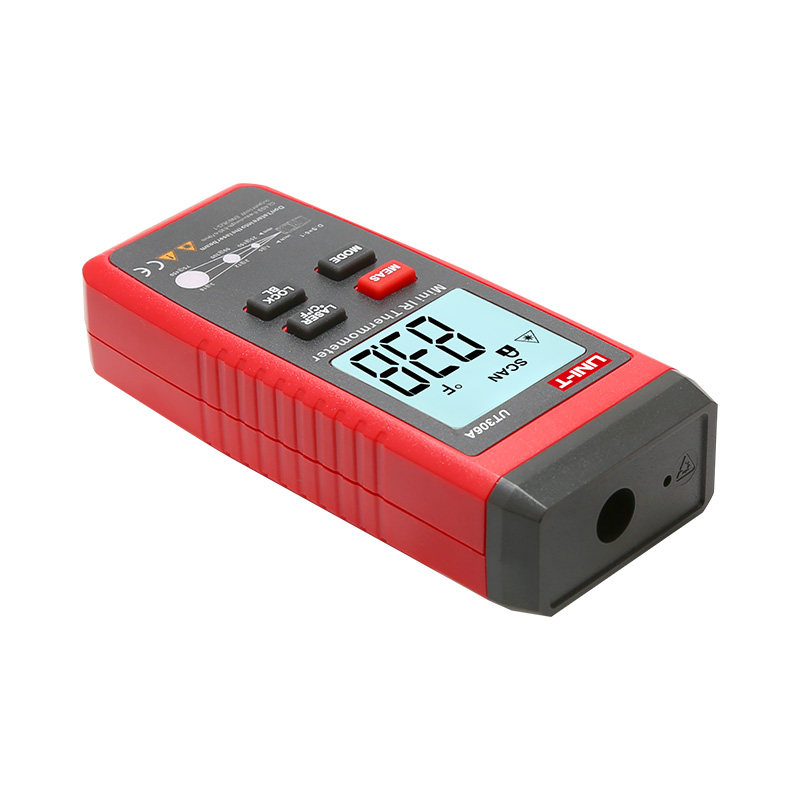

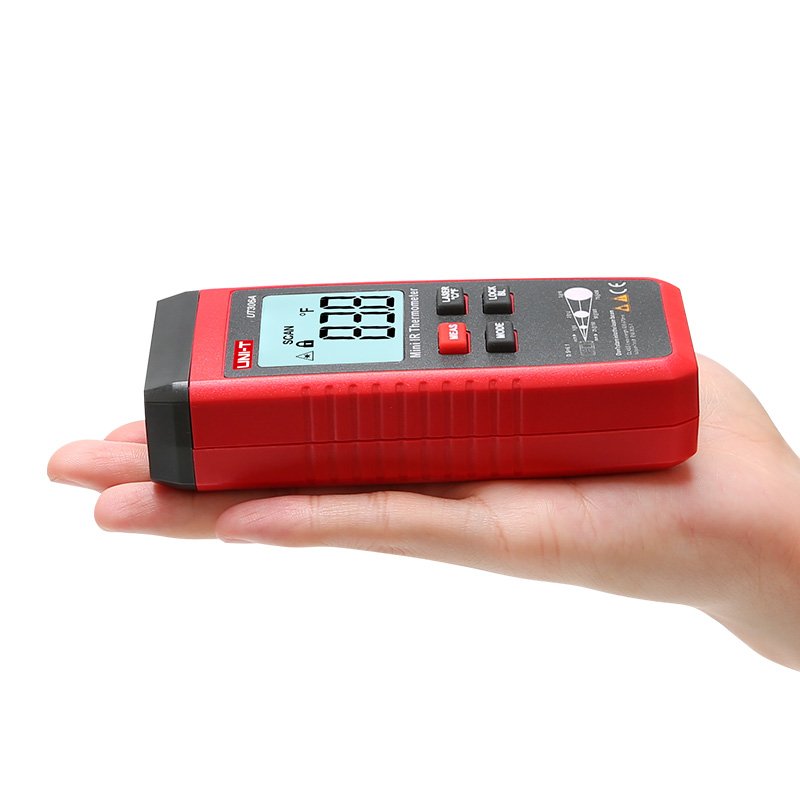

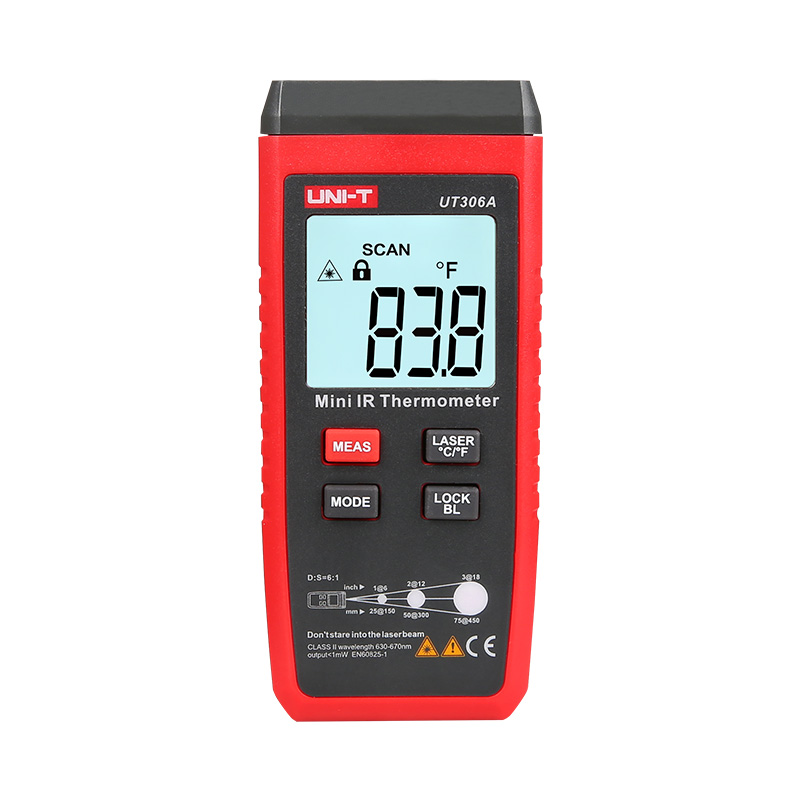

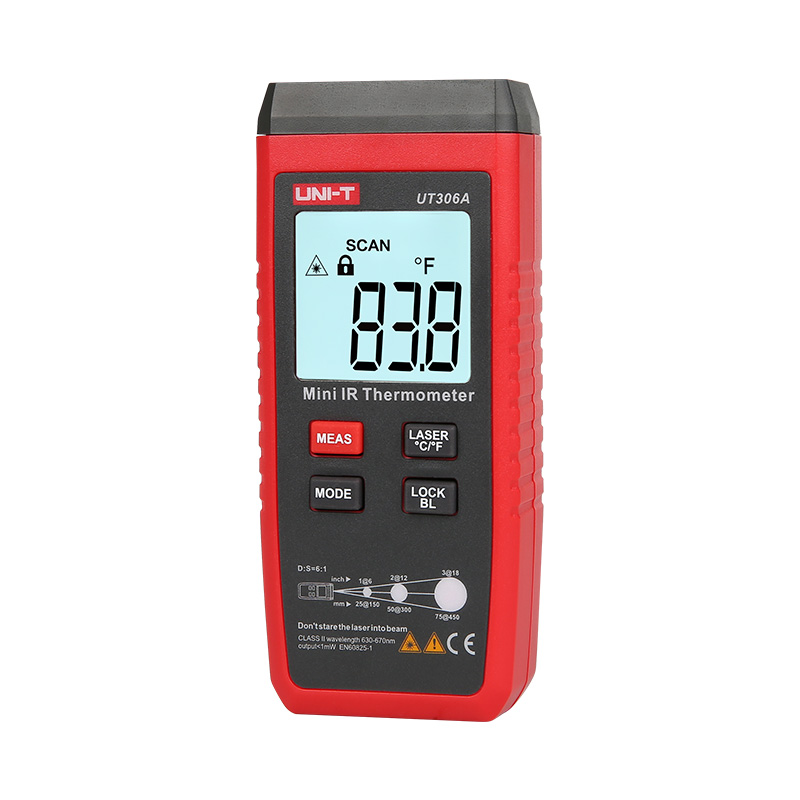

UT306A Mini Infrared Thermometer
UT306A is a portable non-contact thermometer. This device’ s miniature design is convenient to carry and suitable for everyday temperature measurement needs. UT306A is designed to counter environmental interference, ensuring accurate temperature readings under various measurement environments.
Description
Features of UT306A Mini IR Thermometer
Certificates: CE, UKCA
● Single-laser targeting
● White backlight
● Max/Min/Avg modes
● Lock measurement
● Data hold; auto power off
● Low battery indication
● Power-off memory
● ℃/℉ selections
Specifications of UT306A Mini IR Thermometer
| Specifications | UT306A |
| Temperature range | -35℃~300℃ |
| -31℉~572℉ | |
| Accuracy | ≥0℃: ±2.0℃ or ±2%; <0℃: ±(2.0℃+0.1℃/℃) |
| ≥32℉: ±4.0℉ or ±2%; <32℉: ±(4.0℉+0.1℉/℉) | |
| D:S ratio | 6:01 |
| Response time | <250ms |
| Emissivity | 0.95 |
| Spectral response | 8um~14um |
| Laser power | < 1mW |
| Features | |
| Auto power off | √ |
| Low battery indication | √ |
| Data hold | √ |
| ℃/℉ selection | √ |
| MAX/MIN/AVG mode | √ |
| Lock measurement | √ |
| Backlight | √ |
| Laser | √ |
| Operating temperature | 0℃~50℃ (32℉~104℉) |
| Storage temperature | -20℃~60℃ (-4℉~140℉) |
| Operating humidity | <90%RH (non-condensing) |
| Drop test | 1m |
| General Characterisitics | |
| Power | 1.5V battery (R03) x 3 |
| Display | 37.4mm x 36.4mm |
| Product color | Red and grey |
| Product net weight | 120g |
| Product size | 120mm x 53mm x 28mm |
| Standard accessories | Batteries |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 272mm x 225mm x 200mm |
| Standard carton gross weight | 2.8kg |
