UT310 Series Vibration Testers

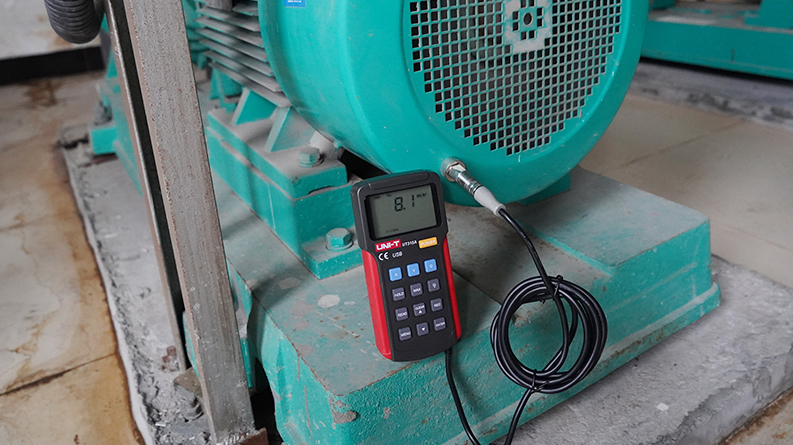

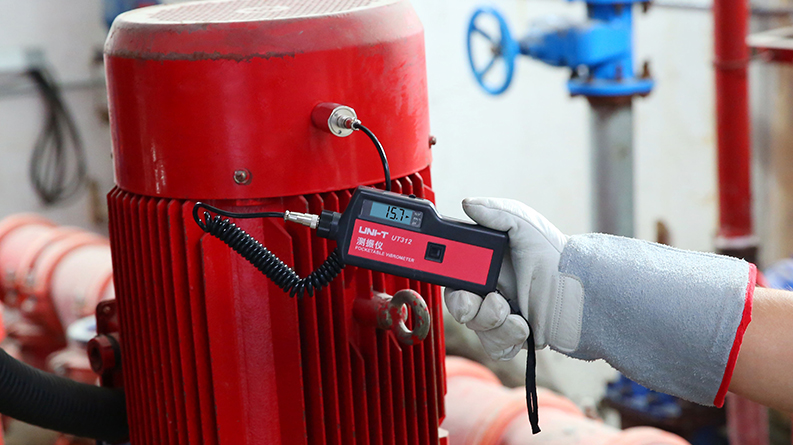

UT310 series handheld vibration testers can measure displacement, velocity, and acceleration of rotating and reciprocating machinery. Technicians can use these to monitor equipment status and ensure normal operation.

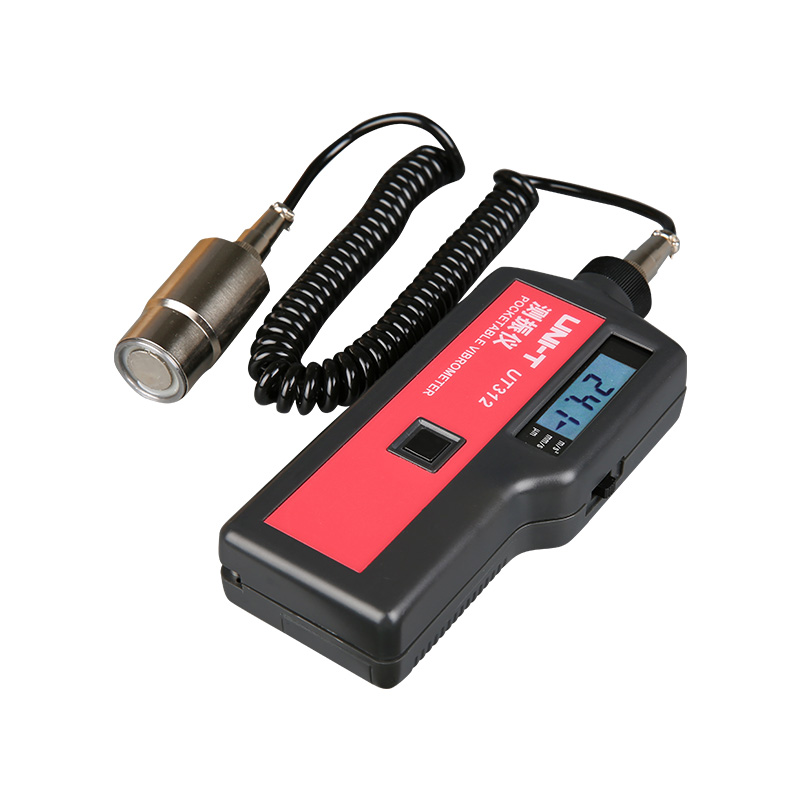

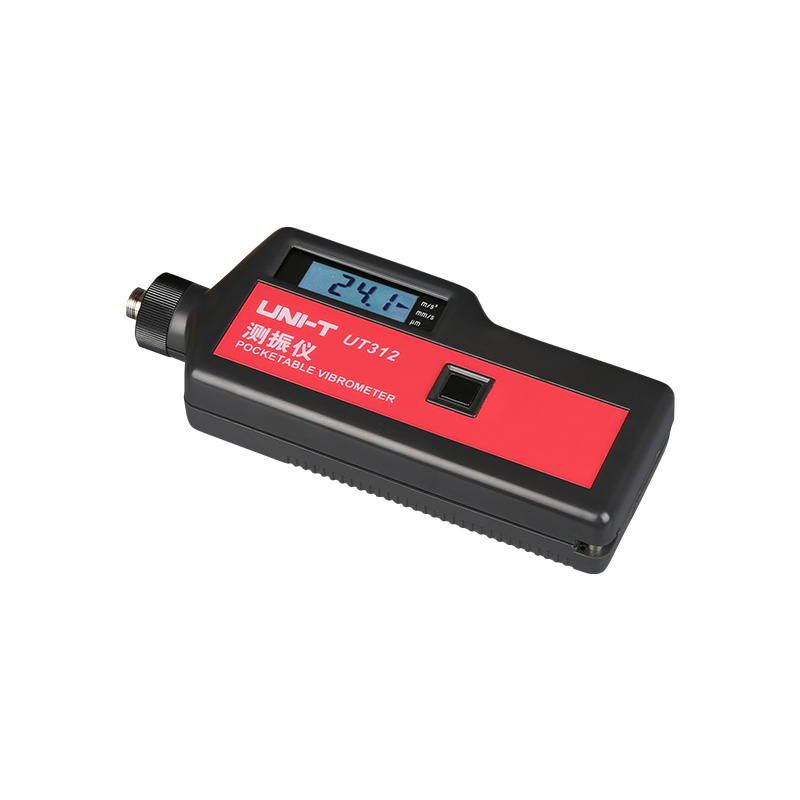

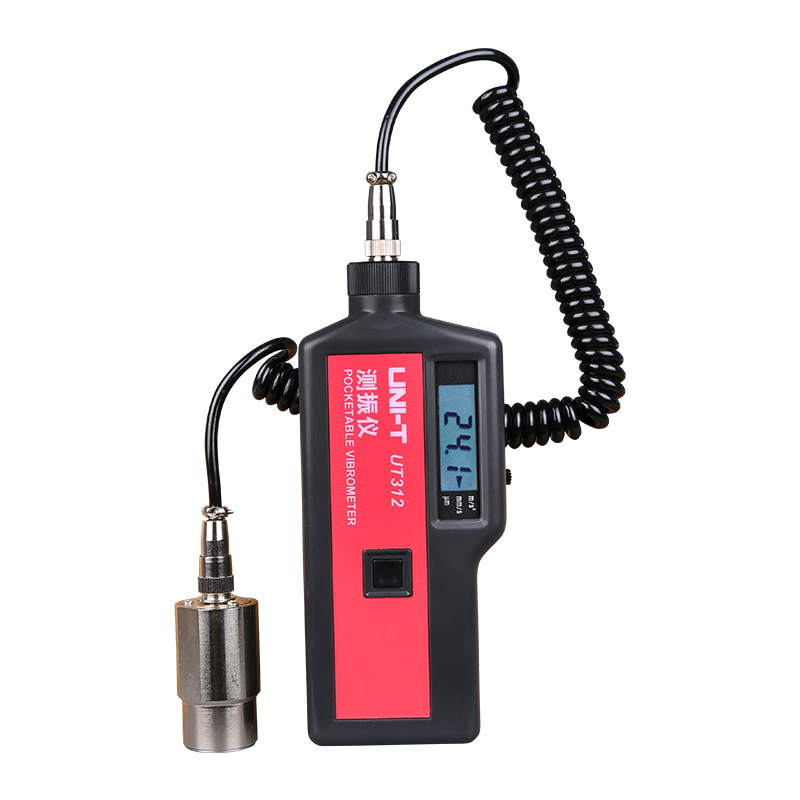

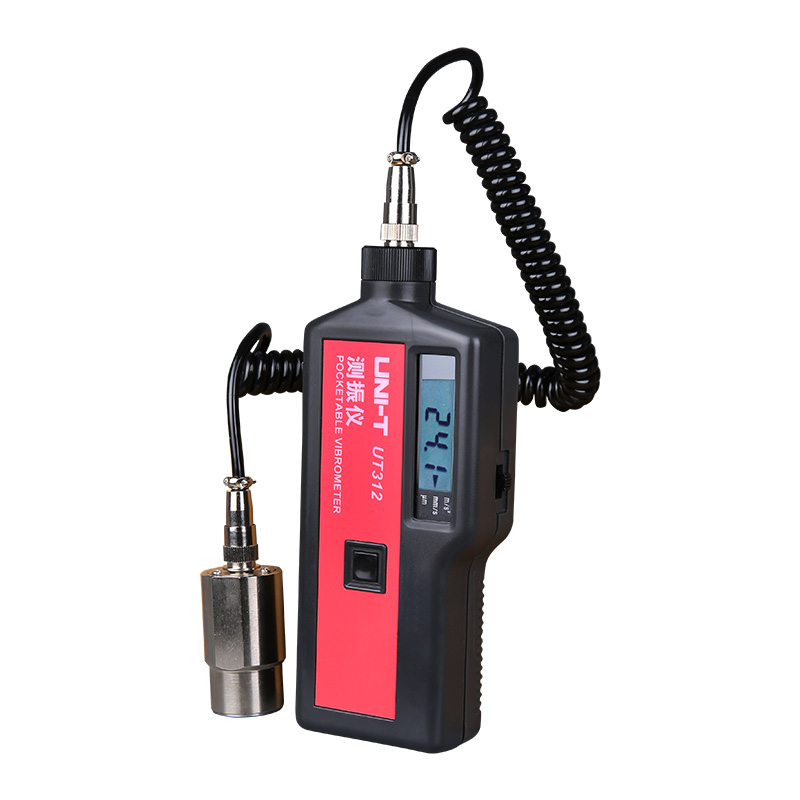

Models in UT310 Series: UT312 (Discontinued) 👉 Replaced by UT312A

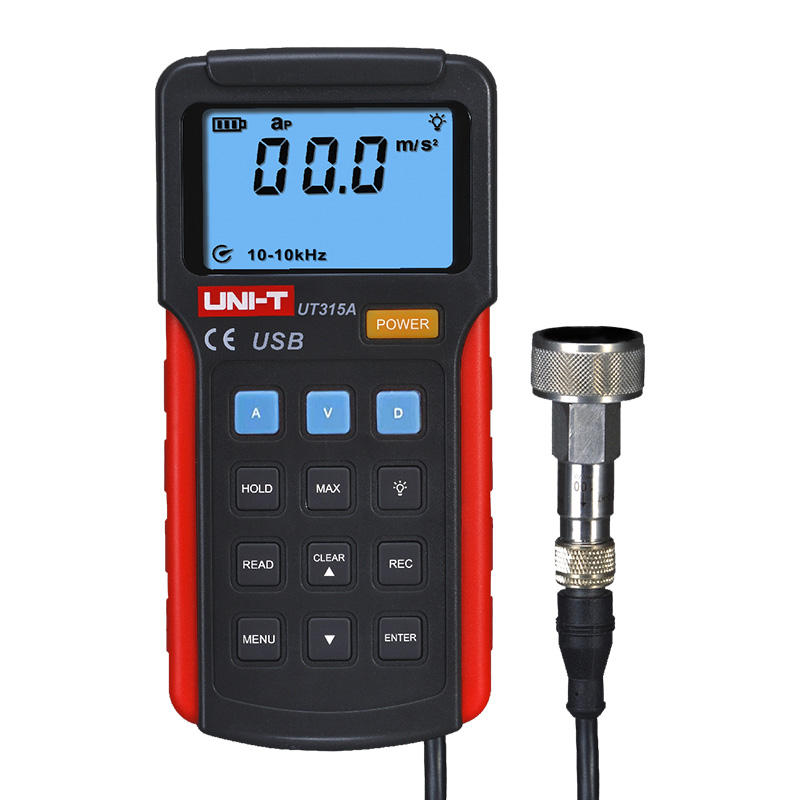

UT315A
Description
Features of UT310 Series Vibration Testers
Certificates: CE, UKCA
● Highly accurate and precise
● Measures acceleration, velocity, displacement
● Can select different vibration frequency characteristics
● Auto power off, low battery indication
● Data hold
Specifications of UT310 Series Vibration Testers
| Secifications | UT312 (Discontinued) | UT315A |
| Acceleration (O-P) | 0.1～199.9m/s² Frequency response: 10～1500Hz Accuracy: ≤2.0m/s², ≤±10%; ＞2.0m/s², ≤±5% |
0~199.9m/s² Frequency response: 10Hz-10kHz Accuracy: ±(5%+0.2m/s²) |
| Velocity (RMS) | 0.1～199.9mm/s Frequency response: 10～1500Hz Accuracy: ≤2.0mm/s, ≤±10%; ＞2.0mm/s, ≤±5% |
0~19.99cm/s Frequency response: 10Hz~1kHz Accuracy: ±(5%+0.02cm/s) |
| Displacement (P-P) | 1～1999μm Frequency response: 10～500Hz Accuracy: ≤20um, ≤±10%; ＞20um, ≤±5% |
1~1.999mm Frequency response: 10Hz~500Hz Accuracy: ±(5%+0.002mm) |
| Features | ||
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Battery life | Continuous measuring time > 8 hours | |
| Display count | 2000 | |
| General Characteristics | ||
| Power | 9V battery (6F22 ) | |
| Product color | Red and grey | |
| Product net weight | UT311/UT312: 230g; UT315A: 395g | |
| Product size | UT311/UT312: 185mm x 68mm x 30mm; UT315A: 166mm x 80mm x 30mm | |

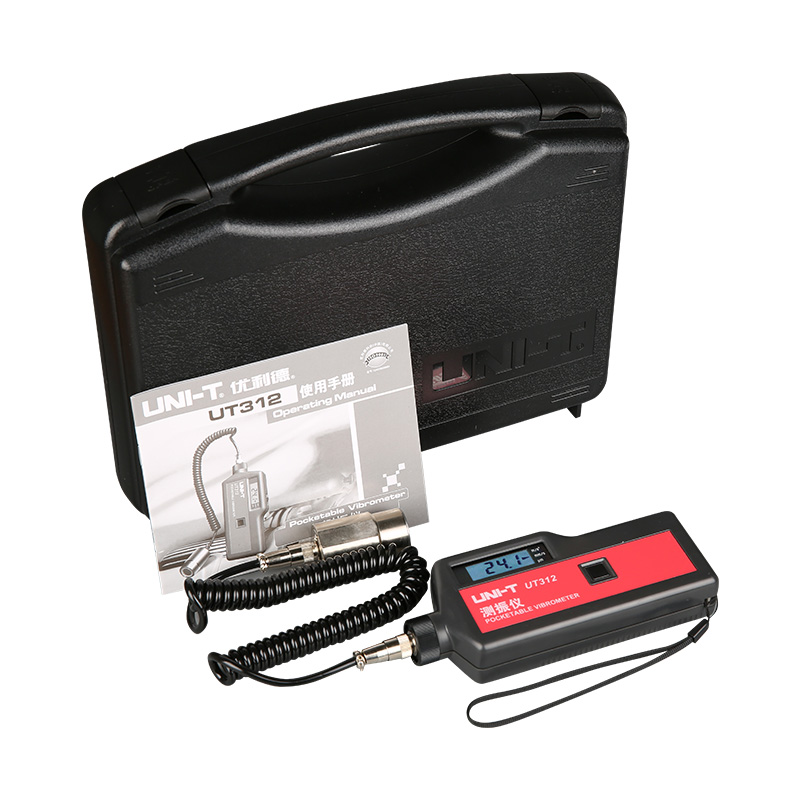

| Standard accessories | Battery, tool box | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | UT311/UT312: 5pcs; UT315A: 1pcs | |
| Standard carton measurement | UT311/UT312: 375mm x 307mm x 246mm; UT315A: 305mm x 240mm x 85mm | |
| Standard carton gross weight | UT311/UT312: 5.8kg; UT315A: About 1.2kg | |
Documents
Tittle
Download
Software
Tittle
Download
Related Products
-

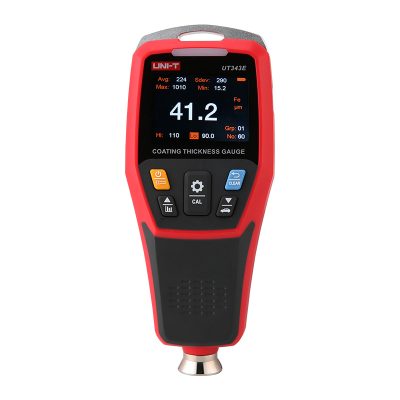

UT343E Coating Thickness Gauge
Measuring range up to 2000µm, and data can be analyzed by Bluetooth APP and PC software of mobile phonesLearn moreCompare ModelsCompare: -

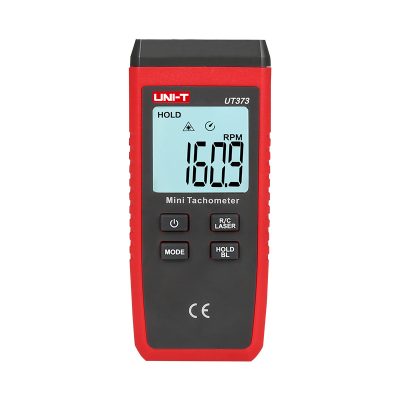

UT373 Mini Tachometer
