This product has been discontinued. Replaced by UT312/UT315A .

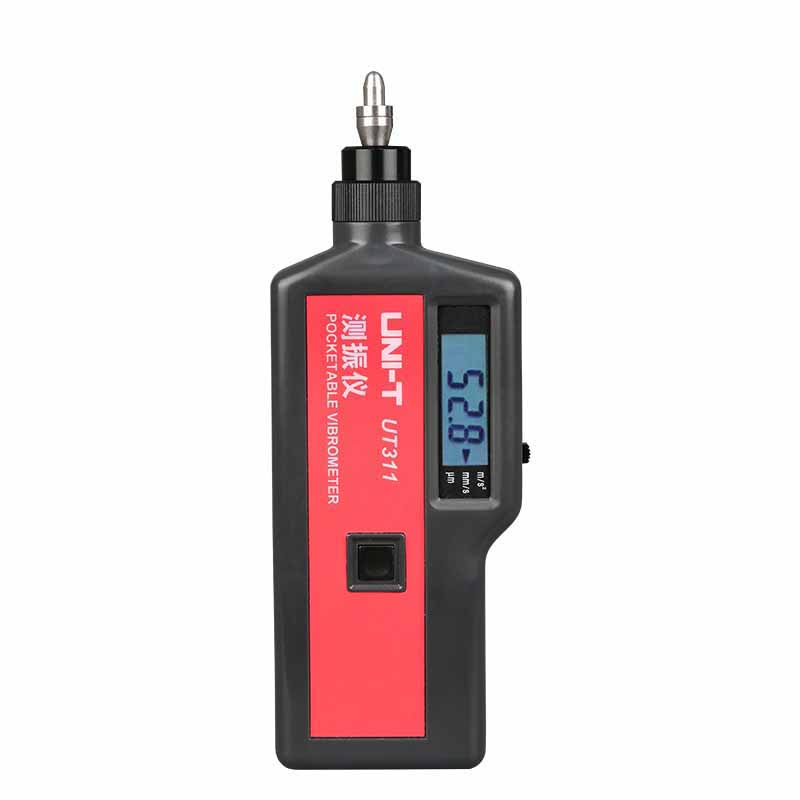

UT311 Vibration Tester (Discontinued)
UT311 handheld vibration tester can measure displacement, velocity, and acceleration of rotating and reciprocating machinery. Technicians can use it to monitor equipment status and ensure normal operation.
Description
Features of UT311 Vibration Tester
Certificates: CE, UKCA
● Highly accurate and precise
● Measures acceleration, velocity, displacement
● Can select different vibration frequency characteristics
● Auto power off, low battery indication
● Data hold
Specifications of UT311 Vibration Tester
| Specifications | Range | UT311 |
| Acceleration (O-P) | 0.1～199.9m/s² | Frequency response: 10～1500Hz, Amplitude error: ≤±5% |
| Amplitude linear error: ≤2.0m/s², ≤±10%; ＞2.0m/s², ≤±5% | ||
| Velocity (RMS) | 0.1～199.9mm/s | Frequency response: 10～1500Hz, Amplitude error: ≤±5% |
| Amplitude linear error: ≤2.0m/s, ≤±10%; ＞2.0m/s, ≤±5% | ||
| Displacement (P-P) | 1～1999μm | Frequency response: 10～500Hz, Amplitude error: ≤±5% |
| Amplitude linear error: ≤20um, ≤±10%; ＞20um, ≤±5% | ||
| Features | ||
| Data hold | √(auto data hold when releasing the measure key) | |
| Low battery indication | √ | |
| Auto power off | √(auto power off 1 minute after releasing the measure key) | |
| Battery life | Continuous measuring time > 20 hours | |
| Display count | 2000 | |
| General Characteristics | ||
| Power | 9V battery (6F22 ) | |
| Product color | Red and grey | |
| Product net weight | 230g (including battery) | |
| Product size | 185mm x 68mm x 30mm | |
| Standard accessories | Battery, tool box | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 5pcs | |
| Standard carton measurement | 375mm x 307mm x 246mm | |
| Standard carton gross weight | 5.8kg | |
