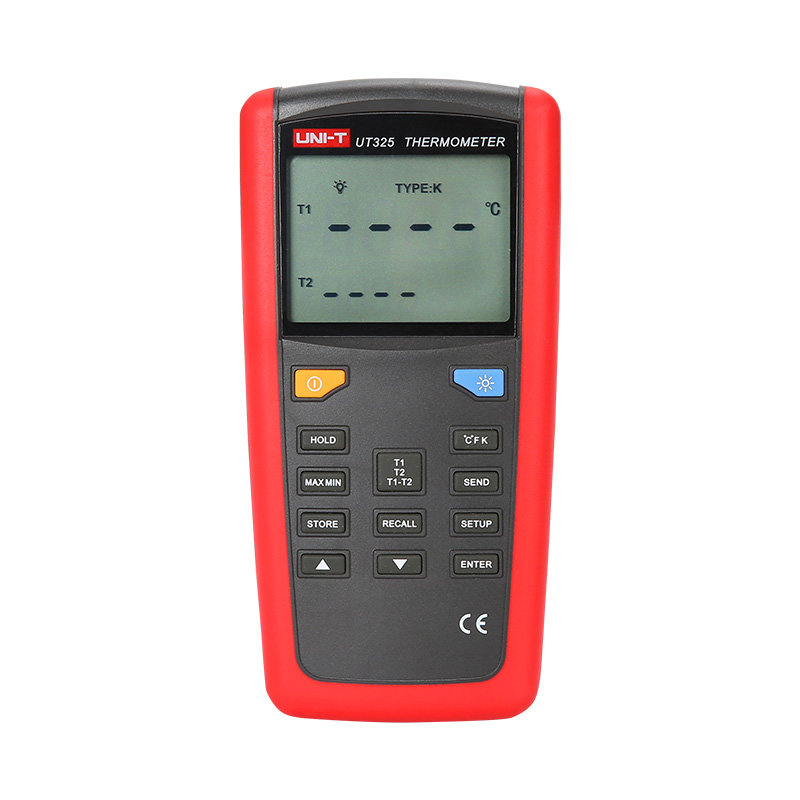

UT325 Contact Type Thermometer
UT325 contact type thermometer provides fast, accurate, and precise temperature measurement with thermocouple temperature probes. Users can select single or dual input, record, and analyze data through PC software. UT325 can be used with a variety of temperature probes, satisfying multiple applications.
Description
Features of UT325 Contact Type Thermometer
Certificates: CE, UKCA
● °C/°F/K selection
● Data hold
● Auto power off
● Low battery indication
● MAX/MIN/AVG mode
● USB interface
● LCD backlight
● Auto calibration
Specifications of UT325 Contact Type Thermometer
| Specifications | Range | UT325 | |
| Single or dual input | Dual | ||
| Temperature | Type K | -200°C~1372°C (-328°F~2501°F) | ±(0.2%+0.6) |
| Type J | -210°C~1200°C (-346°F~2192°F) | ±(0.2%+0.6) | |
| Type T | -250°C~400°C (-418°F~752°F) | ±(0.2%+0.6) | |
| Type E | -150°C~1000°C (-238°F~1832°F) | ±(0.2%+0.6) | |
| Type R | 0.0°C~1767°C (32°F~3212°F) | ±(0.2%+2) | |
| Type S | 0.0°C~1767°C (32°F~3212°F) | ±(0.2%+2) | |
| Type N | -200°C~1300°C (-328°F~2372°F) | ±(0.2%+1.5) | |
| Resolution | 0.1°C (When value＞999.9°C: 1°C) | √ | |
| Features | |||
| °C/°F/K selection | √ | ||
| Data hold | √ | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| MAX/MIN/AVG mode | √ | ||
| Data storage | 100 | ||
| USB interface | √ | ||
| High alarm | √ | ||
| Low alarm | √ | ||
| High/lower signal output | √ | ||
| LCD backlight | √ | ||
| Auto calibration | √ | ||
| General Characteristics | |||
| Power | USB or 9V battery (6F22) | ||
| Display | 30mm x 32mm | ||
| Product color | Red and grey | ||
| Product net weight | 270g | ||
| Product size | 175mm x 85mm x 30mm | ||
| Standard accessories | Battery, USB interface cable, PC software CD, K-type temperature probe | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 10pcs | ||
| Standard carton measurement | 405mm x 290mm x 165mm | ||
| Standard carton gross weight | 4.3kg | ||
