UT330 Series Temperature Humidity Meters (Discontinued)
UT330 series meters measure temperature and humidity with low power consumption and high precision. The measured data can be saved and exported to PC software for further analysis.

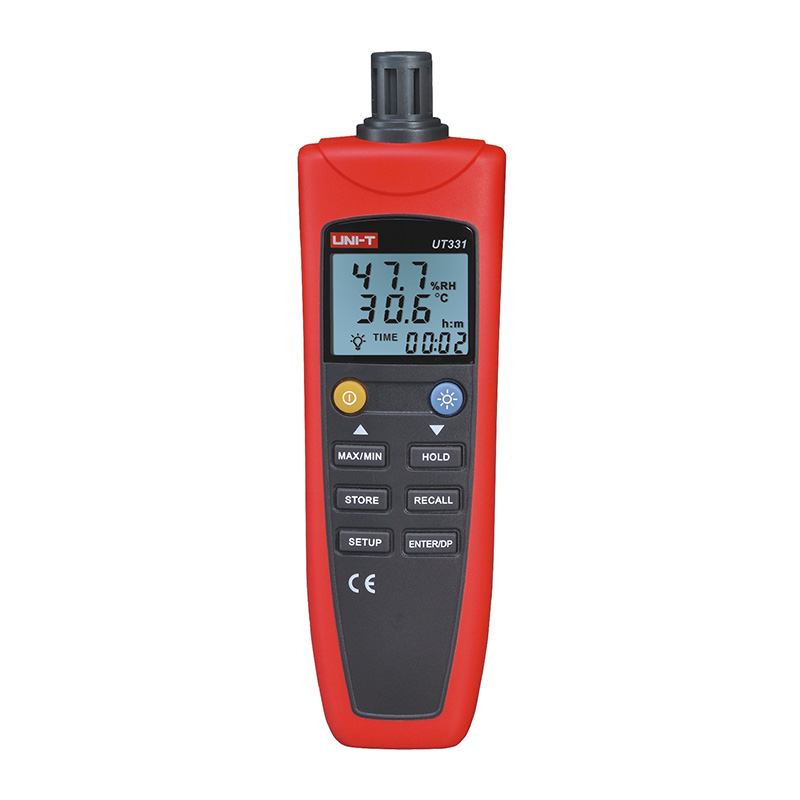

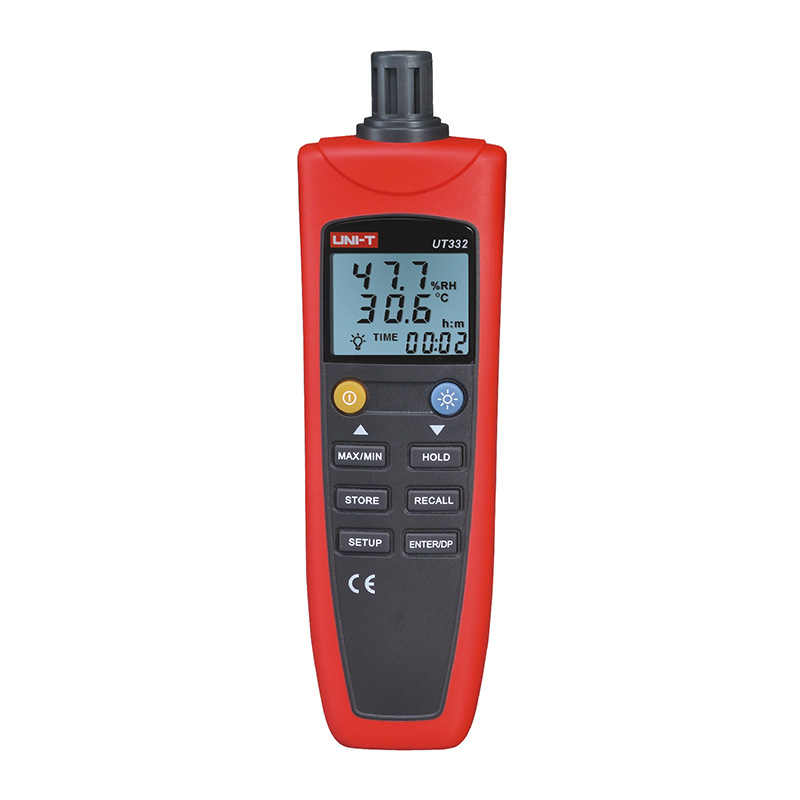

Models in UT330 Series: UT331, UT332
Description
Features of UT330 Series Temperature Humidity Meters
Certificates: CE, RoHS
● Display temperature, humidity and dew point temperature selection together
● ℃/℉ selectable
● Customizable measurement compensation
● Record interval, system time and sleep time settings
● MAX/MIN modes
● Manual/auto power off
● 100 sets data storage, manual/auto storage modes
● USB communication, PC software, data hold, LCD backlight
Specifications of UT330 Series Temperature Humidity Meters
| Specifications | UT331 | UT332 | ||
| Temperature | Range | -20°C~70°C (-4°F~158°F) | √ | √ |
| Accuracy | -20°C~0°C | ±1℃ | ±1℃ | |
| 0°C~40°C | ±0.5℃ | ±0.5℃ | ||
| 40°C~70℃ | ±1℃ | ±1℃ | ||
| Resolution | 0.1℃/0.1℉ | √ | √ | |
| Humidity | Range | 0%RH~100%RH | √ | √ |
| Accuracy | 10%RH~90%RH | ±3.5%RH | ±2.5%RH | |
| ＜10%RH or ＞90%RH | ±5%RH | ±5%RH | ||
| Resolution | 0.1%RH | √ | √ | |
| Features | ||||
| ℃/℉ selection | √ | √ | ||
| Response time | Around 10 seconds | √ | √ | |
| Humidity offset settings | √ | √ | ||
| Temperature offset settings | √ | √ | ||
| Dew point offset settings | √ | √ | ||
| Auto power off | √ | √ | ||
| Power saving mode | √ | |||
| Data hold | √ | √ | ||
| MAX/MIN | √ | √ | ||
| Data storage | √ | √ | ||
| Data recall | √ | √ | ||
| USB interface | √ | √ | ||
| Auto record time setup | √ | √ | ||
| LCD backlight | √ | √ | ||
| General Characterisitics | ||||
| Power | 1.5V battery (R03) x 4 | |||
| Display | 26.5mm x 35.5 mm | |||
| Product color | Red and grey | |||
| Product net weight | 130g | |||
| Product size | 185mm x 54.8m x 33.8mm | |||
| Standard accessories | Batteries, carrying bag, PC software CD, USB interface cable | |||
| Standard individual packing | Gift box, English manual | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | 430mm x 290mm x 290mm | |||
| Standard carton gross weight | 6.3kg | |||
