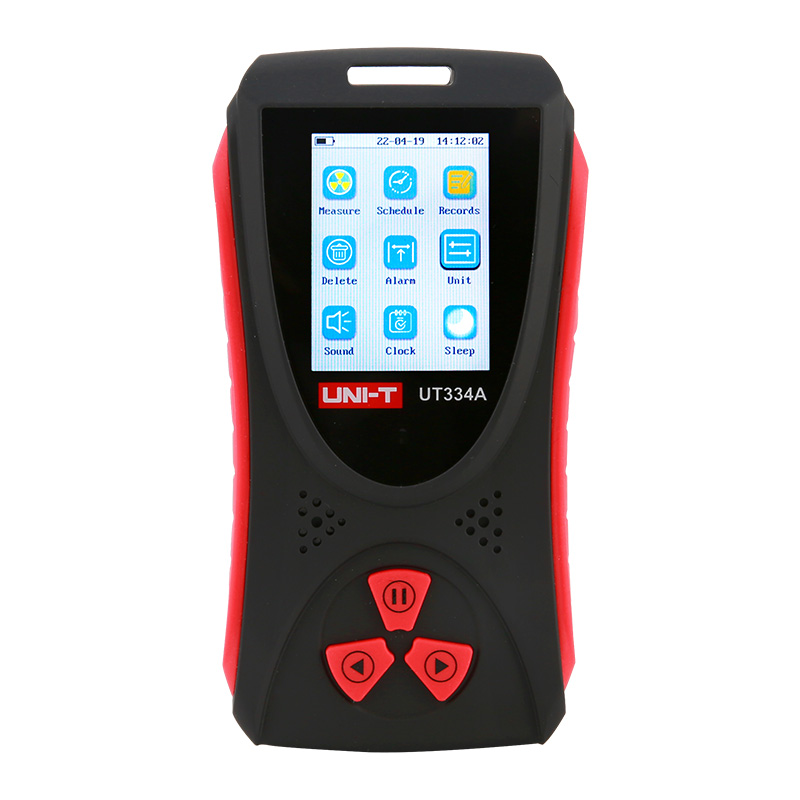

UT334A Radiation Dose Tester

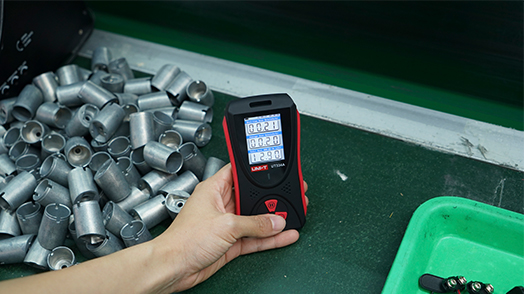

UT334A is a handheld Radiation Dose Tester with high sensitive GM counter sensor, combined Beta(β ), Gamma(γ), and X-ray radiation detection. It is widely used in home decoration, radiation processing enterprise, health and epidemic prevention, radiation therapy, import and export inspection, building materials, petrochemical, geological survey, scrap steel, industrial nondestructive testing and other environments existing ionizing radiation, personal radiation dose supervision and protection occasions.
Description
Features of UT334A Radiation Dose Tester
Certificates: CE, UKCA, RoHS
● TFT 2.0” color screen
● High sensitive GM counter tube
● Combined Beta(β ), Gamma(γ), and X-ray radiation

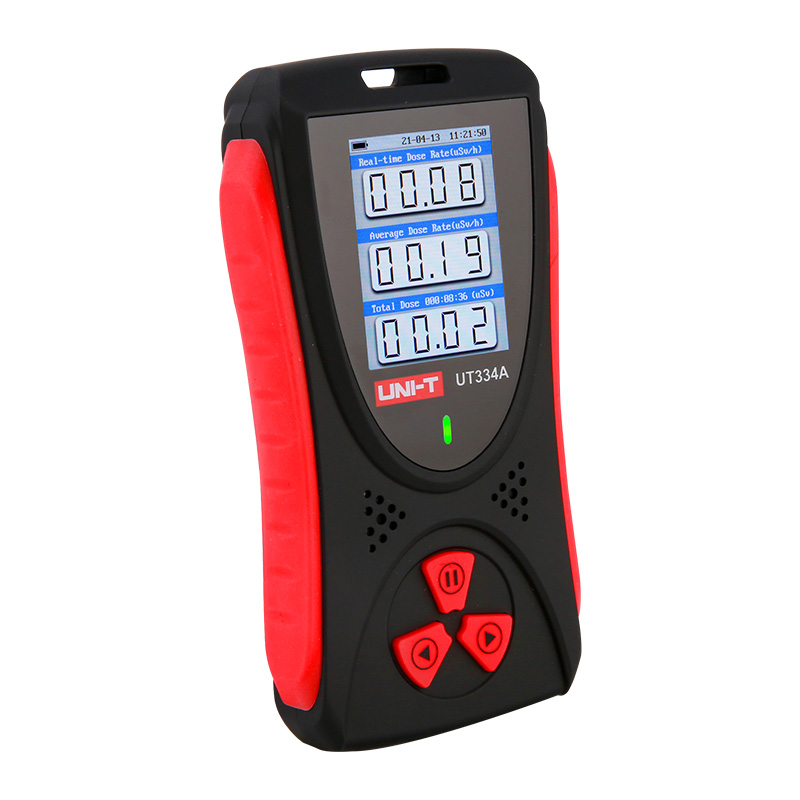

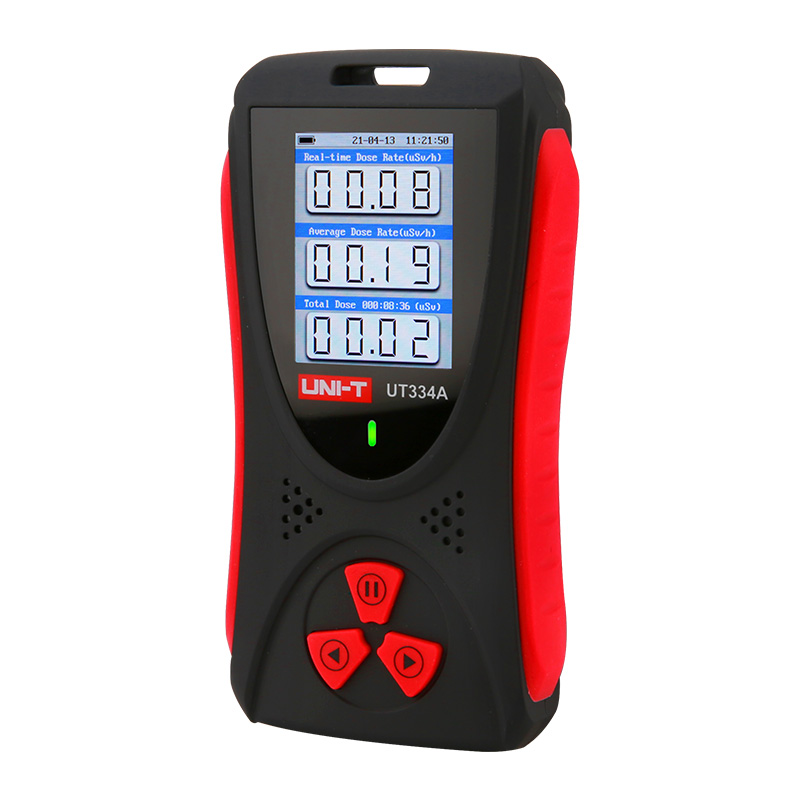

● Real-time, Average, and Cumulative dose display
● Audible and visual alarms
● Two Monitoring Mode
● Data storage
● Portable device
Specifications of UT334A Radiation Dose Tester
| Specifications | UT334A |
| Detected rays | X, β and γ rays |
| Sensor | GM counter tube |
| Range | 0.05uSv-50mSv |
| Accuracy | -17%~+25% based on 137CSγ |
| Charging interface | Type-C |
| Alarm response time | td:＜10s |
| Alarm threshold accuracy | -17%~+25% |
| Alarm modes | Audio and visual alarms |
| Battery | 3.7V Li-ion 1800mAh |
| Battery duration | About 20 days (continuous measurement, particle sound off) |
| General Characteristics | |
| Battery | 3.7V Li-ion 1800mAh |
| Product color | Red and grey |
| Product net weight | 127g |
| Product size | 120*65*25mm |
| Standard accessories | USB cable |

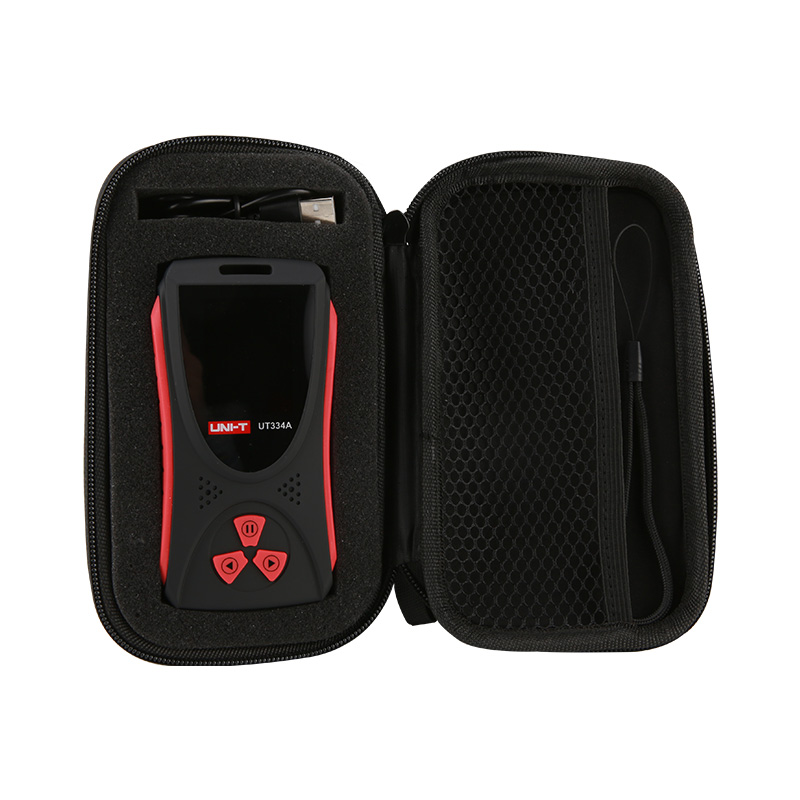

| Standard individual packing | Gift box、 Manual、Carrying bag 、Hand strap |
| Standard quantity per carton | 10 |
| Gross weight(one carton) | 3.7KG |
