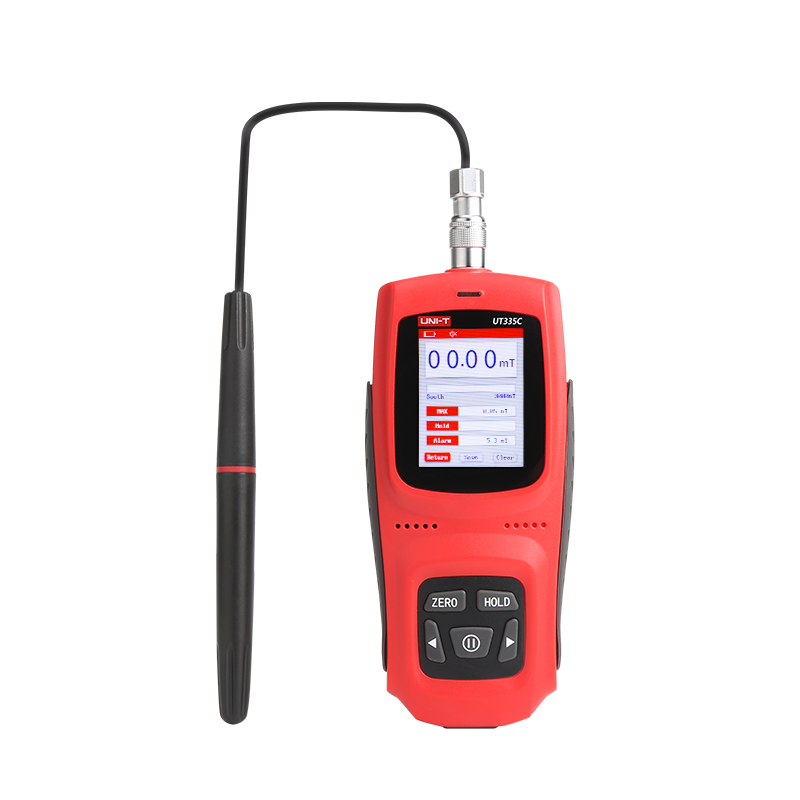

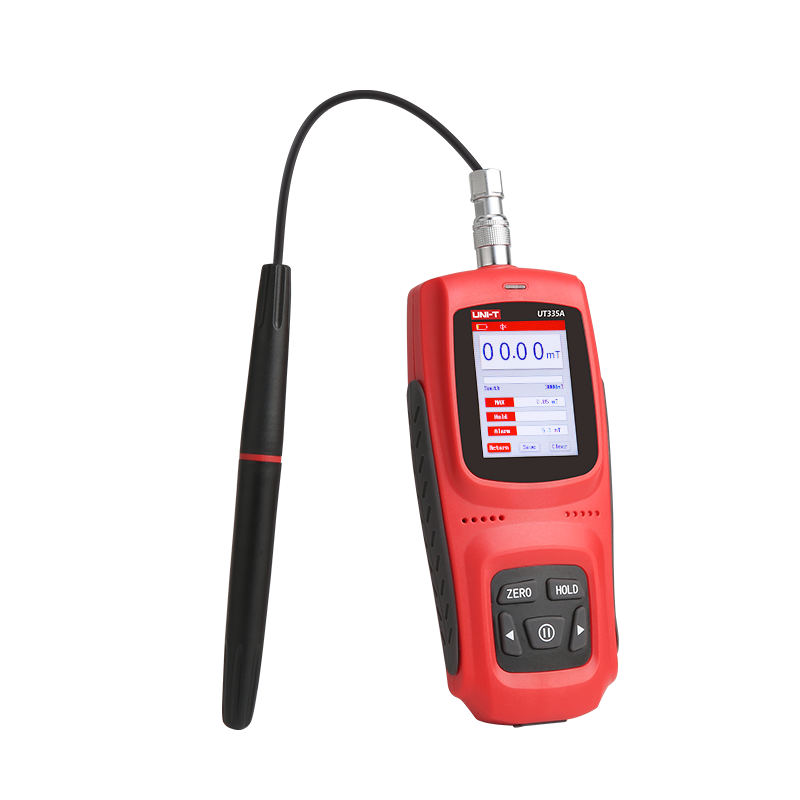

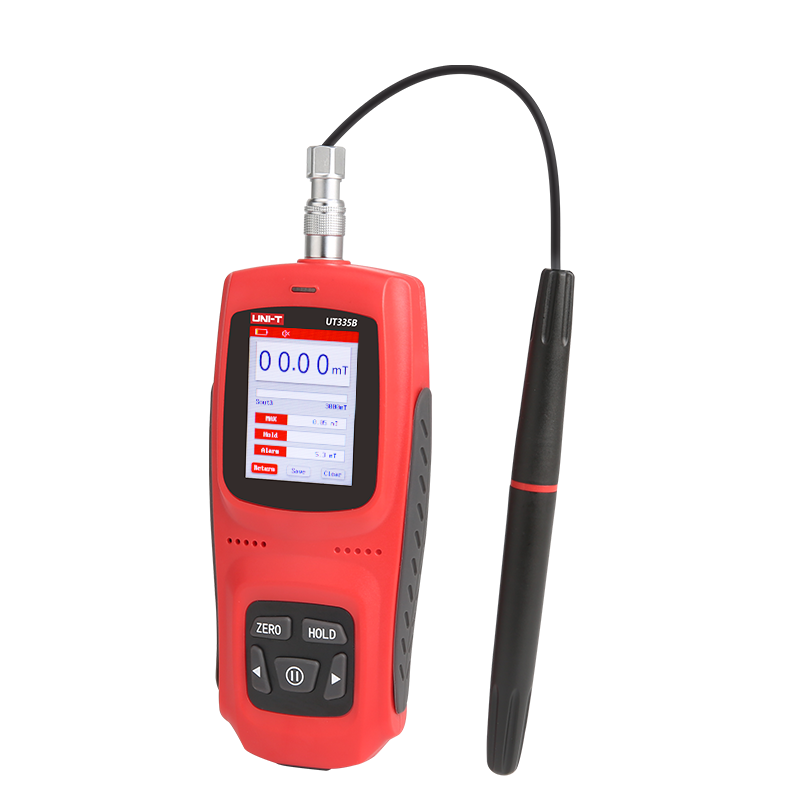

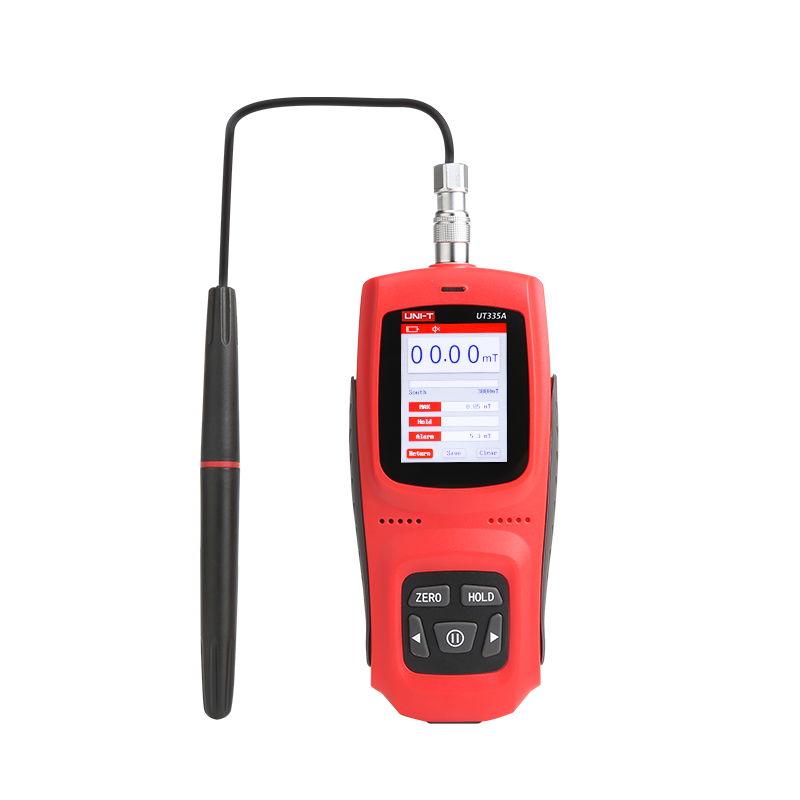

UT335 Series Handheld Digital Gauss Meter

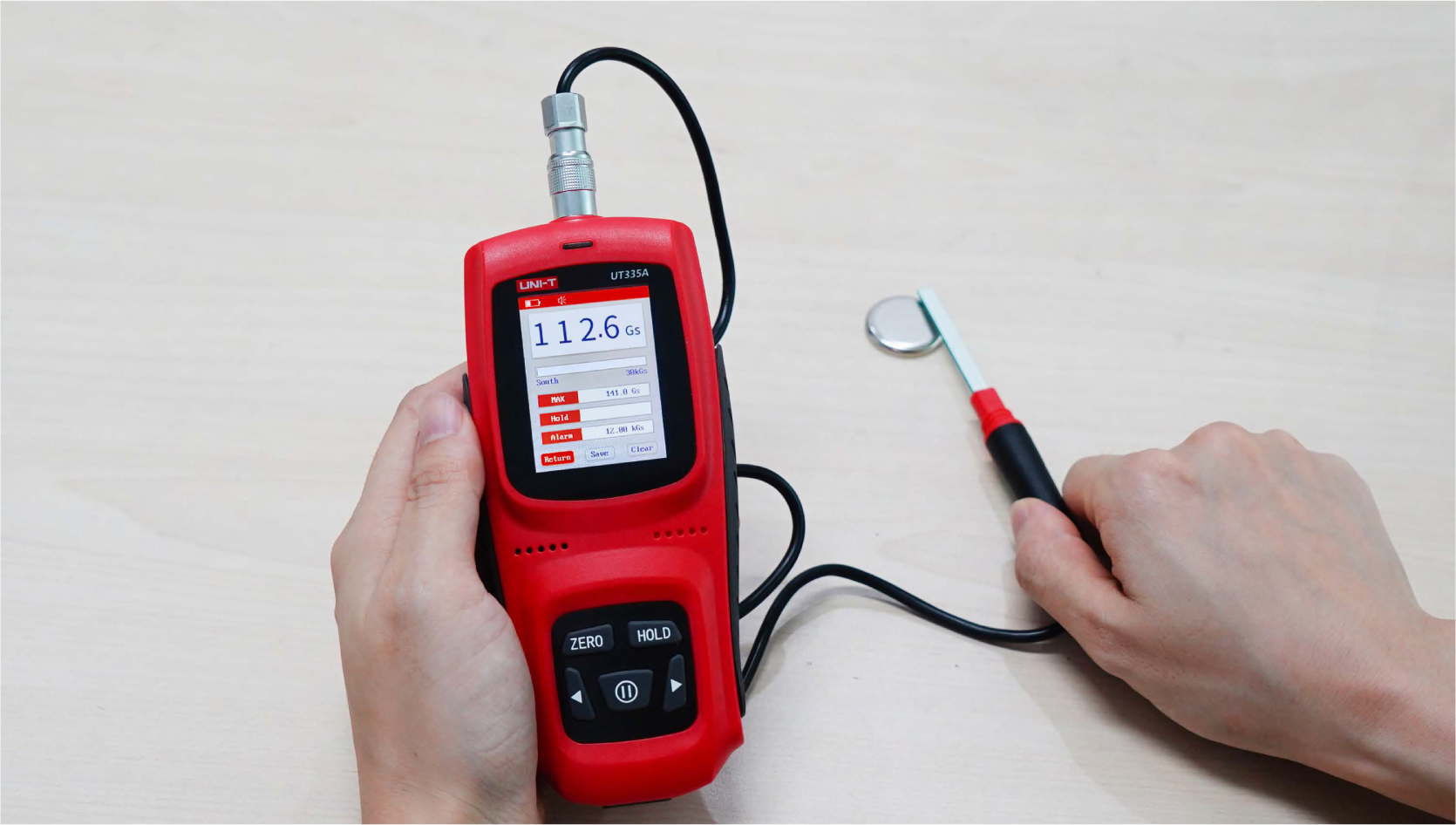

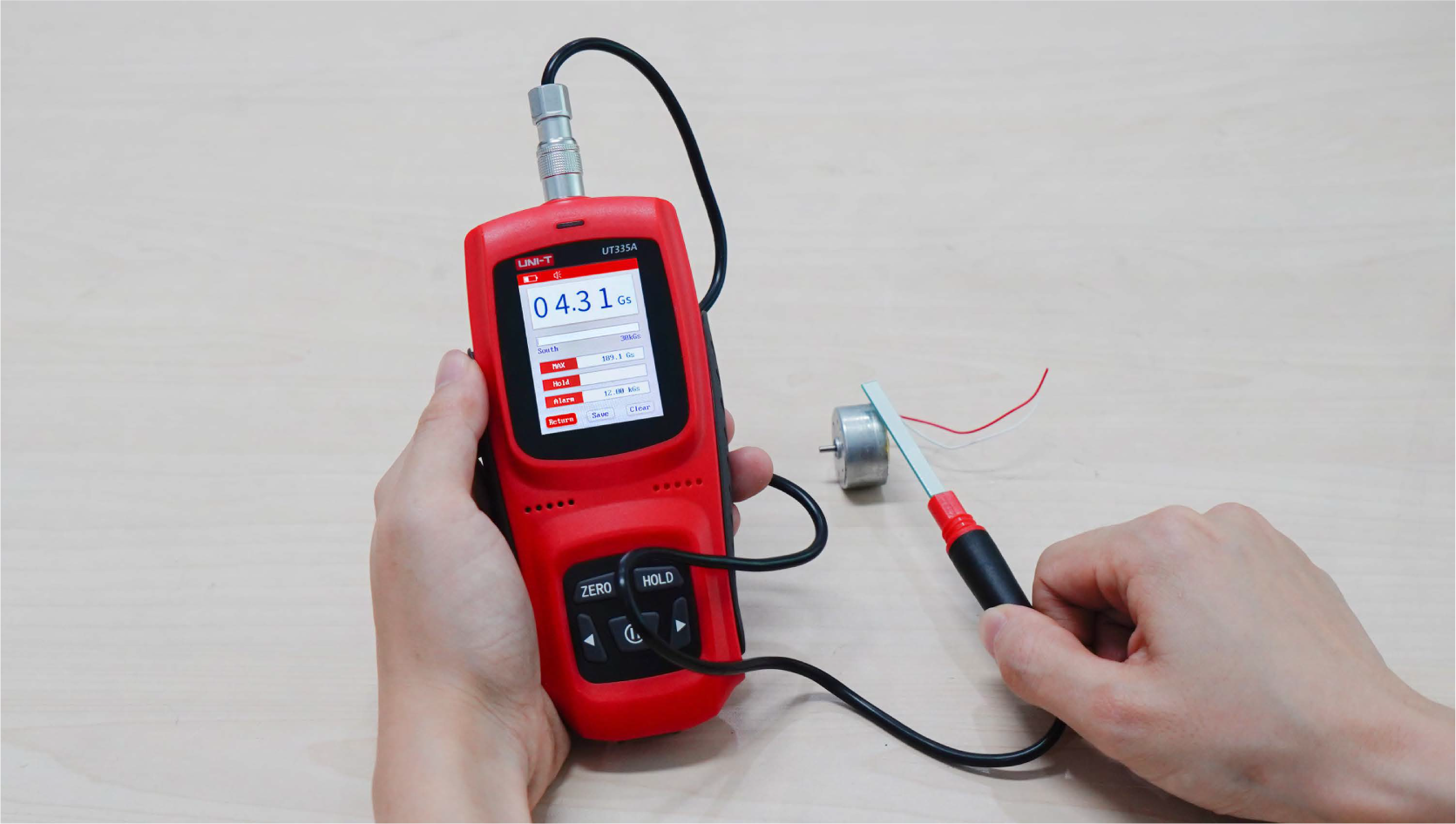

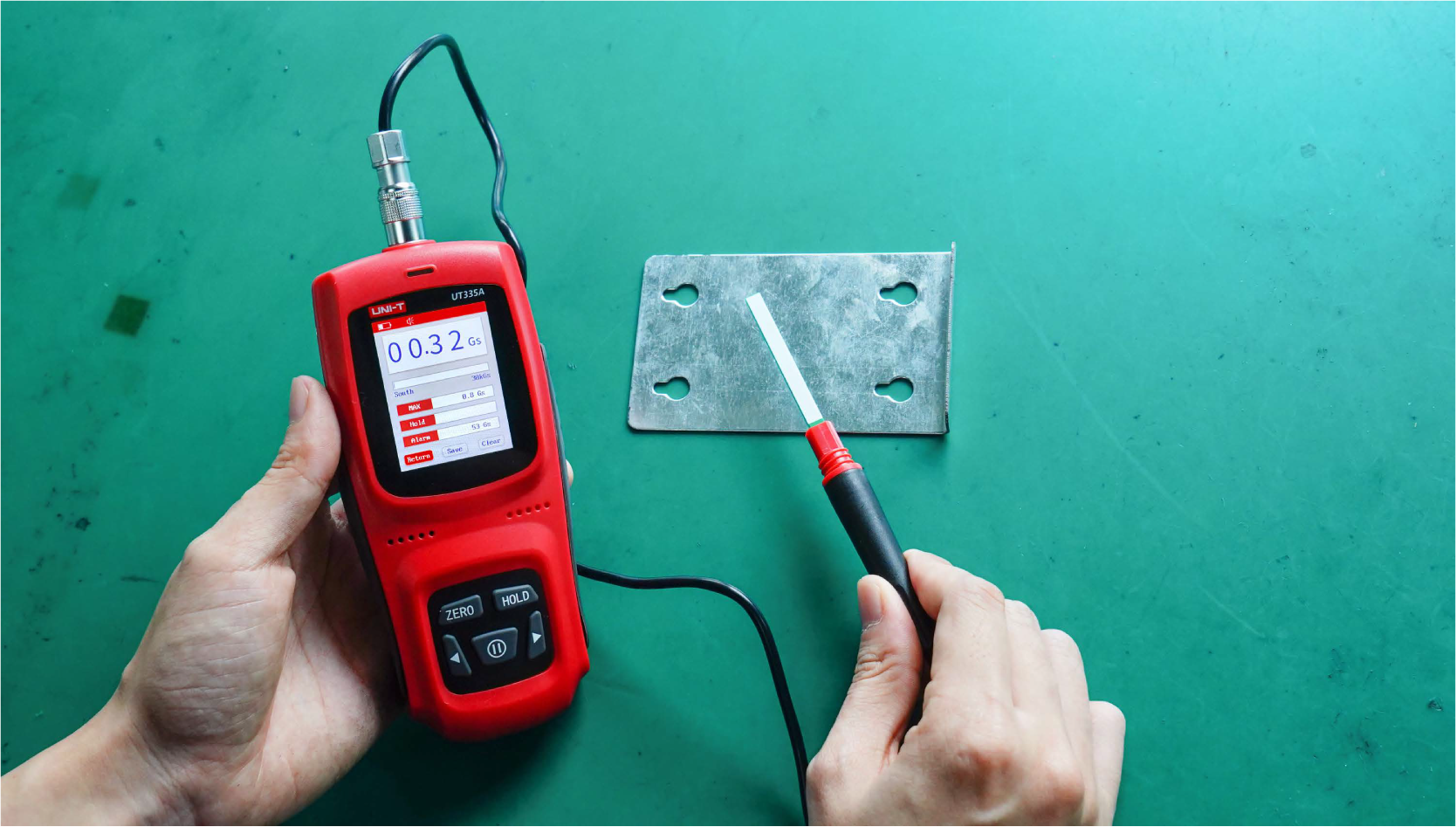

The UT335 series handheld digital gauss meter is a compact, high-sensitivity, wide-range magnetic field detector for measuring the magnetic field strength on magnet surfaces. It delivers accurate, precise, and stable readings. Featuring an HD TFT display with a wide viewing angle and an intuitive, user-friendly UI, it is easy to operate.
Description
Features of UT335 Series Handheld Digital Gauss Meter
- 0–3000 mT / 0–30 kGs, Gs/mT Switchable
- Selectable Accuracy: ±1% / ±2% / ±5%
- Auto N/S Detection & Zero Calibration
- Audible & Visual Overrange Alarm
- 50 Groups Data Storage
- Full-color TFT Display
- Rechargeable Li-ion Battery, 16h Working Time
Specifications
| Specifications | UT335A | UT335B | UT335C |
| Accuracy | ±5% | ±2% | ±1% |
| Measurement Range | 0–30 kGs / 0–3000 mT | ||
| Magnetic field resolution | 0.01 mT / 0.01 Gs | ||
| Sensor type | Hall sensor | ||
| Display | Color TFT | ||
| Unit Switch | mT / Gs | ||
| Polarity Display | ✔ | ||
| Hold Value | ✔ | ||
| Peak Display | ✔ | ||
| Count Test | ✔ | ||
| Quality Inspection Test | ✔ | ||
| Calibration | ✔ | ||
| Backlight | ✔ | ||
| Alarm | Audible & visual alarm | ||
| Data Storage | 50 groups | ||
| Working Temperature | -20~60℃ (Sensor of Test Pen in Maximum 125℃) | ||
| Battery Life | About 16 h (Continuous Running Mode) | ||
| Charging Interface | Type-C | ||
| Characteristics | |||
| Battery | 3.7V 750mAh Li-ion battery | ||
| Product size | Gauss Meter 140×63×27mm (excl. probe) | ||
| Product net weight | Gauss Meter approx. 120g; probe approx. 32g | ||
| Accessories | Handheld Digital Gauss Meter, Probe, Gift Box, Charging Cord, User Manual | ||
