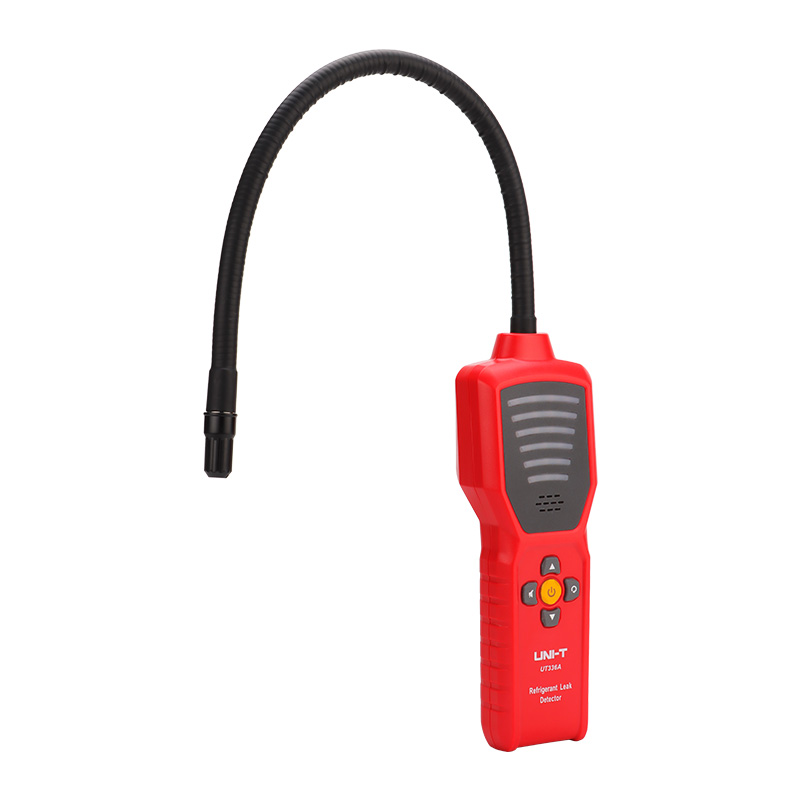

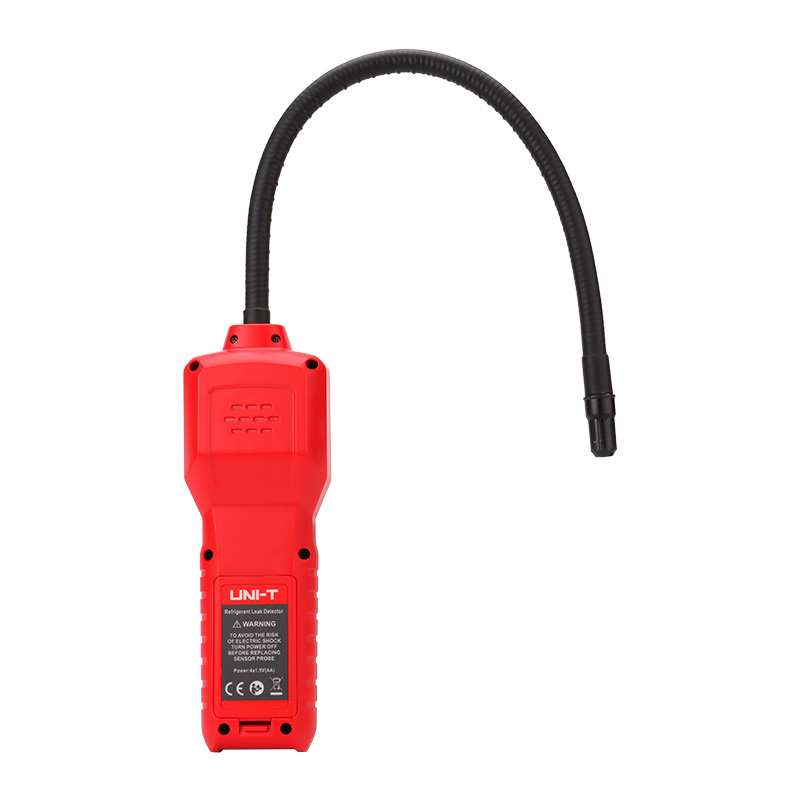

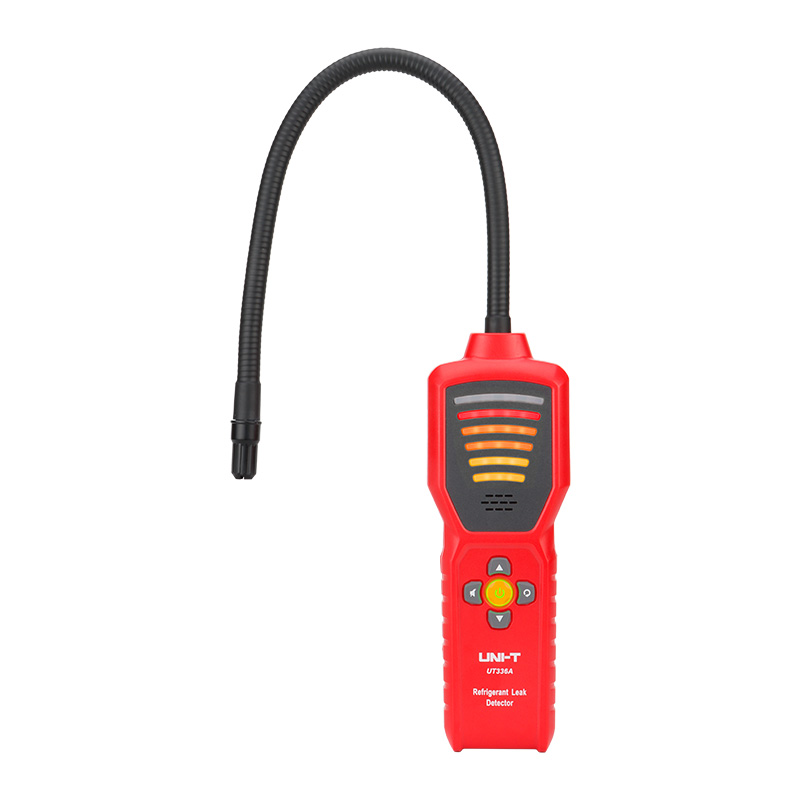

UT336A Refrigerant Leak Detector

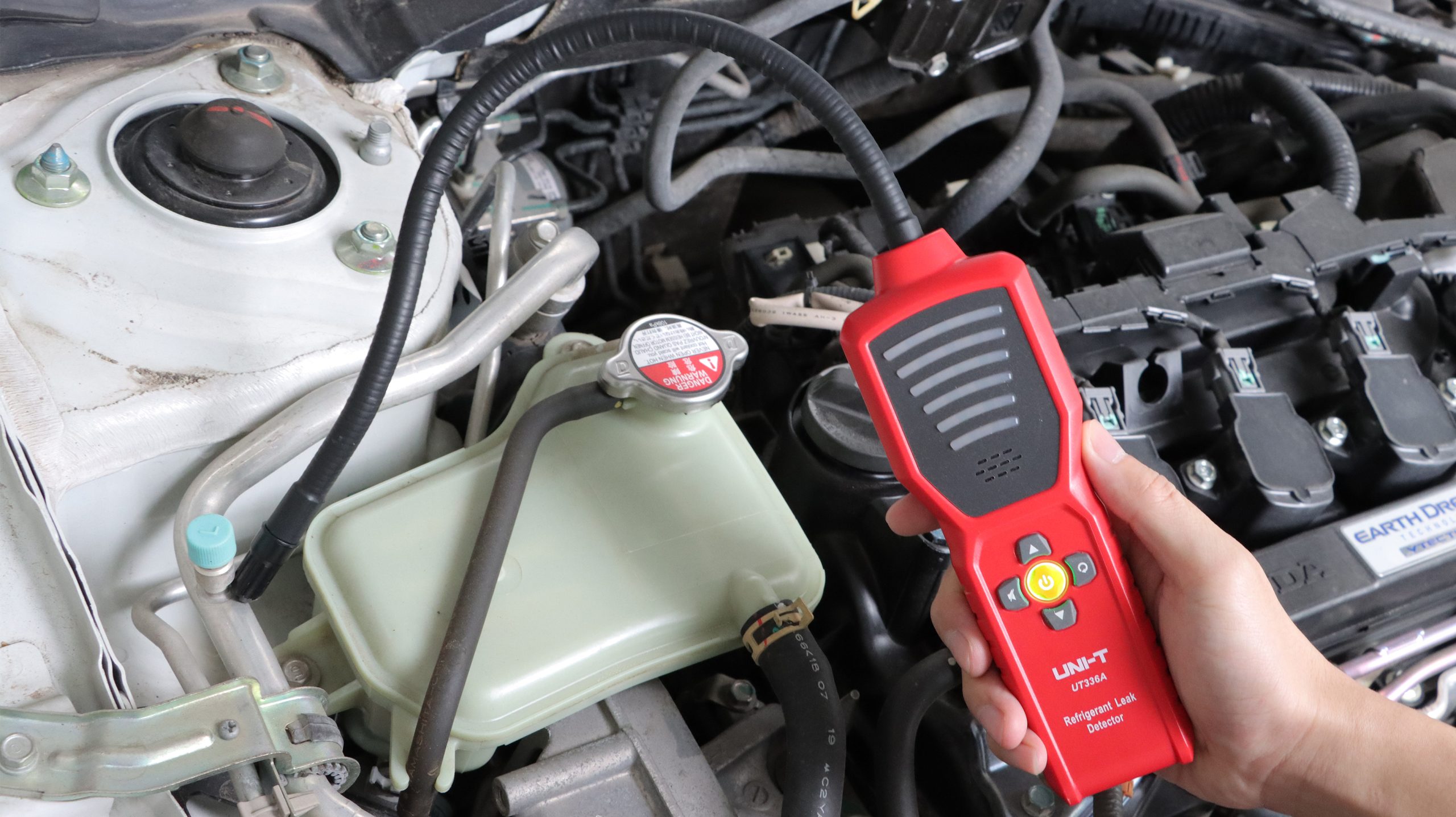

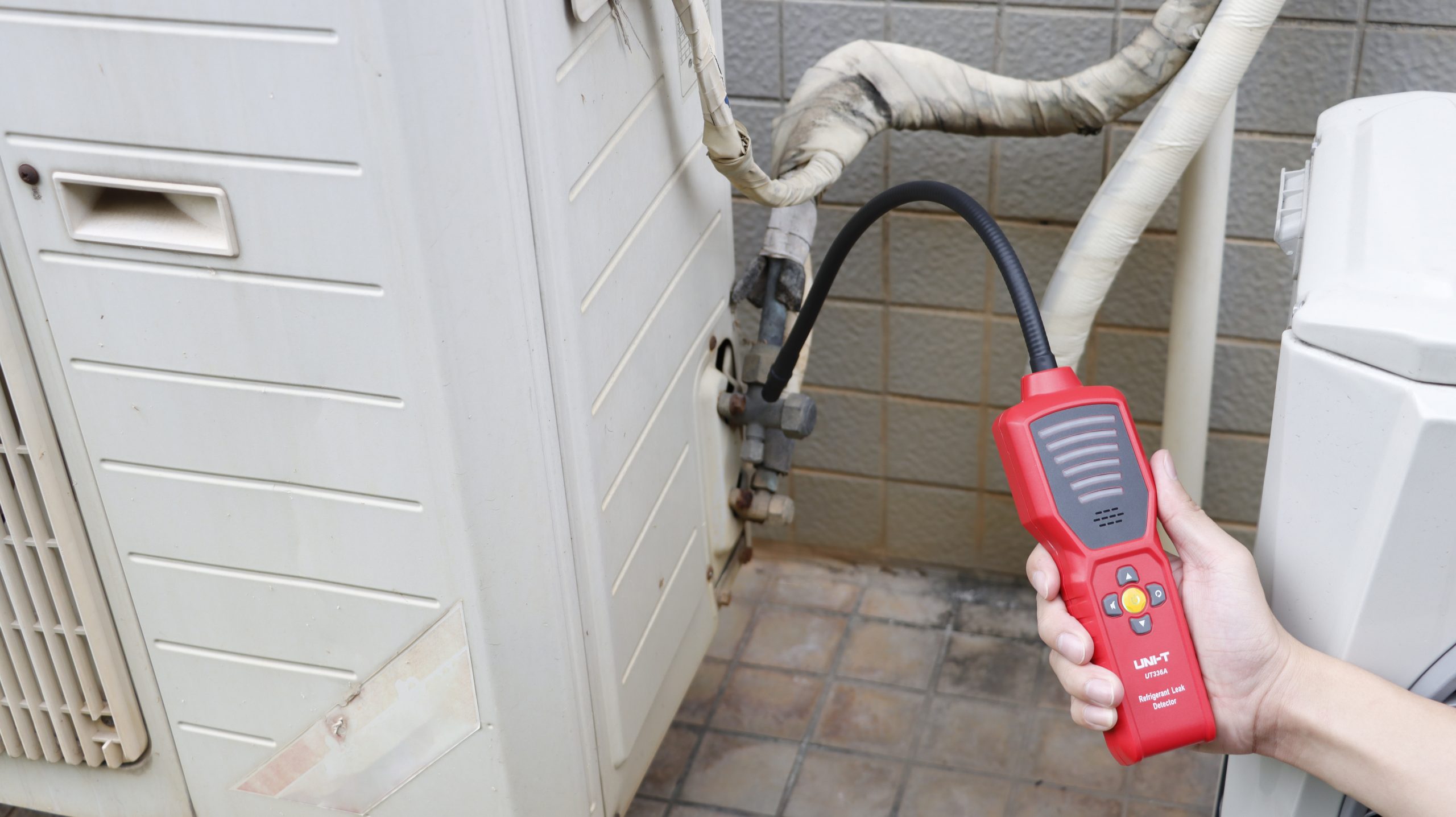

UT336A is a negative corona electronic refrigerant leak detector, features of rapid response, high reliability and easy-to-use operation. It is widely used in air conditioner maintenance, car maintenance, refrigeration unit detection, refrigerator maintenance, and etc.
Description
Features of UT336A Refrigerant Leak Detector
Certifications: CE, RoHS
Language: EN, FR, DE, IT, ES, SV, PL, CZ
● High Sensitivity
● Easy-to-use operation
● 6-Sensitivity Adjustment
● Sound-Light Alarm
● Power-on Auto-reset
● Three main types of halogenated refrigerants: CFCs, HCFCs, HFCs
Specifications
| Model UT336A | |
| Sensor | Negative Corona Sensor |
| Maximum Sensitivity | 3g/a |
| Warm-Up Time | 3s |
| Sensitivity Adjustment | 6 Levels |
| Alarm Light | 6 Levels |
| Battery Status | √ |
| Zero reset | √ |
| Mute | √ |
| Battery Life | 20h |
| Auto Power Off | √ |
| Probe Life | About 50h in normal detection condition |
| Operating temperature and humidity | 0℃-50℃，＜95%RH(non-condensing) |
| Characteristics | |
| Power Supply | AA Alkaline Battery *4 |
| Product Size | 190x65x43mm(Not probe rod included) |
| Product Net Weight | 312g(Not battery included) |
| Standrad Accessories | Refrigerant Leak Detector, Quick Start Guide, Safety Guideline,AA Alkaline Battery*4, Auxiliary Probe*1 |
| Standard Quantity Per Carton | 10pcs |
