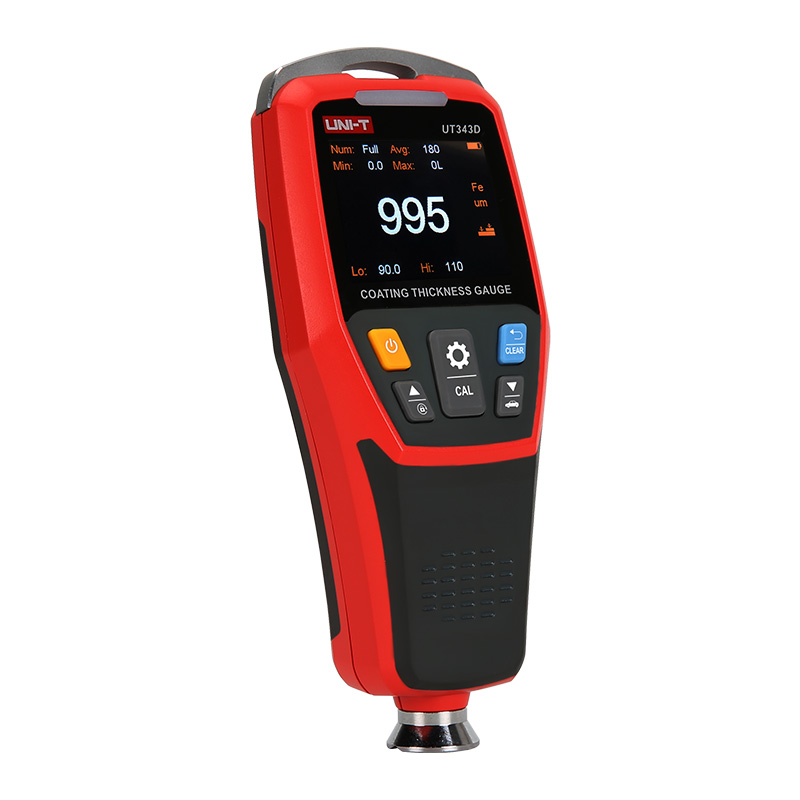

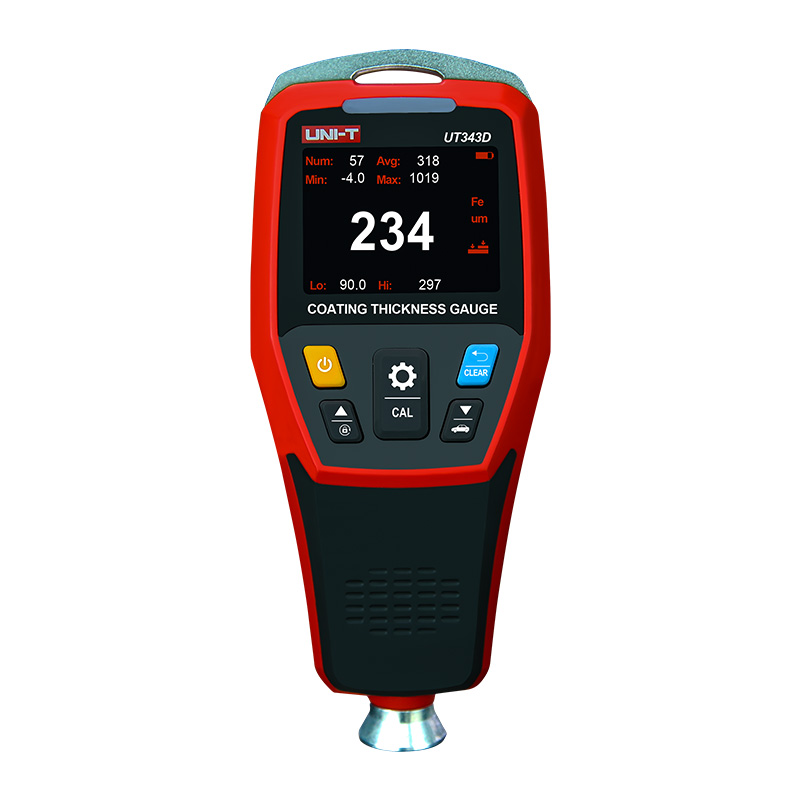

UT343D Coating Thickness Gauge
UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
Description
Features of UT343D Coating Thickness Gauge
Certificates: CE, UKCA
● LCD brightness control
● Auto rotatable screen
● Unit conversion
● Audio alarm
● LED alarm
● PC analysis software
● USB communication
● Quick test mode
● Auto power off
● Low battery indication
Specifications of UT343D Coating Thickness Gauge
| Specifications | Range |
| Measuring range | 0~1250um |
| Accuracy | ±(3%H+1)um |
| Resolution | 0.1um (0~99.9um); 1um (100~1250um) |
| Measurement method | Single/Continuous |
| Measurement mode | Max/Min/Avg |
| Metal type | Ferrous/ non-ferrous |
| Features | |
| Display type | 2.0-inches TFT LCD (320 x 240 pixels) |
| LCD brightness control | √ |
| Auto rotatable screen | √ |
| Unit conversion | √ |
| Audio alarm | √ |
| LED alarm | √ |
| PC analysis software | √ |
| USB communication | √ |
| Quick test mode | √ |
| Data storage | 500 groups |
| Auto power off | √ |
| Low battery indication | √ |
| General Characterisitics | |
| Power | 1.5V AA battery x 2 |
| Display | 48mm x 36mm |
| Product color | Red and grey |
| Product net weight | 175g |
| Product size | 153.5mm x 64.5mm x 41mm |
| Standard accessories | Micro USB interface cable, standard piece, batteries, cloth bag |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 355mm x 320mm x 195mm |
| Standard carton gross weight | 7.5kg |
Documents
Tittle
Download
Software
Tittle
Download
Related Products
-
UT343E Coating Thickness Gauge
Measuring range up to 2000µm, and data can be analyzed by Bluetooth APP and PC software of mobile phonesLearn moreCompare ModelsCompare: -

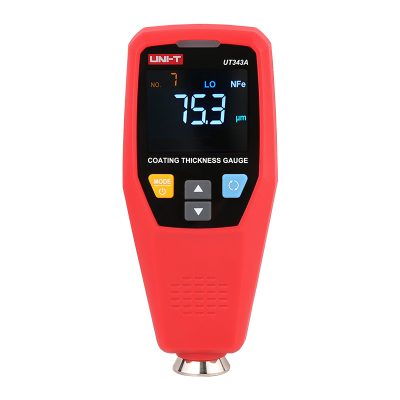

UT343A Coating Thickness Gauge
