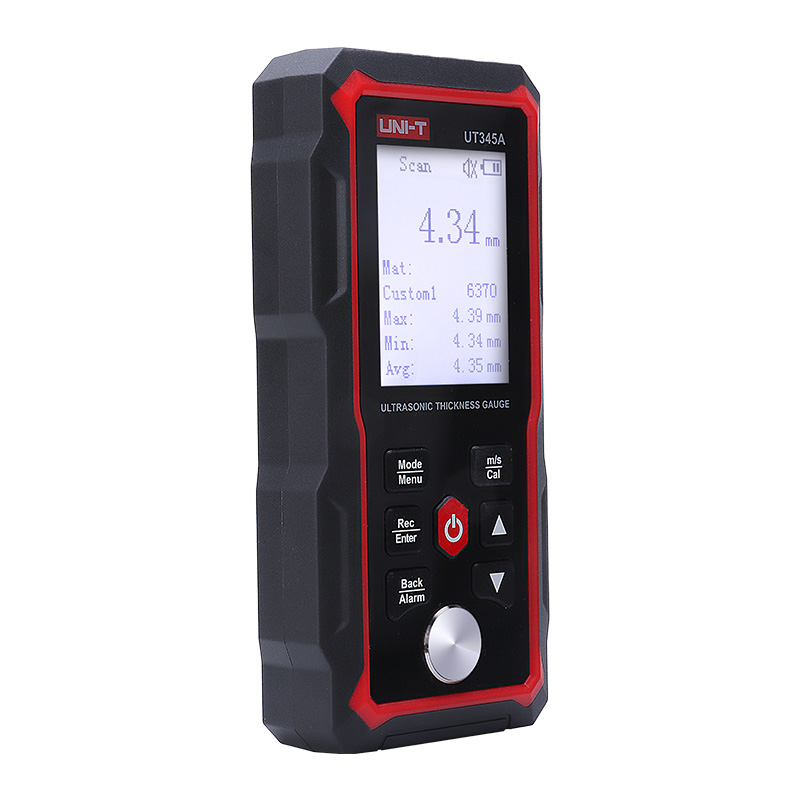

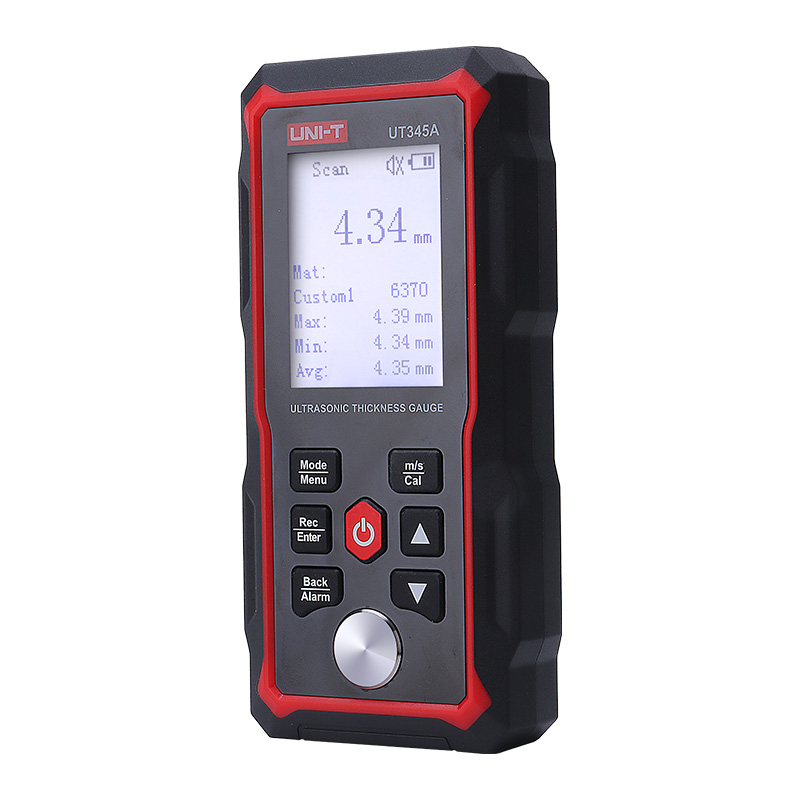

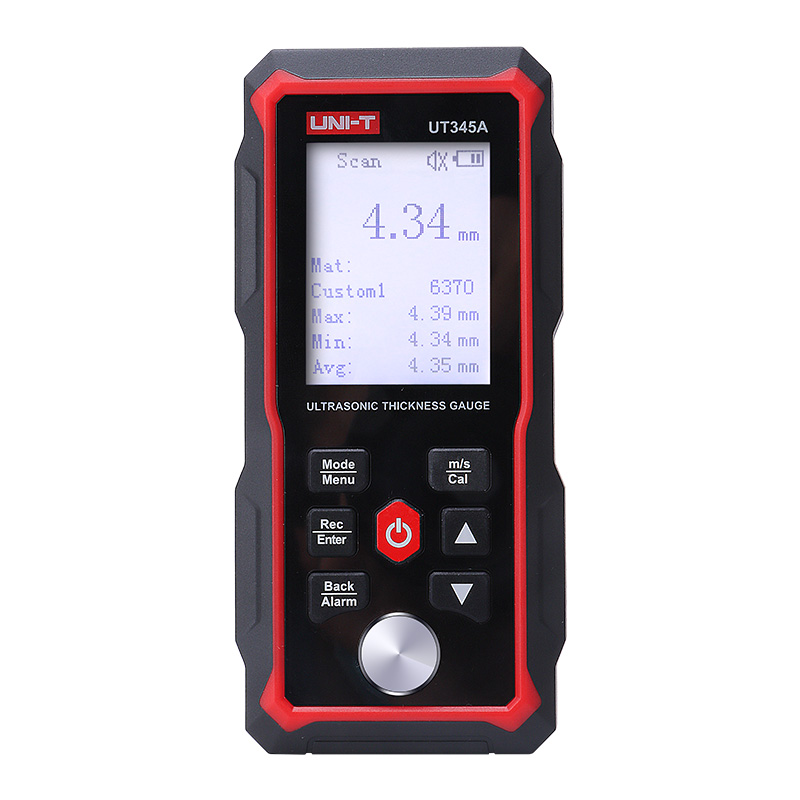

UT345A Ultrasonic Thickness Gauge

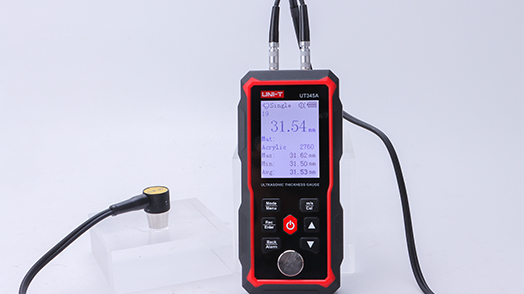

UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields.
Description
Features of UT345A Ultrasonic Thickness Gauge
● 3.7V 2000mAh lithium battery
● Auto calibration
● 300 groups of data storage
● High-sensitive probe
● Buzzer alarm
● Multiple materials selection
● Main functions: single measurement, continuous measurement, alarm, sound velocity measurement, auto-calibration
Specifications of UT345A Ultrasonic Thickness Gauge
| Specifications | |
| Display | 2.4″ LCD |
| Measurement range | 1.00~300.00mm |
| Sound velocity range | (1000～9999) m/s |
| Unit | mm/in |
| Accuracy | H<10mm, ±0.1mm; H≥10mm, ±(1%H+0.1)mm |
| Lower limit of pipe measurement | Φ20×3mm (steel) |
| Data storage | 300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group |
| Main functions | Single measurement, continuous measurement, alarm, sound velocity measurement, auto calibration |
| Charging specification | DC 5V 1A, Type-C interface |
| Operating time (full battery) | About 16h |
| Operating temperature and humidity | 0℃~40℃ 10%RH~80%RH |
| Storage temperature and humidity | -10℃~50℃ 10%RH~70%RH |
| General Characteristics | |
| Battery | Built-in lithium battery (3.7V 2000mAh) |
| Product color | Red and grey |
| Product net weight | 175g |
| Product size | 140×66×28.5mm |

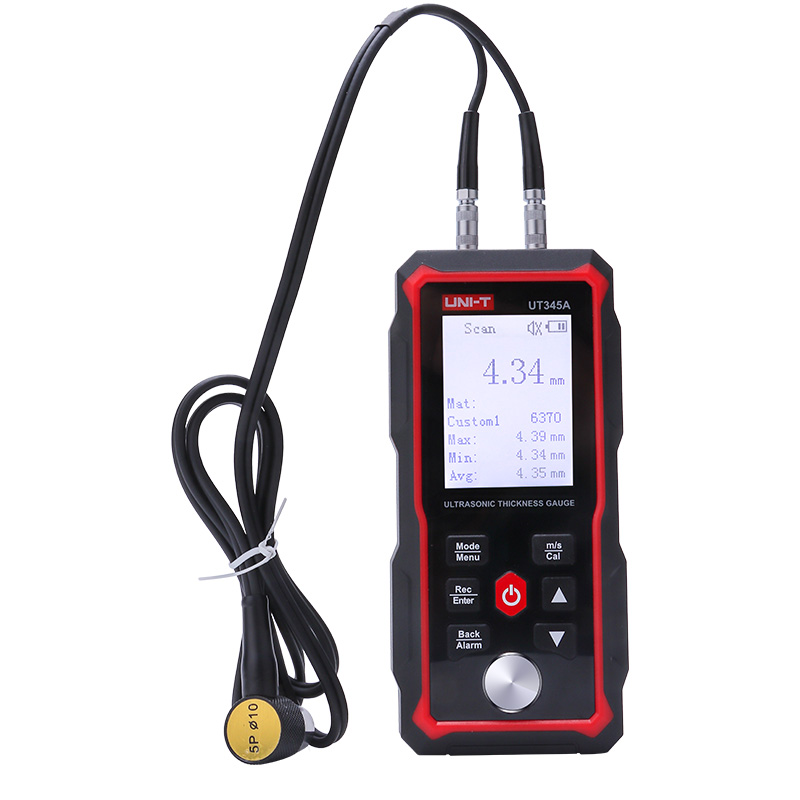

| Standard accessories | Type-C charging cable, Probe |
| Standard individual packing | Gift box, English manual, Cloth case |
| Standard quantity per carton | 5pcs |
| Gross weight (one carton) | 3.09kg |
