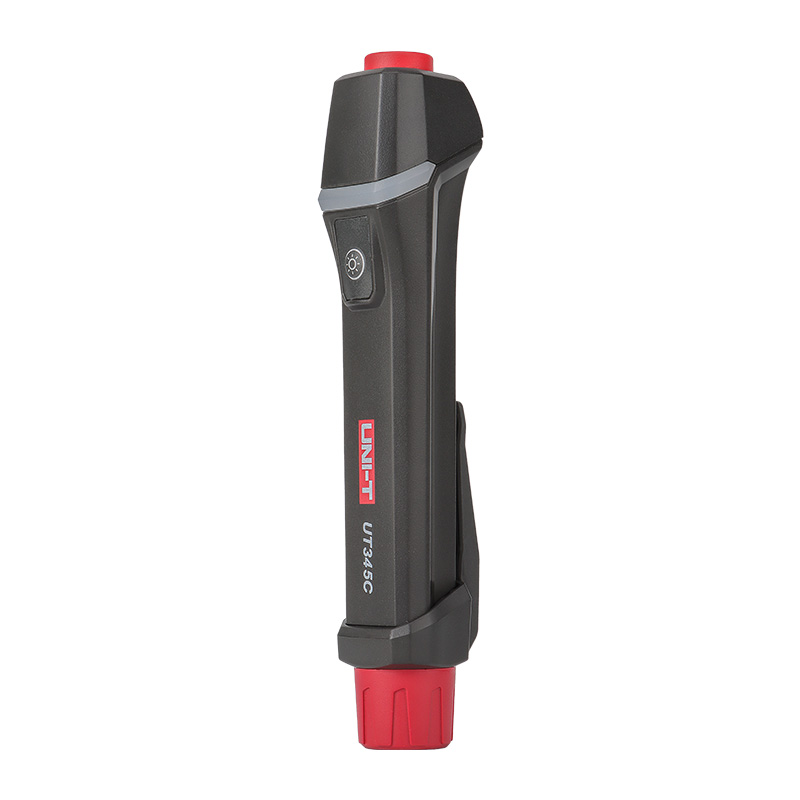

UT345C LPG Tank Level Checker
UT345C is a portable ultrasonic measuring device. It can quickly determine the filling level of liquefied gas bottles by LED indication. It can be used in food processing places, camps or barbecues, gas bottle sales, catering services and other places where gas bottles are used.
Description
Features of UT345C LPG Tank Level Checker
Certificates: CE, UKCA
Languages: EN, FR, DE, IT, ES, SV, PL, CZ
● Pen-like design
● Compact and portable
● Simple determination without additional accessories required

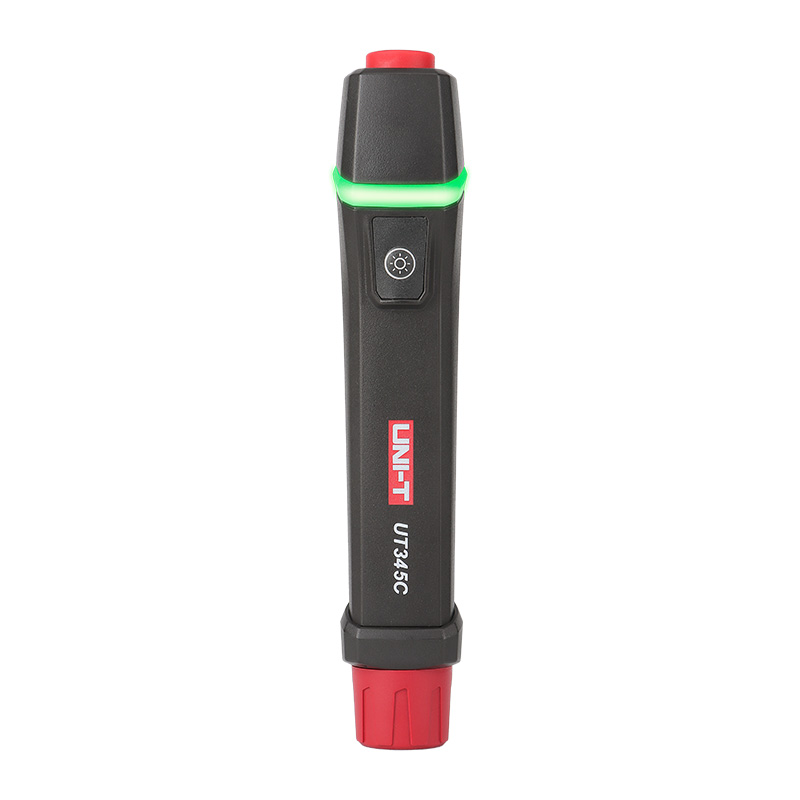

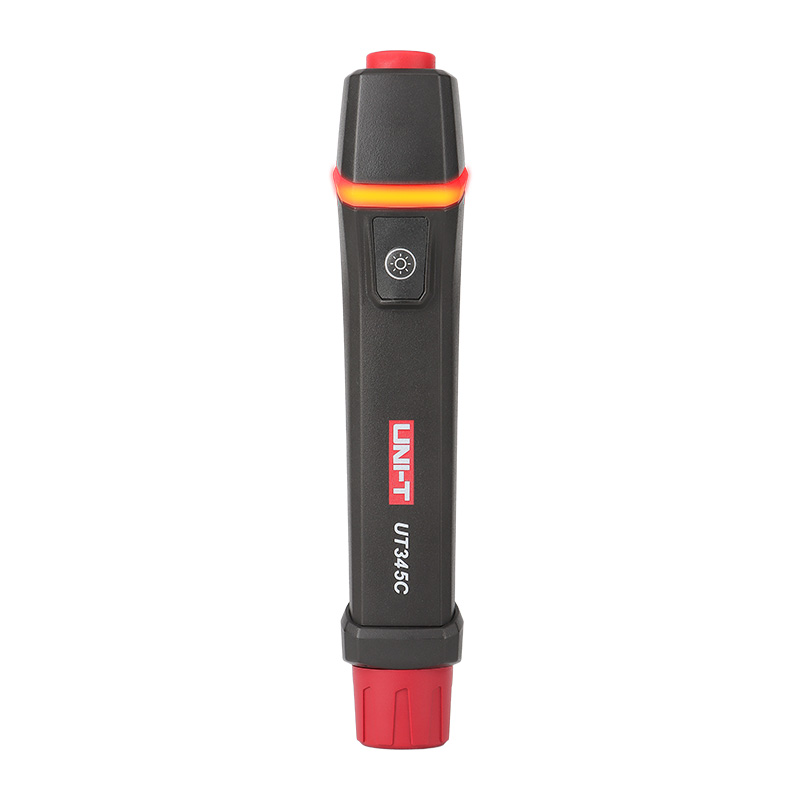

● Red and green LED indication
● Easy to measure without moving the gas bottles

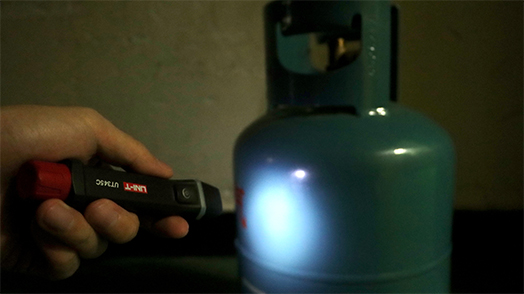

● Flashlight design
Specifications of UT345C LPG Tank Level Checker
| Features | |
| Applicable gas tanks/bottles | Steel and aluminum standard propane or butane LPG (liquefied petroleum gas) storage tanks with 8-14 inches (approx. 200-350mm) in diameter |

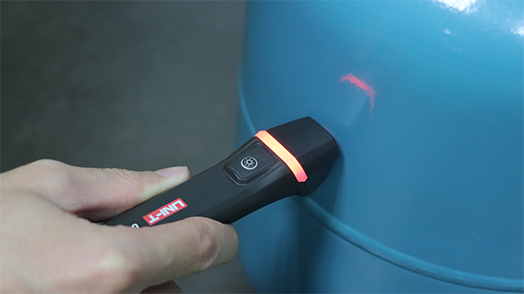

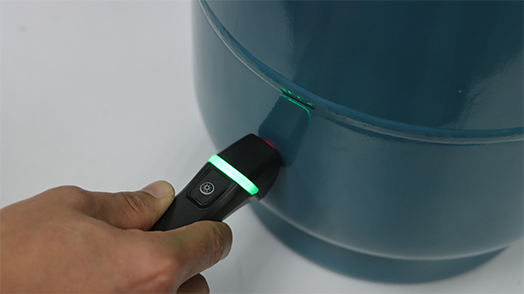

| LED color | Green: There is liquefied gas at this level Red: No liquefied gas at this level Green/red flashing: Measuring |

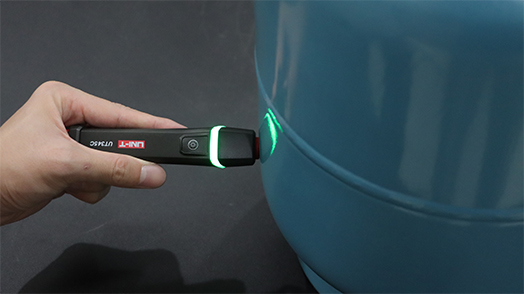

| Measurement method | Press the probe 90 degrees vertically at different positions of the bottle to measure and then check the LED color |
| Sound | √ |
| Operating temperature/humidity | -15~40°C ≤85%RH |
| Storage temperature | -10~60°C ≤75%RH |
| Drop test | 0.5m |
| General Characteristics | |
| Product color | Red and grey |
| Product weight | TBD |
| Product size | 28×32×143mm |
| Battery type | AAA (LR03) 1.5V×2 |
| Standard accessories | User manual, safety instruction |
| Standard carton measurment | 275×255×270mm |
| Standard quantity per carton | 20pcs |
