UT360 Series Anemometers

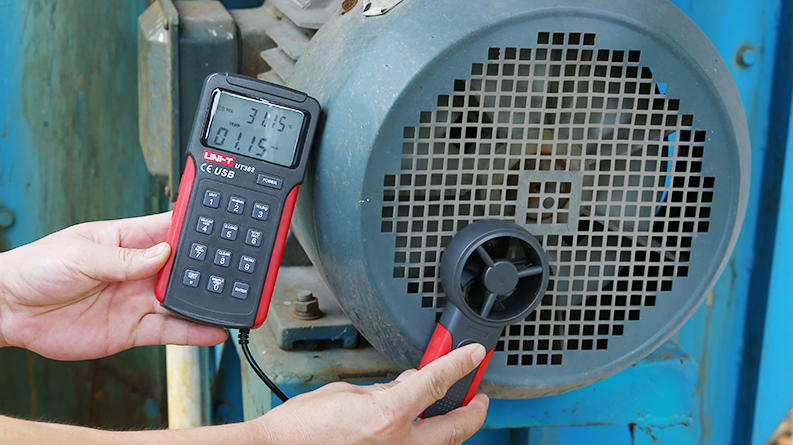

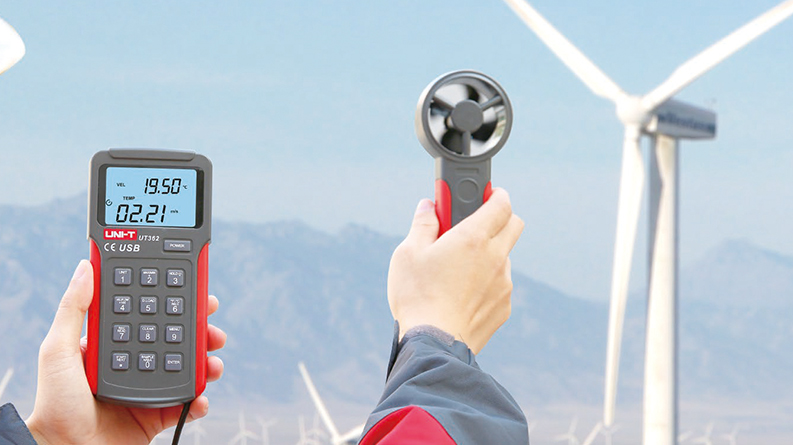

UT360 series anemometers can measure temperature, wind speed, and wind count. These meters can be used in energy saving, HVAC, fishing and other industries that use exhaust or ventilation systems.

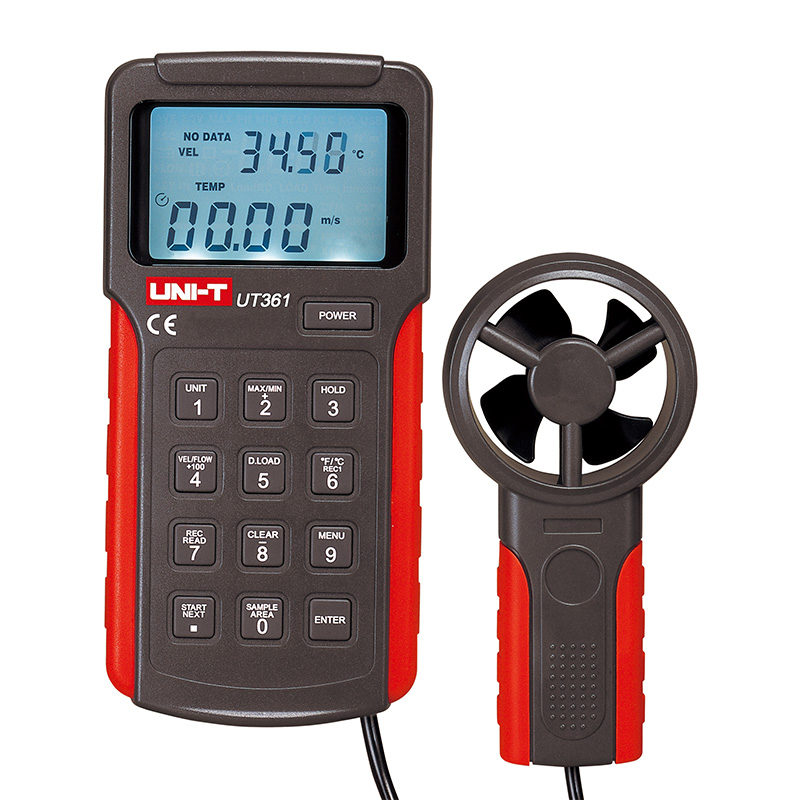

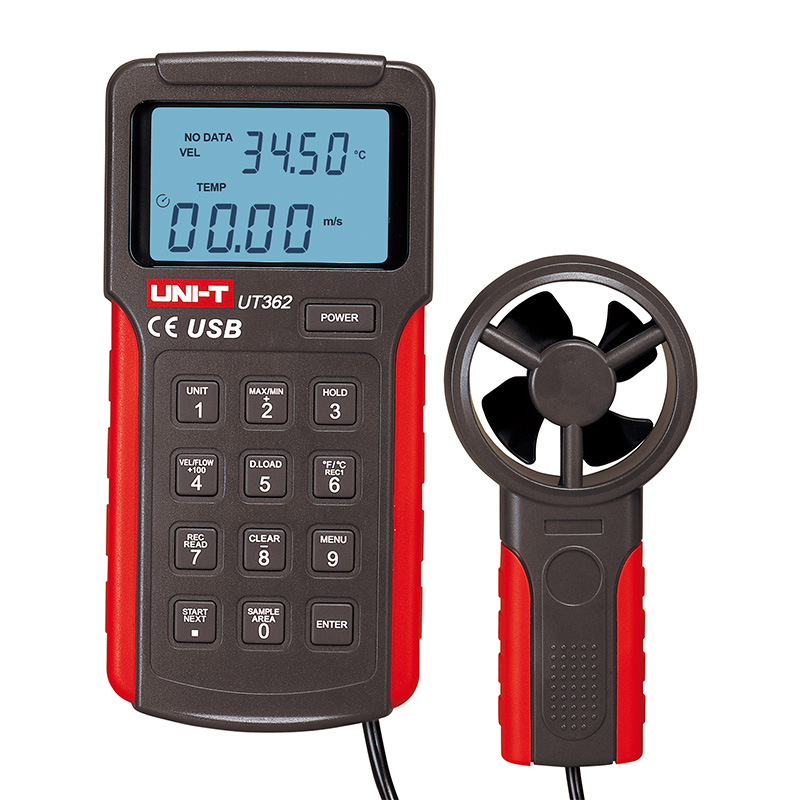

Models in UT360 Series: UT361, UT362
Description
Features of UT360 Series Anemometers
Certificates: CE, UKCA
● Data hold, LCD backlight
● ℃/℉ selectable
● Auto power off (cancelable)
● 2044 sets data storage
● Auto record function with 0 .5~255s interval
● Wearproof fan shaft for improved accuracy and reliability
● Wind speed modes: MAX, MIN, Real-time
● Wind count modes: MAX, 2/3 MAX, MIN, AVG, real-time
● 7 selectable units: m/s, km/h, ft/min, MPH, KNOTS, CFM, CMM
Specifications of UT360 Series Anemometers
| Specifications | Range | UT361 | UT362 |
| Wind speed measurement | 2m/s~10m/s | ±(3%+0.5) | ±(3%+0.5) |
| 10m/s~30m/s | ±(3%+0.8) | ±(3%+0.8) | |
| Wind count measurement (CMM) | 0.001~9999 x 100 | √ | √ |
| Wind count measurement (CFM) | 0.001~9999 x 100 | √ | √ |
| Temperature measurement | 0°C~40°C (32°F~104°F) | ±3°C (±4°F) | ±3°C (±4°F) |
| Features | |||
| Display count | 10000 | 10000 | |
| Data hold | √ | √ | |
| Auto power off | Around 10 minutes | √ | √ |
| Low battery indication | ≤7.2V | √ | √ |
| MAX/MIN mode | √ | √ | |
| Data storage | 2044 | 2044 | |
| USB interface | √ | ||
| Auto record time setup | √ | √ | |
| Units switch | √ | √ | |
| LCD backlight | √ | √ | |
| Wind speed display | Display “VEL” | √ | √ |
| Wind count display | Display “FLOW” | √ | √ |
| General Characterisitics | |||
| Power | 9V battery (6F22) | ||
| Display | 57mm x 37mm | ||
| Product color | Red and grey | ||
| Product net weight | 375g | ||
| Product size | 162mm x 78mm x 30mm | ||
| Standard accessories | Battery, USB interface cable (UT362), PC software CD (UT362), carrying bag | ||
| Standard individual packing | Gift box, English manual | ||
| Standard quantity per carton | 10pcs | ||
| Standard carton measurement | 460mm x 335mm x 210mm | ||
| Standard carton gross weight | 6.8kg | ||
