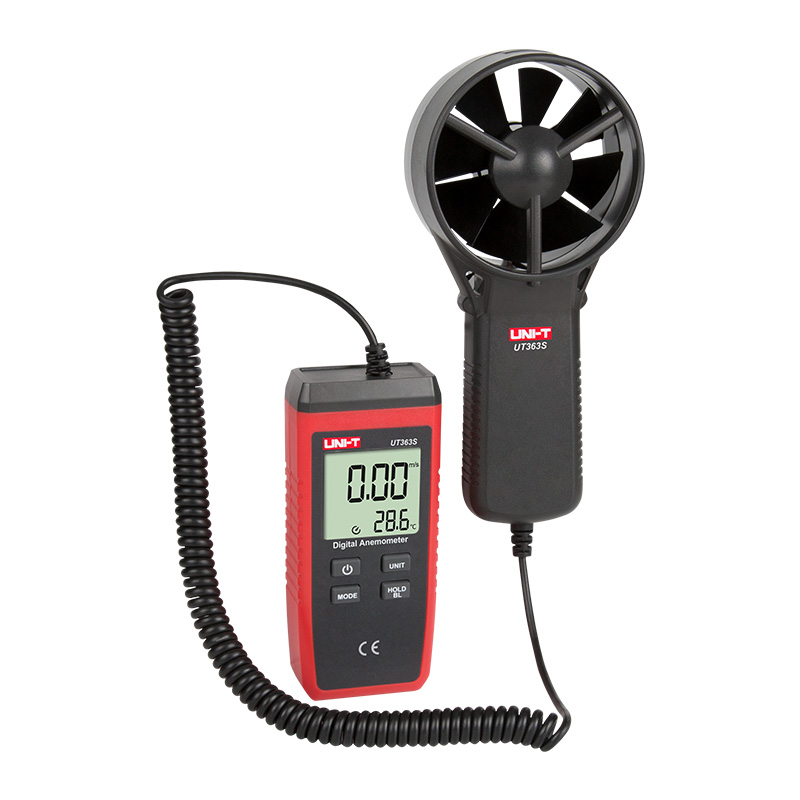

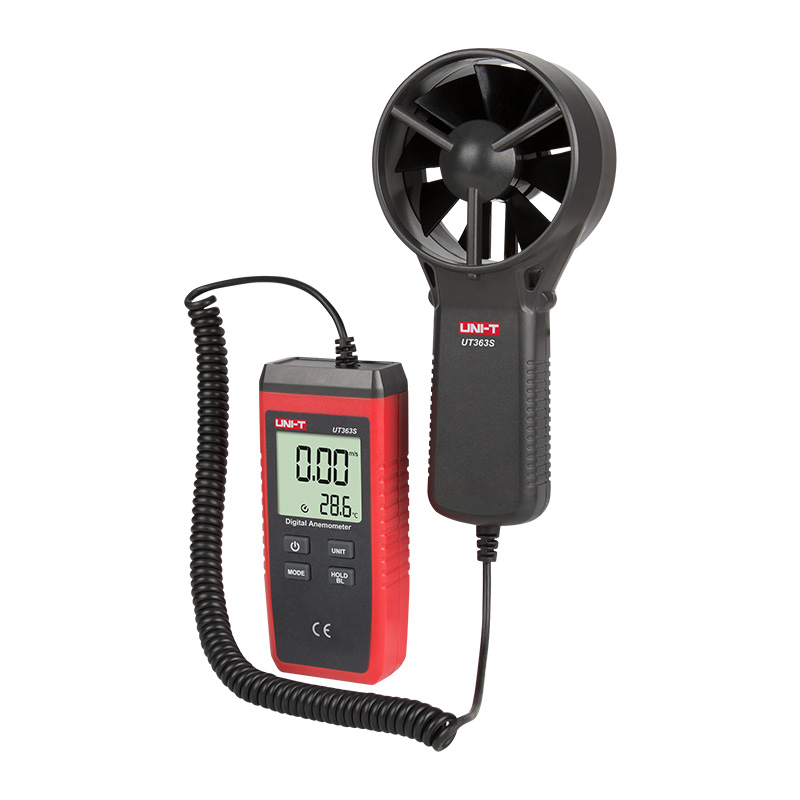

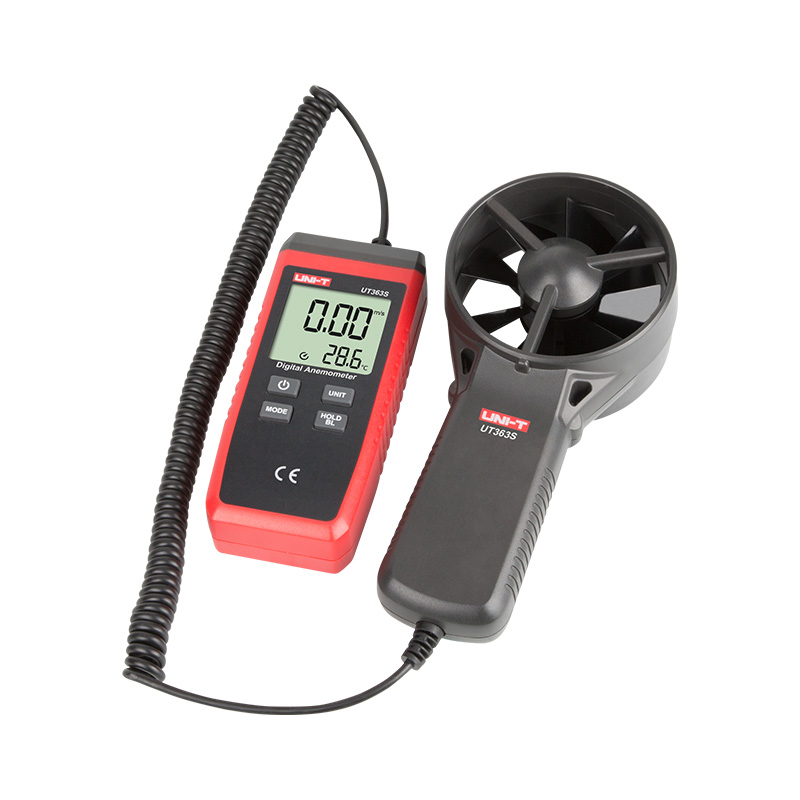

UT363S Digital Anemometer

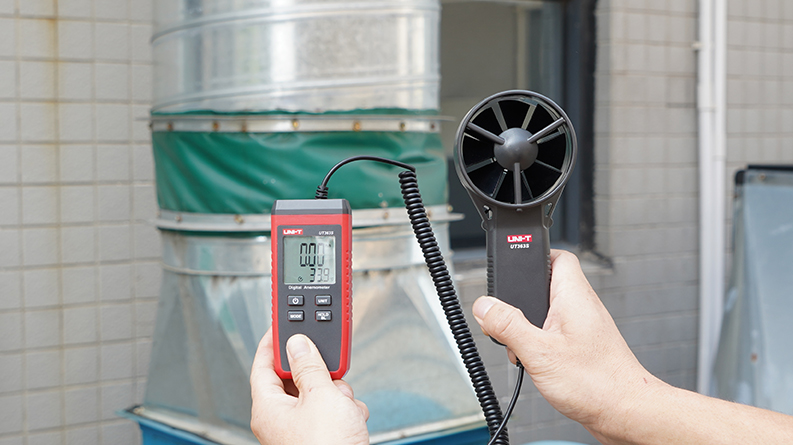

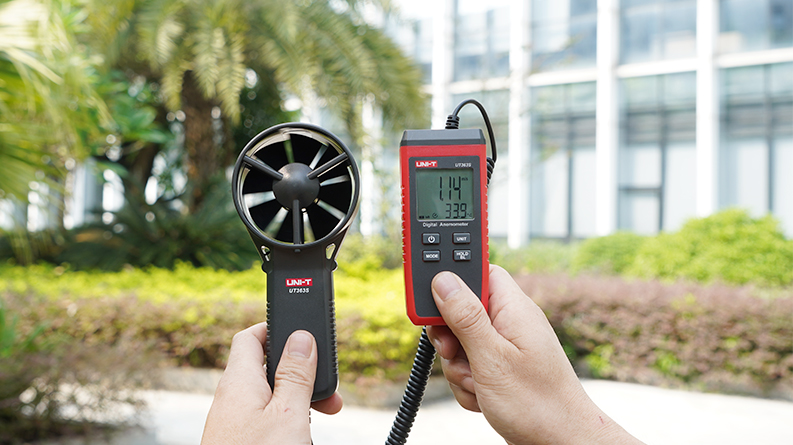

UT363S is a stable, safe and reliable split-type anemometer, featuring quick detection, low consumption and high accuracy. It can be widely used in mining, electric, iron and steel, petrochemical, energy-saving, navigation, fan manufacturing, exhaust ventilation, sporting and more sectors.
Description
Features of UT363S Digital Anemometer
Certificates: CE, UKCA
● Precise wind speed sensor
● Wind scale display, wind temperature measurement
● Split type
● Large LCD display
● Max/Min/Avg modes
● 1m drop test
Specifications of UT363S Digital Anemometer
| Specifications | Range | Resolution | Accuracy |
| Wind speed | 0.4~30m/s | 0~99: 0.01 100~999: 0.1 ≥1000: 1 |
±(5%+0.5m/s) |
| 1.4~108km/h | ±(5%+1.5km/h) | ||
| 78~5905ft/min | ±(5%+100ft/min) | ||
| 0.7~58knots | ±(5%+1knots) | ||
| 0.8~67mph | ±(5%+1mph) | ||
| Temperature | -10~50℃ | 0.1℃ | ±2.0℃ |
| 14~122℉ | 0.2℉ | ±4.0℉ | |
| Wind scale | 0~12 | 1 | ±1 |
| Features | |||
| Sampling rate | 0.5s | ||
| Units | m/s, km/h, ft/min, knots, mph, ℃/℉ | ||
| Overload indication | √ | ||
| Auto range | √ | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Data hold | √ | ||
| MAX/MIN/AVG | √ | ||
| Backlight | √ | ||
| Working temperature | 0℃~40℃ | ||
| 1m drop test | √ | ||
| General Characterisitics | |||
| Power | 1.5V battery (R03) x 3 | ||
| Display | 35mm x 32mm | ||
| Product color | Red and grey | ||
| Product net weight | 365g | ||
| Product size | 120mm x 53mm x 43mm | ||
| Standard accessories | Batteries | ||
| Standard individual packing | Gift box, blister, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 550mm x 295mm x 350mm | ||
| Standard carton gross weight | 7.2kg | ||
