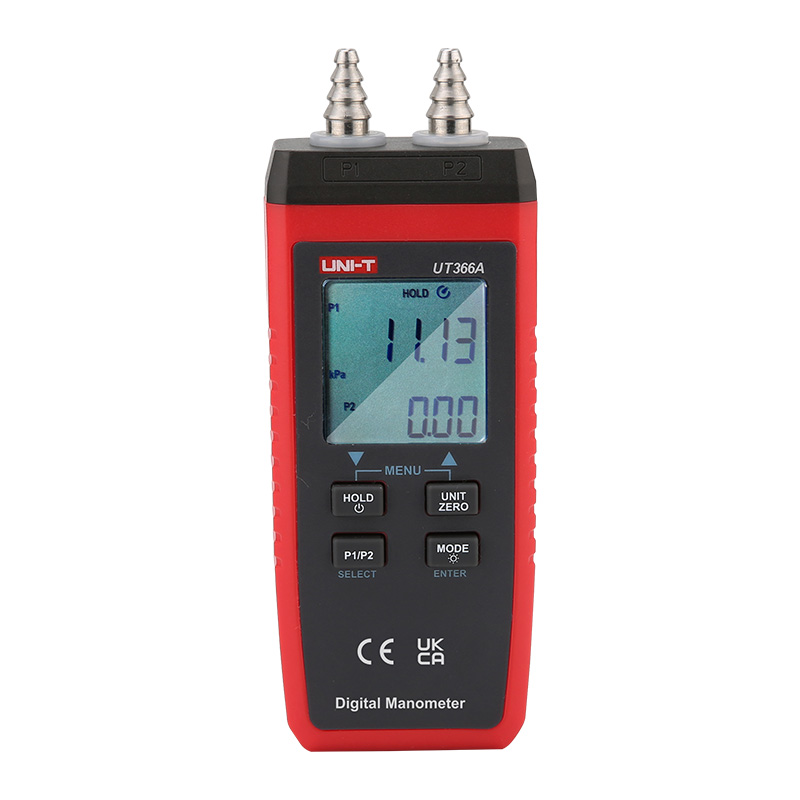

UT366A Digital Manometer

UT366A is an instrument for measuring gauge pressure and differential pressure. UT366A can measure P1/P2 pressure independently with LED indication. It can be widely used in industrial manufacturing, HVAC, plumbing and other industries. Combined with an optional pitot tube, UT366A can also measure wind speed.

Category:

Description

Features of UT366A Digital Manometer

Certificates: CE, UKCA

● Low battery indication
● Unit memory
● Auto power off
● LCD backlight

● LED Indicator Lights
● MAX/MIN/AVG/HOLD
● P1/P2 measure independently
● Wind speed measurement (Optional)

Specifications of UT366A Digital Manometer

Specifications Range UT366A
Certifications CE,UKCA
Resolution 0.00 ~ ±15.00 kPa 0.01 kPa
0.0 ~ ±150.0 mbar 0.1 mbar
0.000 ~ ±0.150 bar 0.001 bar
0.000 ~ ±2.175 psi 0.001 psi
0.0  ~  ±112.5 mmHg 0.1 mmHg
0.00 ~ ±60.29 inH2O 0.01 inH2O
0.000 ~ ±4.429 inHg 0.001 inHg
0.00 ~ ±34.80 ozin² 0.01 ozin²
0.000 ~ ±0.152 kgcm² 0.001 kgcm²
0.000 ~ ±5.026 ftH2O 0.001 ftH2O
0.0 ~ ±1531 mmH2O 1 mmH2O
0.0 ~ ±150.0 hPa 0.1 hPa
0.0~ 19999.9 m/s 0.1 m/s
0~ 199999 fpm 1 fpm
Accuracy ±0.5% FS@25℃
Unit conversion kPa, mbar, bar, psi, mmHg, inH2O, inHg, ozin2, kgcm2, ftH2O, mmH2O, hPa, m/s(fpm)
Auto power off 5 Minutes
Low battery indication Support
LCD Type FSTN
Backlight White
Drop test 1m
LED Indication Positive pressure: green light; Negative pressure: red light
Operating temperature/humidity 0~50℃ ≤85%RH
Storage temperature/humidity ­10~60℃ ≤75%RH
General characteristics
Power 3 *1.5V (AAA )
LCD Size 31*32mm
Product color Red and gray
Product size 53*30*137.8mm
Standard accessories Battery, hose, carrying bag, magnetic hook
Standard individual packing Gift box, carrying bag, manual
Standard quantity per carton 10

Applications of UT366A Digital Manometer

UT366A application 1
UT366A application 2
