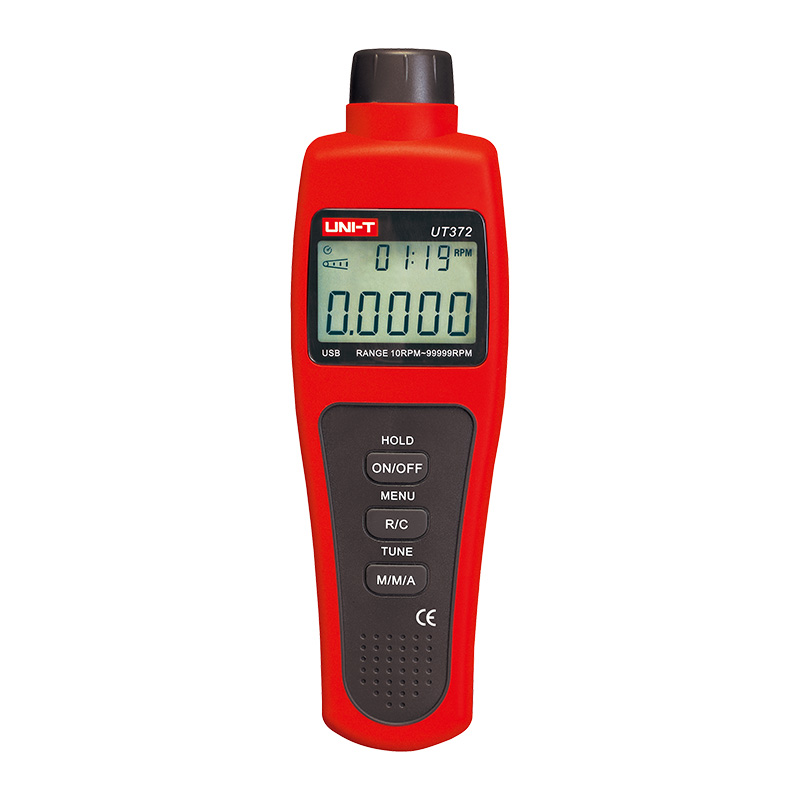

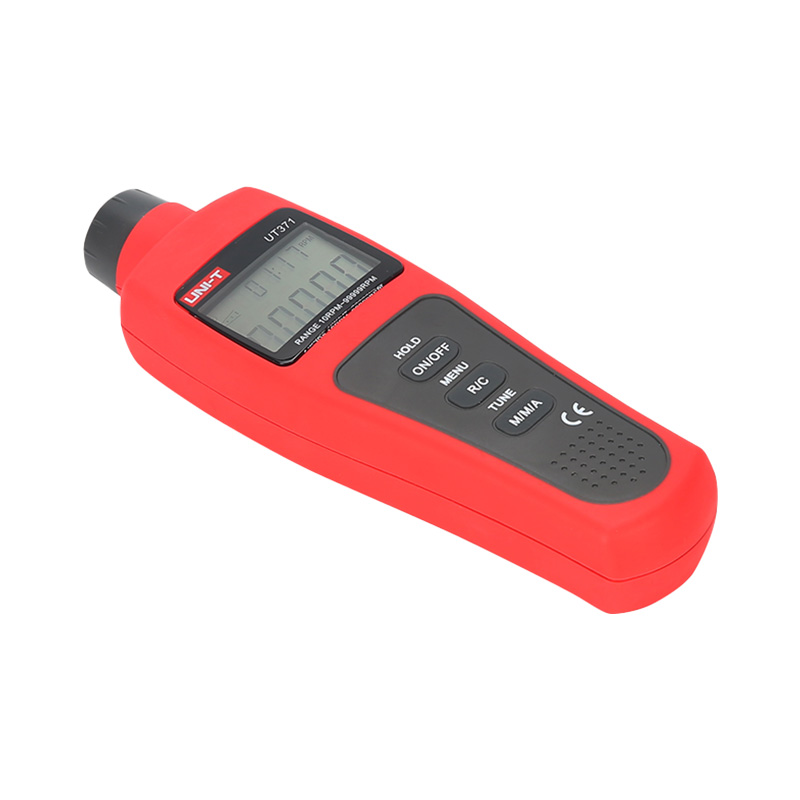

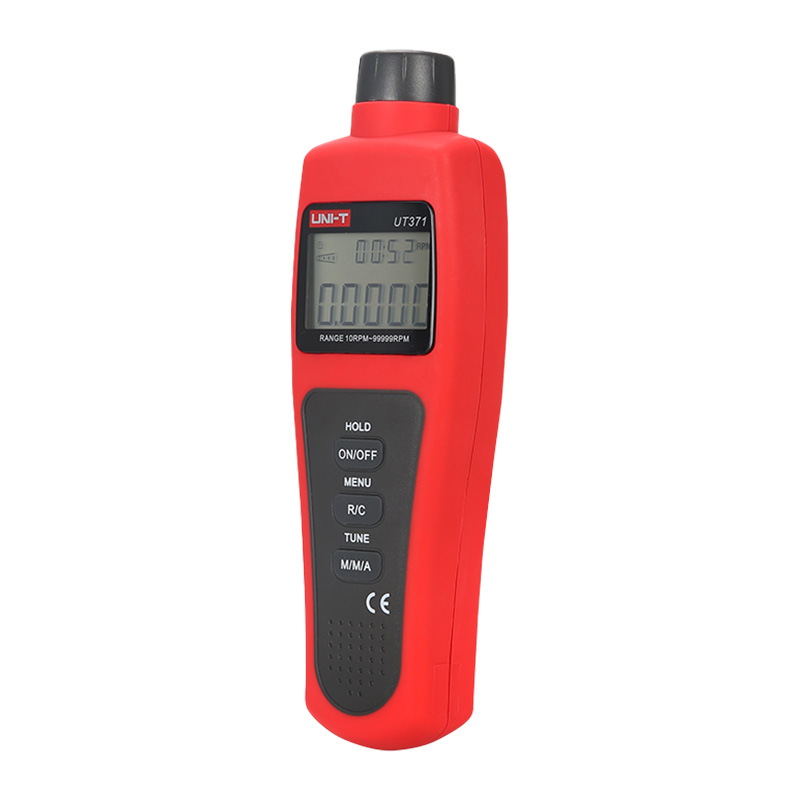

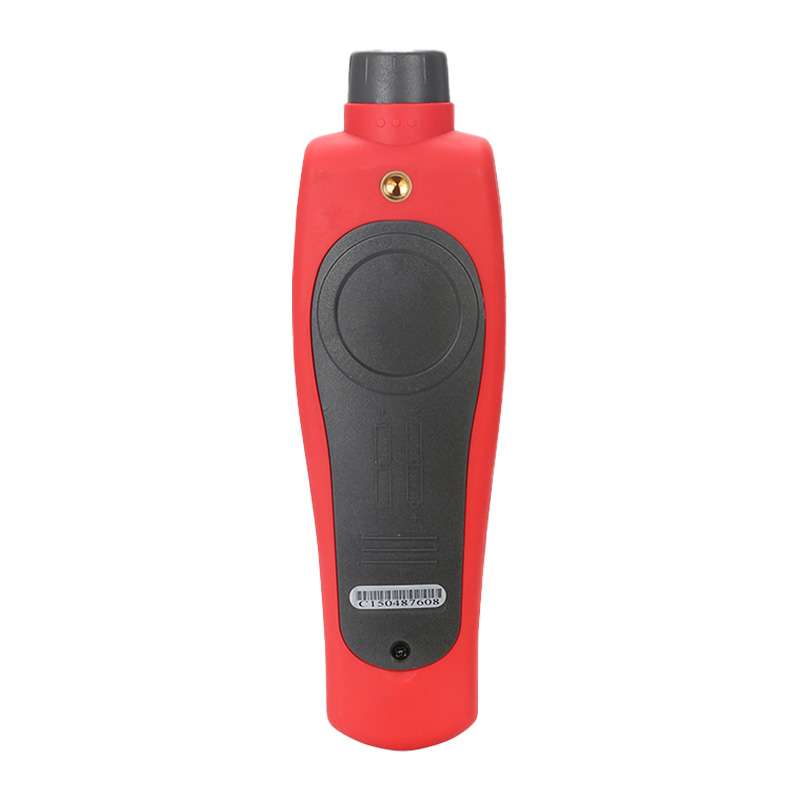

UT370 Series Tachometers

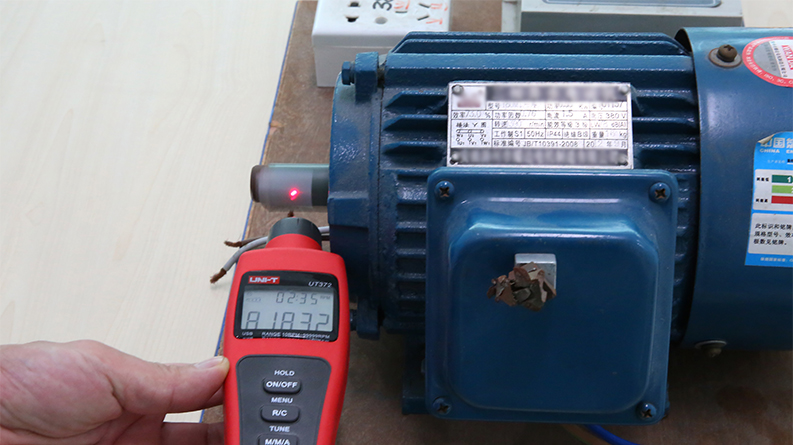

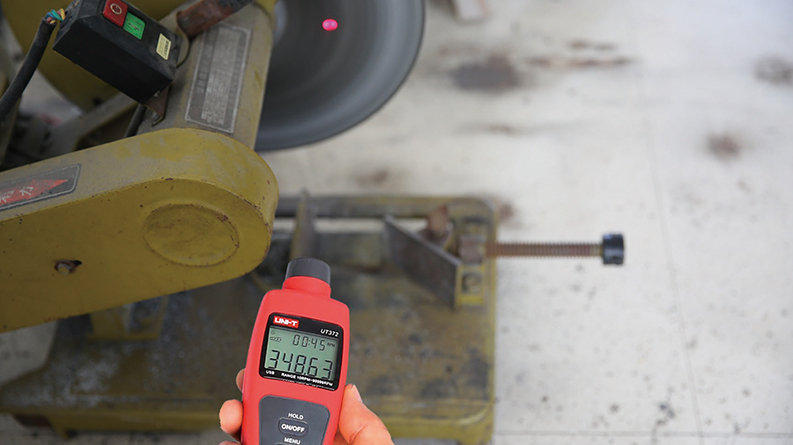

UT370 series non-contact tachometers measure rotating speed of shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or count readouts without interfering with the equipment being measured.
Models in UT370 Series: UT371, UT372
Description
Features of UT370 Series Tachometers
Certificates: CE, UKCA
● 5 digits LCD screen, RPM/count and time dual display
● MAX/MIN/AVG/normal modes
● Adjustable sampling rate (0.5-255s)
● Auto power off (cancelable)
● Optional (on/off) laser pointer
● Clock and time setting
● Data hold, low power consumption, continuous work for 40hrs
Specifications of UT370 Series Tachometers
| Specifications | Range | UT371 | UT372 |
| RPM range | 10RPM~99RPM | ±(0.03%) | ±(0.03%) |
| 100RPM~999RPM | ±(0.04%＋2) | ±(0.04%＋2) | |
| 1000RPM~9999RPM | ±(0.04%＋2) | ±(0.04%＋2) | |
| 10000RPM~99999RPM | ±(0.04%＋2) | ±(0.04%＋2) | |
| Counts | Range: 0~99999 | √ | √ |
| Max. input frequency: 10kHz; bandwidth: 5% | |||
| Target distance | 50mm~200mm | √ | √ |
| Features | |||
| Display count | 100000 | 100000 | |
| Data hold | √ | √ | |
| Auto power off | Around 15 minutes | √ | √ |
| Low battery indication | ≤4.8V | √ | √ |
| MAX/MIN/AVG mode | √ | √ | |
| USB interface | √ | ||
| General Characterisitics | |||
| Power | 1.5V battery (LR6) X 4 | ||
| Display | 53mm x 41mm | ||
| Product color | Red and grey | ||
| Product net weight | 100g | ||
| Product size | 184mm x 56mm x 34mm | ||
| Standard accessories | Reflective tape, USB interface cable (UT372), PC software CD (UT372) | ||
| Standard individual packing | Blister, English manual | ||
| Standard quantity per carton | 20pcs | ||
| Standard carton measurement | 420mm x 305mm x 370mm (0.047CBM per standard carton) | ||
| Standard carton gross weight | 5kg | ||
Documents
Tittle
Download
Software
Tittle
Download
Related Products
-
UT360 Series Anemometers
Used in energy saving, HVAC, fishing and other industries that use exhaust or ventilation systemsLearn moreCompare ModelsCompare: -

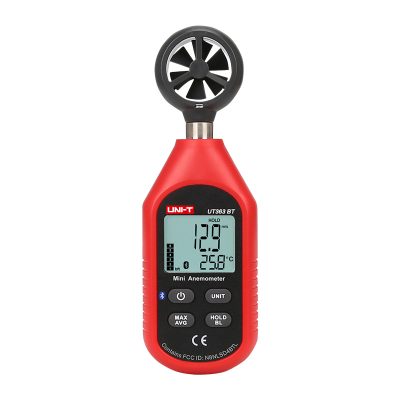

UT363/UT363BT Mini Anemometers
