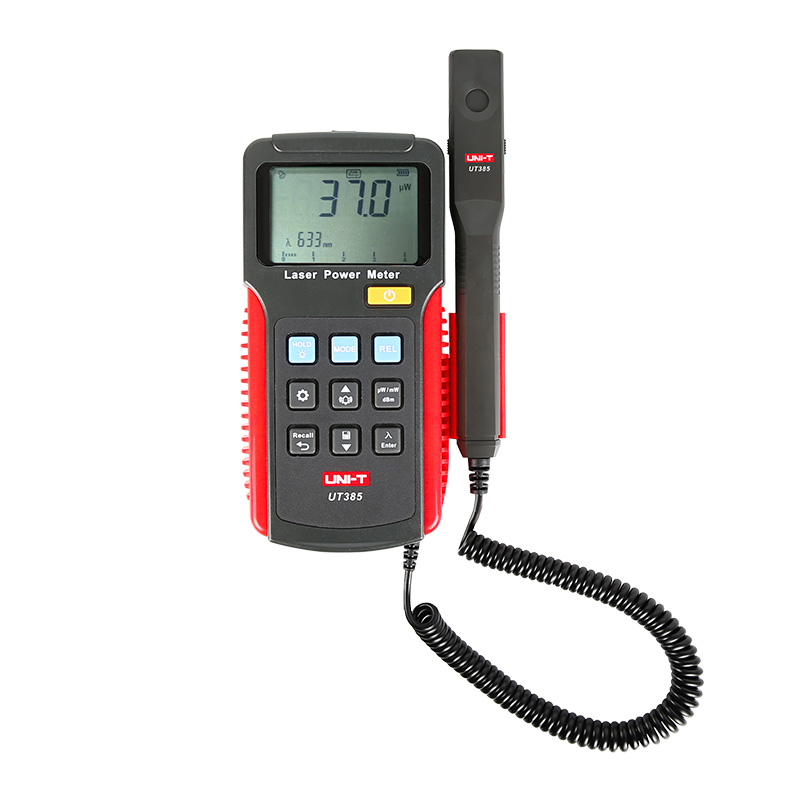

UT385 Laser Power Meter
UT385 laser power meter is used to measure the energy output of laser beams for testing or laser system applications. It uses detection sensor to determine the intensity of a laser beam’s energy output.
Description
Features of UT385 Laser Power Meter
Certificates: CE, RoHS
● Precise laser sensor
● Split design with retractable spring wire
● LCD screen for clear readings
● Data storage function
● Selectable and customizable wavelengths
● Threshold alarm function
● Low power consumption
Specifications of UT385 Laser Power Meter
| Specifications | Range |
| Certificates | CE, RoHS |
| Measurement range | 0uW~39.99mW |
| Measurement accuracy | 0uW~10uW: ±(5%+0.3); 10uW~39.9mW: ±5% |
| Laser wavelength range | 400nm~1100nm |
| Laser wavelength preset options | 520nm, 633nm, 650nm, 780nm |
| LCD display | 4-digit LCD display |
| Sampling rate | 0.5s |
| Data storage | 199 sets |
| Battery level indication | √ |
| LCD backlight | √ |
| Auto power off | √ |
| Operating temperature | 0~40°C |
| Operating humidity | 80%RH (no condensation) |
| Storage temperature | -10°C~50°C |
| General Characteristics | |
| Power | 9V battery (6F22) |
| Display | 57mm x 37mm |
| Product net weight | 319g |
| Product size | 198mm x 104mm x 35mm |
| Standard accessories | Battery, USB cable, documents download guide, English manual |
| Standard individual packing | Gift box, tool box |
| Standard quantity per carton | 1pcs |
| Standard carton measurement | 305mm x 240mm x 85mm |
| Standard carton gross weight | 1.24kg |
