This product has been discontinued. Replaced by UT133 Series .

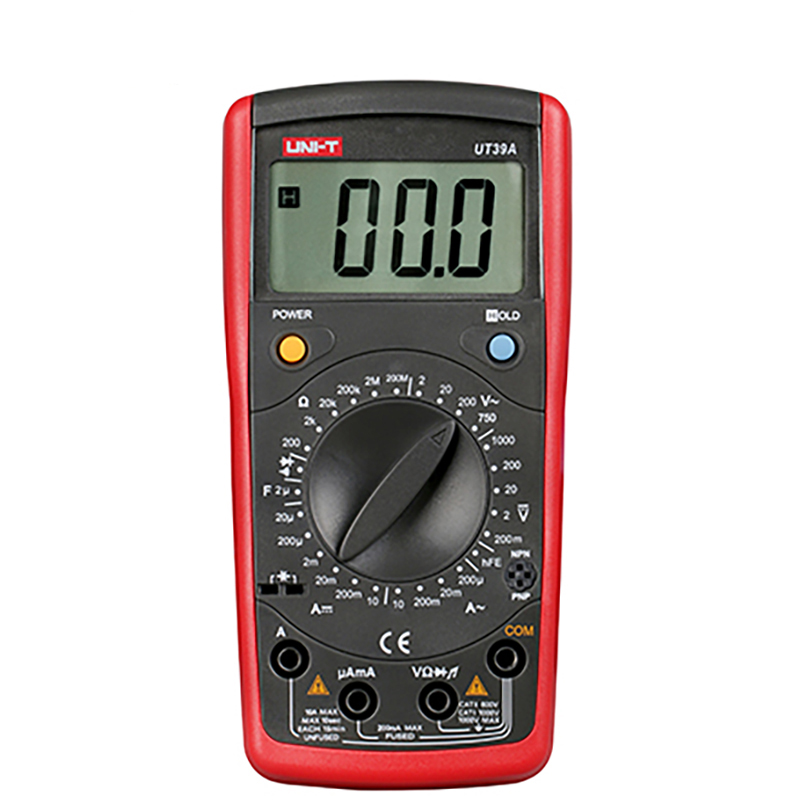

UT39 Series Modern Digital Multimeters (Discontinued)
Models in UT39 Series: UT39A, UT39B, UT39E
Description
Features of UT39 Series Modern Digital Multimeters
● Diode test
● Data hold
● Auto power off
● Low battery indication
Specifications of UT39 Series Modern Digital Multimeters
| Specifications | Range | UT39A | UT39B | UT39C | UT39E |
| DC voltage | 200mV/2V/20V/200V/1000V | ±(0.5%+1) | ±(0.5%+1) | ±(0.5%+1) | ±(0.05%+3) |
| AC voltage | 2V/20V/200V/750V | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(0.5%+10) |
| DC current | 2mA/200mA/20A | ±(0.8%+1) | ±(0.5%+5) | ||
| AC current | 2mA/200mA/20A | ±(1%+3) | ±(0.8%+10) | ||
| Resistance | 200Ω/2kΩ/20kΩ/2MΩ/20MΩ | ±(0.8%+1) | |||
| Capacitance | 2nF/200nF/20uF | ±(4%+3) | ±(4%+3) | ||
| Temperature | -40~1000°C | ±(3%+10) | |||
| Frequency | 2kHz~20kHz | ±(1.5%+5) | |||
| Features | |||||
| Max display | 1999 | 1999 | 1999 | 1999 | |
| Manual range | √ | √ | √ | √ | |
| Diode test | √ | √ | √ | √ | |
| Buzzer continuity | √ | √ | √ | √ | |
| Transistor | √ | √ | √ | √ | |
| Data hold | √ | √ | √ | √ | |
| Auto power off | √ | √ | √ | √ | |
| Low battery indication | √ | √ | √ | √ | |
| Input protection | √ | √ | √ | √ | |
| Input imepdance for DCV | Around 10MΩ | √ | √ | √ | √ |
| General Characteristics | |||||
| Power | 9V NEDA 1604/6F22/006P | ||||
| Standard accessories | Test leads, battery, rubber case, English manual, point contact temperature, probe (UT39C) | ||||
| Product size | 172×83×38mm | ||||
| Product weight | 310g (battery included) | ||||
